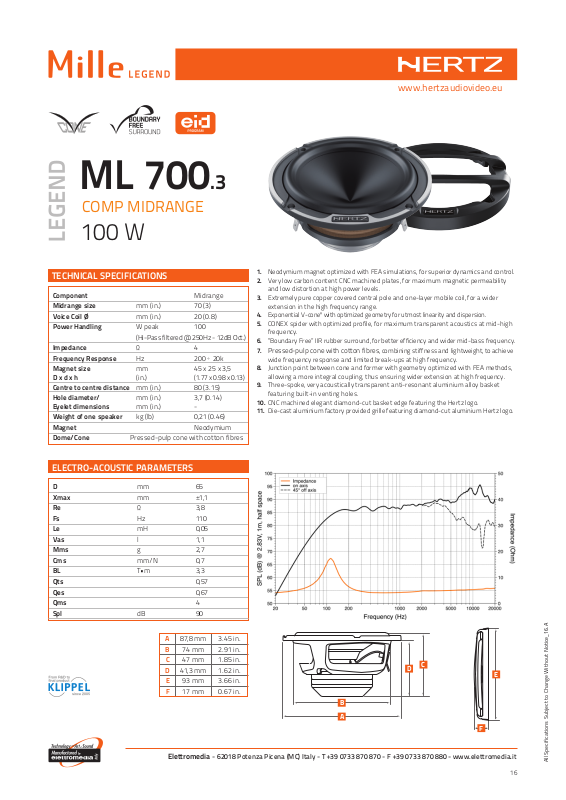

Hertz Mille ML700.3 Legend TECHNICAL SPECIFICATIONS

ML 700.3

COMP MIDRANGE

100 W

www.hertzaudiovideo.eu

TECHNICAL SPECIFICATIONS

Component Midrange
Midrange size mm (in.) 70 (3)
Voice Coil Ø mm (in.) 20 (0.8)
Power Handling W peak 100

(Hi-Pass filtered @ 250Hz - 12dB Oct.)

Impedance Ω 4
Frequency Response Hz 200 ÷ 20k
Magnet size mm 45 x 25 x 3,5

D x d x h (in.)
Centre to centre distance mm (in.) 80 (3.15)
Hole diameter/ mm (in.) 3,7 (0.14)

Eyelet dimensions mm (in.) ­Weight of one speaker kg (lb) 0,21 (0.46)
Magnet Neodymium
Dome/Cone Pressed-pulp cone with cotton fibres

(1.77 x 0.98 x 0.13)

ELECTRO-ACOUSTIC PARAMETERS

D mm 65
Xmax mm ±1,1
Re Ω 3,8
Fs Hz 110
Le mH 0,05
Vas l 1,1
Mms g 2,7
Cms mm/N 0,7
BL T•m 3,3
Qts 0,57
Qes 0,67
Qms 4
Spl dB 90

1. Neodymium magnet optimized with FEA simulations, for superior dynamics and control.

2. Very low carbon content CNC machined plates, for maximum magnetic permeability

and low distortion at high power levels.

3. Extremely pure copper covered central pole and one-layer mobile coil, for a wider
extension in the high frequency range.

4. Exponential V-cone® with optimized geometry for utmost linearity and dispersion.

5. CONEX spider with optimized profile, for maximum transparent acoustics at mid-high

frequency.

6. “Boundary Free” IIR rubber surround, for better efficiency and wider mid-bass frequency.

7. Pressed-pulp cone with cotton fibres, combining stiffness and lightweight, to achieve

wide frequency response and limited break-ups at high frequency.

8. Junction point between cone and former with geometry optimized with FEA methods,
allowing a more integral coupling, thus ensuring wider extension at high frequency.

9. Three-spoke, very acoustically transparent anti-resonant aluminium alloy basket
featuring built-in venting holes.

10. CNC machined elegant diamond-cut basket edge featuring the Hertz logo.

11. Die-cast aluminium factory provided grille featuring diamond-cut aluminium Hertz logo.

A 87,8 mm 3.45 in.
B 74 mm 2.91 in.
C 47 mm 1.85 in.
D 41,3 mm 1.62 in.
E 93 mm 3.66 in.
F 17 mm 0.67 in.

B

A

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - www.elettromedia.it

C

D

E

F

All Specifications Subject to Change Without Notice_16.A

16
