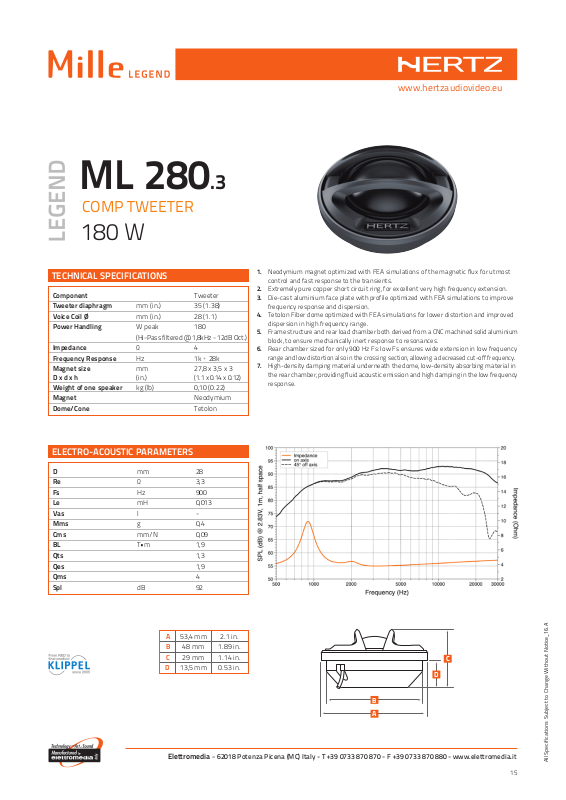

Hertz Mille ML280.3 Legend TECHNICAL SPECIFICATIONS

ML 280.3

COMP TWEETER

180 W

www.hertzaudiovideo.eu

TECHNICAL SPECIFICATIONS

Component Tweeter
Tweeter diaphragm mm (in.) 35 (1.38)
Voice Coil Ø mm (in.) 28 (1.1)
Power Handling W peak 180

(Hi-Pass filtered @ 1,8kHz - 12dB Oct.)

Impedance Ω 4
Frequency Response Hz 1k ÷ 28k
Magnet size mm 27,8 x 3,5 x 3

D x d x h (in.)
Weight of one speaker kg (lb) 0,10 (0.22)
Magnet Neodymium
Dome/Cone Tetolon

(1.1 x 0.14 x 0.12)

ELECTRO-ACOUSTIC PARAMETERS

D mm 28
Re Ω 3,3
Fs Hz 900
Le mH 0,013
Vas l ­Mms g 0,4
Cms mm/N 0,09
BL T•m 1,9
Qts 1,3
Qes 1,9
Qms 4
Spl dB 92

1. Neodymium magnet optimized with FEA simulations of the magnetic flux for utmost

control and fast response to the transients.

2. Extremely pure copper short circuit ring, for excellent very high frequency extension.

3. Die-cast aluminium face plate with profile optimized with FEA simulations to improve

frequency response and dispersion.

4. Tetolon Fiber dome optimized with FEA simulations for lower distortion and improved
dispersion in high frequency range.

5. Frame structure and rear load chamber both derived from a CNC machined solid aluminium

block, to ensure mechanically inert response to resonances.

6. Rear chamber sized for only 900 Hz Fs: low Fs ensures wide extension in low frequency
range and low distortion also in the crossing section, allowing a decreased cut-off frequency.

7. High-density damping material underneath the dome, low-density absorbing material in
the rear chamber, providing fluid acoustic emission and high damping in the low frequency
response.

A 53,4 mm 2.1 in.
B 48 mm 1.89 in.
C 29 mm 1.14 in.
D 13,5 mm 0.53 in.

B

A

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - www.elettromedia.it

C

D

All Specifications Subject to Change Without Notice_16.A

15
