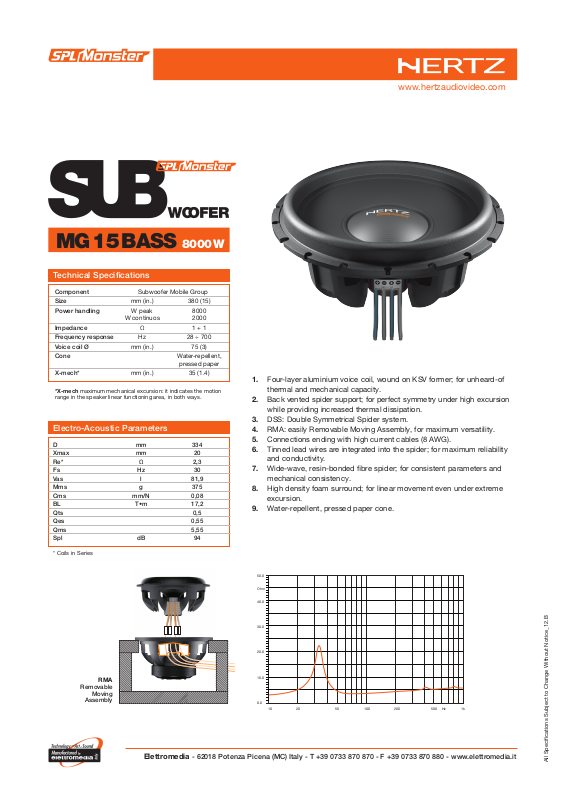

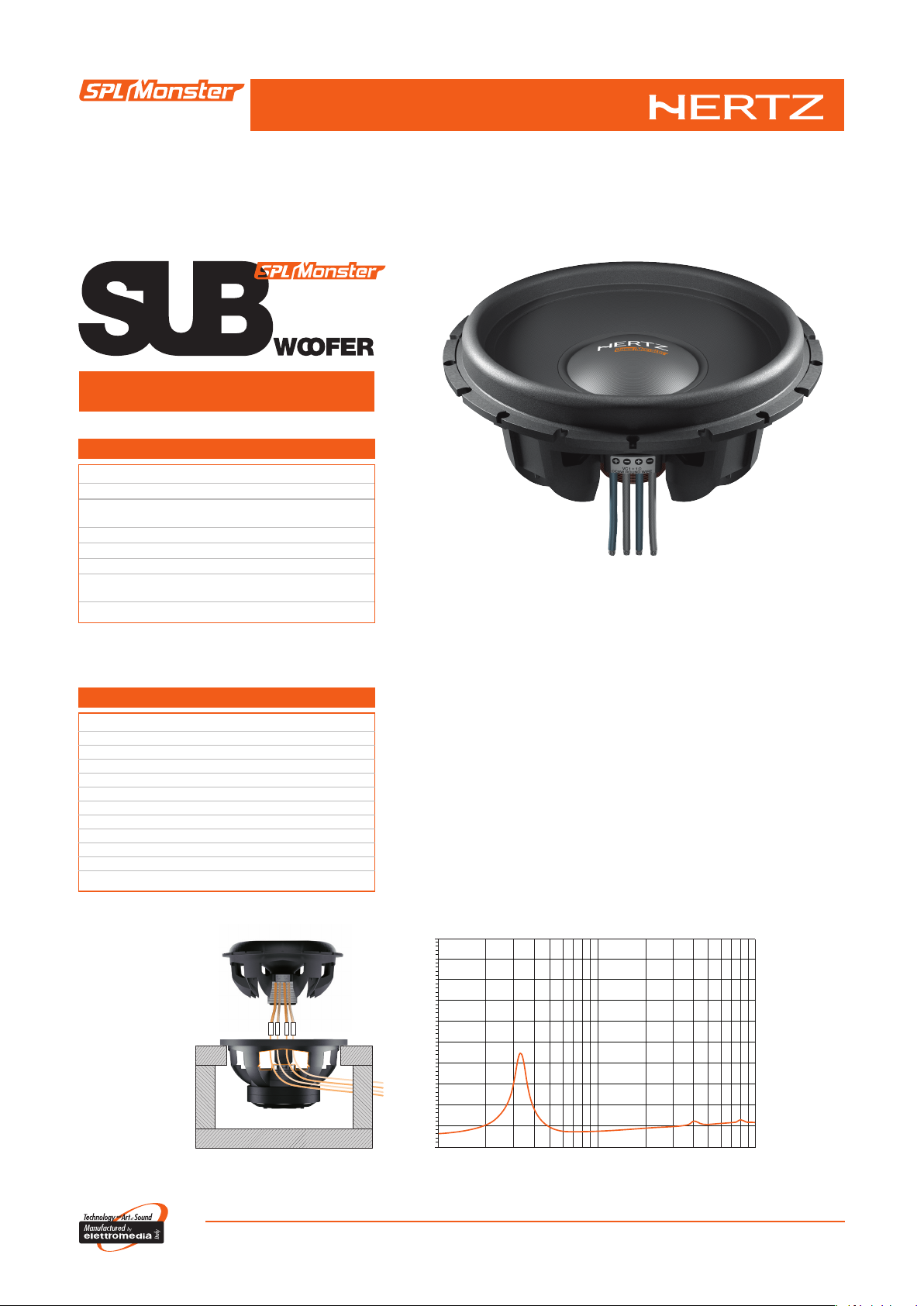

Page 1
www.hertzaudiovideo.com
A 399 mm (15.7 in.)
B 350 mm (13.8 in.)
C* 256 mm (10.1 in.)
D 209 mm (8.3 in.)
B
DAC
10 20 50 500100 200 1k
0.0
10.0
20.0
30.0
40.0
50.0
Ohm
1,5+1,5 VC
1,0+1,0 VC
MM 15.1 UNLIMITED
MG 15
MG 15 bass
MG 15 BASS
8000 W
Technical Specifications
Component Subwoofer Mobile Group
Size mm (in.) 380 (15)
Power handling W peak 8000
W continuos 2000
Impedance Ω 1 + 1
Frequency response Hz 28 ÷ 700
Voice coil Ø mm (in.) 75 (3)
Cone Water-repellent,
pressed paper
X-mech* mm (in.) 35 (1.4)
*X-mech maximum mechanical excursion: it indicates the motion
range in the speaker linear functioning area, in both ways.
Electro-Acoustic Parameters
D mm 334
Xmax mm 20
Re* Ω 2,3
Fs Hz 30
Vas l 81,9
Mms g 375
Cms mm/N 0,08
BL T•m 17,2
Qts 0,5
Qes 0,55
Qms 5,55
Spl dB 94
* Coils in Series
1. Four-layer aluminium voice coil, wound on KSV former; for unheard-of
thermal and mechanical capacity.
2. Back vented spider support; for perfect symmetry under high excursion
while providing increased thermal dissipation.
3. DSS: Double Symmetrical Spider system.
4. RMA: easily Removable Moving Assembly, for maximum versatility.
5. Connections ending with high current cables (8 AWG).
6. Tinned lead wires are integrated into the spider; for maximum reliability
and conductivity.
7. Wide-wave, resin-bonded bre spider; for consistent parameters and
mechanical consistency.
8. High density foam surround; for linear movement even under extreme
excursion.
9. Water-repellent, pressed paper cone.
50.0
Ohm
40.0
RMA
Removable
Moving
Assembly
30.0
20.0
10.0
0.0
10 20 50 500 Hz100 200 1k
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it
All Specications Subject to Change Without Notice_12.B
