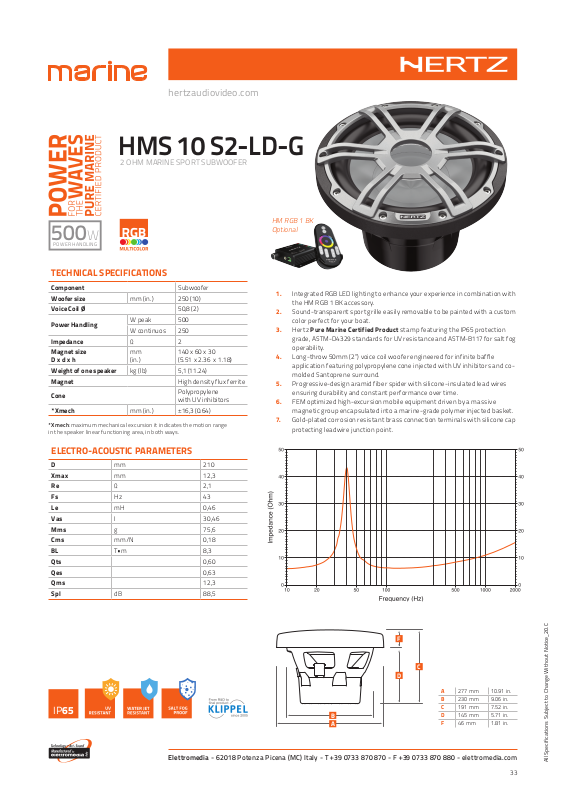

Hertz HMS 10 S2-LD-G User guide

hertzaudiovideo.com

HMS 10 S2-LD-G

2 OHM MARINE SPORT SUBWOOFER

500W

POWER HANDLING

TECHNICAL SPECIFICATIONS

Component Subwoofer
Woofer size mm (in.) 250 (10)
Voice Coil Ø 50,8 (2)

Power Handling

Impedance Ω 2
Magnet size

D x d x h
Weight of one speaker kg (lb) 5,1 (11.24)
Magnet High density flux ferrite

Cone

*Xmech mm (in.) ±16,3 (0.64)

*Xmech : maximum mechanical exc ursion it indicates the mo tion range
in the speaker linea r functioning area, in both ways .

W peak 500

W continuos 250

mm
(in.)

140 x 60 x 30
(5.51 x 2.36 x 1.18)

Polypropylene
with UV inhibitors

HM RGB 1 BK
Optional

1. Integrated RGB LED lighting to enhance your experience in combination with

the HM RGB 1 BK accessory.

2. Sound-transparent sport grille easily removable to be painted with a custom

color perfect for your boat.

3. Hertz Pure Marine Certified Product stamp featuring the IP65 protection

grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog
operability.

4. Long-throw 50mm (2”) voice coil woofer engineered for infinite baffle

application featuring polypropylene cone injected with UV inhibitors and co-
molded Santoprene surround.

5. Progressive-design aramid fiber spider with silicone-insulated lead wires

ensuring durability and constant performance over time.

6. FEM optimized high-excursion mobile equipment driven by a massive

magnetic group encapsulated into a marine-grade polymer injected basket.

7. Gold-plated corrosion resistant brass connection terminals with silicone cap

protecting leadwire junction point.

ELECTRO-ACOUSTIC PARAMETERS

D mm 210
Xmax mm 12,3
Re Ω 2,1
Fs Hz 43
Le mH 0,46
Vas I 30,46
Mms g 75,6
Cms mm/N 0,18
BL
Qts 0,60
Qes 0,63
Qms 12,3
Spl dB 88,5

T•m

8,3

IP65

F

C

D

A 277 mm 10.91 in.
B 230 mm 9.06 in.
C 191 mm 7.52 in.

B
A

D 145 mm 5.71 in.
F 46 mm 1.81 in.

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - elettromedia.com

33

All Specifications Subject to Change Without Notice_20.C
