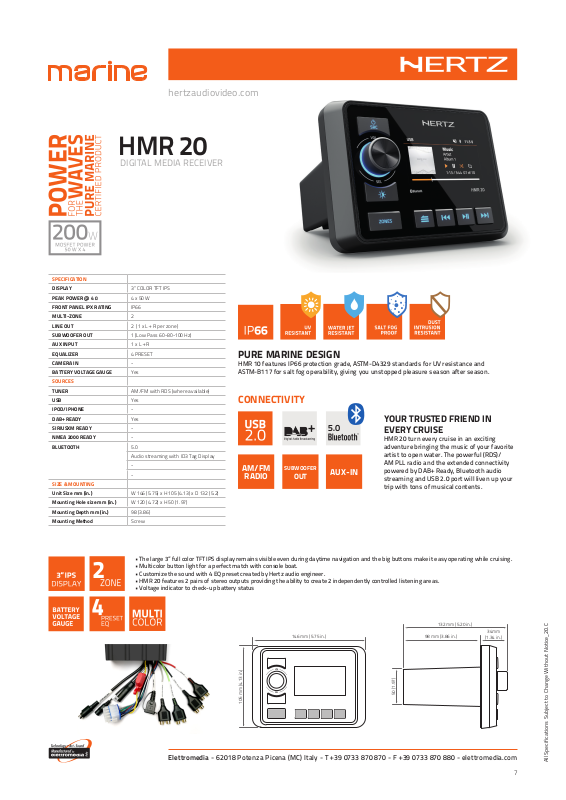

HMR 20
DIGITAL MEDIA RECEIVER
SPECIFICATION
DISPLAY 3” COLOR TFT IPS
PEAK POWER @ 4 Ω 4 x 50 W
FRONT PANEL IPX RATING IP66
MULTI-ZONE 2
LINE OUT 2 (1 x L + R per zone)
SUBWOOFER OUT 1 (Low Pass 60-80-100 Hz)
AUX INPUT 1 x L + R
EQUALIZER 4 PRESET
CAMERA IN -
BATTERY VOLTAGE GAUGE Yes
SOURCES
TUNER AM/FM with RDS (where available)
USB Yes
IPOD/IPHONE -
DAB+ READY Yes
SIRIUSXM READY -
NMEA 2000 READY -
BLUETOOTH 5.0
Audio streaming with ID3 Tag Display
-
-
SIZE & MOUNTING
Unit Size mm (in.) W 146 (5.75) x H 105 (4.13) x D 132 (5.2)
Mounting Hole size mm (in.) W 120 (4.72) x H 50 (1.97)
Mounting Depth mm (in.) 98 (3.86)
Mounting Method Screw
PURE MARINE DESIGN
HMR 10 features IP66 protection grade, ASTM-D4329 standards for UV resistance and
ASTM-B117 for salt fog operability, giving you unstopped pleasure season after season.
CONNECTIVITY
YOUR TRUSTED FRIEND IN
EVERY CRUISE
HMR 20 turn every cruise in an exciting
adventure bringing the music of your favorite
artist to open water. The powerful (RDS)/
AM/FM
RADIO
SUBWOOFER
OUT
AUX-IN
AM PLL radio and the extended connectivity
powered by DAB+ Ready, Bluetooth audio
streaming and USB 2.0 port will liven up your
trip with tons of musical contents.
• The large 3” full color TFT IPS display remains visible even during daytime navigation and the big buttons make it easy operating while cruising.
• Multicolor button light for a perfect match with console boat.
• Customize the sound with 4 EQ preset created by Hertz audio engineer.
• HMR 20 features 2 pairs of stereo outputs providing the ability to create 2 independently controlled listening areas.
• Voltage indicator to check-up battery status
105 mm (4.13 in.)
VOL
SEL
146 mm (5.75 in.)
132 mm (5.20 in.)
98 mm (3.86 in.)
50 (1.97)
34mm
(1.34 in.)
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - elettromedia.com
All Specifications Subject to Change Without Notice_20.C
