Page 1
SRC
HMC U1
MUTE
QUICK
REMOTE CONTROL
FOR HMR SERIES
hertzaudiovideo.com
START
GUIDE
Page 2

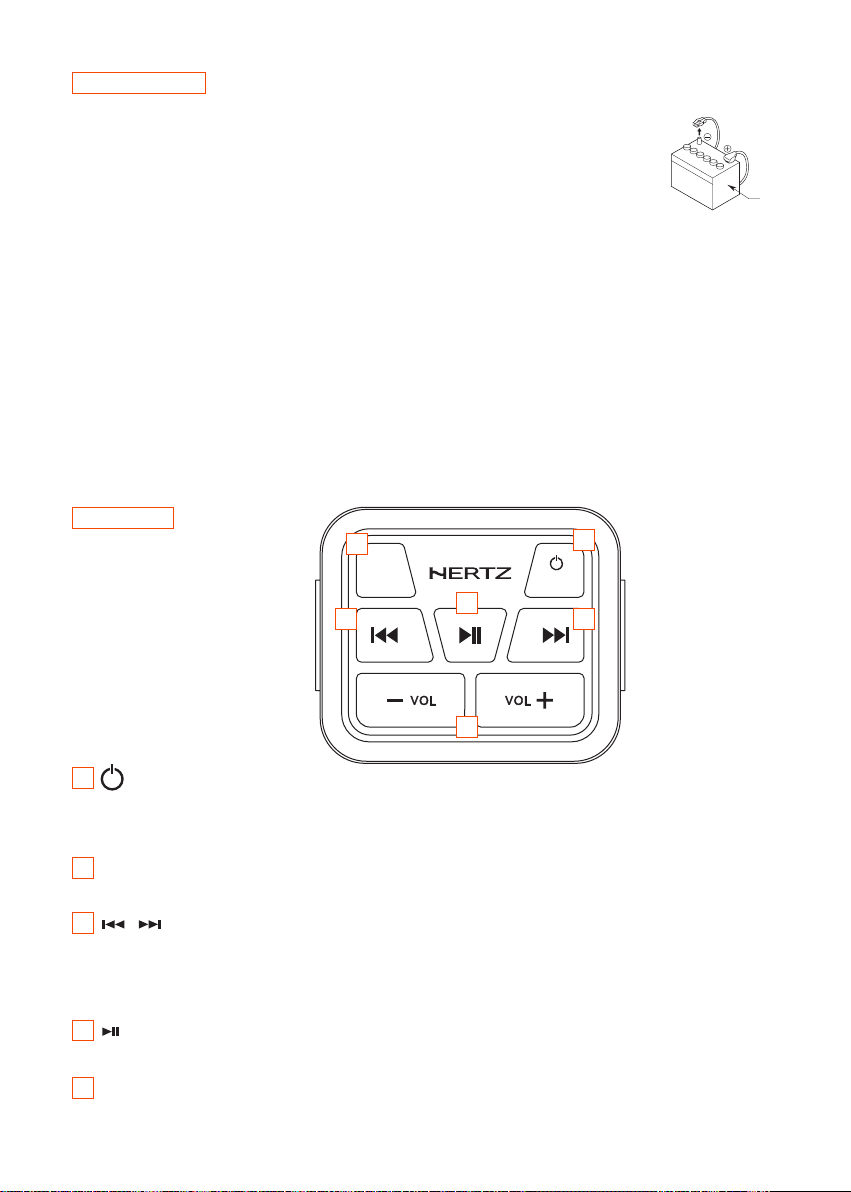

INSTALLATION
BEFORE STARTING
1. This device is exclusively for use in vessels with a negative ground 12 V power supply.
2. Read these instructions carefully.
3. Make sure the battery “-” terminal is disconnected before starting.
This is to prevent short circuits during installation. (Figure 1)
INSTALLATION CAUTIONS
1. In order to avoid any interference, do not install the tuner module or control unit in the proximity of
the engine compartment.
2. The use of unauthorized parts can cause permanent damage to the unit.
3. Always check your wire connections to ensure proper installation before turning the unit on.
4. Consult with your nearest dealer for proper installation or if other accessories are needed to
complete the installation.
5. Seek assistance if modifications or drilling holes to your vessel is needed.
6. Do not install the unit where it will be subjected to excessive moisture, dust, dirt, foreign particles or
vibration. Areas of high temperature from the engine, direct sunlight, or heat sources should also be
avoided.
7. Do not install the unit in a location where it will interfere with the vessel operation, or it will injure
the passengers if there is a sudden or emergency stop.
Battery
Figure 1
CONTROLS
5
SRC
1
MUTE
4
3 3
2
1
Button
- Mute ON / OFF (short press)
- Power On (short press)
- Power OFF (long press)
VOL +/- Button
2
- Adjust volume level
/ Button
3
- AM/FM/WB/DAB mode: previous/next preset (short press).
- AM/FM mode: SEEK the next/previous strongest station (long press).
- USB/BT mode: previous/next track (short press).
- USB/BT mode: fast forward / rewind (press and hold).
Button
4
- USB/BT mode: PLAY or PAUSE playback (short press).
SRC Button
5
- Short press “SRC” to move to the next option.
Page 3

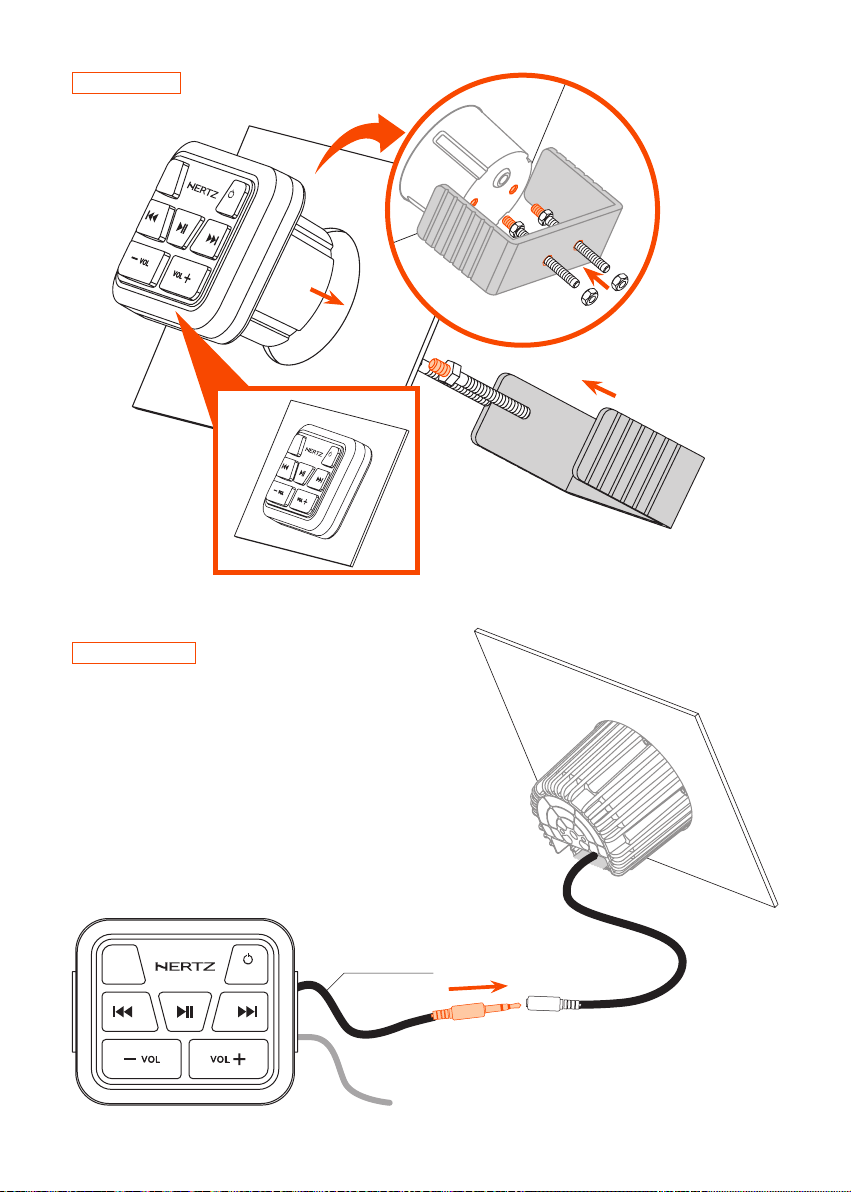

MOUNTING
M
U
TE
SRC
SRC
CONNECTION
M
UTE
Connect to:
HMR series
SRC
MUTE
25 cm / 9.8 in.
+ 12V for
BUTTONS BACKLIGHT
Remote Control
Input
(WHITE COLOR)
Page 4

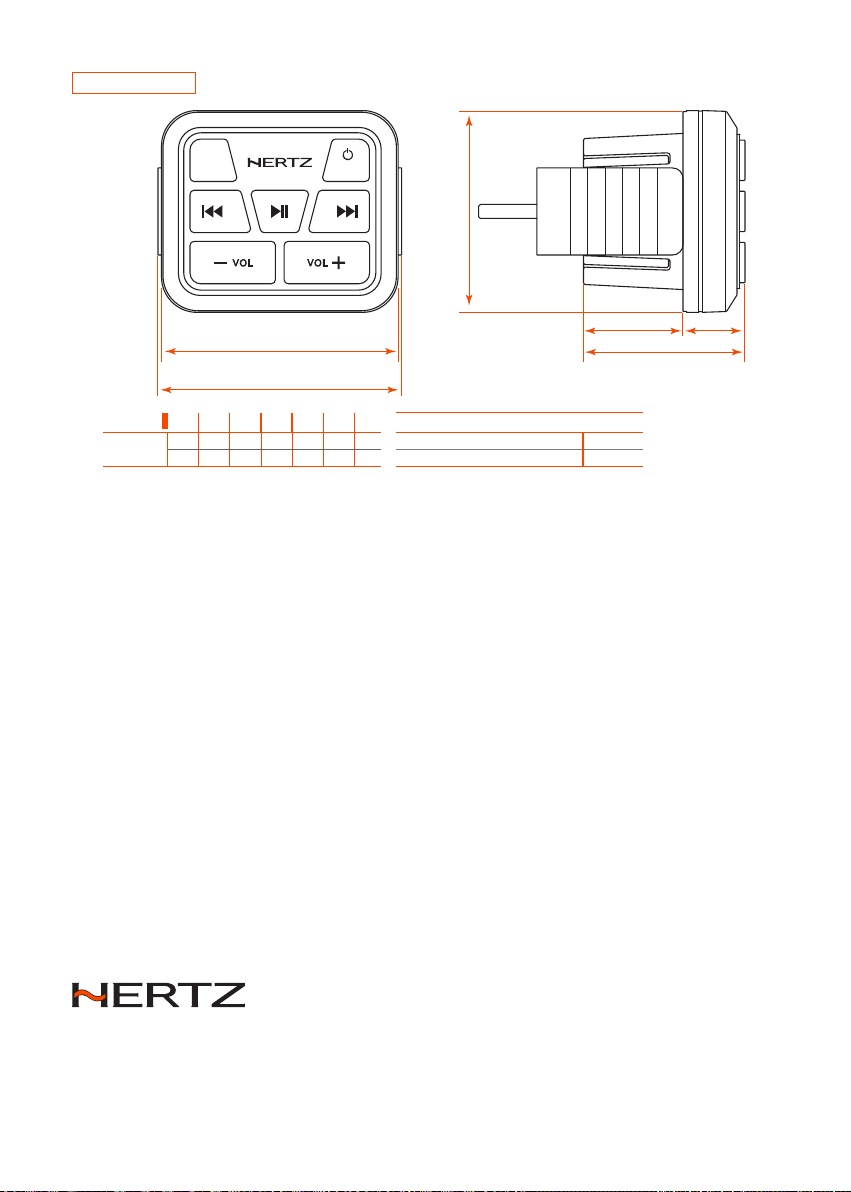

DIMENSIONS
HMC U1
SRC
MUTE
A
1
A
A A1B C D E
68 70 58 29 18 46 mm
2.68 2.76 2.28 1.13 0.70 1.83 in.
B
SIZE & MOUNTING
Mounting Hole diameter mm (in.) Ø 45 (1,77)
Mounting Method U-Bracket
C
D
E
FML004B REV.21C
PART OF ELETTROMEDIA
Strada Regina Km 3,500 - Marignano
62018 Potenza Picena (MC) Italy
T +39 0733 870 870 - F +39 0733 870 880
www.elettromedia.it
All specifications subject to change without notice
