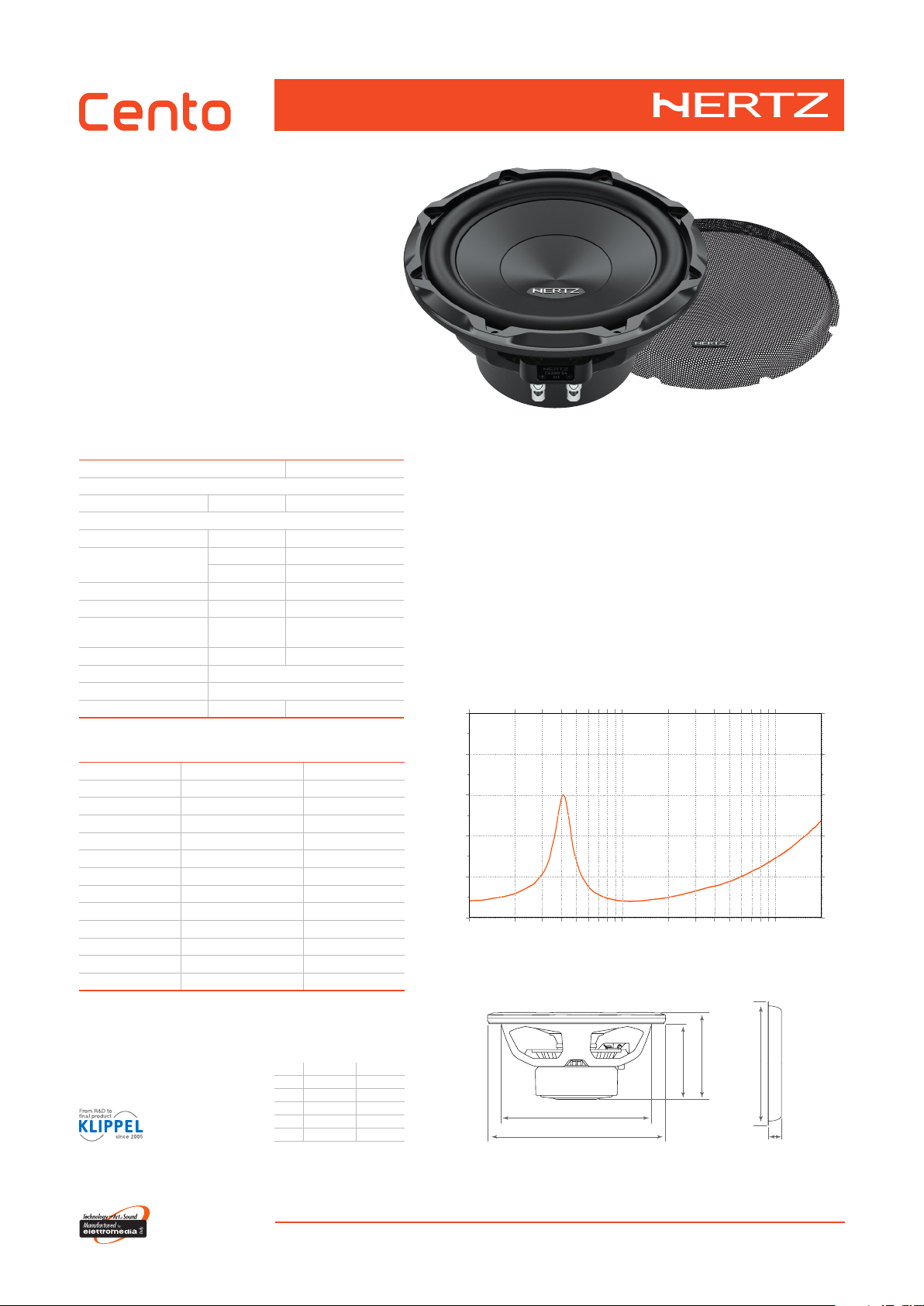

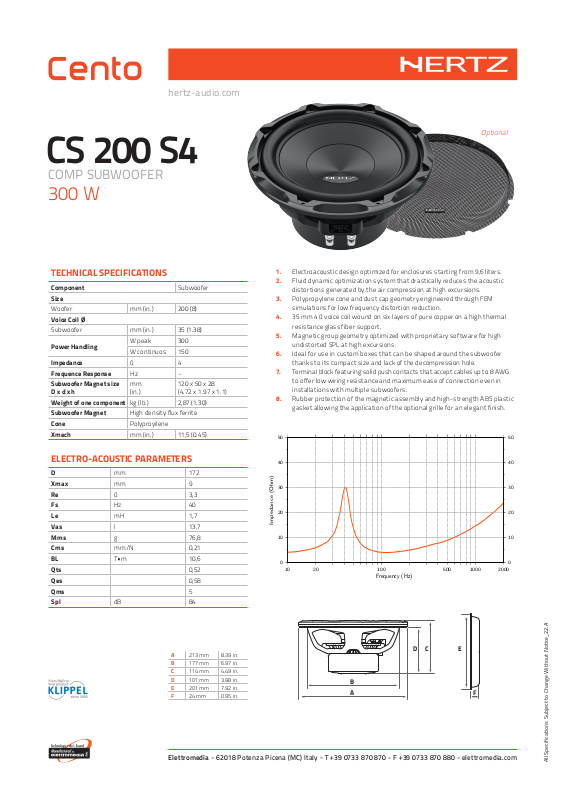

CS 200 S4
COMP SUBWOOFER
300 W
Optional
TECHNICAL SPECIFICATIONS
Component Subwoofer
Size
Woofer mm (in.) 200 (8)
Voice Coil Ø
Subwoofer mm (in.) 35 (1.38)
Power Handling
Impedance Ω 4
Frequence Response Hz -
Subwoofer Magnet size
D x d x h
Weight of one component kg (lb.) 2,87 (1.30)
Subwoofer Magnet High density flux ferrite
Cone Polyproyilene
Xmech mm (in.) 11,5 (0.45)
W peak 300
W continuos 150
mm
(in.)
120 x 50 x 28
(4.72 x 1.97 x 1.1)
ELECTRO-ACOUSTIC PARAMETERS
D mm 172
Xmax mm 9
Re Ω 3,3
Fs Hz 40
Le mH 1,7
Vas I 13,7
Mms g 76,8
Cms mm/N 0,21
BL
Qts 0,52
Qes 0,58
Qms 5
Spl dB 84
T•m
10,6
1. Electroacoustic design optimized for enclosures starting from 9,6 liters.
2. Fluid dynamic optimization system that drastically reduces the acoustic
distortions generated by the air compression at high excursions.
3. Polypropylene cone and dust cap geometry engineered through FEM
simulations for low frequency distortion reduction.
4. 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal
resistance glass fiber support.
5. Magnetic group geometry optimized with proprietar y software for high
undistor ted SPL at high excursions.
6. Ideal for use in custom boxes that can be shaped around the subwoofer
thanks to its compact size and lack of the decompression hole.
7. Terminal block featuring solid push contacts that accept cables up to 8 AWG
to offer low wiring resistance and ma ximum ease of connec tion even in
installations with multiple subwoofers.
8. Rubber protection of the magnetic assembly and high-streng th ABS plastic
gasket allowing the application of the optional grille for an elegant finish.
A 213 mm 8.39 in.
B 177 mm 6.97 in.
C 114 mm 4.49 in.
D 101 mm 3.98 in.
E 201 mm 7.92 in.
F 24 mm 0.95 in.
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - elettromedia.com
D
B
A
C E
F
All Specifications Subject to Change Without Notice_22.A
