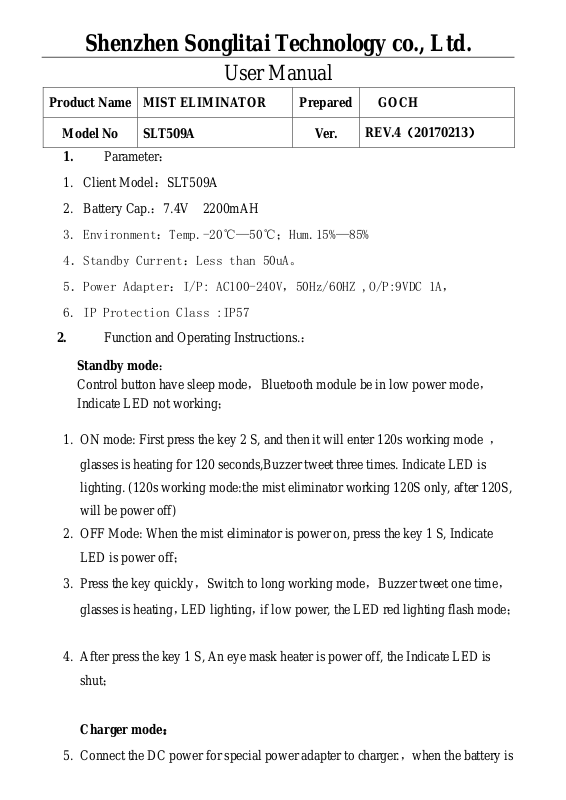

herotec technology SLT509A User Manual

Shenzhen Songlitai Technology co., Ltd.

User Manual

Product Name MIST ELIMINATOR Prepared GOCH

Model No SLT509A Ver.

1. Parameter：

1. Client Model：SLT509A

2. Battery Cap.：7.4V 2200mAH

3. Environment：Temp.-20℃—50℃；Hum.15%—85%

4．Standby Current：Less than 50uA。

5．Power Adapter：I/P: AC100-240V，50Hz/60HZ ,O/P:9VDC 1A，

6. IP Protection Class :IP57

2. Function and Operating Instructions.：

Standby mode ：

Control button have sleep mode，Bluetooth module be in low power mode，
Indicate LED not working；

REV.4（20170213）

1. ON mode: First press the key 2 S, and then it will enter 120s working mode ，

glasses is heating for 120 seconds,Buzzer tweet three times. Indicate LED is
lighting. (120s working mode:the mist eliminator working 120S only, after 120S,
will be power off)

2. OFF Mode: When the mist eliminator is power on, press the key 1 S, Indicate

LED is power off；

3. Press the key quickly，Switch to long working mode，Buzzer tweet one time，

glasses is heating，LED lighting，if low power, the LED red lighting flash mode；

4. After press the key 1 S, An eye mask heater is power off, the Indicate LED is

shut；

Charger mode：

5. Connect the DC power for special power adapter to charger.，when the battery is

Shenzhen Songlitai Technology co., Ltd.

charge fully，the Indicate LED is blue；the charge is auto stop.

3. Product Purpose

Product connect the glasses to heating，prevent the eyeglass to fogging.

4. FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.
