HEROSE GMBH ARMATUREN UND METALLE
Operating instructions
Cryogenic-strainer
Operating instructions
herose.com
I
READ CAREFULLY BEFORE USE! RETAIN FOR FUTURE REFERENCE!
© 2019 HEROSE GMBH
ARMATUREN UND METALLE
Elly-Heuss-Knapp-Straße 12
23843 Bad Oldesloe
Germany
Phone: +49 4531 509 – 0
Fax: +49 4531 509 – 120
E-mail: info@herose.com
Web: www.herose.com
1st issue 02/2019
The transmission or duplication of this document and the use or communication of its
content are forbidden unless expressly permitted. Any violations shall result in liability for
damages. All rights in the event of patent, utility model or registered design are
reserved.
Operating instructions
II
Phone +49 4531 509-0
Table of contents
1 About these instructions ................................................................................................ 1
2 Safety ............................................................................................................................ 1
3 Transport and storage ................................................................................................... 4
4 Description of the valve ................................................................................................. 4
5 Assembly ....................................................................................................................... 7
6 Operation .................................................................................................................... 10
7 Maintenance and service ............................................................................................. 10
8 Disassembly and disposal ........................................................................................... 12
Operating instructions
herose.com
1
1 About these instructions
1.1 Principles
The operating instructions are part of the valve named on the front page.
1.2 Applicable documents
Document
Contents
Catalogue page
Description of the valve
Refer to the manufacturer's documentation for accessories.
1.3 Hazard levels
The warning notes are marked and classified according to the following hazard levels:
Symbol
Explanation
DANGER
Identifies a hazard with a high risk level that will result in death
or serious injury.
WARNING
Identifies a hazard with a moderate risk level that will result in
death or serious injury.
CAUTION
Identifies a hazard with a low risk level that will result in a minor
or moderate injury.
NOTICE
Identifies a risk to property. Damage to property may occur if
this notice is ignored.
2 Safety
2.1 Intended use
Strainers are used to filter contamination out of media. The cleaning effect with this model depends on the
mesh size. The permissible operating conditions are specified in these operating instructions.
The valve is suitable for the media listed in these operating instructions; see section 4.5 "Media".
Operating conditions and applications deviating from these require the approval of the manufacturer.
Only media may be employed to which the materials used for the valve body and seals are resistant.
Contaminated media or usage outside of the pressure and temperature specifications can lead to damage
to the valve body and seals.
Avoidance of foreseeable incorrect use
Never exceed the permissible usage limits specified in the data sheet or in the documentation
with regard to pressure, temperature, etc.
Follow all safety instructions and operating procedures in these operating instructions.
2.2 Meaning of the operating instructions
The operating instructions are to be read and followed by the responsible technical personnel before
installation and start-up. As part of the valve the operating instructions must always be available close to
it. People could be seriously injured or killed if the operating instructions are not followed.
Read and observe the operating instructions before using the valve.
Retain the operating instructions and make sure they are available.
Pass on the operating instructions to subsequent users.
Operating instructions
2
Phone +49 4531 509-0
2.3 Instructions for people who work with the valve
People could be seriously injured or killed if the valve is used improperly. In order to avoid accidents, all
persons who work on the valve must meet the following minimum requirements.
They are physically capable of controlling the valve.
They can safely carry out the work with the valve within the scope of these operating instructions.
They understand the operating principles of the valve within the scope of their work and are able to
recognise and avoid the hazards of the work.
They have understood the operating instructions and are able to implement the information of the
operating instructions accordingly.
2.4 Personal protective equipment
Missing or unsuitable personal protective equipment increases the risk of damage to health and injuries to
people.
The following protective equipment is to be provided and worn during work:
Protective clothing
Safety shoes
Set out and use additional protective equipment depending on the utilisation and the media:
Safety gloves
Eye protection
Ear protection
Wear the specified personal protective equipment for all work on the valve.
2.5 Additional equipment and spare parts
Additional equipment and spare parts not conforming to the manufacturer's requirements can negatively
affect the operational safety of the valve and cause accidents.
In order to ensure operational safety, use original parts or parts that conform to the
manufacturer's requirements. If in doubt, have these confirmed by the dealer or manufacturer.
2.6 Adhere to the technical thresholds
If the technical thresholds for the valve are not adhered to, the valve may sustain damage, accidents may
be caused and people may be seriously injured or killed.
Adhere to the thresholds. See section 4 “Description of the valve".
2.7 Safety instructions
DANGER
Hazardous medium.
Escaping operating medium can lead to poisoning, burns and caustic burns!
Wear the prescribed protective equipment.
Provide suitable collecting containers.
Slipping of the valve out of the suspension.
Danger to life from falling parts!
Do not suspend the valve by the handwheel.
Note the weight specifications and the centre of gravity.
Only use suitable and approved load handling equipment.
WARNING
Harmful and/or hot/cold conveyed media, lubricants and fuels
Hazardous for persons and the environment!
Collect and dispose of rinsing medium and any residual media.
Wear protective clothing and a protective mask.
Observe legal regulations regarding the disposal of harmful media.
Operating instructions
herose.com
3
WARNING
Risk of injury if maintenance work is done incorrectly!
Incorrect maintenance can lead to serious injury and considerable material damage.
Before the start of work, ensure there is sufficient room for doing the work.
Ensure the space around the work is tidy and clean! Parts and tools in loose piles or lying around
are hazard sources.
If parts have been removed, take care to assemble correctly and re-install all attachment items.
Before putting back into service, ensure:
All maintenance work has been carried out and completed.
There are no persons in the hazard area.
All covers and safety devices are installed and operating correctly.
CAUTION
Cold/hot pipelines and/or valves.
Risk of injury due to thermal influences!
Insulate valves.
Attach warning signs.
Medium escaping at high speed and high/low temperature.
Risk of injury!
Wear the prescribed protective equipment
NOTICE
Impermissible stresses arising from operating conditions and extensions / added structures.
Leakage or rupture of the valve body!
Provide suitable support.
Additional loads, such as traffic, wind or earthquakes, are not explicitly taken into account by
default and require separate dimensioning.
Condensation in air conditioning, cooling and refrigeration plants.
Icing!
Blocking of the actuation mechanism!
Damage due to corrosion!
Insulate valves with diffusion-tight material
Improper handling.
Leaking valve or damage to the valve!
Do not store tools and/or other objects on the valve.
Do not use tools to increase the torque of the hand wheel.
Painting of valves and pipelines.
Functional impairment of the valve / loss of information!
Protect plastic parts and type plates from being painted over.
Impermissible stress
Damage to the control mechanism!
Do not use the valve as a foothold.
Exceeding the maximum permissible operating conditions.
Damage to the valve!
The maximum permissible operating pressure must not be exceeded, and the minimum and
maximum permissible operating temperatures must be observed.
Welding beads, scale and other contaminants.
Damage to the valve!
Take appropriate measures against contamination.
Remove contaminants from the pipes.
Incorrect earthing during welding work in the pipeline.
Damage to the valve (burned spots)!
Remove bonnet during welding.
When carrying out electric welding work, do not use functional parts of the valves for earthing.
Exceeding the maximum permissible operating temperature.
Damage to the valve!
Create the welding/soldering stepwise so that the warming in the middle of the body does not
exceed the maximum permissible operating temperature.
Operating instructions
4
Phone +49 4531 509-0
3 Transport and storage
3.1 Inspection of condition on delivery
Inspect the valve for damage upon receipt.
In case of transport damage, determine and document the precise extent of the damage, and
report it immediately to the supplying dealer/carrier and the insurer.
3.2 Transportation
Transport the valve in the packaging supplied.
The valve is delivered ready to operate with lateral connections protected by cover caps.
Protect the valve against shocks, impacts, vibrations and dirt.
Adhere to a transport temperature range of -20 °C to +65 °C.
3.3 Storage
Store the valve in a clean and dry place.
Make use of a desiccant or heating in damp storerooms to prevent the formation of
condensation.
Adhere to a storage temperature range of -20 °C to +65 °C.
4 Description of the valve
Refer to the respective catalogue page for further detailed information.
4.1 Structure
Design
Component
Design
Body
Straight-type
Bonnet
Flanged, without spindle bushing
Filter
Screen, filter
Body end
with soldering end
with welding end
with threaded end (G; R; NPT)
with flange connection
with welded-in/soldered-in pipes
4.2 Marking
The valves are provided with an individual marking for identification.
Symbol
Explanation
DN…..
Nominal size
PN…..
Rated working pressure (max. permissible operating
pressure)
-…..°C +…..°C
Temperature
Manufacturer's mark "HEROSE"
01/18
Date of manufacture MM/YY
12345
Type
01234567
Serial no.
EN1626
Standard
0045
CE-mark and number of the notified body
e.g. CF8 / 1.4308
Material
Operating instructions
herose.com
5
4.3 Intended use
Strainers are used to filter contamination out of media. The cleaning effect with this model depends on the
mesh size.
4.4 Operating data
Valve
Rated pressure
Temperature
Mesh size*
08411
PN50
-196 °C to +120 °C
≤ 0.25 mm
08412
PN50
-196 °C to +120 °C
≤ 0.25 mm
08413
PN50
-196 °C to +120 °C
≤ 0.25 mm
08414
PN50
(DN100=PN40
DN150=PN40)
-196 °C to +120 °C
≤ 0.25 mm
08415
PN50
-196 °C to +120 °C
≤ 0.25 mm
08416
PN50
-196 °C to +120 °C
≤ 0.25 mm
08417
PN50
(DN100=PN40/50
DN150=PN25/40
DN200=PN25)
-196 °C to +120 °C
≤ 0.25 mm
08431
PN40
Class 150
Class 300
-196 °C to +120 °C
≤ 0.25 mm
08432
PN40
Class 150
Class 300
-196 °C to +120 °C
≤ 0.25 mm
08716
PN50
-255 °C to +120 °C
≤ 0.25 mm
08717
PN50
-255 °C to +120 °C
≤ 0.25 mm
*other mesh sizes are possible depending on the version.
4.5 Media
Gases, cryogenic liquefied gases and their gas mixtures, such as:
Name
Argon
Chlorotrifluoromethane,
Nitrous oxide,
Ethane,
Ethylene,
Carbon dioxide,
Carbon monoxide
Krypton,
Methane,
Oxygen,
Nitrogen,
Trifluoromethane,
Operating instructions
6
Phone +49 4531 509-0

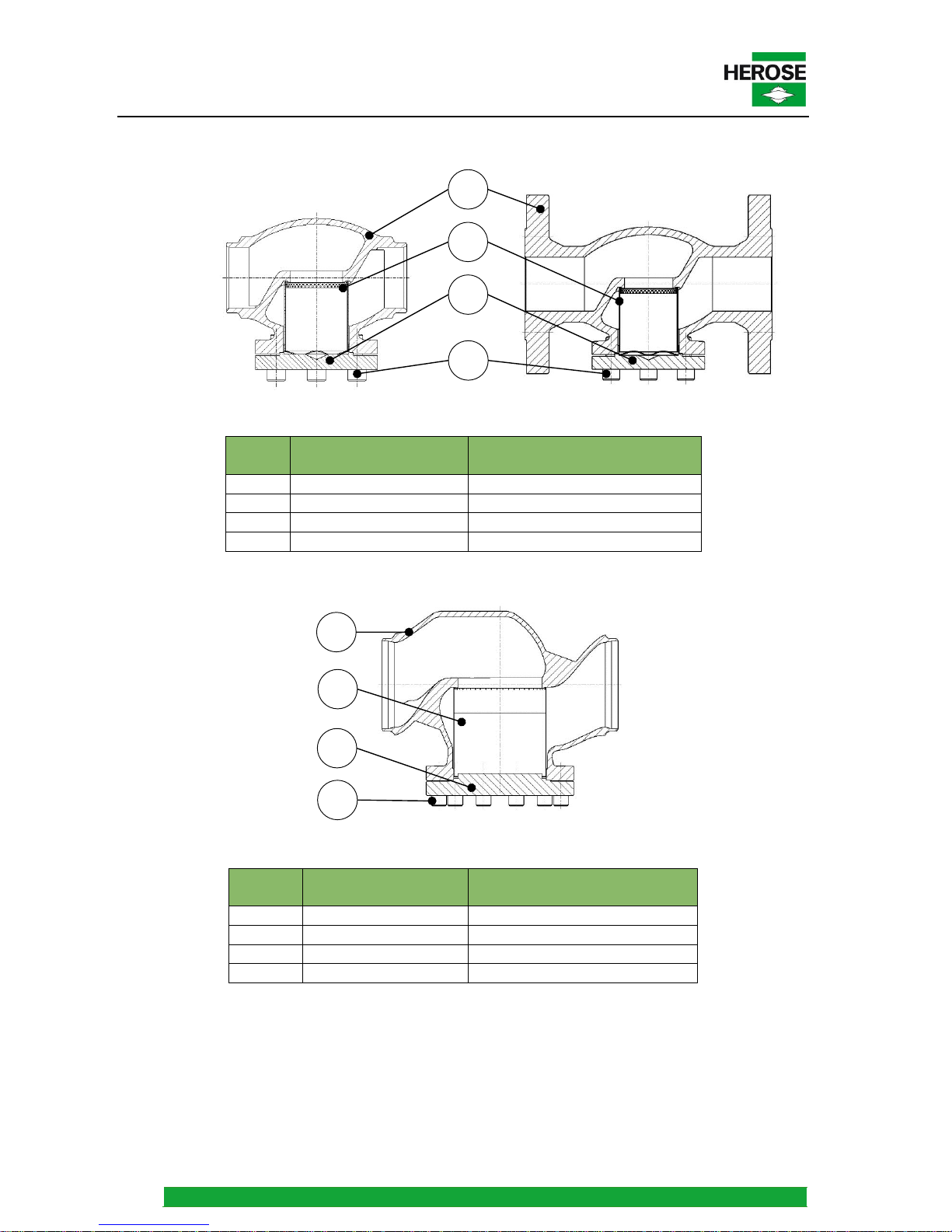

4.6 Materials
Part
no.
Name
Material
1
Body
CC491K; 1.4308; 1.4409
2
Screen
1.4301; 1.4404; 2.4360; CW483K
3
Cover
CC493K; 1.4301; 1.4404
4
Screws
A2-70; A4-70
Part
no.
Name
Material
1
Body
1.4308
2
Screen
1.4301
3
Cover
1.4301
4
Screws
A2-70
4.7 Scope of delivery
Valve
Operating instructions
4.8 Dimensions and weights
See catalogue page.
1 1 2 2 3 3 4
4
DN10 - 150
DN200
Operating instructions
herose.com
7
4.9 Lifetime
The user is obligated to use Herose products only for their intended purpose.
In this case, a technical service life may be assumed in accordance with the underlying product standards
(e.g. EN1626 for shut-off valves and EN ISO 4126-1 for safety valves).
The technical service life can be restarted several times through the exchange of wearing parts within the
context of the maintenance intervals, and lifetimes of more than 10 years can be achieved.
If products are stored for a period exceeding 3 years, then the plastic components and elastomer sealing
elements fitted to the product should be replaced as a precautionary measure before installation and use.
5 Assembly
5.1 Installation position
≤ DN150
With regard to the installation position, pay attention to the flow direction arrow. If the valve is installed in a
horizontal pipeline, a vertical position of the screen is recommended (cover facing downwards).
DN200
With regard to the installation position, pay attention to the flow direction arrow. If the valve is installed in a
horizontal pipeline, a vertical position of the screen is recommended (cover facing downwards).
5.2 Notes regarding the installation
Use suitable tools.
Allen keys of sizes 6, 8, 10, 14, 19;
Open-ended spanners;
Torque wrench;
TIG welding machine;
Oxy-fuel welding machine;
Clean tools before the installation.
Use suitable transport and lifting equipment for the installation.
Open the packaging only directly before the installation. Freedom from oil and grease for oxygen
(O2)
Valves for oxygen are permanently marked with “O2”.
Only install the valve if the maximum operating pressure and operating conditions of the plant
correspond to the marking on the valve.
Remove protective caps or covers before assembly.
Inspect the valve for dirt and damage.
DO NOT install a damaged or dirty valve.
Avoid damaging the connections.
The sealing surfaces must remain clean and intact.
Seal the valve with suitable seals.
No sealant (sealing tape, liquid sealing tape) may enter the valve.
Respect the suitability for use with O2.
Connect pipelines in a force-free and torque-free manner.
Stress-free installation.
In order to ensure trouble-free operation, no impermissible static, thermal or dynamic stresses
may be transmitted to the valve. Observe reaction forces.
Temperature-dependent changes in length in the pipework system must be compensated with
expansion joints.
The valve is supported by the pipework system.
The valve must be protected against dirt and damage during construction work.
Check the leak-tightness.
Operating instructions
8
Phone +49 4531 509-0
5.3 Welding / soldering
Welding / soldering of the valves and any heat treatment that may be required are the responsibility of the
contracting construction company or operating company.
Before welding / soldering
Loosen the bolts
Direction of rotation: counter
clockwise
Remove the bolts
Remove the cover, spring washer,
seal and screen
WARNING
Risk of injury due to heavy cover!
Improper handling can lead to injuries.
Before the start of work, ensure
there is sufficient room for doing the
work.
Use suitable transport and lifting
equipment for the disassembly.
Dispose of the seal
Weld / solder in the body
Operating instructions
herose.com
9
After welding / soldering
Mount the screen, seal, spring
washer and cover
Do not damage the seal
WARNING
Risk of injury due to heavy cover!
Improper handling can lead to injuries.
Before the start of work, ensure
there is sufficient room for doing the
work.
Use suitable transport and lifting
equipment for the installation.
Mount the bolts
Tighten the bolts to the specified
tightening torque in a criss-cross
pattern
Direction of rotation: clockwise
Assembly sequence for the bolts
Operating instructions
10
Phone +49 4531 509-0
Nominal
size
Red Brass
bonnet/
Red Brass
body
[Nm]
Red
Brass
bonnet/
SS-body
[Nm]
SSbonnet/
SSbody
[Nm]
Cap
bolt
DN 10
19
19
25
30
M8
DN 15
19
19
25
30
M8
DN 20
37
44
50
M10
DN 25
37
44
50
M10
DN 32
41
45
50
M10
DN 40
51
60
70
M12
DN 50
49
50
50
M10
DN 65 - 80
90
M12
DN 80 - 90
110
M16
DN 100 - 110
130
M16
DN 150 - 130
130
M16
DN 200 - -
130
M24
Tightening torque for cover / body
Check the leak-tightness
6 Operation
Check the following points prior to start-up:
All assembly and installation work are completed.
The safety guards are in place.
Compare the material, pressure, temperature and installation position with the layout plan for
the pipework system.
Dirt and residues have been removed from the pipeline and valve in order to prevent leaks.
7 Maintenance and service
7.1 Safety during cleaning
Take note of the specifications in the safety data sheet and the general occupational health and
safety rules if degreasers are used for process-related reasons for the cleaning of bearing parts,
fittings and other precision parts.
7.2 Maintenance
The maintenance intervals must be defined by the user according to the operating conditions.
The recommendations for the functional checking of the valves are to be taken from section 7.2.1
"Inspection and maintenance intervals" in these operating instructions.
Operating instructions
herose.com
11
7.2.1 Inspection and maintenance intervals
Recommended intervals
Description
Interval
Scope
Inspection
During start-up
Visual inspection
of the valve for damage;
of the marking for legibility;
Installation position;
Leak-tightness
Between cover and body.
Cleaning
According to level of
soiling
Cleaning of filter element and cover
Maintenance
annually
Cleaning of all individual parts
including visual inspection.
External inspection
Every 2 years
Maintenance and leak test;
Internal inspection
Every 5 years
Replacement of all sealing and filter
elements, including maintenance
and leak test.
Hydraulic testing
Every 10 years
Replacement of all sealing and filter
elements, including cleaning of all
individual parts, leak and pressure
test, and inspection.
7.3 Fault table
Fault
Cause
Remedial action
Low flow rate
Strainer dirty
Clean / replace screen
Blockage in the pipework
system
Check pipework system
Leak between cover
and body
Cover loose
Retighten bolts
Seal damaged
Replace seal
Body leaking
Discontinuity/gas cavity open
Replace the body
7.4 Spare parts
We require the following details for your spare part orders:
Article no. of the spare part package,
desired delivery quantity,
dispatch and delivery address,
desired method of dispatch.
7.5 Returns / complaints
Use the Service form in case of returns/complaints.
Contact in case of service:
Herose.com › Service › Product service › Complaints
E-mail: service@herose.com
Fax: +49 4531 509 – 9285
Operating instructions
12
Phone +49 4531 509-0
8 Disassembly and disposal
8.1 Notes regarding the disassembly
Take note of all national and local safety requirements.
The pipework system must be depressurised.
The medium and valve must be at ambient temperature.
Aerate / flush the pipework system in the case of corrosive and aggressive media.
8.2 Disposal
1. Dismount the valves.
Collect greases and lubricating fluids during dismantling.
2. Separate the valve materials:
Metal
Plastic
Electronic scrap
Greases and lubricating fluids
3. Carry out a sorted disposal of the materials.
Loading...
