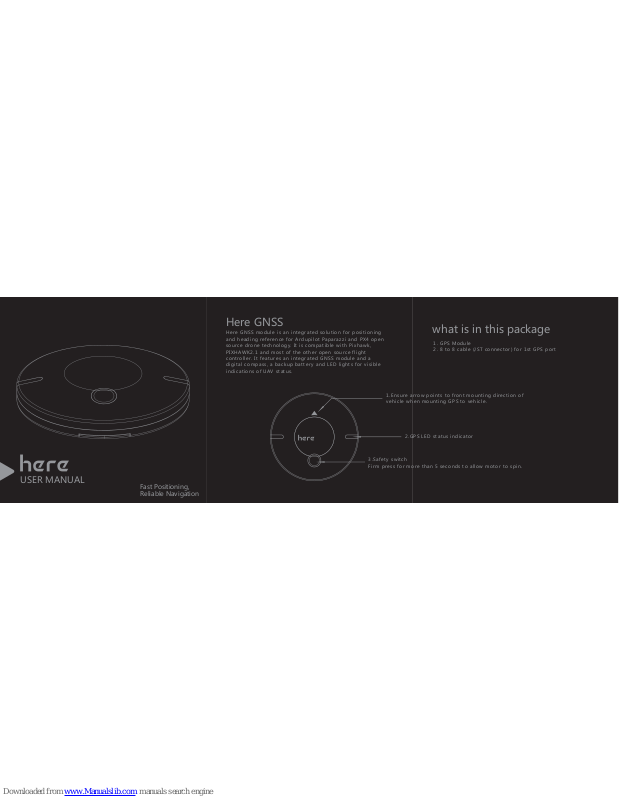

what is in this package
1. GPS Module
2. 8 to 8 cable (JST connector) for 1st GPS port
Here GNSS module is an integrated solution for positioning
and heading reference for Ardupilot Paparazzi and PX4 open
source drone technology. It is compatible with Pixhawk,
PIXHAWK2.1 and most of the other open source flight
controller. It features an integrated GNSS module and a
digital compass, a backup battery and LED lights for visible
indications of UAV status.
Here GNSS

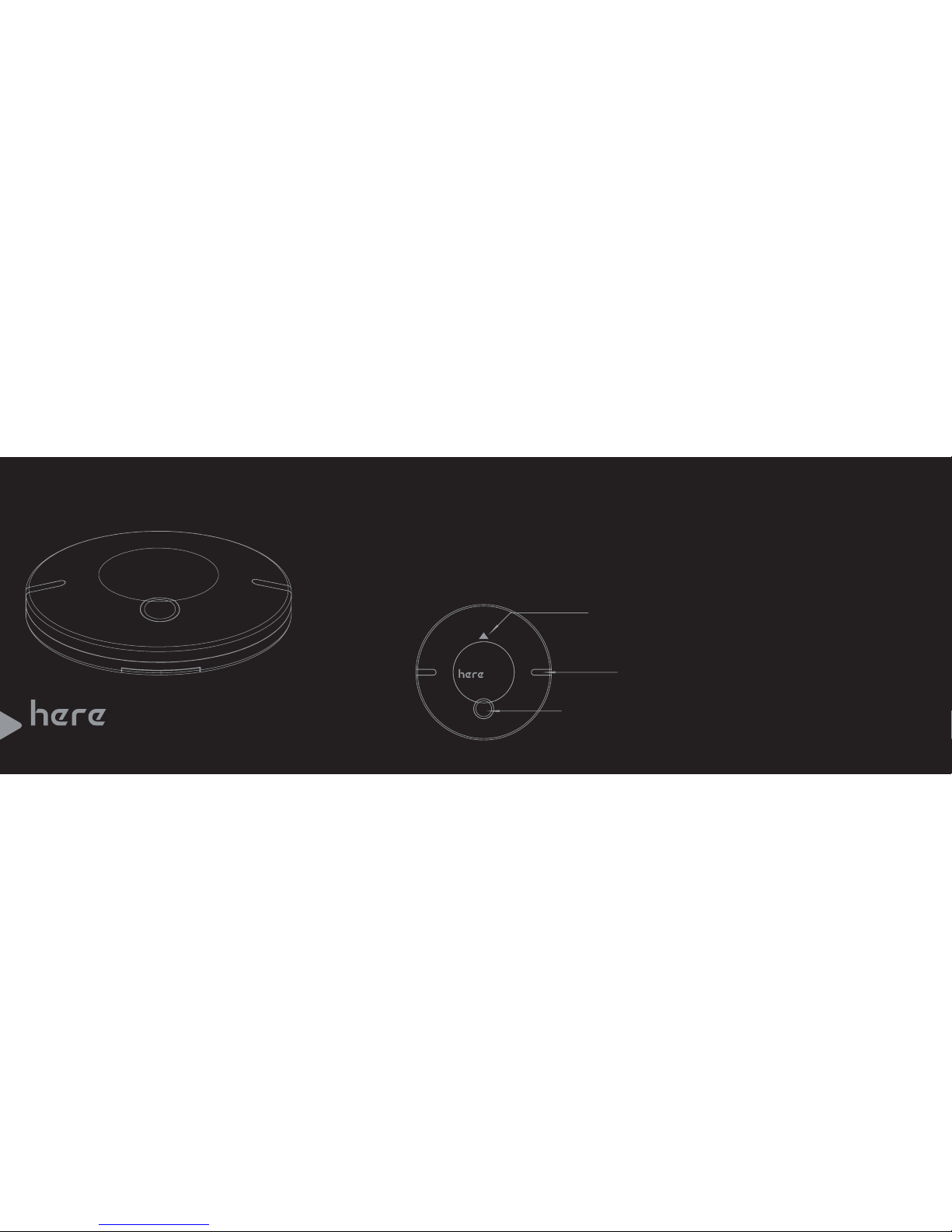

1.Ensure arrow points to front mounting direction of
vehicle when mounting GPS to vehicle.
2.GPS LED status indicator
3.Safety switch
Firm press for more than 5 seconds to allow motor to spin.
USER MANUAL
Fast Positioning,
Reliable Navigation
Page 2
JST_GHR_08V_S
8-pin JST connector
GPS1

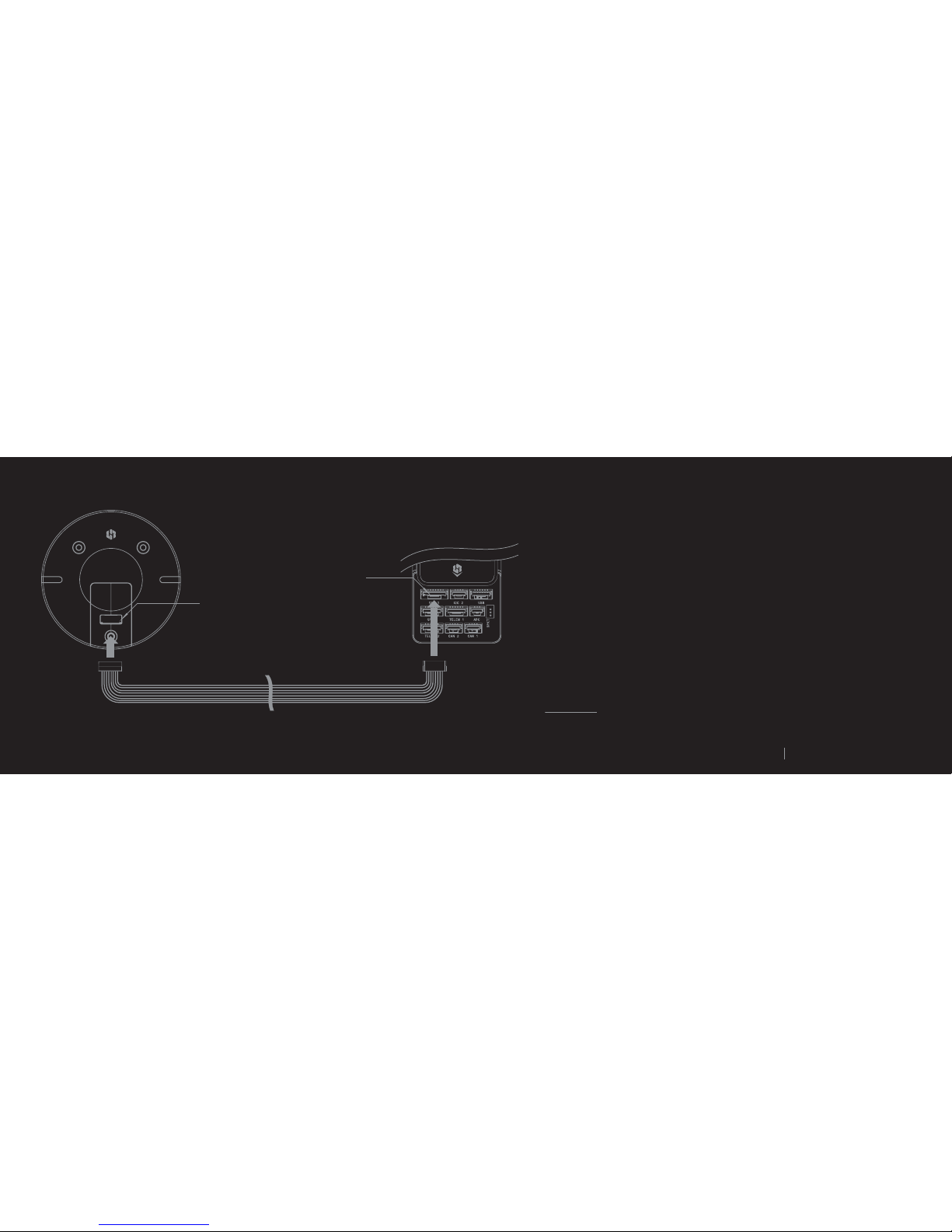

Connecting Here GNSS with PIXHAKW2.1
Note :
Use as a second GPS,
please purchase GPS2
6-pin cable from proficnc.com.
And plug into the GPS2 port.
Designed by ProfiCNC in Australia with help from
Hex, Ardupilot.
Built by Hex Technology.
We support Open software development
through the Ardupilot Initiative
Acknowledgement
Mounting Tips
hex.aero proficnc.com
When mounting the GPS to your vehicle, place the
GPS module (with antenna facing up) outside your
vehicle with a clear view of the sky, as far as
possible from potential sources of magnetic
interference such as motors and speed controllers.
For copters and rovers, we recommend elevating
the GPS module.
Page 3
Welcome to the world of open-source autopilot
USER MANUAL
hex.aero > download > Here+ GNSS RTK Guide
