Hercules ePlug 200 Mini User Manual
Hercules ePlug 200 Mini
Clicking on a title in this table of contents will display the corresponding section
CONTENTS
1. YOUR HERCULES EPLUG 200 MINI ADAPTER............................................................. 3
1.1. Recommendations ...................................................................................................... 4
1.2. Specifications.............................................................................................................. 4
1.3. Minimum system requirements................................................................................... 5
1.4. Box contents ............................................................................................................... 5
1.5. LEDs overview ............................................................................................................ 5
1.6. Connectivity overview ................................................................................................. 6
2. INSTALLING YOUR HERCULES EPLUG 200 MINI......................................................... 7
2.1. How to position your Hercules ePlug 200 Mini ........................................................... 7
2.2. HomePlug: the partner to WiFi in your home.............................................................. 8
2.2.1. Connecting two computers in a HomePlug network ....................................... 8
2.2.2. Connecting a computer to a modem, a modem router, an Internet "box"
or a game console in a HomePlug network .................................................... 8
2.2.3. Connecting an Internet "box" to a Digital Terrestrial Television decoder
in a HomePlug network ................................................................................... 9
2.3. You haven't yet created a HomePlug network: initial installation of
Hercules ePlug 200 Mini Duo ................................................................................... 10
2.4. You have already created a HomePlug network: adding a new adapter to your
network (Hercules ePlug 200 Mini Solo or Duo)....................................................... 13
2.5. How to change the network password...................................................................... 16
3. MANAGING YOUR NETWORK WITH HERCULES EPLUG STATION......................... 17
3.1. Downloading Hercules ePlug Station ....................................................................... 17
3.2. Installing Hercules ePlug Station .............................................................................. 17
3.3. Managing your PLC network..................................................................................... 24
3.4. Adding one or more adapters to your Hercules ePlug Station monitoring list .......... 25
3.5. Scanning the network ............................................................................................... 26
3.6. Changing an adapter's location ................................................................................ 26
Chang
3.7.
3.8. Updating the firmware............................................................................................... 27
3.9. Restoring the factory default settings of the ePlug adapter connected to the PC .... 28
ing the password for your PLC network ......................................................... 26
Hercules ePlug 200 Mini
4. YOUR HOMEPLUG NETWORK IN PRACTICE.............................................................. 29
4.1. A few prerequisites....................................................................................................29
4.2. Identifying your HomePlug network type: Infrastructure or Ad hoc ........................... 29
4.3. Computers running Windows Vista: Sharing folders, a printer or an
ADSL connection....................................................................................................... 30
4.3.1. Windows Vista: Sharing an ADSL connection in an Infrastructure type
network .......................................................................................................... 30
4.3.2. Windows Vista: Sharing an ADSL connection in an Ad hoc type
network .......................................................................................................... 33
4.3.3. Enabling sharing............................................................................................35
4.3.4. Windows Vista: Sharing public or personal folders .......................................38
4.3.5. Computers running Windows Vista: Accessing shared folders................................... 40
4.3.6. Windows Vista: Sharing a printer ..........................................................................40
4.3.7. Computers running Windows Vista : Accessing the shared printer..............................43
4.4. Computers running Windows XP: Sharing folders, a printer or an
ADSL connection....................................................................................................... 44
4.4.1. Windows XP: Using the Network Setup Wizard in an Infrastructure
network .......................................................................................................... 45
4.4.2. Windows XP: Using the Network Setup Wizard in an Ad hoc network .........48
4.4.3. Windows XP: Sharing folders............................................................................ 53
4.4.4. Computers running Windows XP: Accessing shared folders................................ 54
4.4.5. Windows XP: Sharing a printer...................................................................... 54
4.4.6. Windows XP: Modifying a workgroup name (advanced users) ..................... 56
4.5. Computers running a different operating system or adding any other type of
network device ..........................................................................................................56
5. TECHNICAL SUPPORT................................................................................................... 57
6. WARRANTY ..................................................................................................................... 57
7. ENVIRONMENTAL PROTECTION RECOMMENDATION..............................................58
Hercules ePlug 200 Mini
1. YOUR HERCULES ePLUG 200 MINI ADAPTER
PLC (Power Line Communication), also known as HomePlug, is a technology which uses your home's
existing electrical wiring to efficiently transfer digital data (audio, video, Internet, other types of files) within a
secure personal network. HomePlug is an ideal alternative for those who wish to easily create a network,
without the constraints of cables, and are unable to enjoy all of the potential of WiFi due to the configuration of
their home (as a result of the presence of thick walls or other obstacles which impede wireless data
transmission).
Hercules ePlug 200 Mini is an adapter employing HomePlug technology which can be connected to any
electrical outlet in your home (from the ground floor to upstairs), thereby transforming your outlets into as
many possible network connection points. Moreover, you can freely unplug Hercules ePlug 200 adapters and
plug them into different outlets in your home, according to your needs (changing the location of a computer, or
of your modem router...), without having to repeat the installation or re-create your network.
As a network is composed of at least two devices connected to one another, all you need to do is connect two
Hercules ePlug 200 Mini adapters to two electrical outlets in your home (in the same room or in different
rooms). For example, to access the Internet, you can connect your modem or your Internet “box” to a
Hercules ePlug adapter plugged into the nearest electrical outlet, and connect your computer to another
Hercules ePlug adapter plugged into another electrical outlet. Finally, your network is already preconfigured
to provide you with maximum security.
All products in the Hercules ePlug 200 range are compatible with the HomePlug AV standard (including
devices functioning at 200 Mbits/s), allowing you to enjoy high-definition video or stream multimedia files with
ease. These adapters may be combined according to your needs or according to your devices (a TV decoder
with a "Box", a modem with a computer or a game console, two computers, a computer and a printer...). You
will find some possible configurations set out in the installation section of this manual.
Finally, with the goal of helping to protect the environment, Hercules offers energy-saving adapters, which
conform to the European ERP (Energy Related Products) directive, guaranteeing electrical consumption of
less than 1 watt when the device is in standby mode.
The HomePlug AV standard is not compatible with the Homeplug 1.0 standard corresponding
to the Hercules ePlug 85 range (and other adapters conforming to this standard).
Nevertheless, you are perfectly able to create a network composed of Hercules ePlug 85
adapters in your home coexisting alongside another network composed of Hercules ePlug 200
adapters.
Even though this type of device presents no danger in terms of your home's electrical wiring, you should take
care to respect certain recommendations, set out below.
User Manual – 3/59
Hercules ePlug 200 Mini
1.1. Recommendations
- Only connect the Hercules ePlug 200 Mini adapter to an electrical network which conforms to the security
standards and specifications detailed on the device's electrical rating plate. If you are not sure about your
electrical network, contact an electrician or your power supplier.
- Never open up the Hercules ePlug 200 Mini adapter, as doing so risks damaging its internal components.
- Do not attempt to insert any objects into the vents and openings of the Hercules ePlug 200 Mini adapter.
- Do not obstruct the vents and openings of the Hercules ePlug 200 Mini adapter.
- If you need to carry out any maintenance on your Hercules ePlug 200 Mini adapter, be sure to first unplug
the adapter and entrust the job to a qualified professional in order to avoid the risk of electrocution.
- In order to avoid the risk of fire or electrical discharge, keep your adapter away from:
- rain or humidity, as well as all fluids (water, chemical products and any other liquids),
- sources of heat such as heaters, stoves and any other heat-producing devices (including amplifiers),
- direct sunlight.
- Only plug in the Hercules ePlug 200 Mini adapter in a sufficiently ventilated room.
- Only connect the Hercules ePlug 200 Mini adapter using the included Ethernet cable.
- Unplug the Hercules ePlug 200 adapter from its electrical outlet if you do not plan on using it again for an
extended period of time.
- Unplug the Hercules ePlug 200 Mini adapter from its electrical outlet before cleaning. Use a soft cloth for
cleaning and avoid using aerosol cleaners, water, solvent-based chemical products, benzene, alcohol or other
cleaning products.
- Always keep children away from electrical outlets.
1.2. Specifications
Atheros INT6400 chipset
Compatible with the IEE 802.3, IEE 802.3u, IEE 802.3x and Auto MDI/X specifications
Compatible with the Homeplug AV standard
Coexists with HomePlug 1.0 modules
Encryption via the AES 128-bit security protocol
200 Mbits/s transfer rate
Asynchronous transmission mode
Modulation: OFDM, 1024/256/64 QAM, QPSK, BPSK
200m range over the electrical network
Ethernet RJ45 port
Average power consumption: 4.3W when in use, 0.9W in standby when no data is circulating (these
values may vary depending on your home's electrical system)
Internal power supply: 100~ 240V AC, 50/60Hz
Connect button, allowing you to add a Hercules ePlug 200 adapter to an existing network
LEDs on front face
4/59 – User Manual
Hercules ePlug 200 Mini
1.3. Minimum system requirements
To connect a device to your Hercules ePlug 200 Mini adapter:
An Ethernet type network interface must be available on each device to be connected (computer, game
console, modem, router, TV decoder, etc.)
To access the Internet with the Hercules ePlug 200 Mini adapter:
Active Internet line
Internet Explorer 6.0, Netscape Navigator 4.7 or Mozilla Firefox 1.0 or higher
ADSL Ethernet modem, cable modem, Internet “Box” (Livebox
®
, Freebox®, Neufbox®…)
1.4. Box contents
Please verify that the following elements are present in the box:
Depending on the pack:
- Hercules ePlug 200 Mini Solo: 1 adapter
- Hercules ePlug 200 Mini Duo: 2 adapters
Quick Start Guide in English
Ethernet cable (1 per adapter)
The "Hercules ePlug Station" network configuration and supervision software is available for
download at http://www.hercules.com.
1.5. LEDs overview
: HomePlug connection status LED:
- Green: very good connection (transfer rates greater than
60 Mbits/s)
- Orange: fairly good connection (transfer rates between 60 and
40 Mbits/s)
- Red: poor connection (transfer rates less than 40 Mbits/s)
: Ethernet connection LED:
- lit up when the Ethernet cable is connected
- flashes during data transfer
: Power LED: flashes during traffic
User Manual – 5/59
Hercules ePlug 200 Mini
1.6. Connectivity overview
In order for the Hercules ePlug 200 Mini adapter to switch to standby mode, the network card
on your computer or other network device must be inactive (i.e. no data is being transferred).
To be sure that the network card remains inactive, you can unplug the computer from its
electrical outlet, particularly if you don't intend to use it again for some time, or, if the computer
is plugged into a power strip with an On/Off button, you can press the Off button on the power
strip.
Power plug to plug the Hercules ePlug 200 Mini adapter
into an electrical outlet
Ethernet port allowing you to connect a device to the
Hercules ePlug 200 Mini adapter (desktop computer, laptop or
netbook computer, game console, TV decoder, modem/router,
Internet “box”)
Pairing button with three functions, allowing you to:
- enable pairing, in order to connect other ePlug 200
adapters to the network (by way of a short press,
from 2 to 4 seconds): the power LED flashes
- randomly generate a new network password (by
way of a medium press, from 8 to 12 seconds): the
adapter restarts when you release the button
- restore factory default settings (by way of a long
press, of more than 15 seconds): the adapter
restarts
6/59 – User Manual
Hercules ePlug 200 Mini
2. INSTALLING YOUR HERCULES ePLUG 200 MINI
The Hercules ePlug 200 Mini adapter has been designed to be simple to use and install, while at the same
time minimizing the amount of space that it takes up when plugged in, thanks to its compact design. If you
have already purchased and installed HomePlug (or PLC) adapters, Hercules provides a Quick Start Guide
which guides you through several steps to take to add your Hercules ePlug 200 adapters to your existing
HomePlug network.
If you are new to the world of HomePlug technology, we invite you to follow the pieces of advice set out in
chapters 2.1 and 2.2 in order to get started.
Otherwise, you can proceed directly to chapter 2.3. You haven't yet created a HomePlug network: initial
i
nstallation of Hercules ePlug 200 Mini Duo which sets out, step by step, the installation procedure for your
Hercules ePlug 200.
Finally, if you have already created a HomePlug network and wish to add a new adapter, please refer to
chapter 2.4. You have already created a HomePlug network: adding a new adapter to your network
(Her
cules ePlug 200 Mini Solo or Duo).
2.1. How to position your Hercules ePlug 200 Mini
To help you connect your Hercules ePlug 200 Mini, start by selecting an electrical outlet near to the equipment
you wish to connect and follow the pieces of advice set out below.
To optimize the transfer of data on your electrical network, be sure to follow these
recommendations:
You should preferably plug the adapters and devices (computer, Internet "box"...) into
separate wall outlets: one for the adapter and one for the device to be connected to the
HomePlug network.
If you plug both an adapter and a device into the same powerstrip, the performance
(bitrate) of your network may be affected.
User Manual – 7/59
Hercules ePlug 200 Mini
2.2. HomePlug: the partner to WiFi in your home
If you have a modem router or an Internet "box", your various pieces of network equipment, whether
connected by WiFi or HomePlug, can communicate with one another. All data is transferred to a central point,
in this case your modem router or Internet "box", and may circulate either on the electrical network via your
HomePlug adapters, or by way of radio waves via WiFi.
It is therefore perfectly possible for a computer or any other piece of network equipment connected via WiFi to
communicate with another piece of equipment connected via the HomePlug network to the modem router.
In chapters 2.2.1 to 2.2.3, you will find different examples of purely HomePlug networks. However, there is
nothing stopping you from adding WiFi devices as well: for example, an Internet "box" connected to the
HomePlug network on the one hand, and a WiFi laptop computer connected to this same "box" via WiFi, on
the other hand.
2.2.1. Connecting two computers in a HomePlug network

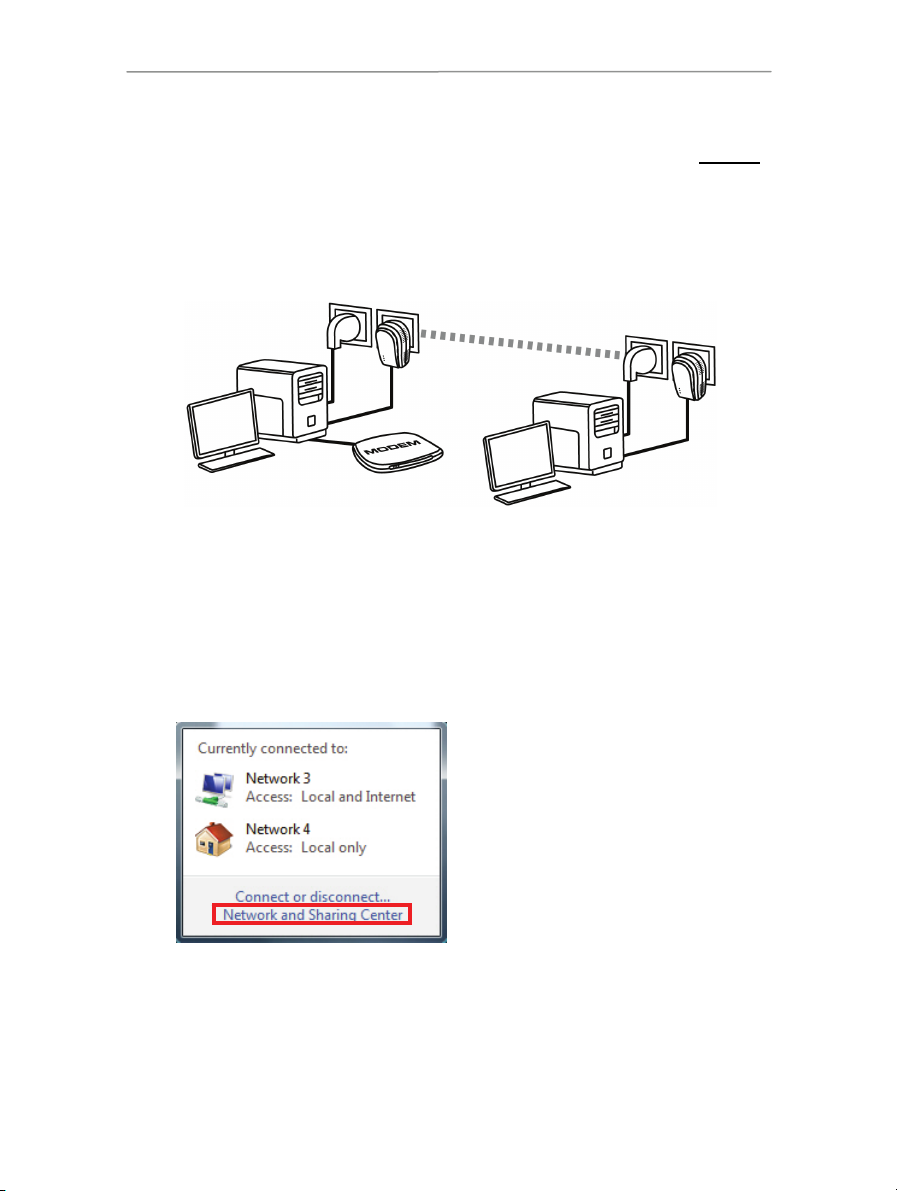

2.2.2. Connecting a computer to a modem, a modem router, an
8/59 – User Manual
Internet "box" or a game console in a HomePlug network
Hercules ePlug 200 Mini
2.2.3. Connecting an Internet "box" to a Digital Terrestrial Television decoder in a HomePlug network
User Manual – 9/59
Hercules ePlug 200 Mini
2.3. You haven't yet created a HomePlug network: initial
installation of Hercules ePlug 200 Mini Duo
The HomePlug AV standard of Hercules ePlug 200 adapters is not compatible with the
Homeplug 1.0 standard of Hercules ePlug 85 adapters and HomePlug 14 Mbits/s
adapters, but these two standards can coexist side-by-side. In effect, if you have already
installed a HomePlug network in the HomePlug 1.0 standard (for example, with Hercules
ePlug 85 adapters), you cannot add Hercules ePlug 200 adapters to that network. However,
you are perfectly able to install a second network in your home composed of Hercules
ePlug 200 adapters and HomePlug AV compatible devices.
To install a HomePlug network:
1. Connect the Ethernet cable to the Ethernet plug
on your first adapter.
10/59 – User Manual
2. Plug the adapter into an electrical outlet located
near the device to be connected to the network.
Hercules ePlug 200 Mini
3. Connect the other end of the Ethernet cable to the
computer, modem, game console or any other
network device (for example, a modem router).
4. Connect the Ethernet cable to the Ethernet plug
on your second adapter.
5. Plug the adapter into an electrical outlet located
near the device to be connected to the network.
In order to optimize data transfer on the PLC
network, it is preferable not to plug your adapter
directly into a powerstrip.
User Manual – 11/59
Hercules ePlug 200 Mini
6. Connect the other end of the Ethernet cable to the
computer, modem, game console or any other
network device (for example, a computer).
When your adapters are connected, the
LED (connection status) lights up and
indicates that the network is functioning
properly. The signal quality is also indicated by
a color code, explained in chapter 1.5. LEDs
overview
Your computer can now access the Internet via your modem, as the two devices are connected to one
another via the HomePlug network and have the same network password.
12/59 – User Manual
Hercules ePlug 200 Mini
2.4. You have already created a HomePlug network: adding a
new adapter to your network (Hercules ePlug 200 Mini Solo
or Duo)
Let's take an example of a home in which you have already installed a HomePlug network composed of
HomePlug adapters in the AV standard (Hercules ePlug 200 Mini, for example). You now wish to install one
or more new Hercules ePlug 200 Mini adapters in order to expand your network and be able to connect new
devices (printer, modem, router, game console...).
1. Ethernet connection and electrical connection of your new Hercules ePlug 200 adapter
1. Connect the Ethernet cable to the Ethernet plug
on your new adapter.
2. Plug the new adapter into an electrical outlet
located near the device to be connected to the
network.
In order to optimize the transfer of data on the
HomePlug network, avoid plugging your
adapter directly into a power strip.
User Manual – 13/59
Hercules ePlug 200 Mini
3. Connect the other end of the Ethernet cable to the
computer, modem, game console or any other
network device (here, a computer).
4. Press for 2 to 4 seconds on the Connect button
on one of the adapters already connected to the
network.
You now have 2 minutes to pair the new
adapter.
14/59 – User Manual
5. Press for 2 to 4 seconds on the Connect button
on the Hercules ePlug 200 Mini adapter.
The
LED lights up when a connection
to the network has been established
Hercules ePlug 200 Mini
- Repeat this procedure to add another Hercules
ePlug 200 Mini adapter.
2. Connection to the network
The network password is applied to the Hercules ePlug 200 Mini adapter, which can now communicate with all
the adapters of the existing network.
If the connection of your adapter to the network has failed, there are several possible causes.
Cause 1: You may not have carried out the connection procedure properly:
- Press for between 2 to 4 seconds on the Connect button (also referred to as the security
button by some manufacturers) on the adapter which is already part of your existing network.
- Make the connection by pressing for between 2 to 4 seconds on the Connect button on your
Hercules ePlug 200 Mini adapter. You have 2 minutes to carry this out.
Cause 2: Your adapter may not be properly plugged into an electrical outlet, or this
outlet is not powered:
- Verify that the adapter's power LED
is lit up.
Cause 3: There may be a strong disturbance in your electrical network caused by other
devices near to your adapter:
- Avoid plugging your adapter directly into a power strip.
- Unplug the devices plugged in near to the adapter.
- Try plugging the adapter into another outlet.
User Manual – 15/59
Hercules ePlug 200 Mini
2.5. How to change the network password
When you install a HomePlug network, a random password is automatically generated. You can easily
generate a new random password by using the Connect button's restart function.
If you change the network password on an adapter, that adapter will no longer be part of the
network.
- Press for between 8 to 12 seconds on the Connect
button on the adapter whose password you want to
change.
Wait until the adapter restarts.
- Connect the other adapters by pressing for
between 2 to 4 seconds on the Connect button on
the adapter which is already part of the network you
wish to create, and then pressing the Connect
button on the adapter you wish to integrate into that
network.
- Repeat this procedure for all adapters you wish to
integrate into the network.
16/59 – User Manual
Hercules ePlug 200 Mini
3. MANAGING YOUR NETWORK WITH HERCULES ePLUG STATION

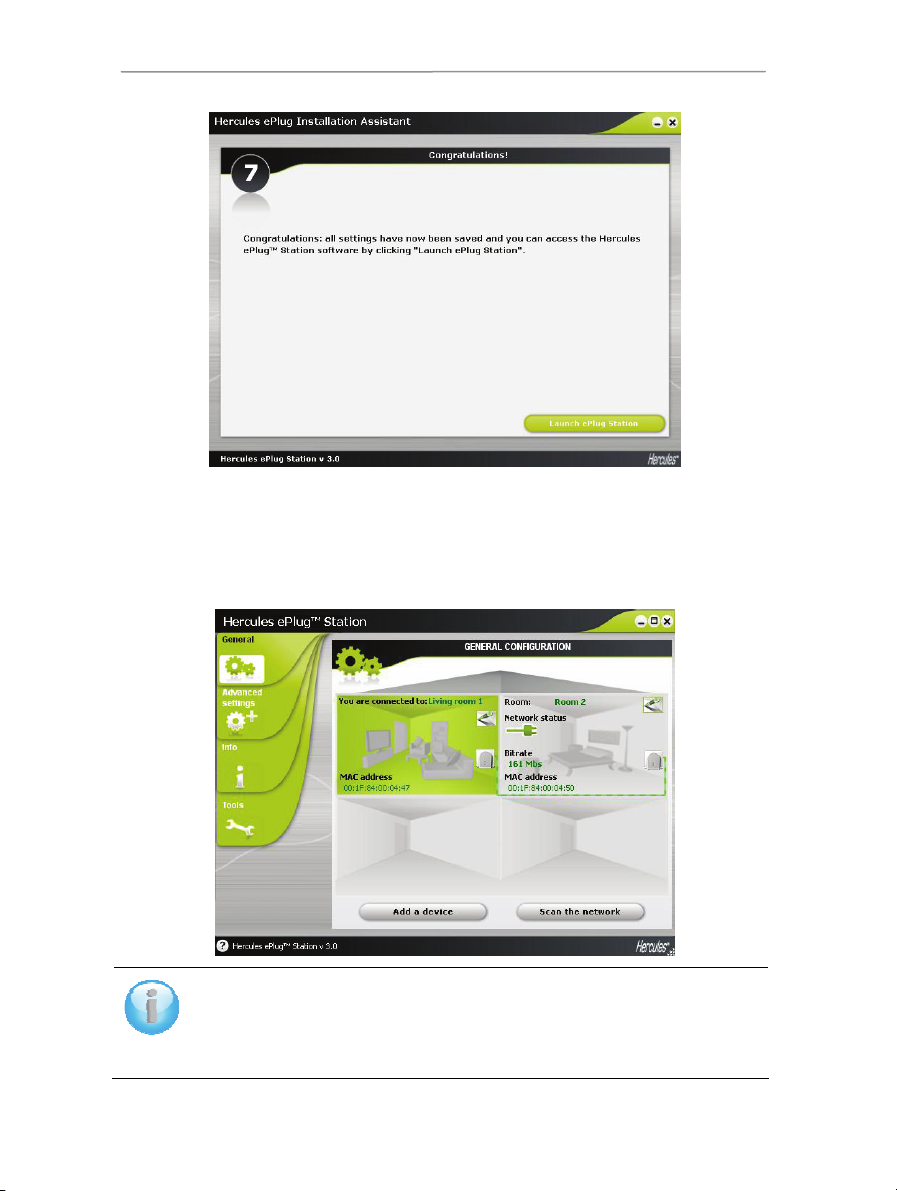

The Hercules ePlug Station software has been designed to let you manage your PLC network. Once you have
provided the requested items of information, you will be able to view a depiction of all devices connected to
your PLC network, allowing you to verify their functioning and bitrate, room by room.
3.1. Downloading Hercules ePlug Station
Hercules ePlug Station is available for download from the http://www.hercules.com website, in the
Downloads part of the PLC products section.
On the Hercules website, select the version corresponding to your product, follow the procedure and save the
installer file to your hard disk drive.
3.2. Installing Hercules ePlug Station
- Double-click the ePlugStation_Setup.exe file (in the location where you have saved it on your computer) to
launch the installation.
To use Hercules ePlug Station, your computer must meet the following minimum system
requirements:
- Intel Pentium III, AMD Athlon/AMD-K6
- 64MB RAM
- 10/100 RJ-45 Ethernet network card
- CD-ROM drive
- 50MB free hard disk space
- Operating system: Microsoft Windows 2000, XP, Vista, 7
- If a Windows security warning is displayed, click Run.
- Select the location for extraction of the files, then click Next.
Once extraction is complete, a Hercules ePlug Station window opens.
User Manual – 17/59
Hercules ePlug 200 Mini

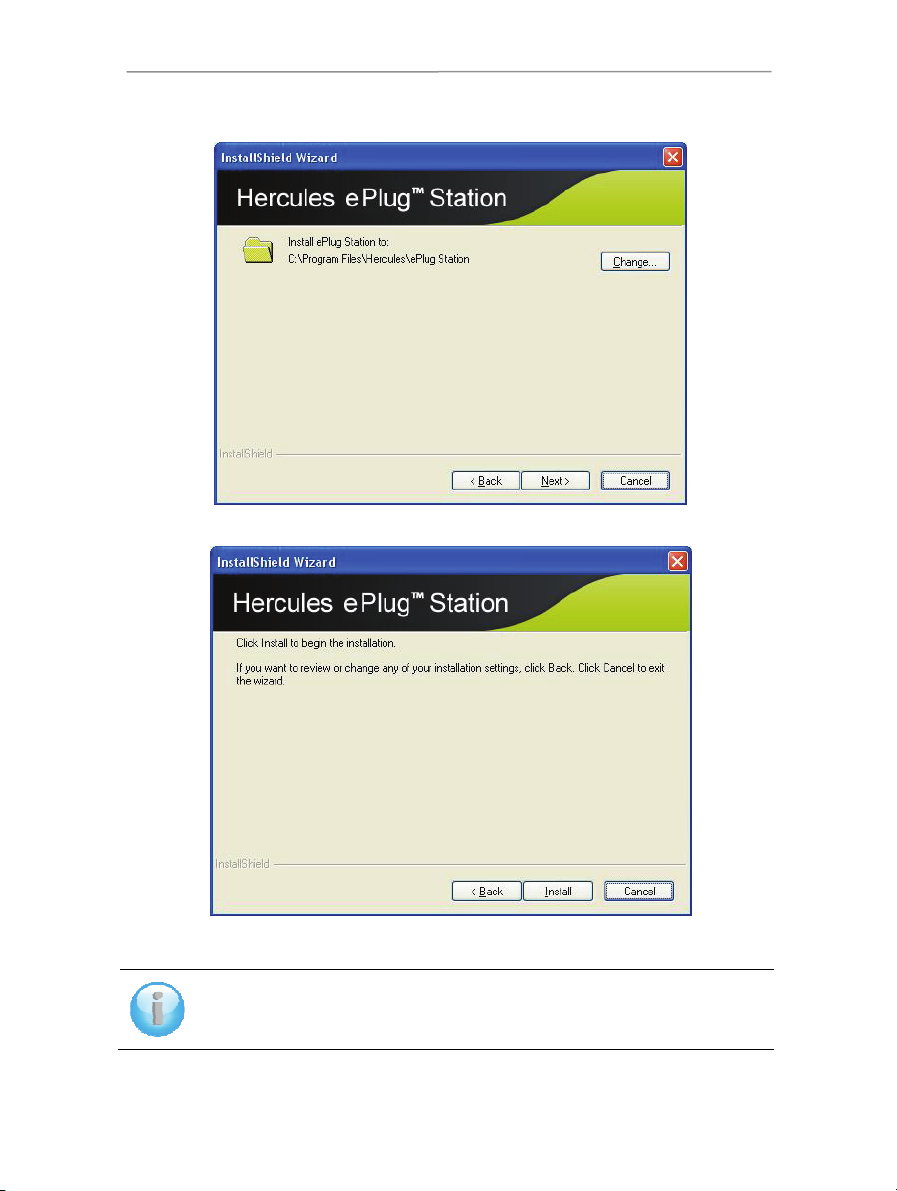

- Click the Install Hercules ePlug Station button.
The welcome screen for the ePlug Station InstallShield Wizard is displayed.
- Click Next.
18/59 – User Manual
Loading...
