Hercules DJMonitor 32 Duo Pack User manual
DJMONITOR 32
DJMONITOR 32
CONTENTS
1. INTRODUCTION.................................................................................................................3
1.1. Package contents........................................................................................................3
1.2. Specifications...............................................................................................................3
1.3. Recommendations.......................................................................................................4
2. INSTALLING THE DJMONITOR 32 SPEAKER KIT..........................................................4
2.1. Positioning the speakers .............................................................................................4
2.2. Connecting the speaker kit..........................................................................................5
2.2.1. Connection to a PC..........................................................................................6
2.2.2. Connection to a television set equipped with a headphone jack.....................6
2.2.3. Connection to a DVD player/television set equipped with Left and
Right audio outputs..........................................................................................6
3. USING YOUR DJMONITOR32 SPEAKER KIT..................................................................7
2/7 - User Manual
1. INTRODUCTION
Output power (effective
power)
Satellite speakers: 2 x 15 W RMS
Total power
30 W RMS
Frequency response
Satellite speakers: 60 Hz – 20 kHz
Magnetic shielding
Magnetically shielded speakers allow for placement close to a monitor without
disturbing the display
Features

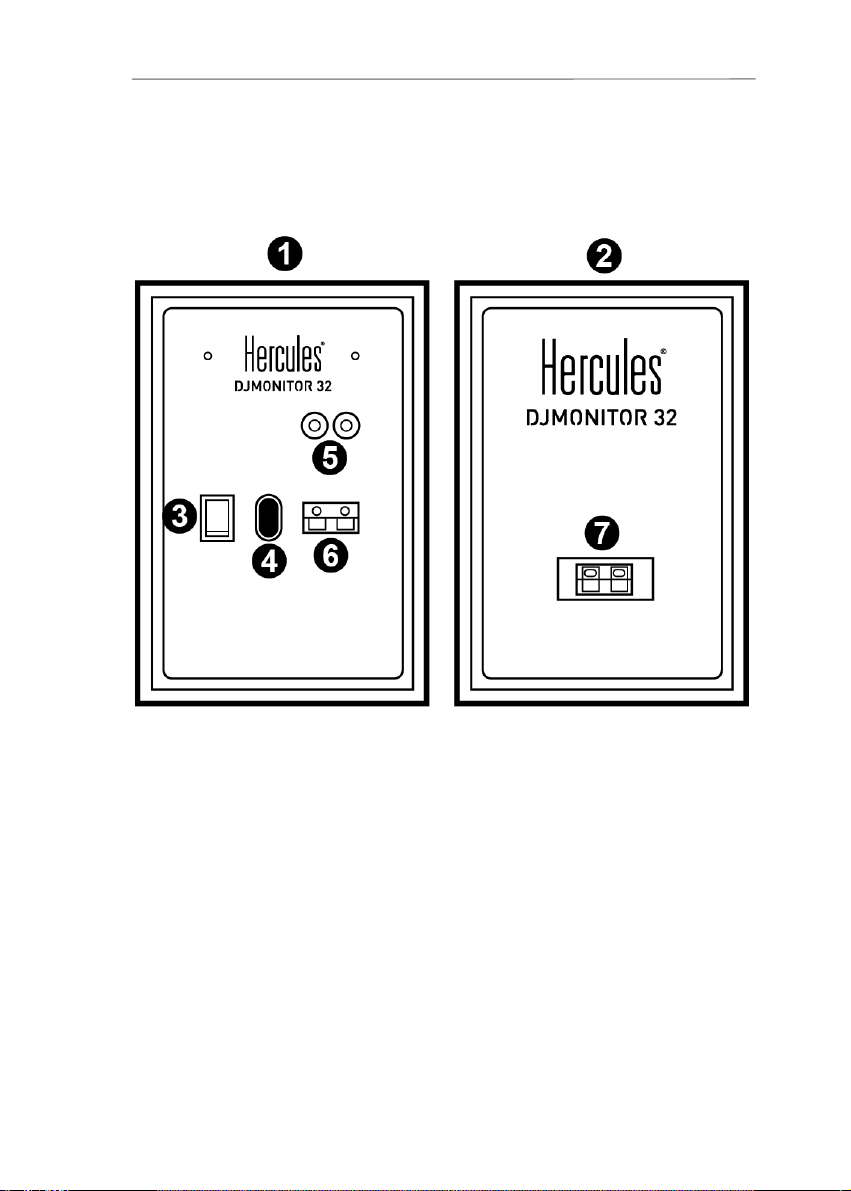

Right speaker:
- 1 audio output to connect the left speaker
- 1 stereo RCA input on the back of the speaker, for the main audio input

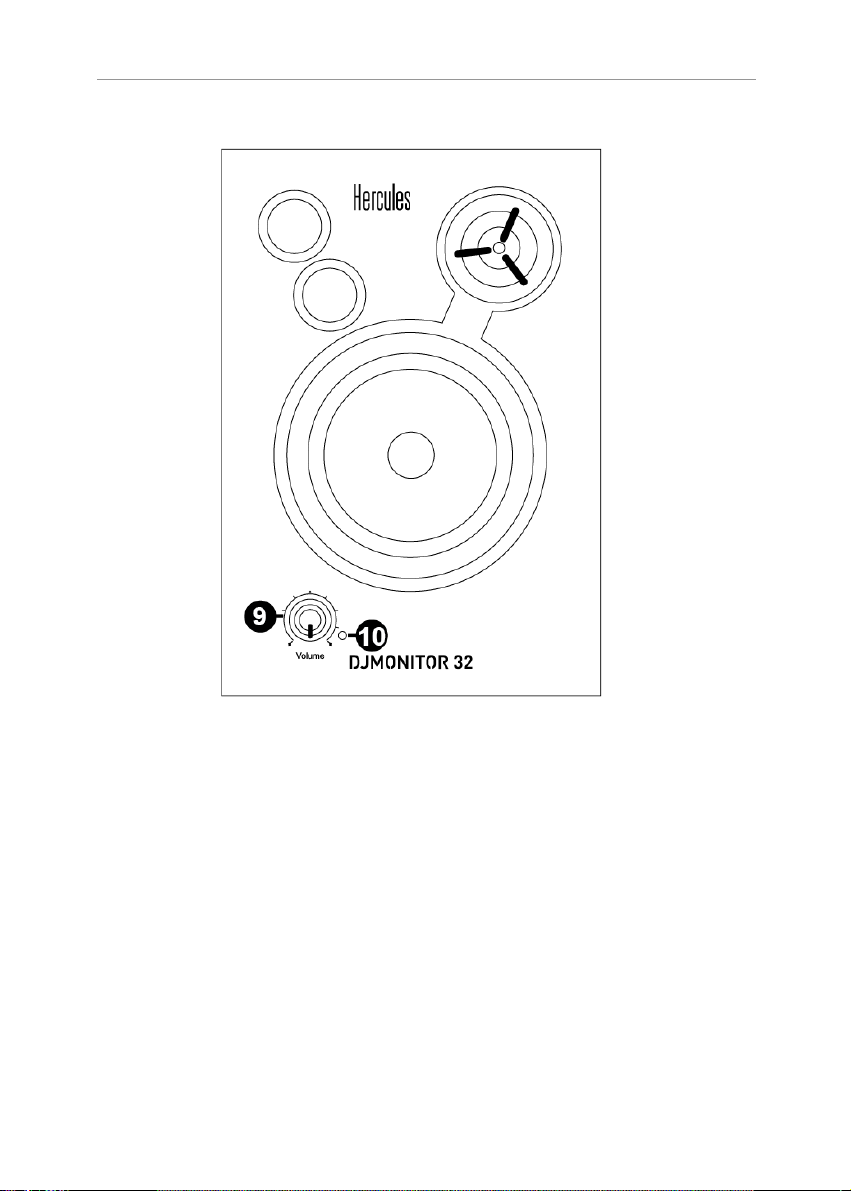

- 1 volume control knob
For use with
PC, TV sets, DVD players, CD-Audio, MP3 players
1.1. Package contents
2 amplified satellite speakers
1 jack (male) / 2 RCA (male) cable
1 connection cable between the satellite speakers
1 power cable
User manual
1.2. Specifications
DJMONITOR 32
User manual – 3/7
