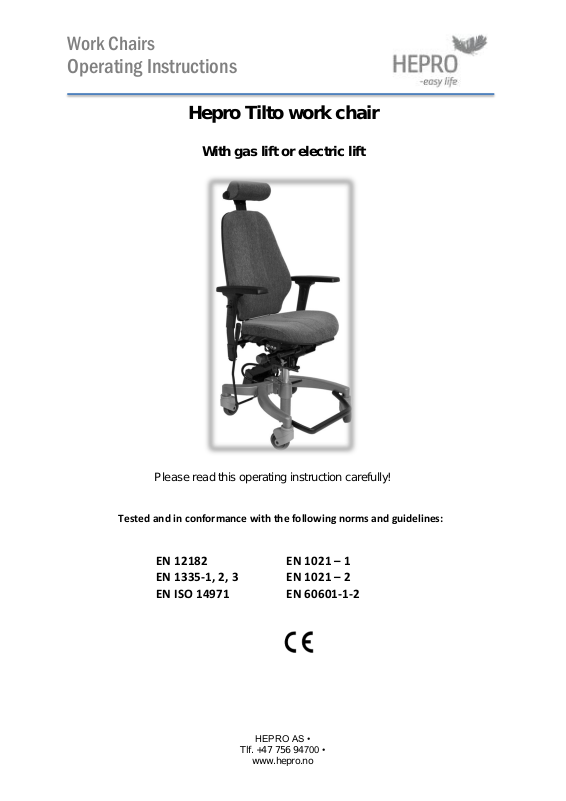

Page 1
Work Chairs
Operating Instructions
Please read this operating instruction carefully!
Tested and in conformance with the following norms and guidelines:
EN 12182
EN 1021 – 1
EN 1335-1, 2, 3
EN 1021 – 2
EN ISO 14971
EN 60601-1-2
Hepro Tilto work chair
With gas lift or electric lift
HEPRO AS •
Tlf. +47 756 94700 •
www.hepro.no
Page 2
Work Chairs
Operating Instructions
A
Intended use
Hepro Tilto work chair is designed to help people with disabilities that make it difficult for
them to execute an activity in an upright position, and at the same time have problem with
movement during the activity. The chair has big levers with clear symbols and can be easily
adjusted to fit ergonomically while simultaneously taking into account the body`s
movements. The angle between the seat and the backrest can easily be adjusted and
blocked. The seat unit can be tilted without changing the basic setting. This means that the
load on the body can be changed without changing the angle between the backrest and seat.
The chair has big wheels and good legroom. This makes it easy to move, but is stable when
the brake is activated.
Assembling and adjusting the backrest
The chair is delivered with the backrest and neck support
unassembled. To assemble the backrest just put it down on the
backrest tube. Lift the lever for height adjustment A and slide
the back all way down. Then regulate the back to the desired
position and press the lever A down again to lock it in position.
The chair is delivered with the Extra High backrest (EHR) and
neck support as standard. Put the neck support down in the
slot on top of the backrest and regulate it as described at the
bottom of the page.
The back has built-in inflatable cross-back support which is
operated by hand pump B.
A lower backrest (HR) is an accessory.
Adjust the neck support
The support can be raised or lowered by pulling it up or down. At the same time it can be
adjusted forward or backward by rotating it around the cushion fixing.
HEPRO AS •
Tlf. +47 756 94700 •
www.hepro.no
Page 3
Work Chairs
Operating Instructions
G
Adjusting the armrest
Armrest pad can easily be pushed forward or back.
The height is regulated by holding up the outer mantle and
then move the armrest to desired position.
The whole armrest can be folded back by pressing the plastic
latch at the bottom.
Regulating the seat unit
For models with gas lift:
• To regulate the height lift the lever I.
For models with electric lift:
The red switch on the right side of the seat
regulates the height, up by pressing the switch
forward, and back by pressing it backward.
The charger socket is placed in the same box as
the switch. The chair should be charged before
it is used.
• For all Tilto models applies:
• Locking wheel G is opened to adjust the seat tilt.
• The handle H is lifted to adjust the back angle.
• The botton N is pushed to regulate the seat depth.
• The locking wheel O regulates the tension of the spring to tilt (rocking) movement.
Turning the wheel clockwise tightening the spring.
• The lever J on the right hand side is to open or block the rotation of the seat (only for
models with seat rotation).
HEPRO AS •
Tlf. +47 756 94700 •
www.hepro.no
Page 4
Work Chairs
Operating Instructions
Regulating the brake handle
The brake handle can be moved sideways by opening the eccentric fastener and move the
handle so it fits. It can also be moved to the other side. The position is locked by closing the
eccentric fastener. If it does not lock well enough, there is a tension screw just above the
lock, which can be tightened gently with a 3 mm Unbraco key.
Cleaning
The fabric can be washed in water up to 60°C or cleaned with foam cleaner.
All parts of frame and chassis can be cleaned with a damp cloth and mild soap.
Warranty
When used in accordance with the Operating Instructions HEPRO provides a 2-year warranty
against defects in material and workmanship.
Please address warranty complaints or other inquiries about the product to your supplier or
importer. Always state the product`s serial number as a reference.
Safety Provisions
The chair is an aid, and shall not be used as «a toy» for children.
Exceeding approved user weight (150 kg) may cause damage to both user and product.
Do not stand on the foot ring! The chair will probably overturn!
Although the fabric is flame retardant it must not be exposed to naked flame, cigarette
embers or the like.
HEPRO AS •
Tlf. +47 756 94700 •
www.hepro.no
