Work Chairs
Operating Instructions
Tested and in conformance with the following norms and guidelines:
EN 12182
EN 1021 – 1
EN 1335-1, 2, 3
EN 1021 – 2
EN ISO 14971
EN 60601-1-2

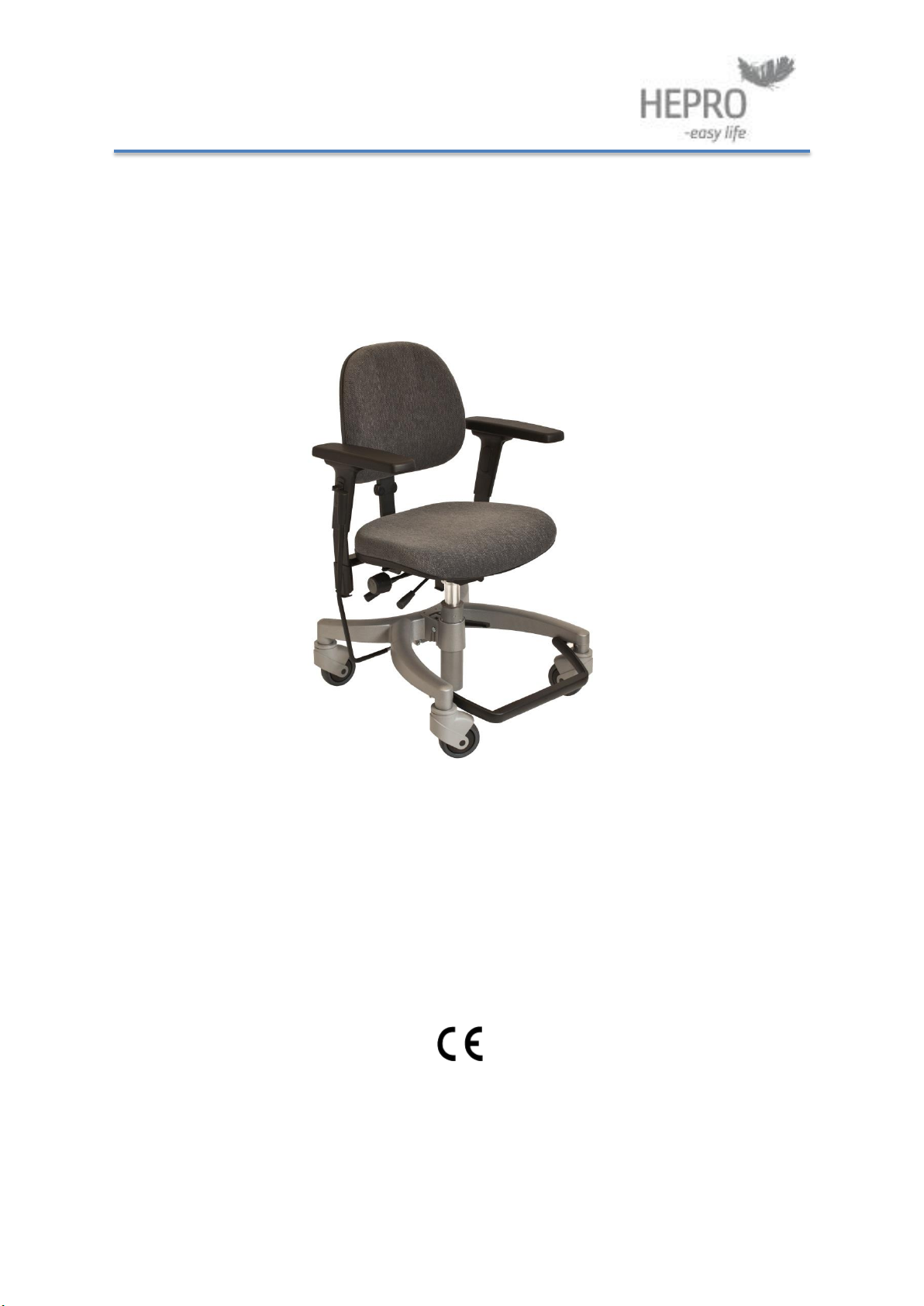

Hepro Standard and Coxit work chair
Models G- and E- Standard and Coxit
Please read this operating instruction carefully!
HEPRO AS • Tlf. +47 756 94 700 • www.hepro.no
Work Chairs
Operating Instructions
Assembling and adjusting the backrest
The chair is delivered without the backrest assembled.
To assemble it, place it gently on the post til it stops.
Press the clamp for the locking mechanism A sideways
and hold it while the backrest is pressed down to desired
position.
Adjusting the armrest
Armrest pad can easily be pushed forward or back.
The height is regulated by holding up the outer mantle
and then move the armrest to desired position.
The whole armrest can be folded back by pressing the
plastic latch at the bottom.
Regulating the coxit flap
Only for the COXIT-models:
• Open the wheels K (left or right), set the
coxit-flaps in desired angle and lock the wheels again.
A
K
Intended use
Hepro Standard and coxit work chairs are designed to help peoplewith disabilities that make
it difficult for them to execute an activity in an upright position, and at the same time have
problem with movement during the activity. The chair has big levers with clear symbols and
can be easily adjusted to fit ergonomically while simultaneously taking into accoumt the
body`s movements. All the levers are placed on the right side of the seat, except the lever
for seat rotation which is on the left side. The chair offers good legroom and is easy to move,
but is stable when the break is activated.
HEPRO AS • Tlf. +47 756 94 700 • www.hepro.no
Work Chairs
Operating Instructions
Regulate the seat unit
For models with gas lift - G
Lift the lever F and regulate the seat height in
desired position.
Turn the wheel G and regulate the seat angle to
desired position.
Lift the lever H and regulate the backrest angle to
desired position.
I
H G F
L
O
For models with electrical lift – E
The red switch L regulate the seat height, up when turning the switch forward and
down when turning it backward.
The wheel G and the lever H has the same function as models with gas lift.
To charge the ELEKTRO-models: put the charger plug in the charger socket M. It is
recommended to charge the chair once a week.
Regulate the seat rotation
Lift the lever I and the seat rotation can be regulated ti desired
position.
The rotation can be locked in 4 position ( for every 90 degrees).
For models with electrical lift, only 3 positions.
Regulate the brake handle
Loosen the two unbraco screws O to move the brake handle
sideways. It can also be moved to the other side. The position is
locked by turning the screws the other way. Use the 2,5 mm
unbraco key delivered with the chair. (It is located on the right side
of the wheelbase center).
The chair is delivered with the brake handle totaly in.
HEPRO AS • Tlf. +47 756 94 700 • www.hepro.no
Work Chairs
Operating Instructions
Cleaning
The fabric can be washed in water up to 60°C.
All parts of the frame and chassis can be cleaned with a damp cloth and mild soap.
Warranty
When used in accordance with the Operating Instruction HEPRO provides a 2-year warranty
against defects in material and workmanship.
Please address warranty complains or other inquiries about the product to your supplier or
importer. Always state the product`s serial number as a referance.
Safety Provisions
The chair is an aid and shall not be used as a «toy» for children. Exceeding approved
user weight (150 kg) may cause damage to both user and product.
Do not stand on the foot ring! The chair will probably overturn!
Although the fabric is flame retardant it must not be exposed to naked flame,
cigarette embers or the like.
HEPRO AS • Tlf. +47 756 94 700 • www.hepro.no
