Henrad SE 30 FF, SE 40 FF, SE 50 FF, SE 60 FF, SE 70 FF User Manual

Supplied By www.heating spares.co Tel. [phone]

Supplied By www.heating spares.co Tel. [phone]

2

Henrad SE FF -

User's

Supplied By www.heating spares.co Tel. [phone]

SE FF (

SE 30 FF ...................G.C. Appliance No. 41 387 46

SE 40 FF ...................G.C. Appliance No. 41 387 47

SE 50 FF ...................G.C. Appliance No. 41 387 48

SE 60 FF ...................G.C. Appliance No. 41 387 49

SE 70 FF ...................G.C. Appliance No. 41 387 50

SE 80 FF ...................G.C. Appliance No. 41 387 51

PI No: 87AT2
Destination Countries: GB, IE

Natural Gas Models Only)

CAUTION.
this appliance care should be taken when handling edges of sheet steel components.

Henrad SE FF -

T o avoid the possibility of injury during the installation, servicing or cleaning of

User's

3

Supplied By www.heating spares.co Tel. [phone]

Introduction

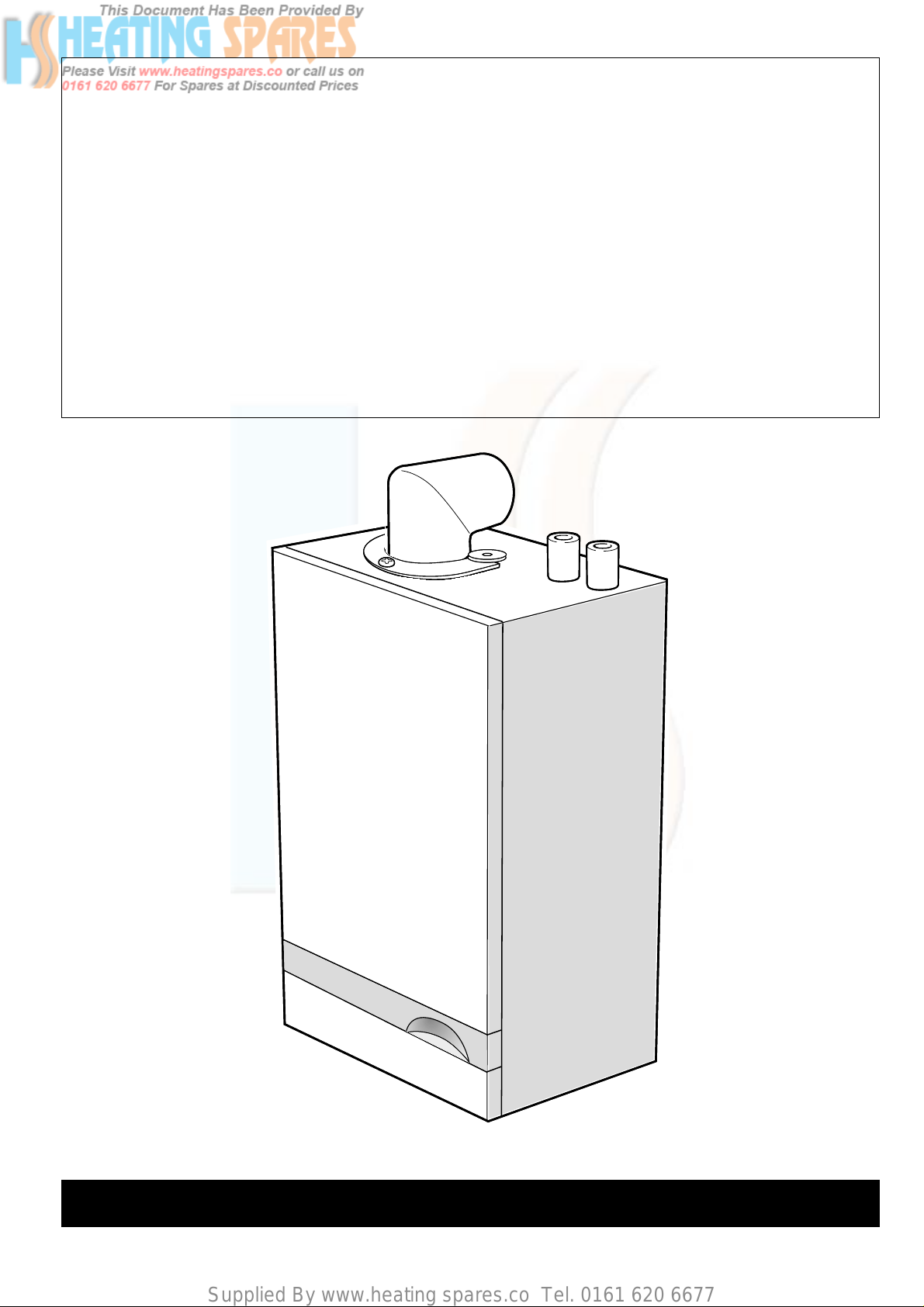

The SE FF is a wall mounted, room sealed, super efficient
condensing boiler featuring full sequence automatic spark
ignition and fan assisted combustion.

To light the boiler

(see illustration on page 5)

Access to the controls is made by swinging the controls pod door
downwards.

Due to the very high efficiency , condensate is produced from
the flue gases and this is drained to a suitable disposal
point through the plastic waste pipe at the right lower rear
of the boiler. A condensate 'plume' will also often be visible
at the flue terminal.

Safety

Gas Safety (Installation & Use) Regulations 1994,
amendments 1996 or rules in force.

In your own interest, and that of safety , it is the law that
this boiler must be installed by a CORGI registered
installer, in accordance with the above regulations.

It is essential that the instructions in this booklet are
strictly followed, for safe and economical operation of
the boiler.

Electricity Supply

This appliance must be efficiently earthed.

Supply: 230 V ~ 50 Hz. The fusing should be 3A.

Connection must be made in a way that allows complete
isolation of the electrical supply such as a double pole
switch having a 3mm (1/8") contact separation in both
poles, or a plug and socket, serving only the boiler and
system controls. The means of isolation must be
accessible to the user after installation.

If a CH timer is fitted, refer to itsseparate instructions before
continuing.

1. Check that the electrical supply to the boiler is OFF.

2. Ensure that the gas and water supplies to the boiler are OPEN

and external controls are calling for heat.

3. Switch ON the electrical supply to the boiler at the mains supply
socket.

4. Turn the boiler thermostat (B) to position 6.

5. After a short delay the ignition sequence will commence and

the boiler will light.

6. Immediately after ignition the 'Burner On' neon (A) will
illuminate and remain on as long as the boiler is firing.

7. If the boiler does not light at the first ignition attempt (after
about 10 seconds), the 'Burner On' neon will illuminate briefly ,
go off, and then the ignition sequence will be repeated, for a
total of 5 times.

8. If there is still no ignition the fan will stop and the boiler will
shut down.

9. In this event switch off the electrical supply to the boiler and
consult a CORGI registered installer.

WARNING

If no frost protection is provided and frost is likely during a short
absence from home, leave the room thermostat and cylinder
thermostat at a reduced setting.

For longer periods, the entire system should be drained - including
the domestic water supply and boiler heat exchanger.

If the system includes a frost thermostat then, during cold weather,
the boiler should be turned OFF at the time switch(es) ONLY.

The mains supply should be left switched ON.

.

Important Notes

! THIS APPLIANCE MUST NOT BE OPERATED WITHOUT

THE CASING CORRECTLY FITTED AND FORMING AN
ADEQUATE SEAL.

! If the boiler is installed in a compartment then the

compartment MUST NOT be used for storage purposes.

! Clearances of 145mm (7

5mm (1/4") at the sides and 450mm (17 3/4") at the front of

the boiler casing must be allowed for servicing.

! If it is known or suspected that a fault exists on the boiler

then it MUST NOT BE USED until the fault has been
corrected by a CORGI registered installer.

3/4") above, 100mm (4") below,

4

To shut down the boiler

1. For short periods

Switch OFF the electrical supply to the boiler.
When heating is again required, restore supply to the boiler.

2. For longer periods

Switch OFF the electrical supply to the boiler or, if a frost
thermostat is fitted, at the time switch.

To relight the boiler

Repeat the procedure detailed in 'To light the boiler'.

Henrad SE FF -

User's

Supplied By www.heating spares.co Tel. [phone]

Escape of gas

Control of water temperature

Should a gas leak or fault be suspected contact your local gas
supplier without delay.

Do NOT search for gas leaks with a naked flame.

Condensate Drain

The condensate drain must not be modified or blocked.
Blockage of the condensate drain, caused by debris or freezing,

can cause automatic shutdown of the boiler.
If freezing is suspected and the pipe run is accessible an attempt

may be made to free the obstruction by pouring hot water over
the exposed pipe and clearing any blockage from the end of the
pipe. If this fails to remedy the problem the assistance of a CORGI
registered installer should be sought.

Cleaning

For normal cleaning simply dust with a dry cloth.
To remove stubborn marks and stains use a damp cloth and mild

detergent.
DO NOT use abrasive cleaning materials.

1. Set the boiler thermostat knob to give the required temperature

2. The boiler thermostat automatically switches the main burner

OFF and ON to maintain the selected temperature.

Approx. flow temperatures for the boiler thermostat settings are:

Knob Setting Flow Temperature

°C °F

1 50 120
2 60 140
3 66 150
4 71 160
5 77 170
6 82 180

Maintenance

The appliance should be serviced at least once a year by a CORGI
registered installer.

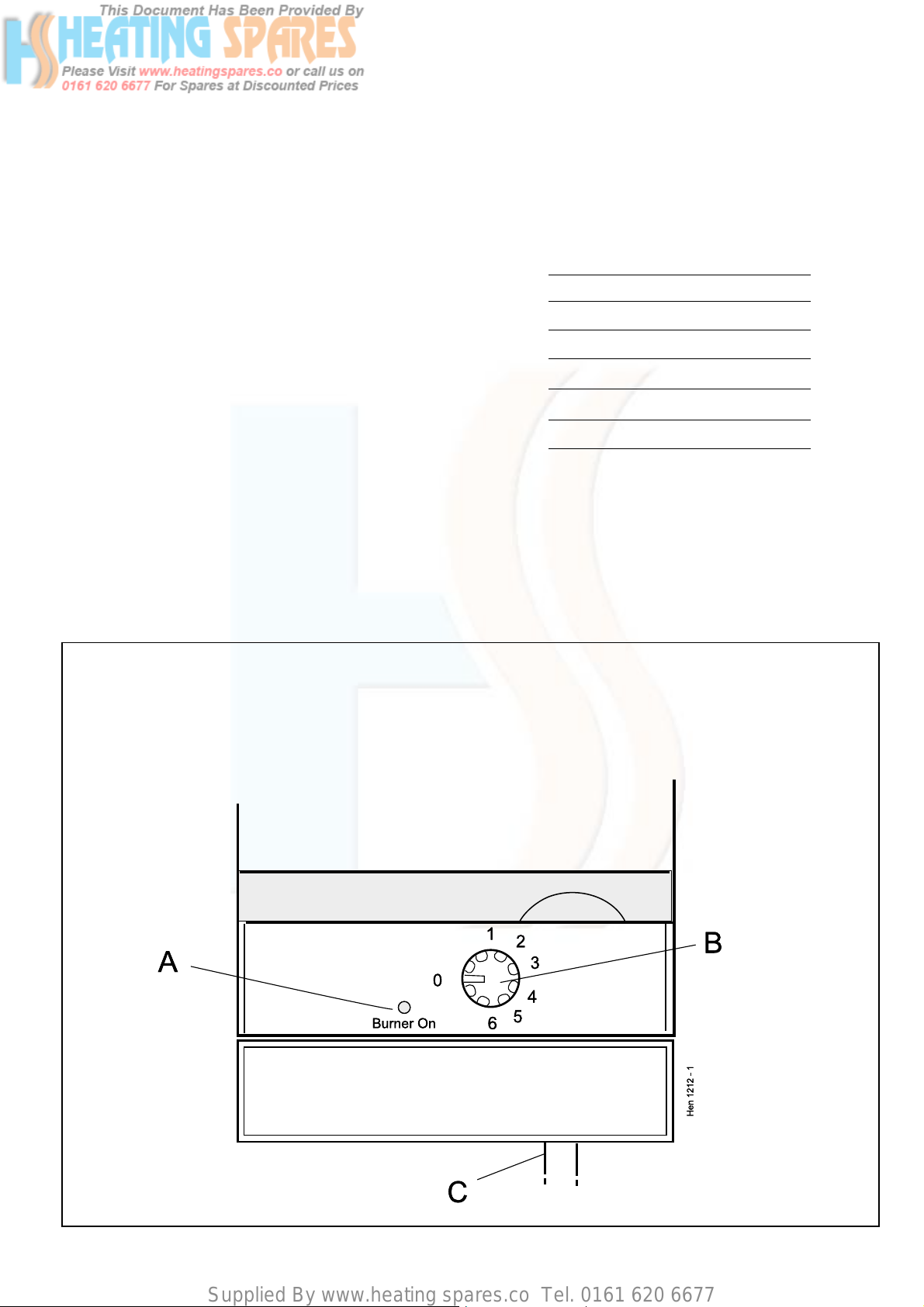

BOILER CONTROLS

LEGEND
A 'Burner on' neon
B Thermostat knob
C Condensate drain

Henrad SE FF -

User's

5

Supplied By www.heating spares.co Tel. [phone]

The code of practice for the installation,

commissioning & servicing of central heating systems

Caradon Plumbing Limited is a member of the
Benchmark initiative and fully supports the aims of the
programme. Benchmark has been introduced to
improve the standards of installation and commissioning
of central heating systems in the UK and to encourage
the regular servicing of all central heating systems to
ensure safety and efficiency.

Caradon Plumbing Limited,

P.O. Box 103, National Ave, Kingston upon
Hull, HU5 4JN. Telephone: [phone]
Fax: [phone]. Registration No. London
322 137. Registered Office: National Avenue,
Kingston upon Hull, HU5 4JN.

Caradon p.l.c

H

enrad Consumer Helpline: 01482 498660

A subsidiary of

6

Caradon Plumbing Ltd pursues a
policy of continuing improvement in the
design and performance of its products.
The right is therefore reserved to vary
specification without notice.

August 1999 UIN 153 961 A01

Henrad SE FF -

User's

Supplied By www.heating spares.co Tel. [phone]

Your feedback

and your chance to win a free boiler

At Henrad we've been leaders in the design and engineering of robust
and reliable boilers for over 90 years. We want to continue as leaders by
listening to your suggestions for how to improve our boilers and our service.
We will be giving away a free boiler for the five best ideas every year (to
be selected by our Technical Director). Please complete this form, using
extra sheets if required, and post it or fax it to us on 01482 498699.

Boiler details

Model / Size (details on control panel door)

Date of Installation

Installer details

Name

Address

Post Code Telephone (

How I would improve this boiler:

My general comments for Henrad:

Please include STD code

:

)

"

H

enrad Consumer Helpline: 01482 498660

Henrad SE FF -

User's

7

Supplied By www.heating spares.co Tel. [phone]

Further information
