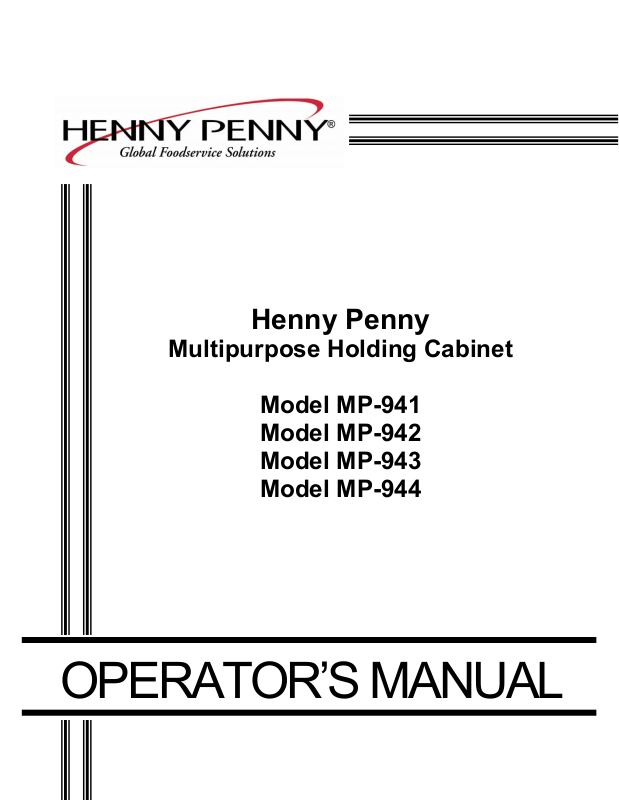

Henny Penny Model MP-941/942/943/944

Multipurpose Holding Cabinet

Henny Penny

Model MP-941
Model MP-942
Model MP-943
Model MP-944

OPERATOR’S MANUAL

Model MP-941/942/943/944

LIMITED WARRANTY FOR HENNY PENNY EQUIPMENT

Subject to the following conditions, Henny Penny Corporation makes the following limited warranties to the original

purchaser only for Henny Penny appliances and replacement parts:

NEW EQUIPMENT:
in material or workmanship within two (2) years from date of original installation, will be repaired or replaced
without charge F.O.B. factory, Eaton, Ohio, or F.O.B. authorized distributor. Baskets will be repaired or replaced
for ninety (90) days from date of original installation. Lamps and fuses are not covered under this Limited
Warranty. To validate this warranty, the registration card for the appliance must be mailed to Henny Penny within
ten (10) days after installation.

FILTER SYSTEM
other unapproved filters is not

REPLACEMENT PARTS:
in material or workmanship within ninety (90) days from date of original installation will be repaired or replaced
without charge F.O.B. factory, Eaton, Ohio, or F.O.B. authorized distributor.

The warranty for new equipment covers the repair or replacement of the defective part and includes labor charges and

maximum mileage charges of 200 miles round trip for a period of one (1) year from the date of original installation.

The warranty for replacement parts covers only the repair or replacement of the defective part and does not include any
labor charges for the removal and installation of any parts, travel, or other expenses incidental to the repair or replacement of
a part.

EXTENDED FRYPOT WARRANTY:
workmanship issues for a period of up to seven (7) years from date of manufacture. This warranty shall not cover any frypot
that fails due to any misuse or abuse, such as heating of the frypot without shortening.

0 TO 3 YEARS:
will be replaced at no charge for parts, labor, or freight. Henny Penny will either install a new frypot at no
cost or provide a new or reconditioned replacement fryer at no cost.

3 TO 7 YEARS:
will be replaced at no charge for the frypot only. Any freight charges and labor costs to install the new
frypot as well as the cost of any other parts replaced, such as insulation, thermal sensors, high limits,
fittings, and hardware, will be the responsibility of the owner.

Any claim must be presented to either Henny Penny or the distributor from whom the appliance was purchased. No
allowance will be granted for repairs made by anyone else without Henny Penny’s written consent. If damage occurs during
shipping, notify the sender at once so that a claim may be filed.

THE ABOVE LIMITED WARRANTY SETS FORTH THE SOLE REMEDY AGAINST HENNY PENNY FOR ANY
BREACH OF WARRANTY OR OTHER TERM. BUYER AGREES THAT NO OTHER REMEDY (INCLUDING
CLAIMS FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES) SHALL BE AVAILABLE.

The above limited warranty does not apply (a) to damage resulting from accident, alteration, misuse, or abuse; (b) if the
equipment’s serial number is removed or defaced; or (c) for lamps and fuses. THE ABOVE LIMITED WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY
AND FITNESS, AND ALL OTHER WARRANTIES ARE EXCLUDED. HENNY PENNY NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY

Any part of a new appliance, except baskets, lamps, and fuses, which proves to be defective

: Failure of any parts within a fryer filter system caused by the use of the non-OEM filters or

covered under this Limited Warranty.

Any appliance replacement part, except lamps and fuses, which proves to be defective

Henny Penny will replace any frypot that fails due to manufacturing or

During this time, any frypot that fails due to manufacturing or workmanship issues

During this time, any frypot that fails due to manufacturing or workmanship issues

.

FM05-017-E

Revised 02-21-08

Revised 01/01/07

Model MP-941/942/943/944

TABLE OF CONTENTS

Section Page

Section 1. INTRODUCTION ...........................................................................................................1-1

1-1. Multipurpose Holding Cabinet ...............................................................................1-1

1-2. Features...................................................................................................................1-1

1-3. Proper Care .............................................................................................................1-1

1-4. Assistance ...............................................................................................................1-1

1-5. Safety ......................................................................................................................1-2

Section 2. INSTALLATION ............................................................................................................2-1

2-1. Introduction ............................................................................................................2-1

2-2. Unpacking...............................................................................................................2-1

2-3. Electrical Requirements..........................................................................................2-2

2-4. Cabinet Dimensions................................................................................................2-3

Section 3. OPERATION...................................................................................................................3-1

3-1. Introduction ............................................................................................................3-1

3-2. Operating Controls and Components .....................................................................3-1

3-3. Start-Up ..................................................................................................................3-2

3-4. Operating With Product..........................................................................................3-3

3-5. Cleaning..................................................................................................................3-3

3-6. Operation and Programming...................................................................................3-4

3-7. Error Codes.............................................................................................................3-6

GLOSSARY ....................................................................................................................G-1

Distributor Lists – Domestic and International

i 203

Model MP-941/942/943/944

SECTION 1. INTRODUCTION

1-1. MULTIPURPOSE
HOLDING CABINET
hot foods at proper temperature in commercial food

operations. This cabinet will keep hot foods humid
while maintaining temperature.

As of August 16, 2005, the Waste Electrical and
Electronic Equipment directive went into effect for the
European Union. Our products have been evaluated to
the WEEE directive. We have also reviewed our
products to determine if they comply with the
Restriction of Hazardous Substances directive (RoHS)
and have redesigned our products as needed in order to
comply. To continue compliance with these directives,
this unit must not be disposed as unsorted municipal
waste. For proper disposal, please contact your nearest
Henny Penny distributor.

1-2. FEATURES

• Electronic heat control for each drawer

• Drawer accepts 4" steam table pans (1 full or, 2-1/2
size, or 3-1/3 size)

• Vented drawer fronts allow venting of excess
humidity

• Easy access to all components for servicing

• High temperature gasket used for drawer seals

• Positive drawer closure to ensure good seal of
compartment

• Easy to clean front drip edge for collection of
excess moisture around drawers

• Solid stainless steel construction

1-3. PROPER CARE

1-4. ASSISTANCE Should you require outside assistance, just call your

1-937-456-8405, or visit Henny Penny online at

207 1-1

The Henny Penny Multipurpose Holding Cabinet

is a basic unit of food equipment designed to hold

As in any unit of food servicing equipment, the

multipurpose holding cabinet does require care and
maintenance. Requirements for the maintenance and
cleaning are contained in this manual and must become
a regular part of the operation of the unit at all times.

local Henny Penny distributor in your area, call Henny
Penny Corp. at 1-800-417-8405 toll free or

www.hennypenny.com.

Model MP-941/942/943/944

1-5. SAFETY The only way to ensure safe operation of the Henny

Penny Multipurpose Holding Cabinet is to fully
understand the proper installation, operation and
maintenance procedures. The instructions in this
manual have been prepared to aid you in learning the
proper procedures. Where information is of particular
importance or is safety related, the words NOTICE,
CAUTION, or WARNING are used. Their usage is
described below:

SAFETY ALERT SYMBOL is used with
DANGER, WARNING, or CAUTION which
indicates a personal injury type hazard.

NOTICE is used to highlight especially important
information.

CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.

CAUTION used with the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate
injury.

WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.

1-2 203

Model MP-941/942/943/944

SECTION 2. INSTALLATION

2-1. INTRODUCTION This section provides the installation instructions for

the Henny Penny Multipurpose Holding Cabinet.

Installation of this unit should be performed by a

qualified service technician.

Do not puncture the skin of unit with drills or

screws as component damage or electrical shock

could result.

2-2. UNPACKING The Henny Penny Multipurpose Holding Cabinet has been

tested, inspected, and expertly packed to ensure arrival at
its destination in the best possible condition. The cabinet
rests on cardboard pads that sit on a wooden skid. The unit
is then packed inside a heavy cardboard carton with
sufficient padding to withstand normal shipping treatment.

Any shipping damages should be noted in the
presence of the delivery agent and signed prior to
his or her departure.

To remove the unit from the carton, you should:

1. Carefully cut banding straps.

2. Lift carton off the unit.

3. Lift the unit from the cardboard pads and skid.

Take care when lifting unit to prevent personal

injury. The units can weigh as much as 278 lbs.
(126 kg).

203

2-1
