USER MANUAL
Vacuum Packing Machine
Boxer
Lynx
Toucan
Part no 0895001
2
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
© Copyright 2014
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any electronic or mechanical means, or by photocopying, recording, or otherwise without the
prior written consent of Henkelman BV.
USER MANUAL
3
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
INTRODUCTION
The machine is not suitable for the packaging of toxic, corrosive, irritant or
hazardous materials
All persons responsible for the operation must at least fully read and understand
the chapters on operation and safety of these operating instructions
All persons responsible for assembly, installation, maintenance and/or repair
should read and understand all of these instructions
The user is responsible for the interpretation and use of this manual in any
circumstances. Please contact the owner or the manager in case of questions or
doubts about the correct interpretation
This manual should be kept near the machine and should be within reach for
users
All major maintenance, adjustments to the machine and observations should be
recorded in a log, see Appendix 10.1
Changes to the installation/machine are not permitted without prior written
approval of the supplier
Please contact the vendor for special servicing that is not included in this manual
Comply at all times with the safety requirements, as specified in Chapter 3
The proper functioning and safety of the system can only be guaranteed if the
recommended maintenance is executed on time and correctly
Illustrations may differ from your machine
Henkelman BV is a supplier of ultra-modern vacuum packing machines.
Our machines are designed and manufactured to the highest standards. And that's clear. They
combine a sleek built and functional design with ease of use and durability. Installation is just a matter
of 'plug & pack' and the clever design ensures that the hygiene standards are maintained at all times.
This manual contains relevant information and instructions for installation, operation and maintenance
of the machine.
4
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
TABLE OF CONTENTS
LIST OF FIGURES .................................................................................................................................. 6
EC DECLARATION OF CONFORMITY (COPY) ................................................................................... 7
LIST OF SYMBOLS ................................................................................................................................ 8
ICONS ..................................................................................................................................................... 9
1. TECHNICAL INFORMATION ........................................................................................................ 10
2. DESCRIPTION OF THE MACHINE ............................................................................................... 13
2.1. DESCRIPTION OF THE PACKAGING PROCESS / MACHINE FUNCTIONS ....................................... 14
2.1.1. THE PACKAGING PROCESS / MACHINE FUNCTIONS ................................................................. 15
2.1.2. GENERAL FUNCTIONS.......................................................................................................... 18
2.2. THE SEAL SYSTEM ............................................................................................................... 19
2.3. THE VACUUM PUMP ............................................................................................................. 20
2.4. GAS FLUSHING (OPTIONAL) .................................................................................................. 22
2.5. ELECTRICAL INSTALLATION.................................................................................................. 22
2.6. MULTI PROGRAM DIGITAL CONTROL (MPDC) ...................................................................... 24
2.7. ADVANCED CONTROL SYSTEM (ACS) .................................................................................. 26
2.7.1. SETTINGS ACS GENERAL .................................................................................................... 27
2.7.2. IMPORT / EXPORT DATA ....................................................................................................... 29
2.7.3. HAZARD ANALYSIS AND CRITICAL CONTROL POINTS (HACCP) .............................................. 29
2.7.3.1. SET UP AND USE HACCP .................................................................................................... 29
2.7.3.2. EXPORT THE HACCP DATA LOG .......................................................................................... 30
3. SAFETY ......................................................................................................................................... 32
3.1. GENERAL ............................................................................................................................ 32
3.2. DURING NORMAL OPERATION ............................................................................................... 33
3.3. OPERATIONAL STAFF ........................................................................................................... 33
4. INSTALLATION ............................................................................................................................. 34
4.1. TRANSPORT AND PLACEMENT .............................................................................................. 34
4.2. CONNECTING THE MACHINE ................................................................................................. 34
4.3. START THE MACHINE FOR THE FIRST TIME ............................................................................. 34
5. OPERATION .................................................................................................................................. 35
5.1. STARTUP ............................................................................................................................ 35
5.2. PRODUCTION ...................................................................................................................... 35
5.3. CONTINUE TO THE NEXT STEP OF THE CYCLE ........................................................................ 36
5.4. STOP PROGRAM .................................................................................................................. 36
5.5. CHANGING THE PROGRAM SETTINGS .................................................................................... 37
5.5.1. MULTI PROGRAM DIGITAL CONTROL (MPDC) ...................................................................... 37
5.5.1.1. VACUUM+ OPTION (MPDC) ................................................................................................. 38
5.5.1.2. GAS+ OPTION (MPDC) ........................................................................................................ 39
5.5.1.3. LIQUID SENSOR CONTROL (MPDC) ...................................................................................... 39
5.5.1.4. RED MEAT OPTION (MPDC) ................................................................................................ 40
5.5.1.5. MULTI CYCLE OPTION (MPDC)............................................................................................. 40
5.5.1.6. EXTERNAL VACUUM OPTION (MPDC) ................................................................................... 42
5.5.2. ADVANCED CONTROL SYSTEM (ADC) .................................................................................. 43
5.5.2.1. PROGRAMMING THE ACS CONTROL ON YOUR PC ................................................................. 44
5.5.2.2. OPTIONS (ACS) .................................................................................................................. 45
5.5.2.3. EXTERN VACUÜM OPTIE (ACS) ............................................................................................ 46
5.6. DIRECTIVE FOR FUNCTION VALUES ....................................................................................... 47
USER MANUAL
5
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
6. MAINTENANCE ............................................................................................................................. 49
6.1. MAINTENANCE DIAGRAM ...................................................................................................... 49
6.2. CLEANING THE MACHINE ...................................................................................................... 50
6.3. OIL CLEANING PROGRAM ..................................................................................................... 51
6.4. ADD OIL / CHANGE OIL ......................................................................................................... 51
6.5. REPLACING THE EXHAUST FILTER (MAINTENANCE OF VACUUM PUMP) .................................... 53
6.6. REPLACING THE SEALING WIRE ............................................................................................ 54
6.7. REPLACING THE SILICONE RUBBER ON THE SILICONE HOLDERS ............................................. 56
6.8. REPLACING THE LID GASKET ................................................................................................ 57
7. TROUBLESHOOTING ................................................................................................................... 59
8. WARRANTY CONDITIONS ........................................................................................................... 61
8.1. LIABILITY ............................................................................................................................ 61
8.2. WARRANTY ......................................................................................................................... 61
9. DISPOSE AS WASTE ................................................................................................................... 62
10. APPENDIX ..................................................................................................................................... 63
10.1. LOG .................................................................................................................................... 63
6
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
LIST OF FIGURES
FIGURE 1: OVERVIEW OF THE MAIN COMPONENTS ...................................................................................... 13
FIGURE 2: OVERVIEW OF THE SEAL SYSTEM .............................................................................................. 19
FIGURE 3: OVERVIEW OF THE PUMP (FILTER COVER REMOVED) .................................................................. 21
FIGURE 4: OVERVIEW OF THE ELECTRICAL INSTALLATION ........................................................................... 23
FIGURE 5: CONTROL PANEL DIGITAL CONTROL (MPDC) ............................................................................ 24
FIGURE 6: CONTROL PANEL ADVANCED CONTROL SYSTEM (ACS) ............................................................. 26
FIGURE 7: FOUR POSSIBLE DISPLAY MODES ............................................................................................... 27
FIGURE 8: OVERVIEW SETTINGS ............................................................................................................... 28
FIGURE 9: EXAMPLE OF AN EXPORTED LOG ............................................................................................... 31
FIGURE 10: CHANGING PARAMETERS (MPDC) .......................................................................................... 37
FIGURE 11: EXTERNAL VACUUM ADAPTER KIT (MPDC) .............................................................................. 42
FIGURE 12: PROGRAM DISPLAY AND CONTROLS ACS ................................................................................ 43
FIGURE 13: EXTERNAL VACUUM ADAPTER KIT (ACS) ................................................................................. 46
FIGURE 14: WATER VAPOUR LINE ............................................................................................................. 48
FIGURE 15: MOUNTING PLATE BOXER 52 .................................................................................................. 52
FIGURE 16: REPLACING THE EXHAUST FILTER ............................................................................................ 53
FIGURE 17: REMOVING THE SEAL BAR ....................................................................................................... 54
FIGURE 18: REPLACING THE SEALING WIRE ............................................................................................... 55
FIGURE 19: REPLACING THE SILICONE RUBBER OF THE SILICONE HOLDERS ................................................. 56
FIGURE 20: REPLACING THE LID GASKET ................................................................................................... 57
USER MANUAL
7
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
EC DECLARATION OF CONFORMITY (COPY)
We,
Henkelman BV
Titaniumlaan 10
5221 CK, ‘s Hertogenbosch
Nederland
declare under our sole responsibility that the product;
Machine type: Boxer / Lynx / Toucan serie
fulfils all the relevant provisions of the directives
2006/42/EG Machinery Directive
2004/108/EG EMC-Directive
and is in conformity with the following standard(s) or other normative document(s);
NEN-EN-ISO 12100 Safety of machinery - general principles for design – Risk assessment and risk
NEN-EN 13857 Safety of machinery – Safety distances to prevent hazard zones being reached by
NEN-EN 349 Safety of machinery – Minimum gaps to avoid crushing of parts of the human body
NEN-EN 953 Safety of machinery – Guards - General requirements for the design and construction of
NEN-EN 13849-1 Safety of machinery – Safety-related parts of control systems - Part 1: General
NEN-EN 60204-1 Safety of machinery – Electrical equipment of machines - Part 1: General requirements
reduction
upper and lower limbs
fixed and movable guards
principles for design
The undersigned is authorized to compile the technical file
Netherlands, 's-Hertogenbosch, 28 februari 2014 Stephan Harleman
Director
8
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
LIST OF SYMBOLS
Caution!
Danger:
High Voltage!
Tip:
Provides a quick overview or offers tips to make it easier to perform certain actions
For all operations in which the safety of the operator and/or technician is at stake and where caution
should be exercised, the following symbols are used.
USER MANUAL
9
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
ICONS
ICON
DESCRIPTION
LOCATION
Nameplate
At the rear of the machine
Warning sign "HIGH VOLTAGE"
At the rear of the machine, on the cover
of the electrical cabinet
Warning sign "HEAT"
On the sealbar(s)
On the vacuum pump
Warning sign “GAS CONNECTION “
(optional)
Prohibited to connect oxygen
At the rear of the machine
Warning sign “GAS CONNECTION “
(optional)
Maximum gas pressure at gas connection
At the rear of the machine
Warning sign “SEAL PRESSURE
CONNECTION“ (optional)
Maximum pressure at external seal
pressure connection
At the rear of the machine
CAUTION!
Regularly check that the icons and markings are still clearly recognizable and
legible. Replace them if this is no longer the case
Some icons and warnings are included on the machine among others to indicate the possible risks
involved to the users.
10
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
1. TECHNICAL INFORMATION
Boxer
35
42
42XL
42XL
BA
52
General
Ambient temperature
5 tot 30
5 tot 30
5 tot 30
5 tot 30
5 tot 30
˚C
Noise production
< 70
< 70
< 70
< 70
< 70
dB(A)
Maximum daily production
5 5 5 5 5
h/day
Dimensions of the machine
Width
450
493
493
403
698
mm
Length
554
528
616
616
528
mm
Height
405
440
470
420
440
mm
Weight
49
62
67
67
66
kg
Maximum product height
150
180
180
120
185
mm
Gas flush (optional)
Connection size
6 6 6 6 6
mm
Gas flow
60-100
60-100
60-100
60-100
60-100
l/min
Maximum pressure
1 1 1 1 1
bar
Electrical connection
Tension
* * * * *
V
Power * * * * * kVA
Vacuum pump
Capacity
16
21
21
21
21
m3/h-
Oil
0.3
0.5
0.5
0.5
0.5
liter
Oil type
(Ambient temperature 5-40°C)
VM32
VM32
VM32
VM32
VM32
* See the nameplate
USER MANUAL
11
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
Lynx
32
42
General
Ambient temperature
5 tot 30
5 tot 30
˚C
Noise production
< 70
< 70
dB(A)
Maximum daily production
5
5
h/day
Dimensions of the machine
Width
534
534
mm
Length
400
491
mm
Height
385
396
mm
Weight
35
46
kg
Maximum product height
103
114
mm
Gas flush (optional)
Connection size
6
6
mm
Gas flow
60-100
60-100
l/min
Maximum pressure
1
1
bar
Electrical connection
Tension
* * V
Power * *
kVA
Vacuum pump
Capacity
8
16
m3/h-
Oil
0.5
0.5
liter
Oil type
(Ambient temperature 5-40°C)
VM32
VM32
* See the nameplate
12
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
Toucan
regular
square
General
Ambient temperature
5 tot 30
5 tot 30
˚C
Noise production
< 70
< 70
dB(A)
Maximum daily production
5
5
h/day
Dimensions of the machine
Width
480
480
mm
Length
581
581
mm
Height
795
795
mm
Weight
kg
Maximum product height
275
330
mm
Gas flush (optional)
Connection size
6
6
mm
Gas flow
60-100
60-100
l/min
Maximum pressure
1
1
bar
Electrical connection
Tension
* * V
Power * *
kVA
Vacuum pump
Capacity
21
21
m3/h-
Oil
0.5
0.5
liter
Oil type
(Ambient temperature 5-40°C)
VM32
VM32
* See the nameplate
USER MANUAL
13
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2. DESCRIPTION OF THE MACHINE
FUNCTION
This chapter provides an overview of the main components and functions
If detailed information is available in this guide, you will be redirected to the
specific sections
The performance of your machine may differ from the figure below
NO.
PART
DESCRIPTION
SECTION
1
Lid
The function of the lid is to close the chamber
during the vacuum cycle
The lid has a lid gasket fitted, which makes sure the
machine does not leak during the vacuum cycle
In the lid, silicone holder(s) are mounted as the
opposite of the sealing bar(s)
6.8
2.2, 6.7
2
Work plate / Chamber
The products to be packed will be placed on the
worktable / in the chamber with the opening of the
vacuum seal bag on the seal position
3
Seal bar
In the chamber, depending on the version, 1 or 2
seal bars are mounted. With this/these the vacuum
bag is closed
2.2, 6.6
4
Controlpanel
See section
2.6, 2.7
8 7 6 5 4 3 2
1
The figure below shows the main components of the system:
Figure 1: Overview of the main components
14
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
PART
DESCRIPTION
SECTION
5
Machine housing
The machine frame contains all necessary parts for
the correct functioning of the machine
6
Vacuum pump
See section
2.3
7
Power connection
See section
2.5
8
Gas flush (optional)
See section
1, 2.4
FUNTION
This chapter provides an overview of the process and the available machine
functions
For the functions H2O (H2O+), Gas (Gas+) and Seal 1-2 Cut-off, specific
components must be installed in your machine before they can be activated.
Please contact your supplier for more details
In chapter 5.5 you will find information on how to set the parameters to the correct
values
EXPLANATION (Only applicable to the Toucan series)
The External Vacuum option does not apply
On a Toucan Regular the vacuum bag is placed on the plateau in an upright
position. The height of this plateau needs to be set in such a way that the seal is
placed on the correct position of the vacuum bag
A Toucan Square features a mold for block bags. In this mold only the specific
size of the bags can be used, for which the mold is designed
In a Toucan square you should first place the vacuum bag in the mold before
filling it. Make sure the bag is filled sufficiently
2.1. Description of the packaging process / machine functions
USER MANUAL
15
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.1.1. The packaging process / machine functions
STEP
PROCESS PHASE
OPERATION
1
Preparations
The operator puts the product in a vacuum bag and
places it on the work top with the opening on the
seal or contra bar
2
Extracting vacuum
The vacuum process is started by closing the lid
Depending on the options you have chosen for your
machine and the product you are packaging, the
following functions are available
FUNCTION
ICON
Vacuum
During the cycle, the air will be removed from the
chamber until the set time has been reached
Extracting vacuum to a set value is only possible
with a sensor control (optional for Digital Control
(DC). This value can be set in %. The percentage
indicates the depth of the vacuum. The pressure of
the outside air hereby is 0%. In the Advanced
Control System (ACS), the value(s) indicated in
mbar, hPa or %
Vacuum+
Available if the vacuum percentage is set to
maximum
Vacuum+ is an option that adds additional time to
the vacuum to create the possibility to let any air
escape that is still within the product
Vacuum+ is only possible in combination with
sensor control
Gas
(optional)
After extracting the vacuum, a gas is injected into
the chamber and the vacuum bag. This is to create
a modified atmosphere to protect the shape or to
increase the shelf life of the product. The value of
the gas function can, depending on the control type,
be set in %, mbar or hPa
Gas+
(optional)
Gas+ is an option that adds additional time to the
gassing to increase the amount of gas in the
package (see 5.5.1.2)
The following steps are taken during the process. For the detailed procedure, see Chapter 5.
16
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
STEP
PROCESS PHASE
OPERATION
FUNCTION
ICON
Liquid Control
(optional)
Available with the optional Liquid Control Sensor
The principle of the Liquid Control function is that it
is a system that is controlled by a highly sensitive
sensor. The sensor is able to detect the moment
that liquids from the product or the product itself
begin to vaporize (boil). At that time, the system will
switch to the next step in the process. This will
prevent the product from drying out, lose weight
and/or splash out of the vacuum bag and thus
contaminating the seal, the chamber and the oil in
the pump (see 5.5.1.3)
Liquid Control+
(optional)
Available with the Liquid Control option
The Liquid Control+ function allows you to proceed
with the vacuum process for a certain time, after the
evaporation phase has been reached
Red Meat
(optional)
This function is specifically designed for packaging
of fresh meat. It is added to the normal vacuum
function to prevent degasification of the product
during the sealing phase. This degassing can
cause bubbles and causes droplet formation in the
package. (see 0)
Sequential
vacuum
(optional)
Sequential vacuum makes it possible to exchange
the vacuum process with pauses, so that the
trapped air in a product will have the opportunity to
escape. In total, up to 5 steps can be programmed.
This function is available in machines with
Advanced Control System (ACS)
Multi-cycle
vacuum
(optional)
With multi-cycle it is possible to gradually extract
vacuum and use gas. With this the oxygen content
is reduced as well
This function is available in machines with Multi
Program Digital Control (MPDC) (see 5.5.1.5)
USER MANUAL
17
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
STEP
PROCESS PHASE
OPERATION
3
Sealing
The seal bars are pressed against the contra bars,
with the vacuum bag in between and melt the bag
to be closed
FUNCTION
ICON
Seal
During the sealing, the material of the vacuum bag
is heated and compressed to form a hermetic
sealing. The function is programmed in seconds
As an option, a cutting wire is available. The
purpose of this wire is to remove the remaining foil
from the excess flap. Depending on the chosen
model, the cutting wire is controlled simultaneously,
or independent from the normal seal wire (Seal 1-2
cut-off)
4
Releasing vacuum
The vacuum is released, by letting air back into the
chamber
FUNCTION
ICON
Soft air
(optional on
Falcon)
This makes it possible to let air flow back into the
chamber slowly, so that the vacuum bag slowly
forms itself around the product. This prevents sharp
edges on the product to damage the foil and
possibly cause leaks
5
Open vacuum chamber
The lid opens
6
Remove the product
The operator can remove the packed product from
the worktable
18
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.1.2. General Functions
FUNCTION
ICON
OPERATION
Cleaning the pump
The pump cleaning program allows for a proper flushing of the
pump. During the program, the pump and the oil will reach the
operating temperature, so that the oil and the fluid will be
separated and that any contamination is filtered. The high
temperature takes care of evaporation of moisture in the pump,
which reduces the risk of corrosion
Menu
This feature is available on machines with Advanced Control
System (ACS)
Menu is used to change the machine settings, such as language
and printing options
Print
This feature is available on machines with Advanced Control
System (ACS)
With this function one or more labels can be created per cycle
which can be stuck on the bag
The following information may be listed on the label: name of the
manufacturer, product name, production date, shelf life, used
gas, vacuum reached, the initials of the user and the
recommended storage temperature
External vacuum
This feature is available as an option depending on the machine
type
With this function vacuum can be applied to special food
packaging gastronorm containers outside the machine
The possibilities for adjusting the vacuum value are equal to the
standard vacuum (see 5.5.1.6 MPDC of 5.5.2.3 ACS control)
USER MANUAL
19
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.2. The seal system
FUNCTION
The seal system closes the opening(s) of the bag(s) to maintain the vacuum
and/or gas inside
The remaining flap can optionally be cut off by the seal bar
NO.
PART
DESCRIPTION
SECTION
1
Seal bar
The seal bar consists of the following components
Seal wires: the sealing wires are heated for a
certain period of time so that the open side of the
vacuum bag will melt together during the sealing
Cutting wire (optional): a cutting wire is heated in
such a way that the foil of the bag partially melts
so that the top flap of the vacuum bag can be
torn off easily
Teflon-tape: sealing and cutting wires are coated
with Teflon tape to prevent the bag to stick to the
seal bar
Refer to the indicated section for detailed information
on maintenance
6.6
2
Silicon holder
Opposite to each seal bar a silicone holder is mounted,
which provides counter-pressure on the cylinders / seal
bag
6.7
3
Seal mechanism
The seal bars are pressed on the vacuum bag by
using cylinders or seal bags
By connecting the outside atmospheric pressure to
the inlet of the seal bags / cylinders, they will press
the seal bar on the bag
2.2
3 2 1

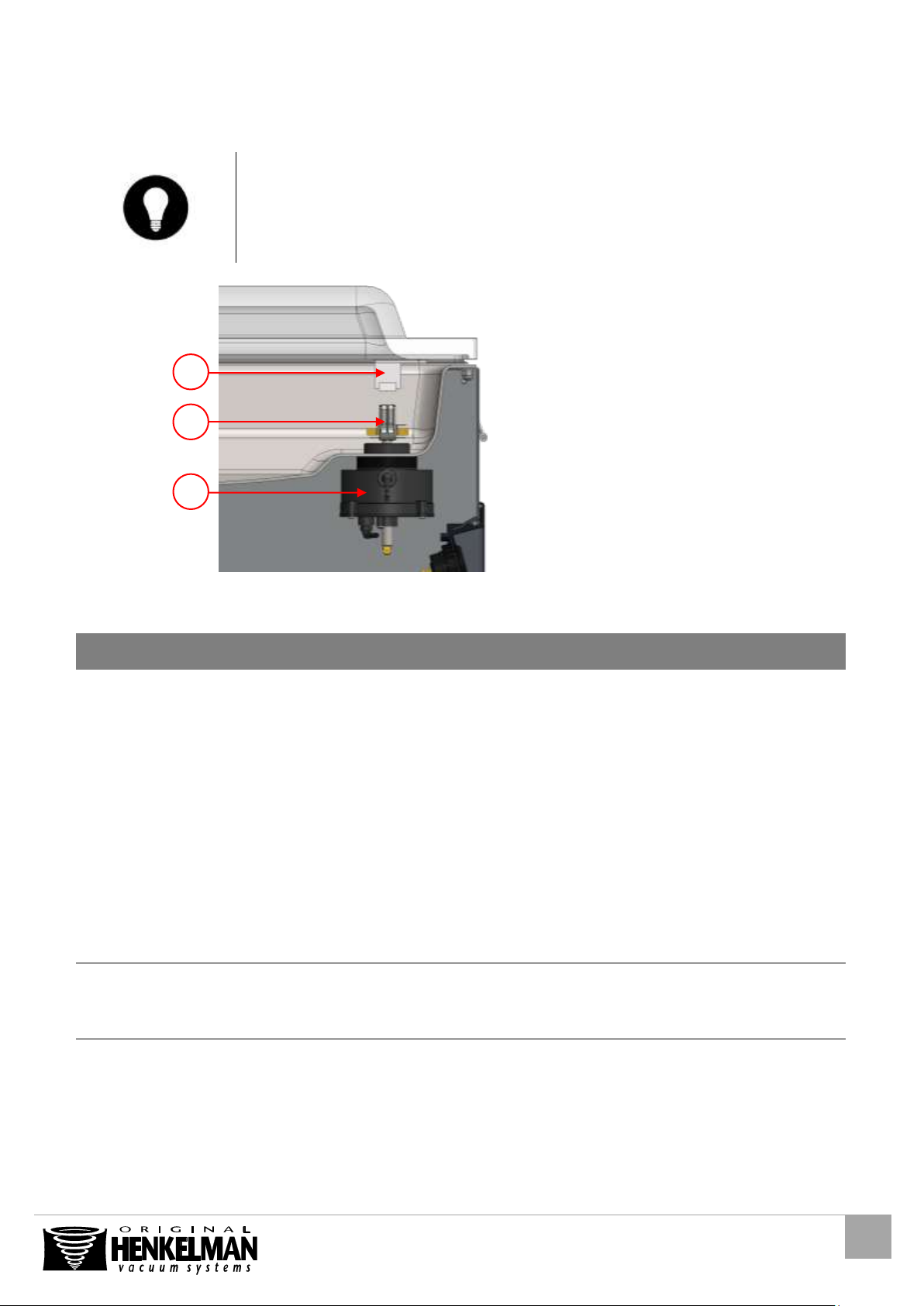

Figure 2: Overview of the seal system
20
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
FUNCTION
The vacuum pump creates a vacuum in the chamber
5
4 3 2
1
2.3. The vacuum pump
3
8 m
USER MANUAL
21
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
3
NO.
PART
DESCRIPTION
SECTION
1
Vacuum pump
Creates the vacuum during the process
6.1
2
Exhaust filter
Filters the exhaust air and absorbs oil vapors
Refer to the indicated section for detailed information
with regards to maintenance
6.1
3
Oil sight glass
The oil sight glass indicates the maximum and
minimum oil level in the vacuum pump
The oil sight glass is visible when te cover of the
machine is in place
6.1
4
Oil drain plug
In order to drain the oil
5
Oil filler plug
In order to fill the pump with oil
5
4 3 2
1
16 m
Figure 3: Overview of the pump (filter cover removed)
22
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.4. Gas flushing (optional)
FUNCTION
For protection of the product it may be desirable to add a specific gas in the
package after the air is removed. The machine can be provided with a gas
connection optionally
Installation details can be found in chapter 1
ATTENTION!
Never use a gas mixture containing over 20% of oxygen or other explosive
gases. This can cause hazardous explosions
By gas flushing, the seal pressure will decrease. There must be a minimum final
pressure (after gas flushing) of 30% to properly seal the bag
FUNCTION
The electrical installation provides power to the vacuum pump, sealing system
and control unit
See the electrical diagram for the further structure and operation of the electrical
installation. For the electrical diagram, please contact your dealer
ATTENTION!
Work on the electrical installation may only be carried out by a technical expert
2.5. Electrical installation
USER MANUAL
23
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
PART
DESCRIPTION
SECTION/
LOCATION
1
Power cable
To connect the power supply to the machine
2
Control panel
The available control functions can be used
Depending on your model, your machine may have
one of the following control types:
Multi Program Digital Control (MPDC)
Advanced Control System?(ACS)
2.6
2.7
3
USB connection (only
with ACS)
The USB connector is located on the side of the
control box that is located behind the back panel. In
order to reach the USB connection, the back panel
first has to be removed
The USB connector allows import and export of data
3 2 1
Figure 4: Overview of the electrical installation
The machine consists of the following components
24
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.6. Multi Program Digital Control (MPDC)
FUNCTION
The machine can be operated
The programs can be modified
See chapter 5 for instructions on operation and programming
NO.
ELEMENT
EXPLANATION
1
Display
The display shows the selected program
2
“prog 0-9” key
Operate the key to select the desired program
3
“reprog” key
Operate the key to switch to the program mode. The
parameters can be changed by pressing the 4, 8 and 9 keys
4
Cursor key
Navigates you through the functions shown in the display 6/7
5
”Oil cleaning program”
key
Operate the key to activate the pump cleaning program. This
removes moisture from the oil in the vacuum pump. Moisture
can be absorbed by the oil when the pump is only running
short cycles or when you pack products containing moisture
See 0 for instructions
6
Display parameter
Displays the current value of the active function during the
program cycle or the set value of the selected function when
the machine is idle
A red dot lights up on the lower right when vacuum+ is
activated
7
Function display
The LED light for the function illuminates when the function is
active during the program cycle or when the function is
selected in the programming mode
11
10 9 8
7 6 5
4
3 2 1
Figure 5: Control panel Digital Control (MPDC)
USER MANUAL
25
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
ELEMENT
EXPLANATION
8
“-/stop” key
The 'stop' key can be used during a packing cycle to interrupt
the full cycle. All functions are cancelled, and the cycle will be
terminated
In the programming mode this key decreases the value of the
selected parameter
9
“+/stop vacuum” key
Stops the current function and continues with the next program
step
In the programming mode this key increases the value of the
selected parameter
10
Vacuum gauge
Shows the pressure in the vacuum chamber
A value of -1 bar corresponds to 99% vacuum
11
On / Off button
This button turns the machine on/off
26
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.7. Advanced Control System (ACS)
FUNCTION
The machine can be operated
Programs can be changed
See chapter 5 for instructions on operation and programming
NO.
ELEMENT
EXPLANATION
1
Stop button
The 'stop' button can be used during a packing cycle to
interrupt the full cycle. All functions are cancelled, and the
cycle will be terminated
2
On / Off button
This button turns the machine on/off
3
Display
The display has four possible modes: See Figure 7
Startup mode: displays the current date and time when starting
the machine. It also shows the installed software. The user
cannot take action
Navigation mode: shows a program with its functions. The user
can navigate through the various programs and view the
current setting of each function
Setting mode: here the user can view and modify all settings
Cycle mode: when the machine has started a packing cycle,
animations of functions are displayed along with the current
value of the function
4
Cursor keys
With these buttons you navigate through the functions
5
Confirmation key
Activates / confirms the selected value
5 4 3 2 1
Figure 6: Control panel Advanced Control System (ACS)
USER MANUAL
27
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
Figure 7: Four possible display modes
FUNCTION
To prevent unauthorized change and adjustment of settings, there are different
levels of authorization. With an authorization code, you can access the different
levels
Users have limited access to change the settings of the machine. They can only
change the printer settings using the printer icon in the navigation mode
The owner of the machine is authorized to change the machine settings and all
function settings An authorization code will be requested when the menu icon is
selected in the navigation mode. When the code of the owner is entered, the
machine setup menu opens. When logged in, the function settings can also be
changed. To do this you need to go back to the navigation mode by pressing
'left' ◄
ATTENTION!
The machine will remember the last used authorization code, even when the
machine has been turned off. Therefore, it may be necessary that you need to
manually change the authorization settings when you are done
2.7.1. Settings ACS general
28
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
With the basic functions below, you can adjust the machine and/or function settings.
NO.
WHAT TO DO
ACTION
RESULT
1
Select another setting
Press ‘up’▲ or ‘down’▼
2
Edit selected setting
Press ‘enter’
3 Adjust the variable
Use ‘up’▲ or ‘down’▼
4
Confirm variable
Press 'enter', when the desired value is
found
5
Back to navigation
mode
When all settings are set, press ´left´◄ to
return
Figure 8: Overview settings
The site map shows all possible settings for all functions.
USER MANUAL
29
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
2.7.2. Import / Export data
FUNCTION
Data such as programs and labels can be imported and exported via the USB
connection
Exporting HACCP data is described in 2.7.3.2
Please contact your dealer if you want to exchange other data with the controller
via the USB connection
.
EXPLANATION
The controller is equipped with the ability to store production information. This
conforms to the HACCP directives
The HACCP log is stored in entries. Each entry consists of:
Date,
Time,
User,
Selected programs and settings,
Selected label,
Number of cycles.
A new entry is saved when:
Another user logs in,
Program or program settings are changed,
The data log is saved as a .txt file,
The log data has to be exported to a USB stick (see 2.7.3.2)
EXPLANATION
Default this feature is turned off
When logged in with the owners code, this feature can be enabled
5 users can be set:
Owner
4 different users
NO.
WHAT TO DO
ACTION
RESULT
1
The owner logs in
Log in with the owner code (1324)
Access to the relevant
settings
2
Turn on HACCP
Go to settings<HACCP and select ON
From now on, the data is
logged
3
Assign initials to user
codes
Select the desired user code for each
user
Enter the initials of the user at “Name”
The log file shows the initials
of the user
2.7.3. Hazard analysis and critical control points (HACCP)
2.7.3.1. Set up and use HACCP
30
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
ATTENTION!
The initials of the users should be entered. If this is not the case, tracing the machine
operator is impossible
ATTENTION!
The memory can hold up to 100 entries. If the memory is full, you will be notified
The data log must then first be exported before you can continue
You can export the data at any time
Exporting can only be performed by the owner (owners authorization code). After
exporting the data, the memory will automatically be cleared
TIP
Avoid unwanted delays during production by downloading the data log at scheduled
times
NO.
WHAT TO DO
ACTION
RESULT
1
The owner logs in
Log in with the owner code (1324)
Access to the relevant
settings
2
Export
In the menu, go to Import/Export and
select “Export”
3
Insert the USB stick
Insert the USB stick in the USB
connection (see electrical installation)
In the display, different
options appear
4
Start exporting
HACCP log
Select “Export HACCP”
The log is transferred to the
USB stick and the memory
will be cleared
2.7.3.2. Export the HACCP data log
USER MANUAL
31
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
PART
DESCRIPTION
1
User initials
The initials of the person who has logged in
If no initials are entered in the settings, nothing is displayed here
(see the bottom line of the data log)
2
Start time
Start time and date of the production
3
Program
The used program number
4
Vacuum
The maximum vacuum reached for the package
5
Seal time
The seal time used
6
Label number
The label that has been printed with this package
7
Amount of cycles
The total number of operating cycles from the start time
User:hm started 28-3-2013 16:42
Program 1=, Sequential Vac:2.0 mbar Seal:0.4 sec, Labelnr.:1, Amount of cycles:1
7 6 5 4 3 2 1
Figure 9: Example of an exported log
Program 2=, Vac:360.5 mbar, Seal:0.3 sec, Labelnr.:1, Amount of cycles:2
User:he started 28-3-2013 16:43
User:hm started 28-3-2013 16:44
Program 3=, Vac:2.0 mbar, Seal:2.5 sec, Labelnr.:1, Amount of cycles:2
User: started 28-3-2013 16:45
Program 3=, Vac:2.0 mbar, Seal:2.5 sec, Labelnr.:1, Amount of cycles:1
32
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
3. SAFETY
ATTENTION!
Never pack products that can be damaged by vacuum
Never pack living animals
Warranty and/or liability expires if any damage is caused by repairs and/or
modifications that are not authorized by the supplier or any of its distributors
In case of malfunction, contact the supplier
High pressure cleaning is not allowed. This can cause damage to the electronics
and other components
Prevent water from entering the ventilation inlet of the chamber or through the
vent of the pump. This causes irreversible damage to the pump
The work space around the machine must be safe. The owner of the machine
must take the necessary precautions to operate the machine safely
It is forbidden to start the machine in an explosive environment
The machine was designed in such a way that production is safe under normal
ambient conditions
The owner of the machine must check that the instructions in this manual are
monitored effectively
The securing devices must not be removed
The correct operation and safety of the system can only be guaranteed when the
maintenance is performed correctly and on time, as prescribed
If work on the machine must be carried out, it must be disconnected and blocked
from the power supply and, if applicable, from the air and gas supply
DANGER
Only authorized persons, designated by the owner, may perform work on the
electrical installation
Ensure, by means of internal procedures and monitoring, that all relevant power
supplies are disconnected
The machine should not be used during cleaning, inspection, repair and
maintenance and must be disconnected from the power supply using the plug
and/or main switch
Never perform welding work on the machine without disconnecting the cable
connection to the electrical components first
Never use the power supply of the control unit to connect to other machines
All electrical connections must be connected to the terminal strip according to
the wiring diagram
3.1. General
USER MANUAL
33
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
3.2. During normal operation
ATTENTION!
Before starting, ensure that no work is done on the system and that it is ready to
use the machine
Unauthorized persons must not operate the machine. Checking this is the task of
the machine operator(s)
Please immediately contact the service technician of your technical department
or dealer if there are any changes, such as a poorly fitting lid, unusual vibrations
or unusual noise
Components of the seal system can reach high temperatures. Contact with
these parts could cause injury
ATTENTION!
Operating personnel must be 18 years or older
Only authorized persons will be allowed to perform work on or with the machine
Only work for which one is trained should be performed. This applies to
maintenance and normal use
The machine may only be operated by trained personnel
Operating personnel must be familiar with all situations, so that in case of an
emergency quick and effective action can be taken
If an operator notices errors or risks or disagrees with security, he/she should
report that to the owner or manager
Safety shoes are mandatory
Appropriate clothing is required
Everyone must follow the safety rules as one can pose a danger to themselves
and others. Always follow the work instructions strictly
3.3. Operational staff
34
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
4. INSTALLATION
EXPLANATION
Refer to chapter 1: Technical information for the correct specifications
ATTENTION!
The machine must be moved and transported upwards
Place the machine on a flat, level surface. This is essential for trouble-free
operation of the machine
Machines with a plastic cover should not be placed near a heat source
There must be enough space around the machine for proper ventilation. The
space must be at least 15 centimeters
Observe the instructions in Chapter 3 for all work to be performed. Failure to
follow or ignore this may result in serious injury
Make sure the machine housing is present and correctly fitted
ATTENTION!
Make sure that the voltage indicated on the machine plate corresponds to the
mains voltage
Attach the appropriate plug on the cable in accordance with local laws and
connection data (see Chapter 1)
Always connect the machine correctly to a grounded outlet to avoid fire or
electric shock (earth is green/yellow)
The power cord must always be free and nothing should be placed on it
Replace the power cord immediately if damaged
Connect the gas supply (if applicable). Use a quick connector or lockable shut-
off valve to easily disconnect in the event of, for example, maintenance
ATTENTION!
Make sure there is enough oil in the pump (Figure 3:4). If this is not the case,
then fill the oil
Start and use the machine (Chapter 5)
4.1. Transport and placement
4.2. Connecting the machine
4.3. Start the machine for the first time
USER MANUAL
35
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
5. OPERATION
ATTENTION
Observe the instructions in chapter 3 for all work to be performed
Failure to follow or ignore this may result in serious injury
EXPLANATION
The machine is equipped with sample programs with preset parameters
It is possible to optimize a program for your products by changing the
parameters of the program, see Chapter 5.5
NO.
WHAT TO DO
ACTION
RESULT
1
Turn on the power
Place the plug in the socket
The control is ready for
use
2
Connect the
additional seal
pressure (if
applicable)
Connect the compressed air supply to the
connector
The additional seal
pressure is ready for use
3
Connect the gas
bottle (if applicable)
Connect the gas supply to the connector
The gas flush is ready for
use
4
Switch on the control
Operate the on/off button
The machine is ready for
use
NO.
WHAT TO DO
ACTION
RESULT
1
Make sure the
machine is powered
on
See chapter 5.1
2
Select the program
MPDC control: Press the program key
(Figure 5:2) until the desired program
appears on the display (Figure 5:1)
ACS control: Use the control buttons
‘up’▲ or ‘down’▼ (Figure 6:6)
5.1. Startup
5.2. Production
36
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
3
Place the 1st product
Put the products in the vacuum bag
Place the bag on the work table. Ensure
that the opening(s) are correctly placed on
the sealing position(s)
4
Start the process
On a Toucan Square first close the mold
Close the lid
The packing cycle starts
EXPLANATION
For some products, it may be necessary to proceed to the next step of the packing
cycle, before the vacuum time or the vacuum level is reached
NO.
WHAT TO DO
ACTION
RESULT
1
Go to the next step of
the packing cycle
Press “vacuum stop” (Figure 5:9) (MPDC)
Press “right button” (►)” (Figure 6:4)
(ACS)
The next step is started
EXPLANATION
Programs such as the packing program, or the oil cleaning program can be stopped
at any time
NO.
WHAT TO DO
ACTION
RESULT
1
Stop the program
Press the “stop button” (Figure 5:8)
(Figure 6:1)
The program will be
stopped and the vacuum
chamber will be
decompressed
5.3. Continue to the next step of the cycle
5.4. Stop program
USER MANUAL
37
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
5.5. Changing the program settings
NO.
WHAT TO DO
ACTION
RESULT
1
Select the program to
be changed
Use the program ket (Figure 10:2) until
the correct program number appears in
the display (Figure 10:1)
2
Select the
programming mode
Press the “reprog” key (Figure 10:3)
The program display
flashes
3
Select the parameter
Press the cursor key (Figure 10:4) to
scroll thourgh the parameters
The LED in the program mode display
(Figure 10:7) shows at which mode you
are
4
Change the
parameter
Press “+” or “-“ (Figure 10:9/8) to adjust
the values
The value is saved when you press the
cursor key
EXPLANATION
10 programs are available. Programs 1 to 9 can be adjusted by the user.
Program 0 is only intended for service purposes
This section describes how parameters can be modified and indicates the units
and limits of the parameters
11
10
9
8
7 6 5
4 3 2
1
5.5.1. Multi Program Digital Control (MPDC)
Figure 10: Changing parameters (MPDC)
38
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
5
Activate the new
parameter
Press the “reprog” key (Figure 10:3)
The program display
stops flashing
EXPLANATION
If there are a lot of air inclusions in the product, it may be desirable to extend the
vacuum time, after the maximum vacuum is reached. This allows more air to
escape
The vacuum+ time is set in seconds
If a vacuum+ time is set, a dot appears in the lower right corner in the parameter
display
NO.
WHAT TO DO
ACTION
RESULT
1
Select the program on
which you want to set
vacuum+
Use the program key (Figure 10:2) until
the correct program number appears in
the display (Figure 10:1)
2
Select the
programming mode
Press the “reprog” key (Figure 10:3)
The program display
flashes
3
Select the parameter
“vacuum”
Press the cursor key (Figure 10:4) to
scroll through the parameters
The LED in the program mode display
(Figure 10:7) shows at which mode you
are
4
Change the
parameter vacuum to
maximum (99%)
Press "+" or "-" (Figure 10:9/8) to adjust
the value
The value is saved when you press the
cursor key
The display shows “99”
5
Select the parameter
vacuum+
Press the cursor key once
The display shows
“OFF:”. The LED in the
function display will
remain on vacuum
6
Change the
parameter vacuum+
(seconds)
Press “+” of “-“ (Figure 10:9/8) to adjust
the value
The value is saved when you press the
cursor key
When setting a value a
dot appears in the lower
right corner in the
parameter display
7
Activate the new
parameter
Press the “reprog” key (Figure 10:3)
The program display
stops flashing
5.5.1.1. Vacuum+ option (MPDC)
USER MANUAL
39
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
5.5.1.2. Gas+ option (MPDC)
EXPLANATION
This option is only applicable if the machine is equipped with the gas option
With the Gas+ option, it is possible to provide the maximum amount of gas to
a package. This allows to create a 'balloon-package'
If Gas + is set, a dot will appear in the lower right corner in the program display
If Gas+ is set, it applies to all programs where gas is set
To set this function, you should contact your supplier
EXPLANATION
When the liquid sensor control is set, the machine will remove air, to the
maximum vacuum (99%). If the product reaches the boiling point before
reaching the maximum vacuum, the machine will continue to the next step of
the cycle
For each program, the liquid sensor control option can be switched on or off
NO.
WHAT TO DO
ACTION
RESULT
1
Select the program on
which you want to set
liquid control
Use the program button (Figure 10:2)
until the correct program number appears
in the display (Figure 10:1)
2
Select the
programming mode
Press the “reprog” key (Figure 10:3)
The program display
flashes
3
Select the liquid
control option
Press the program key (Figure 10:2) until
H2O appears in the display (Figure 10:1)
H2O appears in the
parameter display
4
Activate the new
parameter
Press the “reprog” key (Figure 10:3)
The program display
stops flashing
5.5.1.3. Liquid sensor control (MPDC)
40
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
5.5.1.4. Red Meat option (MPDC)
EXPLANATION
This function is especially designed for packing fresh meat
By degassing of the product during the process, bubble and droplet formation
can occur inside the package. Degassing of the product during the sealing
phase is prevented with this option
This option can be set for each program separately
If the Red Meat option is activated in a program, the soft-air feature is no longer
available
To set this option, you should contact your supplier
With this option, a parameter appears to set the expansion reduction time. This
is indicated by the flashing soft-air LED in the function display. It is
recommended not to change this setting. Please contact your supplier for this
EXPLANATION
With multi-cycle the vacuum and gas flush process can be programmed in a
maximum of 5 steps
With this the oxygen content will be reduced additionally
This function is only useful in very specific applications where very special
requirements are set for the residual oxygen content. In the food industry, this
option will cause no significant advantage
To activate this option, contact your supplier
5.5.1.5. Multi cycle option (MPDC)
USER MANUAL
41
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
1
Select the program on
which you want to set
the multi cycle
Use the program key (Figure 10:2) until
the correct program number appears in
the display (Figure 10:1)
2
Select the
programming modus
Press the “reprog” key (Figure 10:3)
The program display
flashes
3
Select the parameter
vacuum
Press the cursor key (Figure 10:4) to
scroll through the parameters
The LED in the program mode display
(Figure 10:7) shows at which mode you
are
The right character of the
parameter display shows
that vacuum step you are
programming (see Figure
10:5)
4
Change the
parameter vacuum
Press "+" or "-" (Figure 10:9/8) to adjust
the value
The value is saved when you press the
cursor key
5
Select the parameter
gas
Press the cursor key (Figure 10:4) to
scroll through the parameters
The LED in the program mode display
(Figure 10:7) shows at which mode you
are
6
Change the
parameter gas
Press "+" or "-" (Figure 10:9/8) to adjust
the value
The value is saved when you press the
cursor key
7
If an additional
vacuum step is
required go to number
3
8
Activate the new
parameter
Press the "reprog" key (Figure 10:3)
The program display
stops flashing
Programming the multi cycle steps
42
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
5.5.1.6. External vacuum option (MPDC)
EXPLANATION
With this function vacuum can be applied to special food packaging
gastronorm containers outside the machine
Depending on whether the machine has time or sensor control features, the
vacuum value is set in seconds or %
First check whether the container is resistant to a vacuum and can retain this
NO.
WHAT TO DO
ACTION
RESULT
1
Select the external
vacuum program
Press the oil cleaning program key
(Figure 10:5)
Press the cursor key (Figure 10:4)
The external vacuum program can be
programmed in the same way as any
other program (see section 5.5.1)
“C” appears in the display
“E” appears in the display
2
Connect the external
vacuum hose to the
machine
Place the adapter over the suction hole
in the vacuum chamber (Figure 11:1)
3
Connect the external
vacuum hose to the
container
Connect the vacuum hose adapter
(Figure 11:3) on the valve of the
container. And slide the valve (Figure
11:2) in the direction of the hose
(closed position)
4
Start the process
Press the “+” key
Vacuum will be applied
until the programmed
value is reached
5
Disconnect the external
vacuum hose from the
container
Slide the valve of the adapter in the
direction of the package (open position)
and remove the hose
Hose will be disconnected
from the container and can
be removed
3
2
1
Figure 11: External vacuum adapter kit (MPDC)
USER MANUAL
43
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
EXPLANATION
sers can see the machine programs and access the functions in the navigation
mode. This is the mode that appears immediately after boot time. Figure 12 shows a
screenshot of this mode
NO.
ELEMENT
EXPLANATION
1
Program number / name
The program shows the currently selected, preset program. By
switching to a different program, different functions will be
active. The program choice depends on the product that will be
packed
2
View the functions
These features are active or inactive. If a function is activated,
it will be displayed with a blue tint. When a function is not
active, it will be displayed in a soft gray tint
3
Function active/inactive
The selected function is marked with a green circle. The name
and current value of this function is displayed on the screen
If the Plus functions are activated, the + illustration will be
shown in color. If these are not active, they are displayed in a
soft gray tint
4
Menu
The machine settings can be adjusted via the menu icon on
the left of the function list
4
3
2
1
5.5.2. Advanced Control System (ADC)
Figure 12: Program Display and controls ACS
44
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
1
Select the desired
program
Use the control buttons ‘up’ ▲ or
‘down’ ▼
2 View the functions
Use the control buttons ‘left’◄ or
‘right’►
3
View/edit function
settings
Press 'enter' when the function is
selected. Users can view the
preset configuration and the owner
can also edit. (see section 2.7)
4
Editing machine
settings
Press 'enter' when the menu is
selected (only accessible to the
owner) (see section 2.7, 5.6)
5.5.2.1. Programming the ACS control on your PC
Import files
You can import labels and programs from a USB stick, by plugging it into the USB port of the machine.
The imported data can be created using the online software for programming. You will find this
software on our website on the 'Support' page: http://www.henkelman.com/en/support/downloads
Or contact your supplier.
Creating a program or label and import them into the machine:
Click on the link of the LX Software, the following page will open:
Start a new program by:
Select a program or label you want to change
You can also import existing programs and/or labels that you like to change in:
Select a file to import
Then select a program or a label and click on the 'GO' button
USER MANUAL
45
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
EXPLANATION
The options that are built into the machine can be enabled or disabled at the
settings menu by the owner (login as owner) (See section 2.7.1)
Subsequently the options in the various programs can be programmed
Complete all data you want to use.
Click 'Save' to save the program or the label. It is necessary to validate each label or program
separately after changing the settings.
When you have finished programming all programs and labels, you can save them by choosing a
file on your computer and click ´Export´. When you select 'Programs', all programs will be saved.
By selecting ´Labels´ all labels will be saved.
For the transmission on your machine, be sure to use an empty USB key to export files.
To import the settings in the machine, plug the stick in the USB port of the machine, go to import /
export in the menu and import the programmes and labels.
5.5.2.2. Options (ACS)
46
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
3 2 1
5.5.2.3. Extern Vacuüm optie (ACS)
TOELICHTING
With this function vacuum can be applied to special food packaging gastronorm
containers outside the machine
Vacuum will be applied to 99%
First check whether the container is resistant to a vacuum and can retain this
NO.
WHAT TO DO
ACTION
RESULT
1
Connect the external
vacuum hose to the
machine
Place the adapter over the suction hole in
the vacuum chamber (Figure 13:1)
2
Connect the external
vacuum hose to the
container
Connect the vacuum hose adapter (Figure
13:3) on the valve of the container. And
slide the valve (Figure 13:2) in the
direction of the hose (closed position)
3
Start the process
With the controls, select the external
vacuum program
Vacuum is applied to the
maximum level
4
Disconnect the
external vacuum hose
from the container
Slide the valve of the adapter in the
direction of the package (open position)
and remove the hose
Hose will be
disconnected from the
container and can be
removed
Figure 13: External vacuum adapter kit (ACS)
USER MANUAL
47
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
5.6. Directive for function values
EXPLANATION
For each function, values can be set if you are authorized as the owner. In order
to understand the impact of the set value the table below explains the
consequences of giving a low or high value for each function
FUNCTION
RANGE
CONDITIONS
Vacuum
2-700 mbar
30-99.8%
Rule of thumb: the higher the vacuum, the less oxygen
remains in the package, so the product has a longer shelf
life. There are exceptions to this rule
Vacuum+
0-20 sec
This is the time that vacuum continues after the maximum
vacuum is reached. This is to let the entrapped air escape
from the product. Note: Vacuum should be set to the
maximum
Red Meat
2-700 mbar
30-99.8%
Rule of thumb: the higher the vacuum, the less oxygen in
the package so that the product has a longer shelf life
Liquid Control
2-700 mbar
When the pressure decreases, the boiling point of water is
reduced. This physical law can cause the product to boil.
In addition to contamination of the machine, this provides
loss of weight and quality of the product to be packed. By
enabling the Liquid Control feature this special sensor will
detect the evaporation point and ensures that the program
will continue with the next step in the packing process.
The value to set is the maximum achievable vacuum level.
Please note that this vacuum value is only feasible as long
as the product does not boil
Liquid Control+
0,1-5,0 sec
This is the time that vacuum continues after detection of
the evaporation point. Due to the evaporation, a small
shock wave may occur that will press all the remaining air
out of the bag. The best way to determine the right time is
by trial and error to determine the optimal value
Sequential vacuum
2-700 mbar
30-99,8%
When the value for vacuum+ time is not effective enough
to let the trapped air escape, the sequential vacuum
function must be turned on. In a maximum of five steps
vacuum will be alternated with a hold period. Each step
provides a higher vacuum than the preceding step
Seal time
1-2 cutting time
0,1-4,0 sec
This is the time in which the seal wire and/or cutting wire
is heated. The longer the time, the more heat is being
transferred to the bag
48
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
FUNCTION
RANGE
CONDITIONS
Soft-air
1-20 sec
The length of time in which air is introduced to the
chamber after sealing. The best way to determine the
correct time is by trial and learn by mistakes
Cleaning of the pump
15 minuten
There are no settings possible
ATTENTION!
The vacuum pressure in the chamber should be at least 30% at the time of sealing
EXPLANATION
When the pressure decreases, the boiling point of water is reduced (see Figure
14). This physical law can cause a product to boil. In addition to contamination of
the machine, this provides for loss of weight and quality of the product to be
packed
When packing products that contain moisture such as soups and sauces, it is
important to follow the vacuum process closely. At the moment that bubbles are
formed or it starts to bubble, immediately proceed to the next step in the cycle
(see section 5.3)
By cooling the products as much as possible, before applying vacuum, a deeper
vacuum can be achieved
If a machine is equipped with a liquid sensor option, the control automatically
goes to the next step when boiling occurs
When packaging moisture containing products, it is important that the
conditioning program is run at least 1 time per week. With daily vacuuming of
moisture containing products, it is recommended to run the conditioning program
at the end of the day
Figure 14: Water vapour line
USER MANUAL
49
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
6. MAINTENANCE
ATTENTION!
Always disconnect the power supply by unplugging the power cord
Always disconnect the external pressure (if applicable)
Test the machine after maintenance or repairs, so it is certain that the machine
can be safely used
Only trained personnel should perform the described maintenance work
ACTIVITY
LUBRICANT
Daily
Weekly
Every 6 months
Yearly
Every 4 years
SECTION
Cleaning
Cleaning the machine
6.2
Lubrication
Replace the oil of the vacuum pump
See chapter 1 for
oil type
1
Inspections
Check the oil level
2.3
Execute the oil cleaning program
0
Inspect the seal bars
6.6
Inspect the silicone rubber of the silicone holders
6.7
Inspect the lid seal
6.8
Check the plastic lid for cracks
6.1. Maintenance diagram
The diagram below shows the maintenance activities that must be performed.
50
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
ACTIVITY
LUBRICANT
Daily
Weekly
Every 6 months
Yearly
Every 4 years
SECTION
Replacements
Replace the sealing wires
6.6
Replace the silicone rubber of the silicone
holders
6.7
Replace the lid seal
6.8
Replace the exhaust filter
6.5
Please contact your supplier for a professional
service
Replace the plastic lid
EXPLANATION
It is not allowed to clean with a high pressure cleaning machine
Do not use harsh or toxic cleaning materials
Do not use cleaning materials with solvents
NO.
WHAT TO DO
ACTION
RESULT
1
Clean the machine
You can clean the surfaces with a soft,
damp cloth, or you can apply your cleaner
to the machine and wipe it off with clean
water
6.2. Cleaning the machine
USER MANUAL
51
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
6.3. Oil cleaning program
EXPLANATION
The oil cleaning program will let the vacuum pump run for 15 minutes.
During the program, the pump and the oil will reach the operating temperature.
The oil absorbs fluid in the pump. The high temperature ensures that the moisture
evaporates in the pump and reduces the risk of corrosion
If you pack moist products, such as soups or sauces, it is necessary to use the oil
cleaning program more often than the prescribed interval of once a week
NO.
WHAT TO DO
ACTION
RESULT
1
Select the program
MPDC: Press the key for the oil cleaning
program (Figure 5:5)
ACS: Use the control buttons "up" ▲ and
"down" ▼ (Figure 6:4)
2
Start process
Close the lid
The oil cleaning program
will be executed for 15
minutes
WARNING
The oil in the vacuum pump can be hot. When replacing the oil contact
with hot oil may be possible
EXPLANATION
If the machine will not be used for long periods of time, the oil should be removed from
the pump. This is because any moisture and dirt in the oil can affect the pump,
causing the pump to jam at the next use
6.4. Add oil / change oil
52
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
Add oil
NO.
WHAT TO DO
ACTION
RESULT
1
Add oil
Remove the oil filler plug (Figure 3:5)
Add oil until the oil level is between the
"max" and "min" level (Figure 3:3)
Place back the oil filler plug
NO.
WHAT TO DO
ACTION
RESULT
1
Place the drain plug
outside the housing
(only Boxer 52)
Remove the bolts (Figure 15:1) from the
mounting plate (Figure 15:3) and take
them away
Turn the mountingplate out, so a drip pan
can be placed underneath the drain plug
(Figure 15:2)
2
Change oil
Place a drip pan under the oil drain plug
(Figure 3:4)
Remove the oil drain plug (Figure 3:4)
Place back the oil drain plug
The oil drains from the
pump
3 2 1
Replacing oil
Figure 15: Mounting plate Boxer 52
USER MANUAL
53
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NR.
WAT TE DOEN
ACTIE
RESULTAAT
3
Fill with new oil
Remove the oil filler plug (Figure 3:5)
Add oil until the oil level is between the
"max" and "min" level (Figure 3:3)
Place back the oil filler plug
4
Place back the
vacuum pump in the
housing (only Boxer
52)
Turn the mounting plate with the vacum
pump back into the housing
Place back the bolts (Figure 15:1) in the
mounting plate (Figure 15:3) and tighten
them
EXPLANATION
1. The exhaust filter prevents oil vapors to be emitted by the exhaust air from the
vacuum pump
2. If the filter becomes saturated, it is no longer possible to reach maximum vacuum
3. Replace the filter in case of vacuum problems, or in accordance with the
maintenance diagram of Chapter 6.1
4 3 2
1
6.5. Replacing the exhaust filter (maintenance of vacuum pump)
16 m3 pump
Figure 16: Replacing the exhaust filter
54
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
1
Remove the exhaust
filter
Remove the filter cover (Figure 16: 4)
from the vacuum pump (Figure 16: 1)
Remove the leaf spring (Figure 16: 3)
Remove the old filter (Figure 16: 2)
2
Install the new filter
Place the new filter in the opening
Make sure the O-ring is properly placed
on the filter inlet
Install the leaf spring
Install the filter cover
EXPLANATION
Depending on your machine specification you can have one of the following
(combinations of) seal elements:
• Double seal: Two sealing wires
• Cut-off seal: One sealing wire and one cutting wire
• Wide sealing: One wide sealing wire
• Bi-active seal: One seal bar with wide sealing wire on both sides
The process of replacing of the seal elements is the same for all types
Make sure, for bi-active seal systems, that the upper and lower seal elements are
precisely aligned during the sealing
Replace the sealing wires if the wire and/or the Teflon tape is damaged, or in
accordance with the maintenance diagram
1
6.6. Replacing the sealing wire
Figure 17: Removing the seal bar
USER MANUAL
55
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
1
Remove the seal bar
from his holders
Lift the sealing bar (Figure 17:1) from the
cylinders
2 Remove the teflon
tape
Remove the teflon tape (Figure 18:1) that
protects the sealing wires
3
Remove the old
sealing wires
Remove the screws (Figure 18:2) on the
bottom side of the seal bar, and remove
the sealing wires (Figure 18:3)
4
Replace the teflon
tape on the sealing
bar
Pull the teflon tape from the top of the
sealing bar (Figure 18:4)
Clean the bar with a lint-free cloth
Put a new piece of Teflon tape of the
same length on the sealing bar
5
Replace the sealing
wires
Cut a new piece of sealing wire or cutting
wire at the length of the seal bar plus
about 15 cm (6 inches)
First place the wire on one side of the seal
bar by tightening the screws (Figure 18:2)
Place the other end of the wire in a
straight line and tighten with pliers. Then
fasten it by tightening the screws
Trim the ends of the wire on both sides
6 5 4
3 2 1
Figure 18: Replacing the sealing wire
56
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
6
Replace the teflon
tape on the sealing
wire
Cut a piece of teflon tape at the length of
the seal bar plus about 5 cm (2 inches)
Stick the tape smoothly and without folds
over the sealing wires on the sealing bar
7
Place seal bar
Place back the seal bar
EXPLANATION
In order to obtain a seal of good quality, the rubber should not be damaged and
the surface must be flat
Damage may be caused by burning with the seal wire or mechanical contact
Replace the silicone rubber if it is damaged, or in accordance with the
maintenance diagram in chapter 6.1
1
6.7. Replacing the silicone rubber on the silicone holders

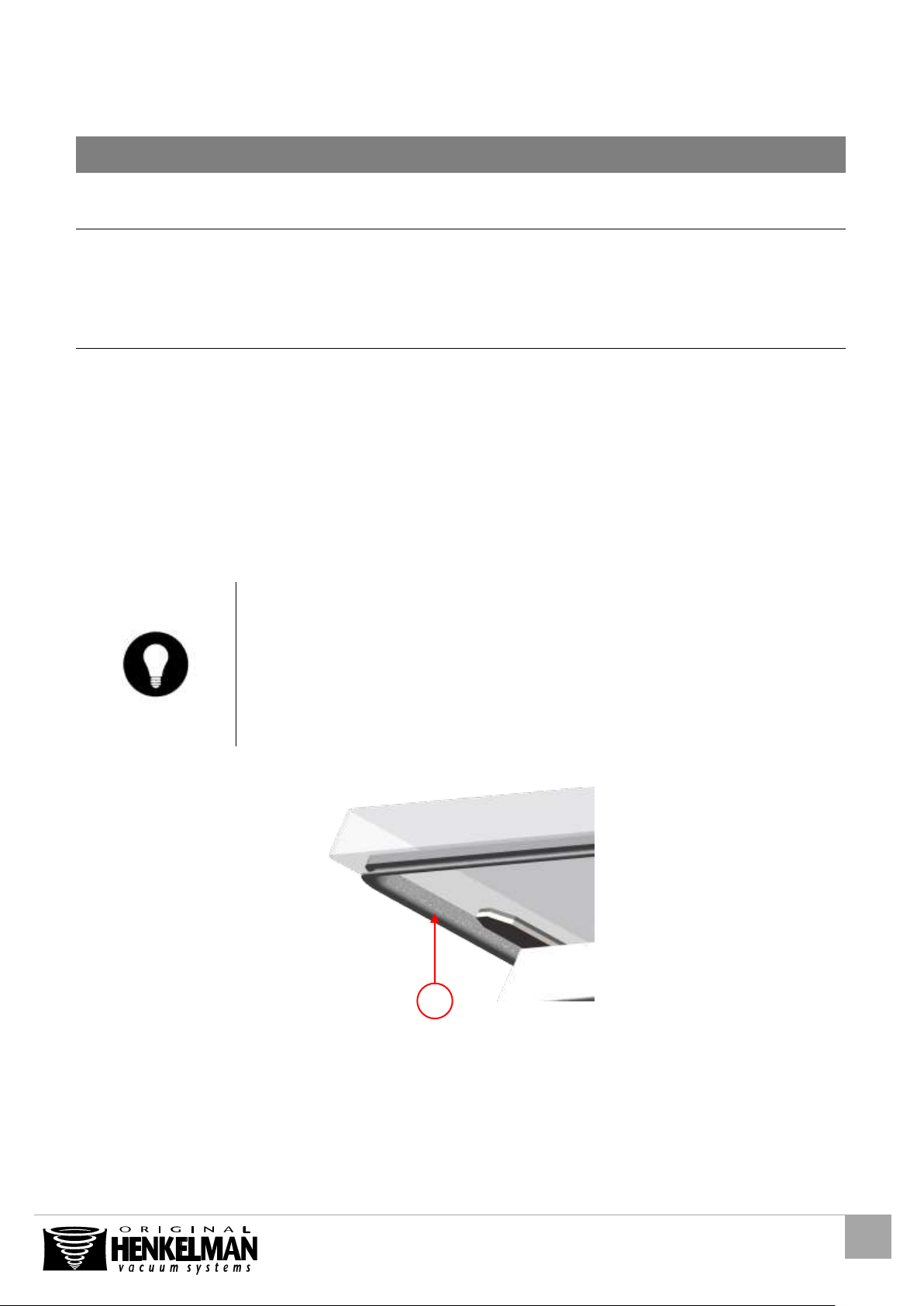

Figure 19: Replacing the silicone rubber of the silicone holders
USER MANUAL
57
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
1
Remove the old
silicone rubber
You can pull the old silicone rubber
(Figure 19:1) from the holder
2
Cut the new silicone
rubber
Cut a new piece of rubber. Make sure that
it is just as long as the holder
The size is very important, it will cause
problems with the seal of the bag if the
rubber is too short or too long
3
Place the new silicone
rubber
Place the new piece in the silicone holder
by pushing it into the recess
Ensure that the silicone rubber is fully and
uniformly placed in the slot. It is also
important that the surface of the silicone
rubber is smooth after it is in place and
that it shows no signs of stress
EXPLANATION
The lid gasket ensures that the vacuum chamber is completely closed off during
the machine cycle. This is essential for the achievement of a maximum vacuum
level. The lid gasket will wear out due to extreme pressure differences and
should be changed regularly
Replace the lid gasket if it is damaged or in accordance with the maintenance
schedule in section 6.1
1
6.8. Replacing the lid gasket
Figure 20: Replacing the lid gasket
58
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
NO.
WHAT TO DO
ACTION
RESULT
1
Remove the old
gasket
You can pull the old lid gasket off
2
Cut a new piece of
gasket
Cut a new piece of gasket. Cut it
preferably slightly longer than the old one
The ends must be cut off straight
When the lid gasket is too short or too
long, it can cause problems when closing
the cover or leakage may occur
3
Place the new rubber
Place the new lid gasket by pressing it in
the slot. The lip of the gasket must face
downwards and outwards
The gasket should be placed in the holder
evenly and without tension. The ends
must come tightly together to prevent
leakage
USER MANUAL
59
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
7. TROUBLESHOOTING
MALFUNCTION
ACTIVITY
SECTION
Control panel does not illuminate
Connect the machine to the power supply
2.5
The control panel is on but there is no
activity after closing the lid
Check / adjust the micro switch of the lid
Please contact
your supplier
Insufficient final vacuum
Check the vacuum settings of the program and
adjust them
Make sure that the extraction opening is not
covered
Check the oil level in the pump
Check / replace the exhaust filter
Check / replace the lid gasket
5.5
2.3
6.5
6.8
Vacuum process is slow
Make sure that the extraction opening is not
covered
Check the oil level in the pump
Check/ replace the exhaust filter
2.3
6.5
Vacuum bag is not sealed correctly
Check the seal program settings and adjust
them
Check / replace the Teflon tape and sealing
wires
Check / replace silicones in the silicon holders
Check the inside of the vacuum for
contamination and clean it
5.5
6.6
6.7
The lid does not open automatically
Check the gas springs
Please contact
your supplier
The tables below show the possible interference with the corresponding cause and action to be taken
60
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
Error messages for MPDC
F1 in display
Check / adjust the micro switch of the lid
Make sure that the pump is running correctly
Please contact
your supplier
F2 in display
(MPDC with sensor control)
Check if the cover is opened and restart the
machine
When message is repeated:
Please contact
your supplier
--- in display
Check if the lid is opened correctly
USER MANUAL
61
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
8. WARRANTY CONDITIONS
This manual has been compiled with care. However Henkelman BV accepts no liability for any
errors in this manual and/or for the consequences of an erroneous interpretation of the
instructions.
Henkelman BV accepts no liability for damage and/or problems arising from the use of spare
parts not supplied by Henkelman BV.
Henkelman BV reserves the right to change specifications and/or spare parts without prior
notice.
8.1. Liability
1. We disclaim any liability to the extent that it is not required by law.
2. Our liability is limited to the total monetary amount of the value of the related machine.
3. With the exception of the applicable statutory provisions on public policy and good faith we are
not obliged to pay to the counterparty or to third parties, any damages of any nature
whatsoever, direct or indirect, including loss of profit, damage to movable or other property or
personal injury.
4. We are in no way responsible for damages resulting from or caused by the use of the product
used, or the unsuitability thereof for the purpose for which the other party decided to purchase.
8.2. Warranty
The warranty is subject to the following limitations. The warranty period for products supplied by
Henkelman is 3 years from the date of the purchase document. This warranty is limited to
manufacturing and machine errors, and therefore does not cover malfunctions due to a component
of the product that has been exposed to any type of wear. Normal wear and tear as expected with
the use of this product is therefore hereby excluded..
1. The responsibility of Henkelman is limited to the replacement of defective parts, we recognize
no claims for any other form of damages or costs.
2. The warranty expires automatically in case of arrears or poor maintenance.
3. If there are doubts about maintenance or if the machine is not working properly, contact
should always be made with the supplier.
4. The warranty does not apply if the defect is the result of improper or negligent use, or
maintenance that is carried out in breach of the instructions mentioned in this manual.
5. The warranty is void if repairs or modifications on the product are carried out by third parties.
6. Defects arising from damage or injury caused by external factors are excluded from the
warranty.
7. If we replace parts in accordance with the requirements of this warranty, the replaced
components become our property.
The provisions relating to warranty and liability are part of the general terms that can be sent on
request.
62
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
9. DISPOSE AS WASTE
Do not dispose oil and components with the household waste. Ensure that at the replacement of parts
or oil after the lifecycle, that all materials are collected and destroyed or recycled in a legal and
environmentally friendly manner.
USER MANUAL
63
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
DATE:
EXECUTED BY:
(AUTORITY,
TECHNICIAN)
DESCRIPTION:
(NATURE OF THE ACTIVITIES, WHAT IS REPLACED)
10. APPENDIX
10.1. Log
This log should include among other things:
● Annual maintenance
● Big replacements and emergencies
● Modifications
● Tests of the emergency stop buttons and safety devices
64
USER MANUAL
Boxer / Lynx / Toucan Version: BLT-EN-0 10-12-14
Loading...
