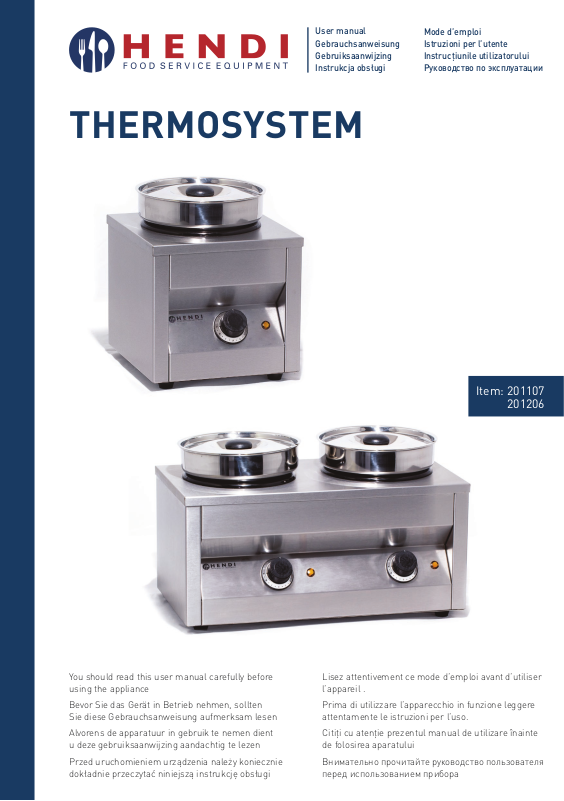

Page 1
User manual
Gebrauchsanweisung
Gebruiksaanwijzing
Instrukcja obsługi
THERMOSYSTEM
Mode d’emploi
Istruzioni per l’utente
Instrucţiunile utilizatorului
Руководство по эксплуатации
Item: 201107
201206
You should read this user manual carefully before
using the appliance
Bevor Sie das Gerät in Betrieb nehmen, sollten
Sie diese Gebrauchsanweisung aufmerksam lesen
Alvorens de apparatuur in gebruik te nemen dient
u deze gebruiksaanwijzing aandachtig te lezen
Przed uruchomieniem urządzenia należy koniecznie
dokładnie przeczytać niniejszą instrukcję obsługi
Lisez attentivement ce mode d’emploi avant d’utiliser
l’appareil .
Prima di utilizzare l’apparecchio in funzione leggere
attentamente le istruzioni per l’uso.
Citiţi cu atenţie prezentul manual de utilizare înainte
de folosirea aparatului
Внимательно прочитайте руководство пользователя
перед использованием прибора
Page 2
Keep this manual with the appliance.
Diese Gebrauchsanweisung bitte beim Gerät aufbewahren.
Bewaar deze handleiding bij het apparaat.
Zachowaj instrukcję urządzenia.
Gardez ces instructions avec cet appareil.
Conservate le istruzioni insieme all’apparecchio.
Păstraţi manualul de utilizare alături de aparat.
Хранить руководство вместе с устройством.
For indoor use only.
Nur zur Verwendung im Innenbereich.
Alleen voor gebruik binnenshuis.
Do użytku wewnątrz pomieszczeń.
Pour l’usage à l’intérieur seulement.
Destinato solo all’uso domestico.
Numai pentru uz casnic.
Использовать только в помещениях.
2
Page 3
Dear Customer,
Thank you for purchasing this Hendi appliance. Please read this manual carefully before connecting the
appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very
carefully.
Safety regulations
• Incorrect operation and improper use of the appliance can seriously damage the appliance and
injure users.
• The appliance may only be used for the purpose
for which it was intended and designed. The manufacturer is not liable for any damage caused by
incorrect operation and improper use.
• Keep the appliance and electrical plug away from
water and any other liquids. In the unlikely event
that the appliance should fall into water, immediately pull the plug out of the socket and have
the appliance checked by a certified technician.
Not following these instructions could give rise to
life-threatening situations.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Regularly check the plug and cord for any damage.
Should the plug or cord be damaged have it/them
repaired by a certified repair company.
• Do not use the appliance after it has fallen or is
damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This
could give rise to life-threatening situations.
• Make sure the cord does not come in contact with
sharp or hot objects and keep it away from open
fire. To pull the plug out of the socket, always pull
on the plug and not on the cord.
• Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of
electrical appliances can be dangerous. Therefore,
never let children use home appliances without
supervision.
• Always pull the plug out of the socket when the
appliance is not being used and always before
cleaning.
• Warning! As long as the plug is in the socket the
appliance is connected to the power source.
• Turn off the appliance before pulling the plug out
of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied
along with the appliance.
• Only connect the appliance to an electrical outlet
with the voltage and frequency mentioned on the
appliance label.
• Avoid overloading.
• Turn off the appliance after use by removing the
plug from the socket.
• Always remove the plug from the socket when filling or cleaning the appliance.
• The electrical installation must comply with the
applicable national and local regulations.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Make sure that no one can accidentally pull the
cord (or extension cord) loose or trip over the cord.
NLEN
3
Page 4
Function
The thermo system is ideally suited for keeping sauces at the right temperature.
With individual temperature control.
Technical details
One Two Two Plus Three Four
Supply voltage
[U]
Power [P] 200 W 400 W 400 W 600 W 800 W
Dimensions
(B x D x H)
Volume 1 x 4,2 litre 2 x 4,2 litre 2 x 4,2 litre 3 x 4,2 litre 4 x 4,2 litre
230 V 230 V 230 V 230 V 230 V
260x265x245mm 505x265x245mm 265x505x245mm 765x265x245mm 505x505x245mm
Preparations before using for the first time
• Check to make sure the appliance is undamaged.
In case of any damage, contact your supplier immediately and do NOT use the appliance.
• Remove all the packing material and protection
film (if applicable).
• Clean the appliance with luke-warm water and a
• Place the appliance on a level and steady surface,
unless mentioned otherwise.
• Make sure there is enough clearance around the
appliance for ventilation purposes.
• Position the appliance in such a way that the plug
is accessible at all times.
soft cloth.
Use
EN
• Turn both on/off switches to the “0” position, all
lamps are off.
• Fill the enamelled inner container with approxi-
• Install the bain-marie pots.
• Turn the on/off switch to the desired position, the
orange lamp will light.
mately 0.25 litre.
Check the water level regularly during use.
After use
• Turn off the equipment by unplugging it from the
mains supply.
• Allow the water to cool down.
Cleaning and maintenance
• Always remove the plug from the socket before
cleaning the appliance.
• Beware: Never immerse the appliance in water or
any other liquid!
• Clean the outside of the appliance with a damp
cloth (water with mild detergent).
• Never use aggressive cleaning agents or abra-
4
• Remove the bain-marie pots. These can be
cleaned in the dishwasher.
• Dry and clean the enamelled pot.
sives. Do not use any sharp or pointed objects. Do
not use petrol or solvents! Clean with a damp cloth
and detergent if necessary. Do not use abrasive
materials.
• Wherever possible, avoid water coming into contact with electrical components.
Page 5
Faults
Fault Symptom Cause Possible solution
Appliance does not do
anything
Appliance does not reach
the set temperature
Orange lamp does not light No mains voltage Check the power supply.
Orange lamp lights Power controller defective Replace the power con-
troller.
Element defective Replace the element.
If in doubt, contact your supplier.
Spare parts
Article number Description
201114-308400 Element
201145-308424 Orange lamp
201121-306390 Power controller
202289-303603 Mains supply plug
470909-303610 Bain marie 4,2l + lid
201411-310939 Pot black enamelled
470923-313947 Lid
Warranty
Any defect affecting the functionality of the appliance that becomes apparent within one year after
was bought and include proof of purchase (e.g. re-
ceipt).
purchase will be corrected by free repair or replacement provided the appliance has been used and
maintained in accordance with the instructions and
has not been abused or misused in any way. Your
statutory rights are not affected. If the appliance is
In line with our policy of continuous product devel-
opment we reserve the right to change the product,
packaging and documentation specifications with-
out notice.
claimed under warranty, state where and when it
Discarding & Environment
At the end of the life of the appliance, please dispose
of the appliance according to the regulations and
Throw packing materials like plastic and boxes in
the appropriate containers.
guidelines applicable at the time.
EN
5
Page 6
6
Page 7
7
Page 8
Hendi B.V.
Steenoven 21
3911 TX Rhenen, The Netherlands
Hendi Food Service Equipment Romania Srl
Str. Ecaterina Teodoroiu nr. 38, Parc Industrial Ramoss
Halele 23-24, Brasov 500450, Romania
Hendi Polska Sp. z o.o.
ul. Magazynowa 5
62-023 Gądki, Poland
Hendi Food Service Equipment GmbH
Gewerbegebiet Ehring 15
5112 Lamprechtshausen, Austria
Hendi HK Ltd.
1603-5, Tower II, Enterprise Square
9 Sheung Yuet Road, Kowloon Bay, Hong Kong
Find Hendi on internet:
www.hendi.eu
www.facebook.com/HendiFoodServiceEquipment
www.linkedin.com/company/hendi-food-service-equipment-b.v.
www.youtube.com/HendiEquipment
- Changes, printing and typesetting errors reserved.
- Änderungen und Druckfehler vorbehalten.
- Wijzigingen en drukfouten voorbehouden.
- Producent zastrzega sobie prawo do zmian oraz
błędów drukarskich w instrukcji.
- Variations et fautes d’impression réservés.
- Errori di cambiamenti, di stampa e di impaginazione riservati.
- Drepturi rezervate cu privire la modificări şi greşeli de impri-
mare.
- Изменения, печати и верстки ошибки защищены.
© 2016 Hendi BV Rhenen - The Netherlands Ver: 23-06-2016
