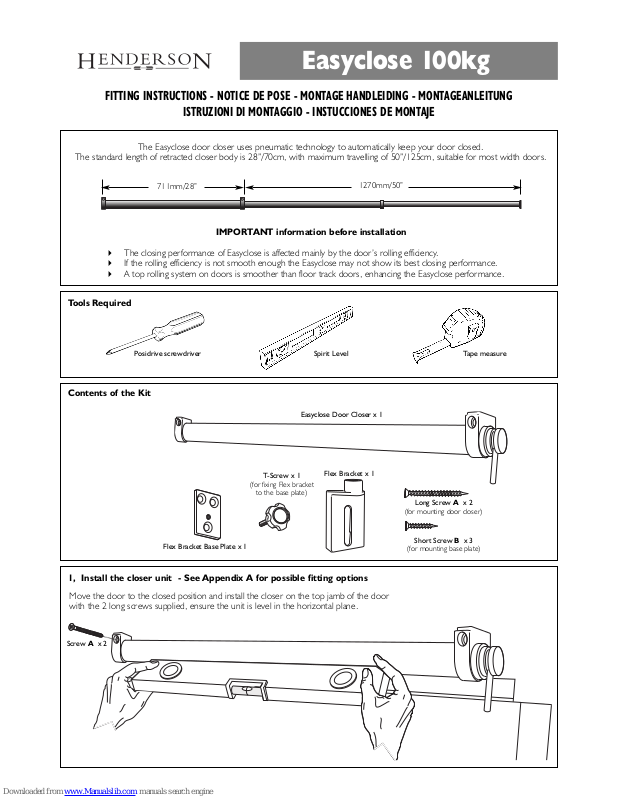

Henderson Easyclose Fitting Instructions Manual

Tools Required

Tape measurePosidrive screwdriver Spirit Level

Easyclose Door Closer x 1

Flex Bracket Base Plate x 1

T-Screw x 1

(for fixing Flex bracket

to the base plate)

Long Screw A x 2

(for mounting door closer)

Screw A x 2

Short Screw

B x 3

(for mounting base plate)

Flex Bracket x 1

The Easyclose door closer uses pneumatic technology to automatically keep your door closed.

The standard length of retracted closer body is 28”/70cm, with maximum travelling of 50”/125cm, suitable for most width doors.

IMPORTANT information before installation

4 The closing performance of Easyclose is affected mainly by the door’s rolling efficiency.
4 If the rolling efficiency is not smooth enough the Easyclose may not show its best closing performance.
4 A top rolling system on doors is smoother than floor track doors, enhancing the Easyclose performance.

Move the door to the closed position and install the closer on the top jamb of the door
with the 2 long screws supplied, ensure the unit is level in the horizontal plane.

Contents of the Kit

1, Install the closer unit - See Appendix A for possible fitting options

Easyclose 100kg

FITTING INSTRUCTIONS - NOTICE DE POSE - MONTAGE HANDLEIDING - MONTAGEANLEITUNG

ISTRUZIONI DI MONTAGGIO - INSTUCCIONES DE MONTAJE

1270mm/50”

711mm/28”

Closer P

in

Flex Bracket

T-Screw

SLOW FAST

5. Fitting the optional fascia

M

ount the Flex bracket base plate with the 3

small screws B supplied.

2. Fit the Flex bracket base plate

Attach the Flex bracket
with the T-Screw to the
base plate, lift the brack­et until it engages with
the closer pin and lock
in position by tightening
the T-Screw.

To disconnect the auto close func­tion, simply loosen the T-Screw and
move the Flex bracket down until it
detaches from the closer pin.

The closing speed can be regulated
by turning the adjusting screw
clockwise for slower and anti­clockwise for faster.

Check the opening and closing
operation for obstructions which
could effect the units performance.

To fit the optional fascia simply hang the fascia on the
top fixing blocks and press the bottom of the fascia
until it clicks into position.

3. Fit the Flex bracket 4. Regulate the closing speed

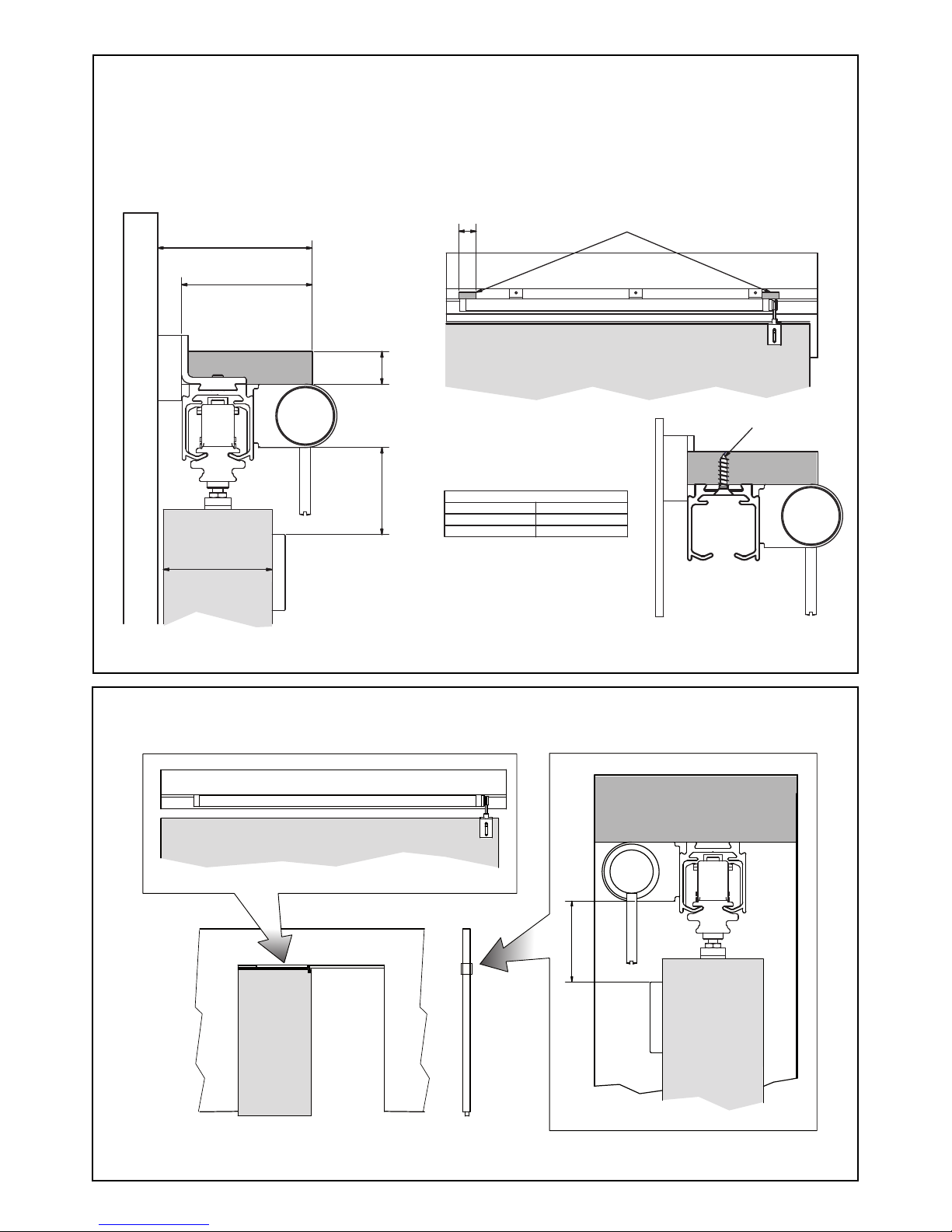

Face fixing using the Husky track system - Method 1

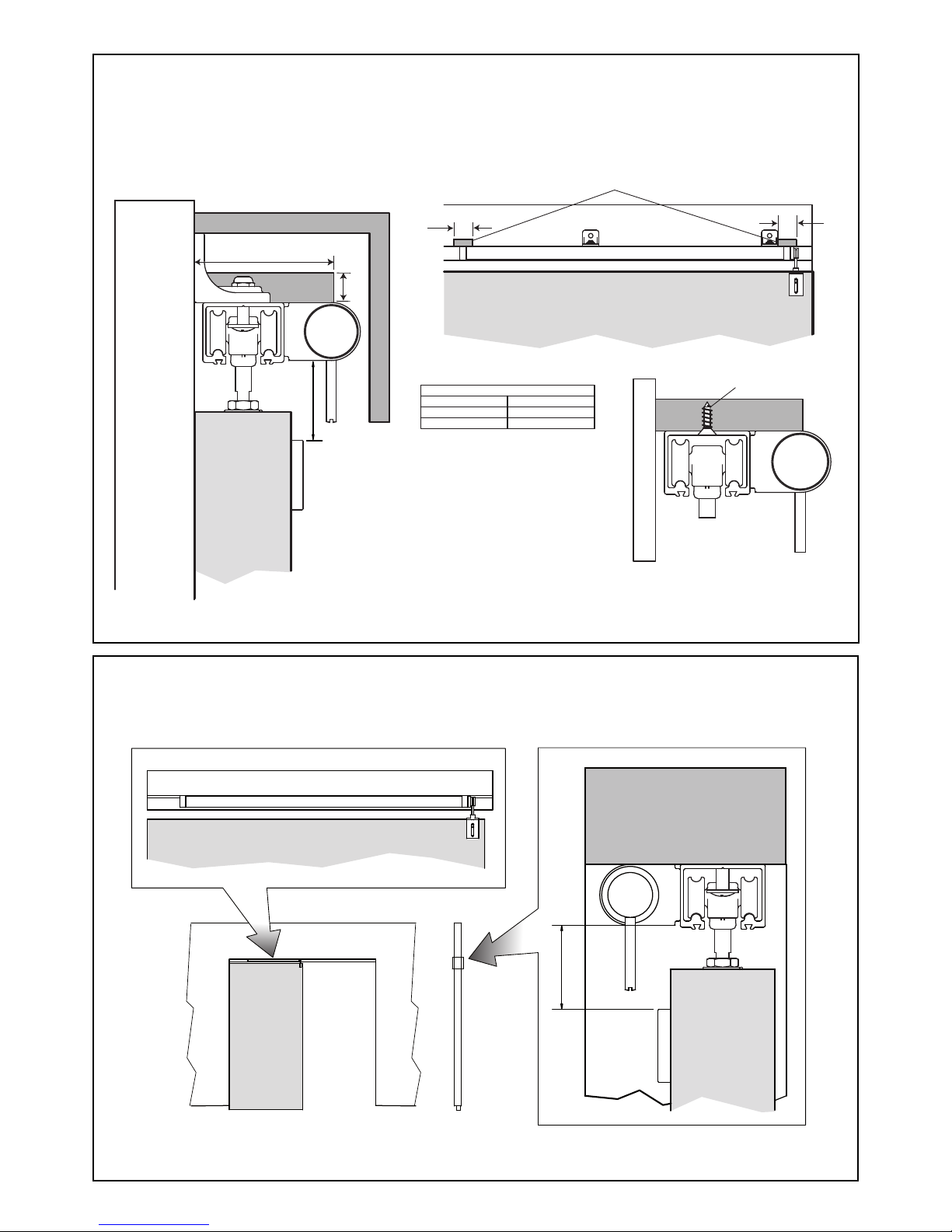

Face fixing using the Husky track system - Method 2

A

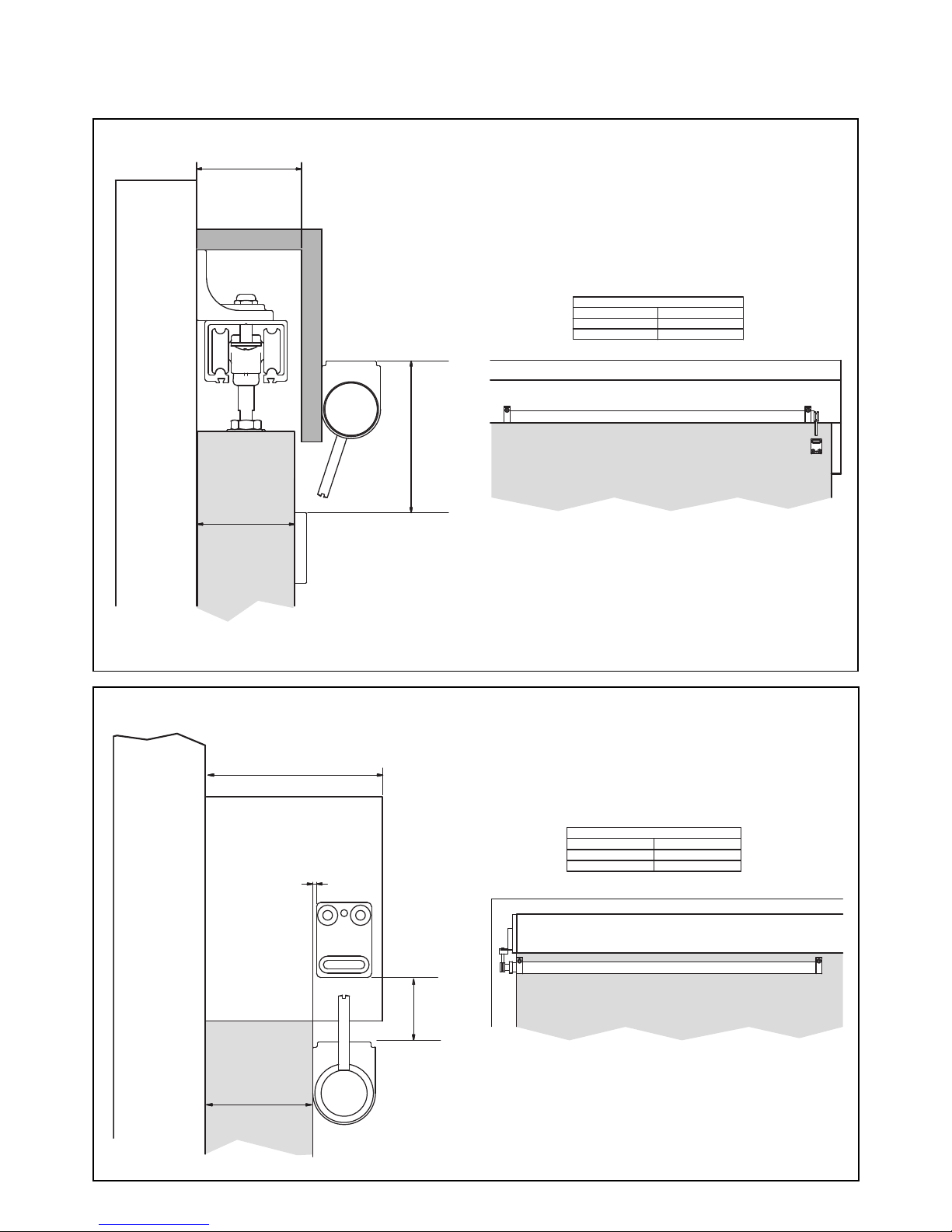

PPENDIX A - Husky Track Suggested Fitting Methods

CALCULATING F

B F
20 - 28 36
28 - 34 B/2 +22
3

4-50 B+5

B

75

6

F

CALCULATING F

B F
20 - 28 36
28 - 34 B/2 +22
34 - 50 B +5

B

75

6

F

B

G

30

F

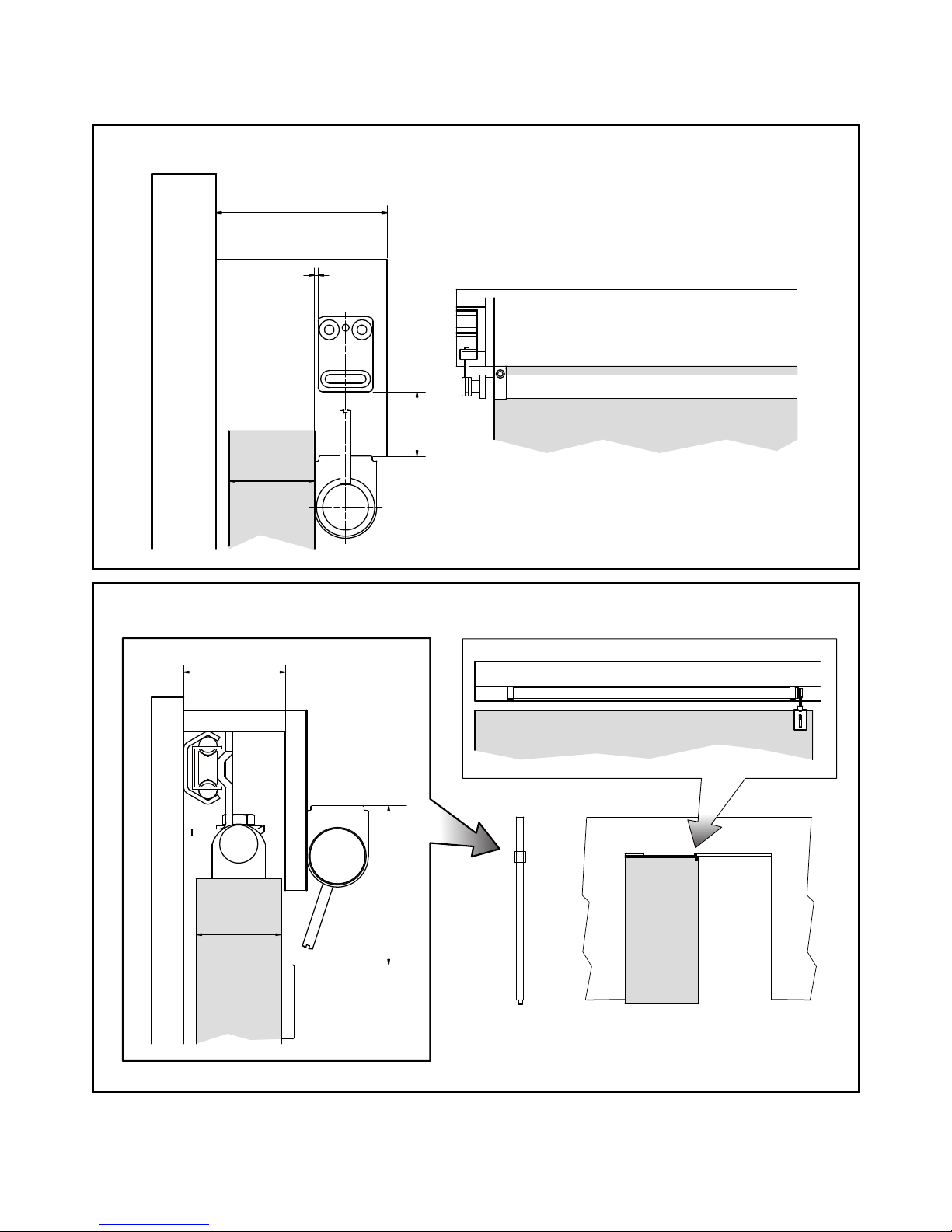

CALCULATING F AND G

B F G

20 - 28 B/2 +49 B/2 +19

28+ B+36 B+4

FASCIA NOT SUPPLIED BY PCH - FASCIA TO OVERLAP DOOR BY 5mm
FASCIA TO BE AT LEAST 10 mm THICK - CONSULT TABLES FOR VALUES
