875-0375-0 Vector VR500
User Guide
Revision: A3
Smart Antenna
Page 2
875-0375-0 VR500 User Guide Rev A3
Page
Table of Contents
Device Compliance, License and Patents ............................................................................ 4
VR500 Terms & Definitions ................................................................................................. 6
Chapter 1: Introduction .............................................................................................................. 9
Overview ............................................................................................................................. 9
Product Overview ............................................................................................................... 9
Key Features ...................................................................................................................... 12
What’s Included in Your Kit............................................................................................... 13
Firmware Upgrades ........................................................................................................... 14
Chapter 2: Installing the VR500 ................................................................................................ 19
Overview ........................................................................................................................... 19
Mounting the VR500 ......................................................................................................... 20
UHF Radio Antenna ........................................................................................................... 33
Ports .................................................................................................................................. 34
Selecting Baud Rates and Message Types ........................................................................ 35
Connecting the VR500 to External Devices ...................................................................... 36
Chapter 3: Understanding the VR500 ....................................................................................... 40
Overview ........................................................................................................................... 40
Differential and RTK Operation ......................................................................................... 41
SBAS Tracking .................................................................................................................... 42
Athena RTK ........................................................................................................................ 43
Atlas L-band ...................................................................................................................... 44
Supported Constellations.................................................................................................. 45
Supplemental Sensors....................................................................................................... 46
Time Constants ................................................................................................................. 49
Chapter 4: Operating the VR500 ............................................................................................... 51
Overview ........................................................................................................................... 51
Powering the Receiver On/Off .......................................................................................... 52
2 of 88
Page 3
875-0375-0 VR500 User Guide Rev A3
Page
LED Indicators ................................................................................................................... 53
Configuring the VR500 Using the WebUI .......................................................................... 54
Appendix A: Troubleshooting ................................................................................................... 79
Overview ........................................................................................................................... 79
Troubleshooting ................................................................................................................ 80
Appendix B: Technical Specifications ........................................................................................ 83
Technical Specifications .................................................................................................... 83
VR500 Technical Specifications ......................................................................................... 84
Index .................................................................................................................................. 89
End User License Agreement ............................................................................................ 91
Warranty Notice ................................................................................................................ 95
3 of 88
Page 4
875-0375-0 VR500 User Guide Rev A3
Page
Device Compliance, License and Patents
Device Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
E-Mark Statement: This product is not to be used for driverless/autonomous driving.
Copyright Notice
Copyright Hemisphere GNSS, Inc. (2018). All rights reserved.
chemical, manual or otherwise, without the prior written permission of Hemisphere GNSS.
Trademarks
Hemisphere GNSS®, the Hemisphere GNSS logo, TRACERTM, Crescent®, EclipseTM, e-Dif®, L-DifTM, PocketMax4TM,
are the properties of their respective owners.
Patents
Hemisphere GNSS products may be covered by one or more of the following patents:
6111549
6876920
7400956
8000381
6397147
7142956
7429952
8018376
6469663
7162348
7437230
8085196
6501346
7277792
7460942
8102325
6539303
7292185
7689354
8138970
6549091
7292186
7808428
8140223
6711501
7373231
7835832
8174437
6744404
7388539
7885745
8184050
6865465
7400294
7948769
8190337
8214111
8217833
8265826
8271194
8307535
8311696
8334804
RE41358
Australia Patents
2002244539
2002325645
2004320401
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
This product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The
declaration of conformity may be consulted at
No part of this manual may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into
any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
S320TM, SBX-4TM, VectorTM, XF1TM, and XF2TM are proprietary trademarks of Hemisphere GNSS, Inc. Other trademarks
HTTPS://HEMISPHEREGNSS.COM/ABOUT-US/QUALITY-COMMITMENT.
Continued on next page
4 of 88
Page 5
875-0375-0 VR500 User Guide Rev A3
Page
Device Compliance, License and Patents, Continued
Notice to Customers
Contact your local dealer for technical assistance. To find the authorized dealer near you:
WWW.HGNSS.COM
Technical Support
If you need to contact Hemisphere GNSS Technical Support:
SUPPORT.HGNSS.COM
Documentation
Hemisphere GNSS is committed to the quality and continuous improvement of our products and services. We urge
website: SUPPORT.HGNSS.COM
Hemisphere GNSS, Inc
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: (480) 348-6380
Fax: (480) 270-5070
PRECISION@HGNSS.COM
Hemisphere GNSS, Inc.
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: (480) 348-6380
Fax: (480) 270-5070
Feedback
you to provide Hemisphere GNSS with any feedback regarding this guide by opening a support case at the following
5 of 88
Page 6
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Terms & Definitions
Introduction
The following table lists the terms and definitions used in this document.
VR500 Terms &
Term
Definition
1PPS
1 pulse-per-second is a pulse output by the receiver
synchronization.
Activation
Activation refers to a feature added through a one-
see Subscription.
Atlas
Atlas is a subscription-based service provided by
decimeter accuracy without a base station or datalink.
Base Station
The Base Station is a receiver placed over a familiar
or the internet.
BeiDou
BeiDou is a Chinese satellite-based navigation system.
DGPS/DGNSS
Differential GPS/GNSS refers to a receiver using
Differential Corrections.
Differential
A method of improving precision of a GNSS rover. Two
RTK.
definitions
precisely once per second and is used for hardware
time purchase. For features that require recurring fees,
Hemisphere that enables the VR500 to achieve sub-
point, provides real-time observations, and sends
those observations to nearby RTK rovers via UHF radio
Corrections
GNSS receivers placed in a nearby area will have
similar error. A base station is placed over a known
point. Since the actual position of the base station is
known, error can be calculated, and corrections can
then be applied to nearby rovers. This differs from
Continued on next page
6 of 88
Page 7
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Terms &
Term
Definition
Elevation Mask
Elevation Mask is the minimum angle between a
satellite in the solution.
Firmware
Firmware is the software loaded into the receiver that
GNSS engine.
GALILEO
Galileo is a global navigation satellite system
Space Agency.
GLONASS
Global Orbiting Navigation Satellite System
deployed and maintained by Russia.
GNSS
Global Navigation Satellite System (GNSS) is a system
GLONASS and Galileo.
GPS
Global Positioning System (GPS) is a global navigation
satellite system implemented by the United States.
Heading
Heading is the angle between true north and the
antenna.
Heading Bias
Heading Bias is an offset applied to the heading value
calculated by the receiver.
Multipath
Multipath occurs when the GNSS signal reaches the
GNSS solutions.
NMEA
National Marine Electronics Association (NMEA) is a
for communication between marine electronics.
VR500 Terms & Definitions, Continued
definitions,
continued
satellite and the horizon for the receiver to use that
controls the functionality of the receiver and runs the
implemented by the European Union and European
(GLONASS) is a Global Navigation Satellite System
that provides autonomous 3D position (latitude,
longitude, and altitude) and accurate timing globally
by using satellites. Current GNSS providers are: GPS,
vector calculated from the primary to secondary
antenna by two or more paths. This causes incorrect
pseudo-range measurements and leads to less precise
marine electronics organization that sets standards
Continued on next page
7 of 88
Page 8
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Terms & Definitions, Continued
VR500 Terms &
Term
Definition
ROX
ROX is a Hemisphere GNSS propriety RTK message
branded.
RTCM
Radio Technical Commission for Maritime Services
be used together.
RTK
Real-Time-Kinematic (RTK) is a real-time differential
differential corrections.
SBAS
Satellite Based Augmentation System (SBAS) is a
satellite throughout a wide area or region.
Subscription
A subscription is a feature that is enabled for a limited
subscription is renewed.
WAAS
Wide Area Augmentation System (WAAS) is a
parts of North America.
definitions,
continued
format that can be used as an alternative to RTCM3
when both the base and rover are Hemisphere
(RTCM) is a standard used to define RTK message
formats so that receivers from any manufacturer can
GPS method that provides better accuracy than
system that provides differential corrections over
time. Once the end-date of the subscription has been
reached, the feature will turn off until the
satellite-based augmentation system (SBAS) that
provides free differential corrections over satellite in
8 of 88
Page 9
875-0375-0 VR500 User Guide Rev A3
Page
Overview
Introduction
This User Guide provides information to help you quickly set up your Vector
Hemisphere GNSS website at WWW.HGNSS.COM.
Contents
Topic
See Page
Product Overview
9
Key Features
12
What’s Included in Your Kit
13
Firmware Upgrades
14
Product
Based on Eclipse Vector™ GNSS technology, the VR500 (Figure 1-1) is

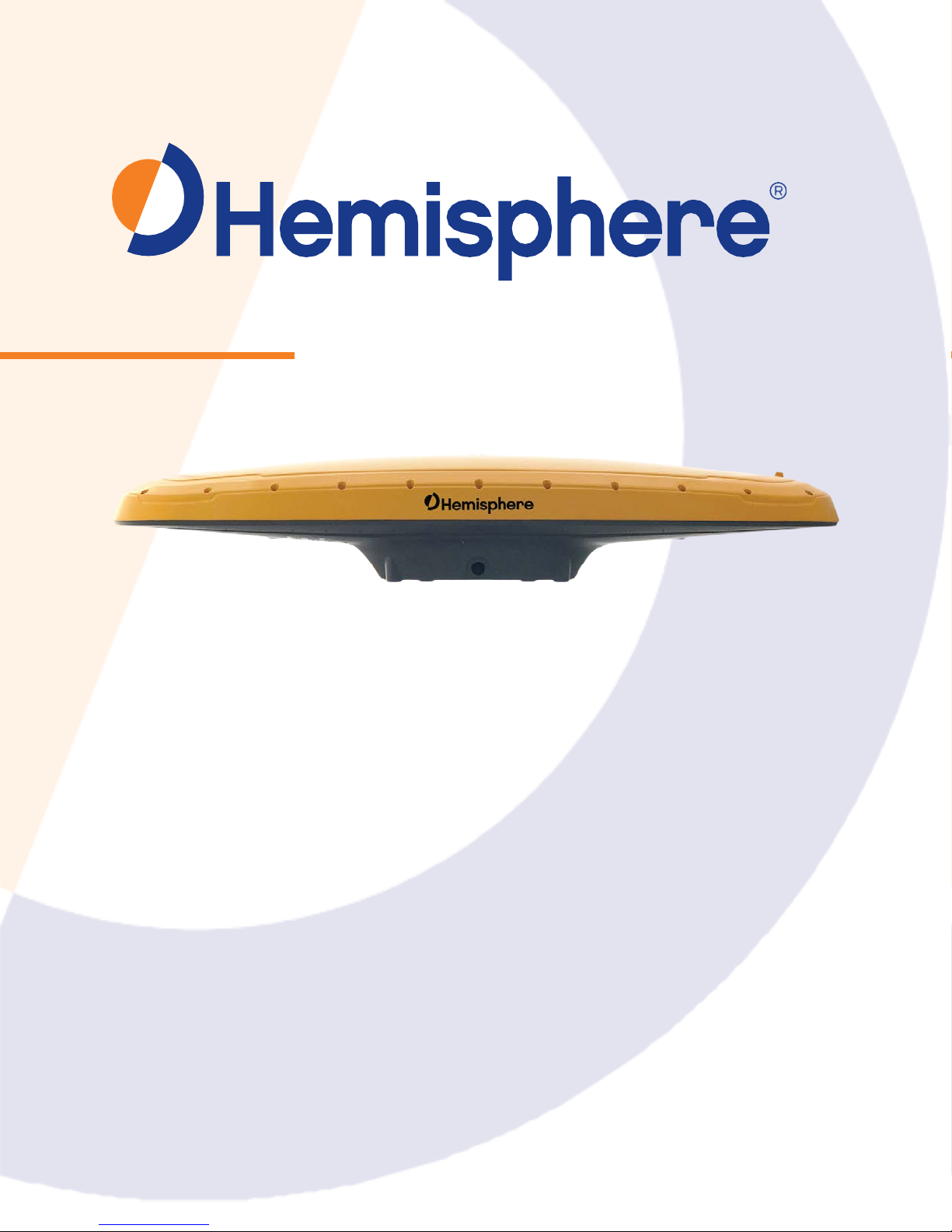

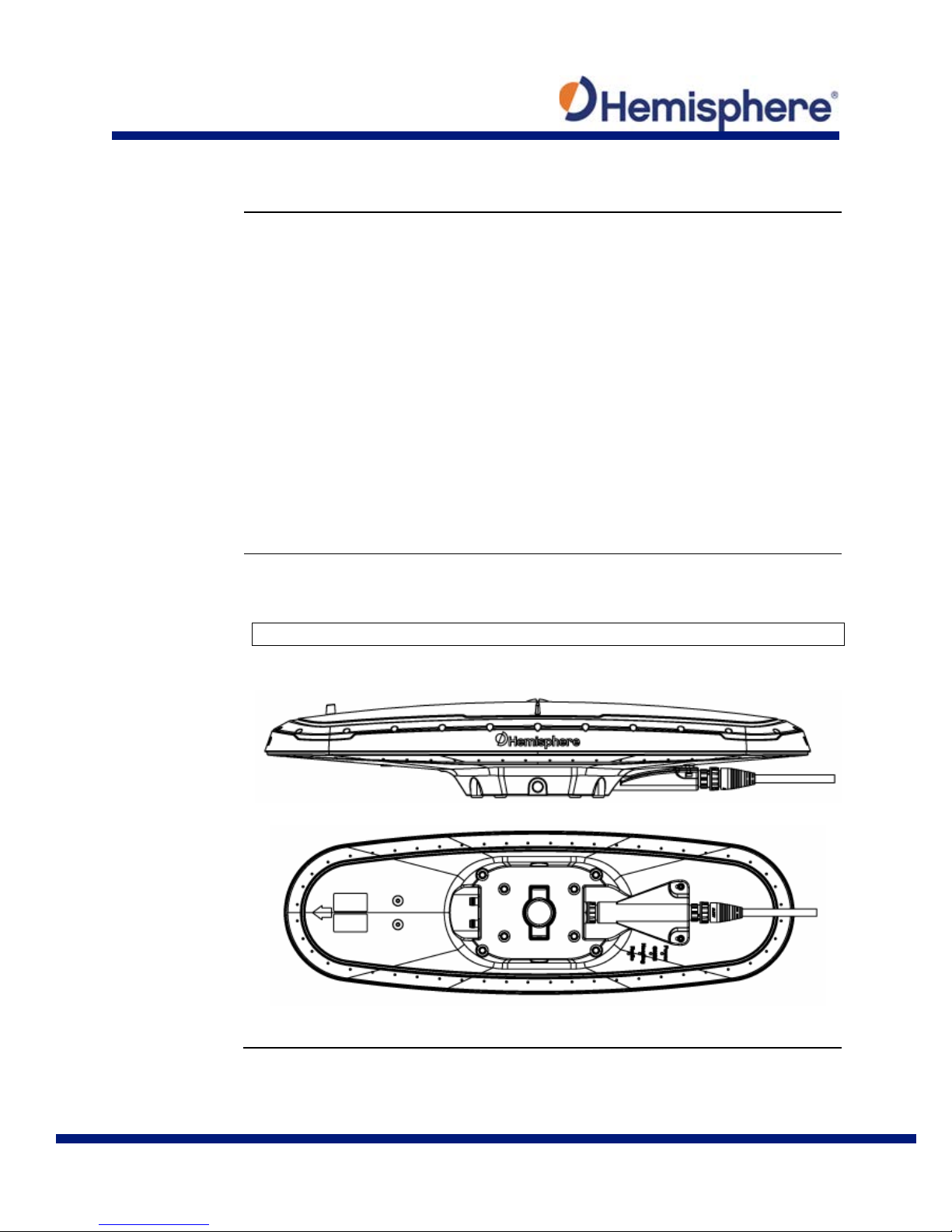

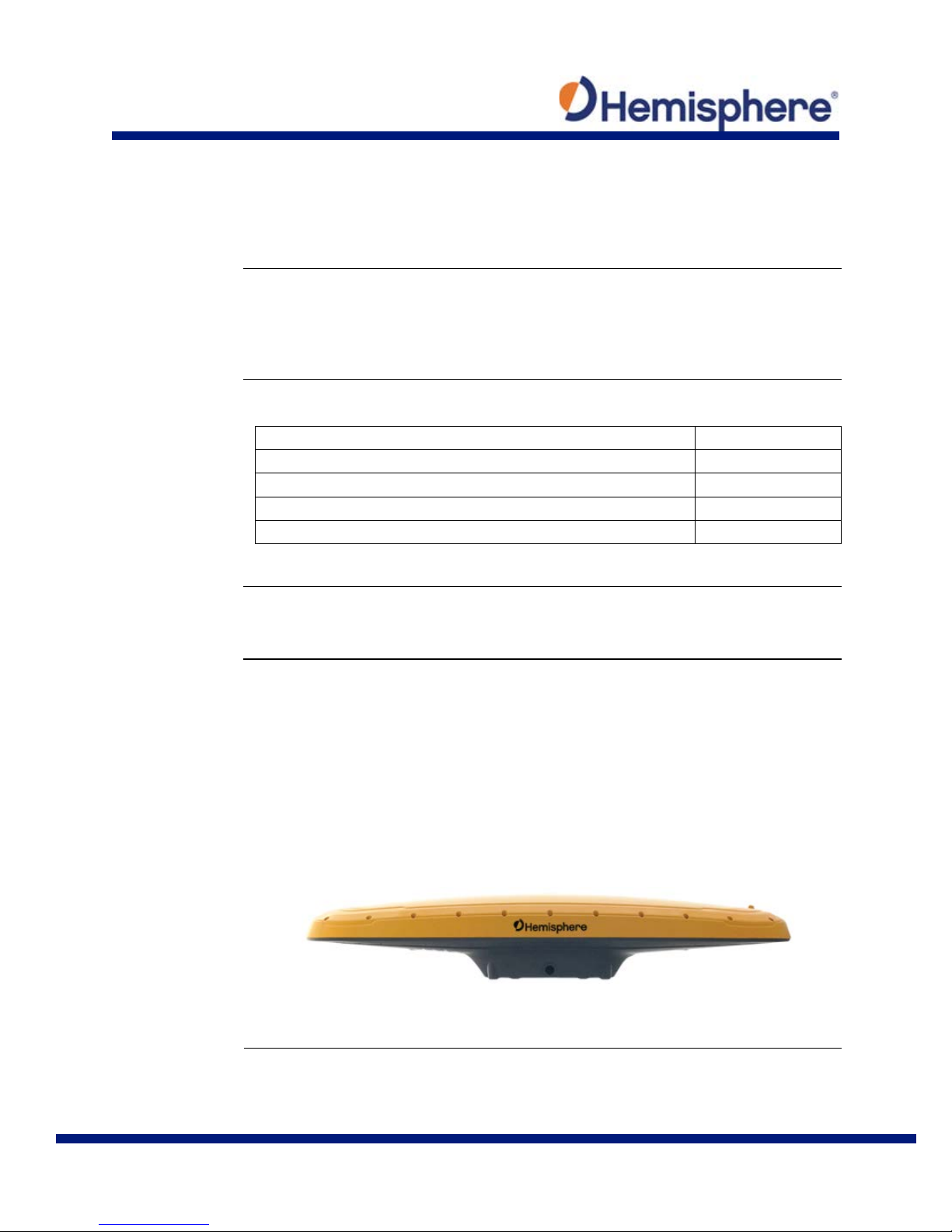

Figure 1-1 VR500 Smart Antenna
Chapter 1: Introduction
VR500 GNSS Smart Antenna™. You can download this manual from the
Product Overview
overview
designed for machine control applications that require precise heading and
RTK position performance from the Vector VR500 GNSS Smart Antenna.
Featuring an all-in-one Hemisphere GNSS Eclipse Vector-based receiver and
two integrally separated antennas, with a baseline of 50.0 cm. The VR500
achieves heading accuracy of up to 0.17º RMS (depending on environmental
conditions) and offers robust positioning performance.
Continued on next page
9 of 88
Page 10
875-0375-0 VR500 User Guide Rev A3
Page
Product Overview, Continued
Product
The VR500 provides accurate and reliable heading and position information
Athena RTK and Atlas L-band.
Athena RTK
Athena RTK (Real Time Kinematic) technology is available on Eclipse-based
baseline applications
overview,
continued
at high update rates by using a high performance GNSS receiver and two
antennas for GNSS signal processing.
One antenna is designated as the primary GNSS antenna, and the other
antenna is the secondary GNSS antenna. Positions computed by the VR500
are referenced to the phase center of the primary GNSS antenna. Heading
data references the Vector formed from the primary GNSS antenna phase
center to the secondary GNSS antenna phase center.
The standard model VR500 tracks GPS, GLONASS, Galileo, and BeiDou
satellites.
The VR500 can be upgraded via activations or subscriptions to support
GNSS receivers. This is Hemisphere's most advanced RTK processing software
and can be added to the VR500 as an activation.
Athena RTK has the following benefits:
• Improved Initialization time - Performing initializations in less than 15
seconds at better than 99.9% of the time
• Robustness in difficult operating environments - Extremely high
productivity under the most aggressive of geographic and landscapeoriented environments
• Performance on long baselines - Industry-leading position stability for long
Continued on next page
10 of 88
Page 11
875-0375-0 VR500 User Guide Rev A3
Page
Product Overview, Continued
Atlas L-band
Atlas L-band is Hemisphere's industry leading correction service, which can
Convergence time - Industry-leading convergence times of 10-40 minutes
For more
For more information about Athena RTK, see:
://
be added to the VR500 as a subscription. Atlas L-band has the following
benefits:
• Positioning accuracy - Competitive positioning accuracies down to 4 cm
RMS in certain applications
• Positioning sustainability - Cutting edge position quality maintenance in
the absence of correction signals, using Hemisphere’s patented technology
• Scalable service levels - Capable of providing virtually any accuracy,
precision and repeatability level in the 4cm to 50cm range
•
information
HTTP://HEMISPHEREGNSS.COM/TECHNOLOGY
For more information about Atlas L-band, see:
HTTP
HEMISPHEREGNSS.COM/ATLAS
11 of 88
Page 12
875-0375-0 VR500 User Guide Rev A3
Page
Key Features
VR500 key
Key features of the VR500 include:
Pitch and roll < 1° RMS
features
• Easy to use all-in-one robust GNSS smart antenna
• High-precision positioning in Athena RTK, Atlas L-band, and SBAS
• Athena technology for improved RTK performance, especially with
GLONASS, Galileo, and BeiDou
• Atlas* L-band technology providing highly accurate corrections over the air
(*Requires the purchase of a subscription)
• Heave of 30cm RMS (DGNSS), 10cm (RTK)
•
12 of 88
Page 13
875-0375-0 VR500 User Guide Rev A3
Page
What’s Included in Your Kit
VR500 kit
Table 1-1 lists the parts included with your VR500. The VR500 GNSS Smart
weather.”
VR500 Parts list
Table 1-1 VR500 Parts list
Part No.
Description
Qty
940-3121-10
HGNSS VR500 Receiver
1
752-0028-10
VR500 Receiver
1
Part No.
Description
Qty
054-0181-10
Power/data cable, 15m
washer)
1
710-0147-10
VR500 External UHF,
B/T Kit
1
Antenna and the power/data cable (accessory item) are the only two
required components.
Note: The VR500’s parts comply with IEC 60945 Section 4.4: “Exposed to the
All the following items are available for purchase separately from your VR500
receiver:
(includes clamp, screw,
13 of 88
Page 14
875-0375-0 VR500 User Guide Rev A3
Page
Firmware Upgrades
Overview
Periodically, Hemisphere GNSS releases firmware upgrades to improve
2. Use the internal WebUI.
RightArm
Connect the VR500 to a computer over serial. Firmware can be loaded over
performance, fix bugs, or add new features to a product. To update the
firmware on the VR500, choose from one of two options:
1. Download the latest version of Hemisphere GNSS RightArm from the
following link:
HTTPS://HEMISPHEREGNSS.COM/RESOURCES-SUPPORT/SOFTWARE
Updates
either serial port. Set the baud rate of the serial port you are using to 19200.
Launch RightArm.

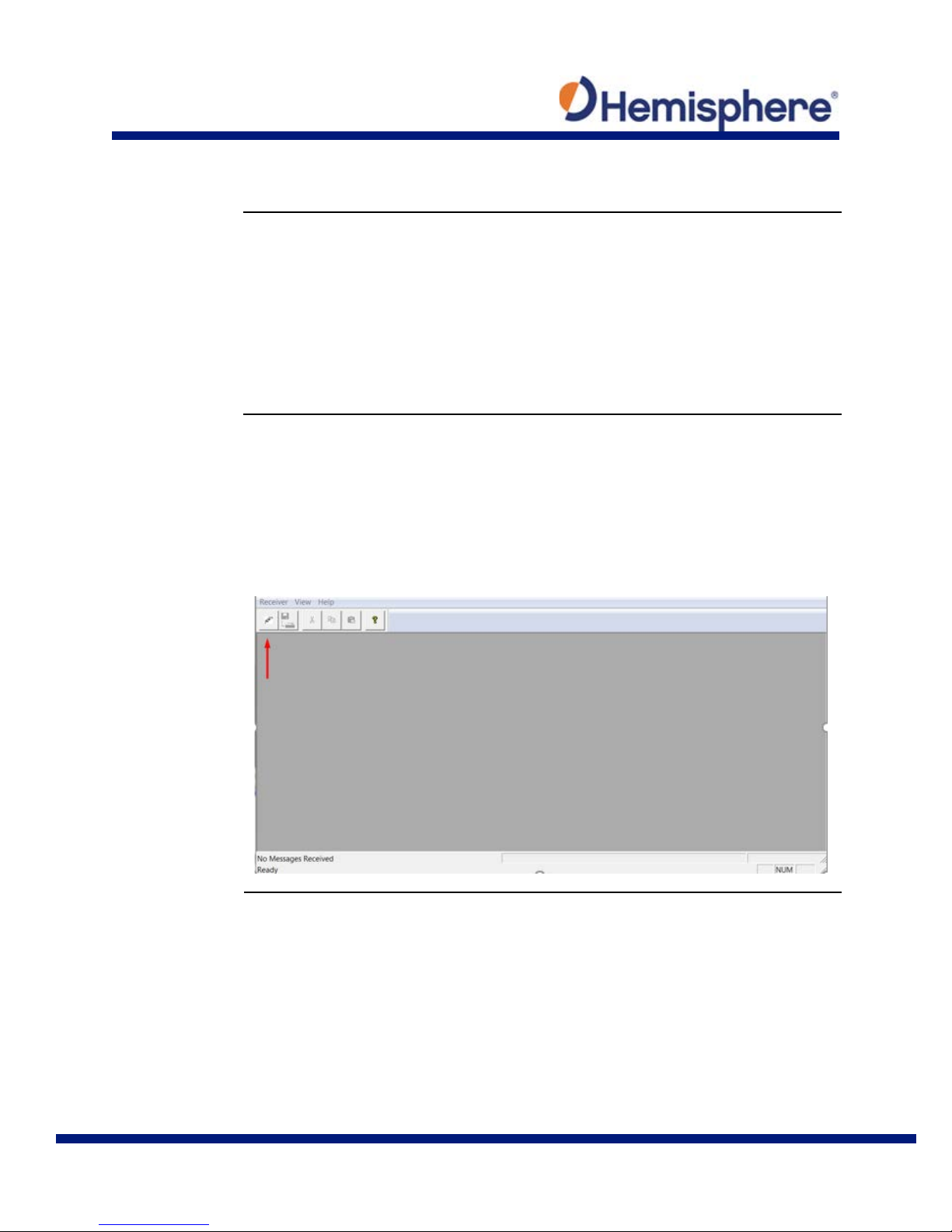

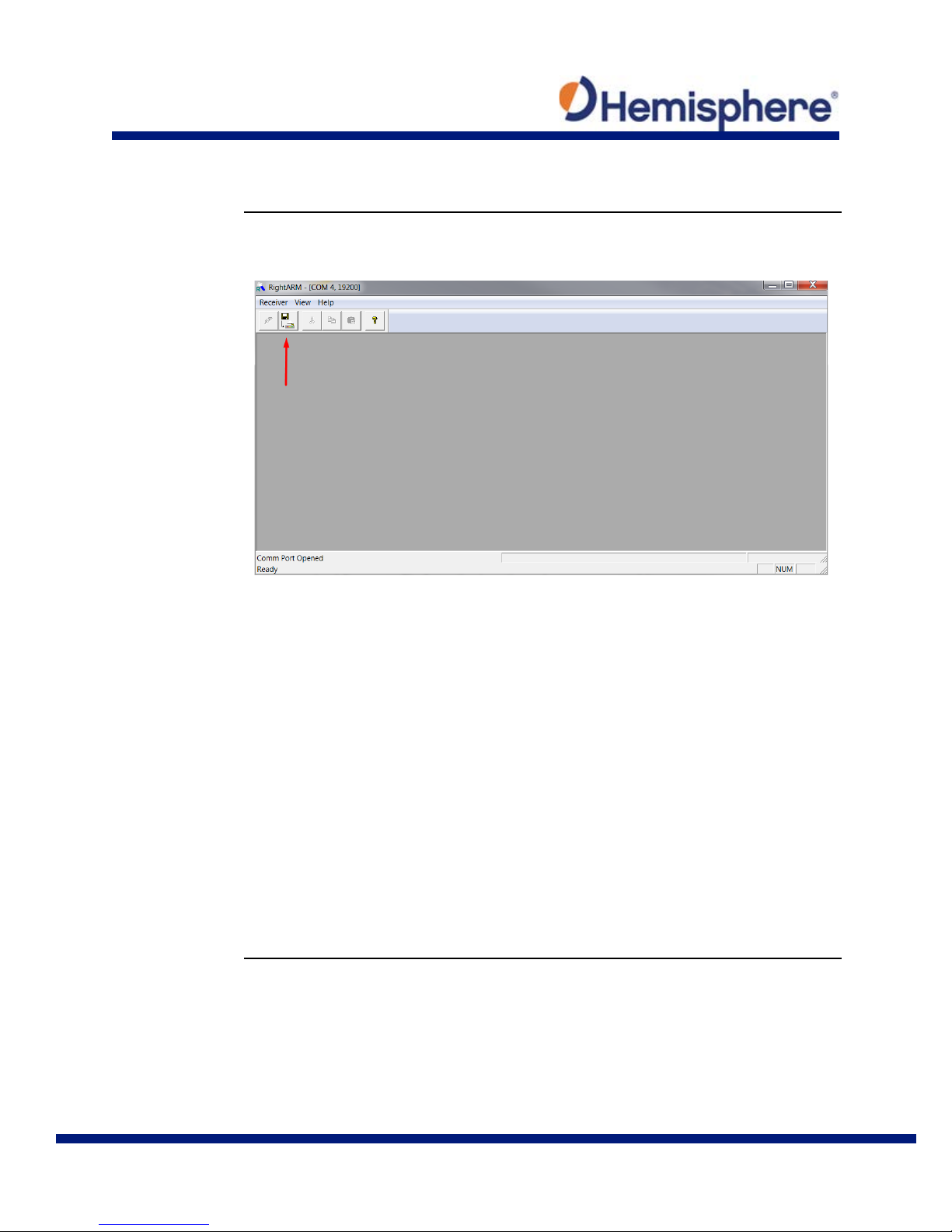

Click the Connect button or navigate to Receiver -> Connect.
Continued on next page
14 of 88
Page 15
875-0375-0 VR500 User Guide Rev A3
Page
Firmware Upgrades, Continued
RightArm

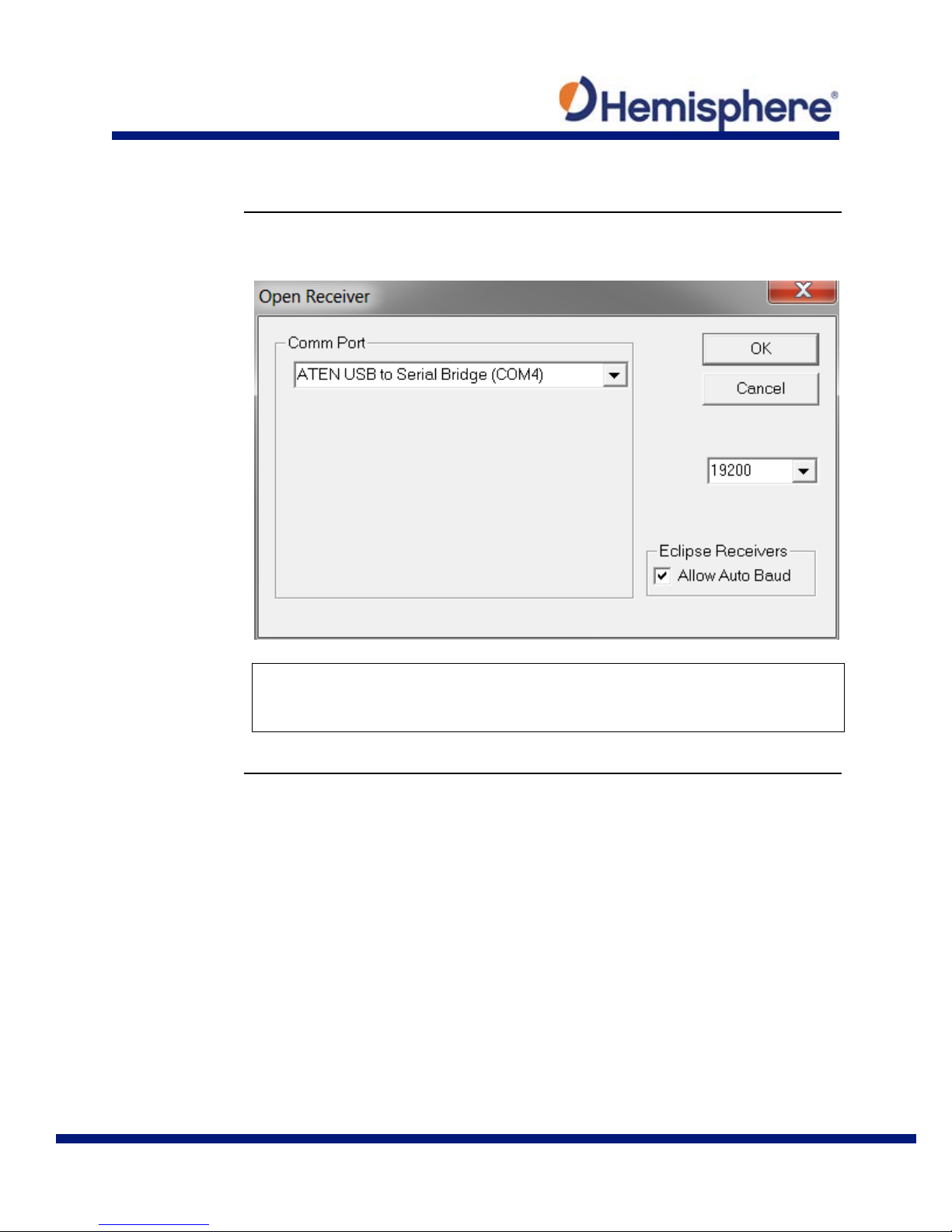

Choose the COM port connected to the VR500 and click OK.
Updates,
continued
Note: The baud rate of the serial port should be set to 19200 bps. Select
Allow Auto Baud to change the baud rate during the firmware upgrade for a
faster update.
Continued on next page
15 of 88
Page 16
875-0375-0 VR500 User Guide Rev A3
Page
Firmware Upgrades, Continued
RightArm
Click the Programming button.
Choose the Application, and press Select File to select the firmware file.
Updates,
continued
Select a Program Type.
The VR500 has two firmware applications, allowing two different versions of
GNSS firmware. Hemisphere GNSS suggests loading the new firmware onto
both applications.
After the firmware update is completed, check the current GNSS firmware.
If the current firmware is not the same as the newly loaded firmware, the
VR500 could be using the other application. You can switch applications by
sending the following command:
$JAPP,OTHER.
Continued on next page
16 of 88
Page 17
875-0375-0 VR500 User Guide Rev A3
Page
RightArm
Firmware Upgrades, Continued
Updates,
continued

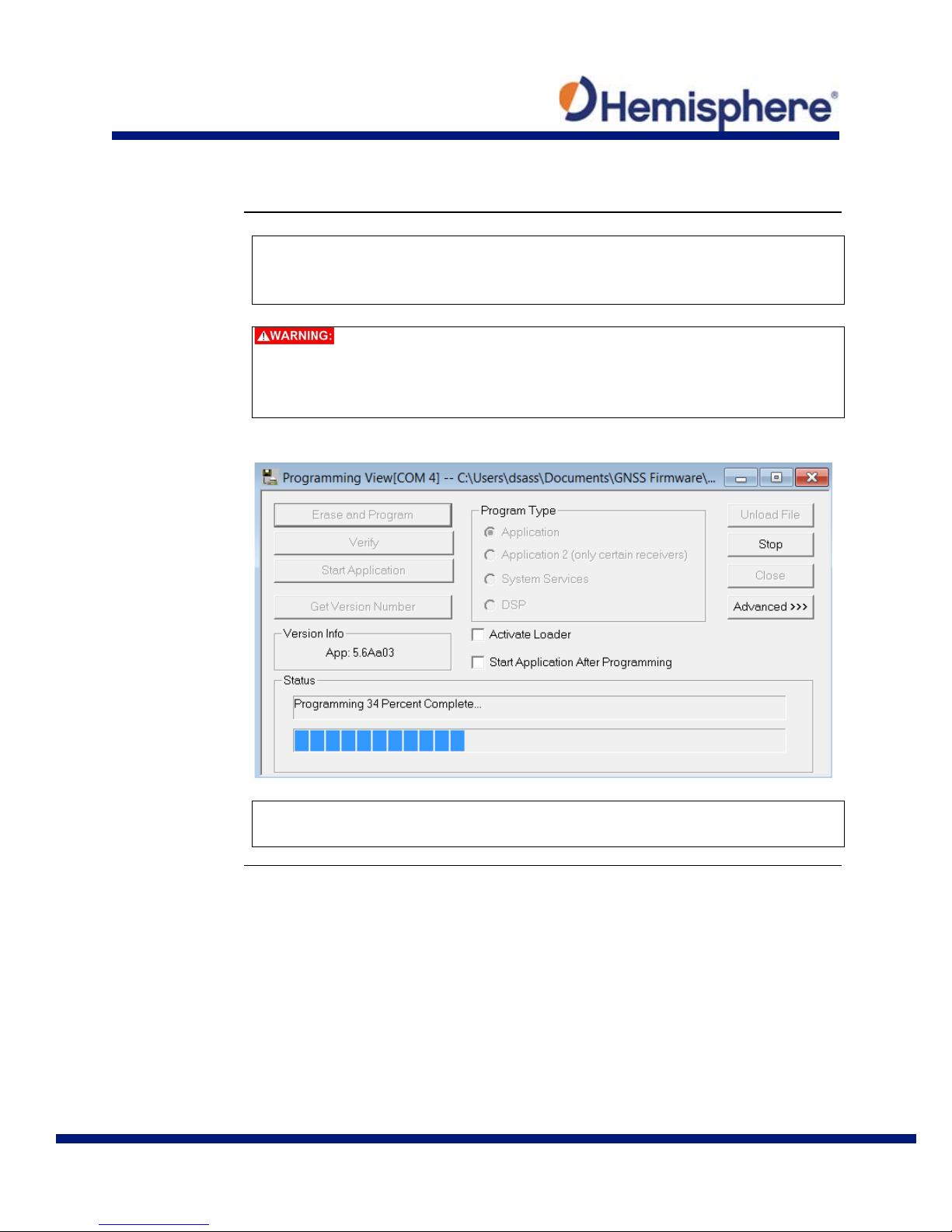

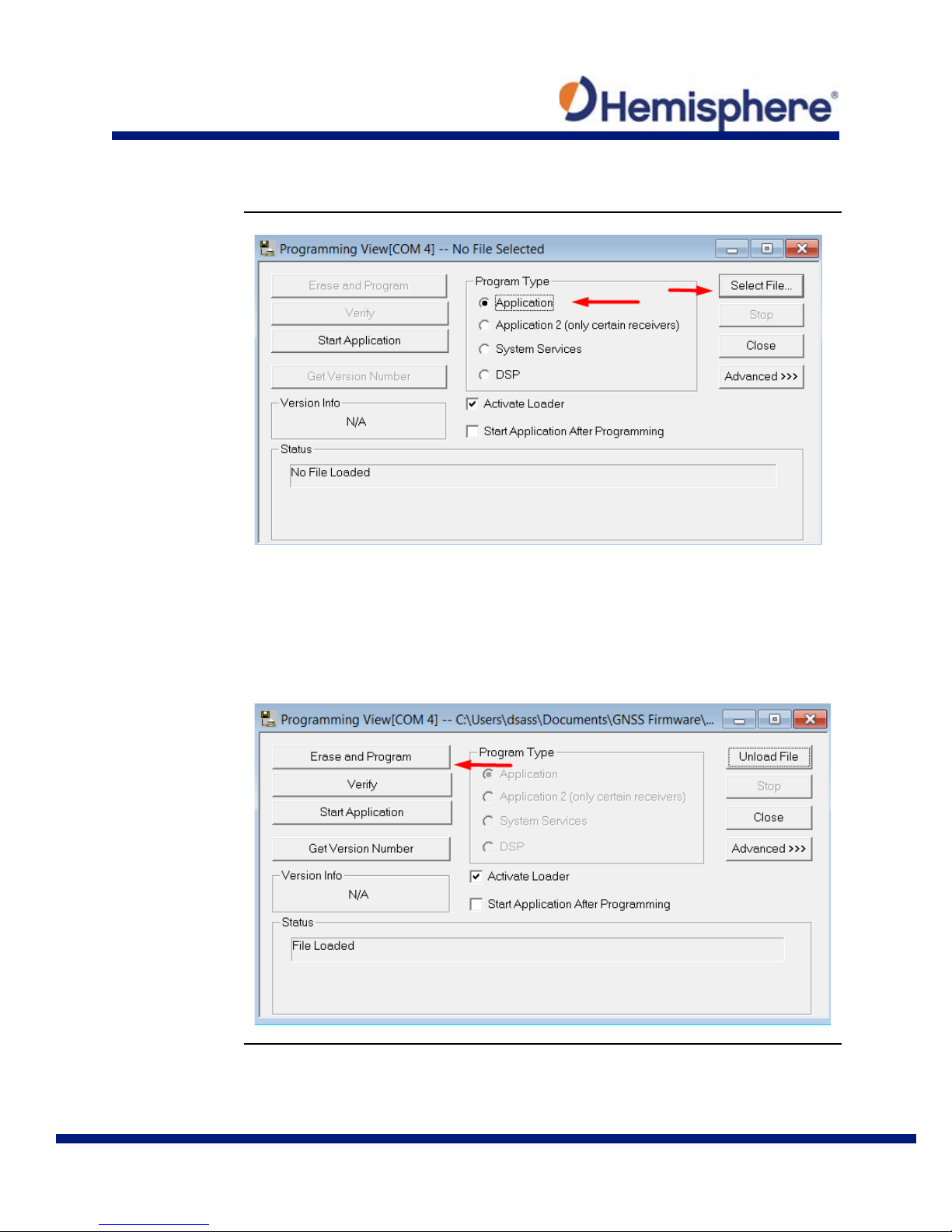

Choose the firmware, and click Erase and Program.
The Activate Loader checkbox in the Programming View window is selected.
After pressing the Erase and Program button, this checkbox will de-select,
and the Status field indicates the receiver is in loader mode (ready to receive
the new firmware file).
Continued on next page
17 of 88
Page 18
875-0375-0 VR500 User Guide Rev A3
Page
Firmware Upgrades, Continued
RightArm
Note: If the Activate Loader check box remains selected, power the receiver
repeating this process for the other application.
Updates,
continued
off and on. When the receiver powers back on, the Activate Loader box
should be de-selected.
Do not to interrupt the power supply to the receiver, and do not
interrupt the communication link between the PC and the receiver until
programming is complete. Failure to do so may cause the receiver to
become inoperable and will require factory repair.
Note: After completing the firmware update, Hemisphere GNSS suggests
18 of 88
Page 19
875-0375-0 VR500 User Guide Rev A3
Page
Overview
Introduction
This chapter provides instructions on how to mount and install your VR500
receiver.
Contents
Topic
See Page
Mounting the VR500
20
UHF Radio Antenna
33
Ports
34
Selecting Baud Rates and Message Types
35
Connecting the VR500 to External Devices
36
Chapter 2: Installing the VR500
19 of 88
Page 20
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500
Introduction
This section provides information on mounting the VR500 in the optimal
other mounting options.
GNSS satellite
When considering where to mount the VR500, consider the following

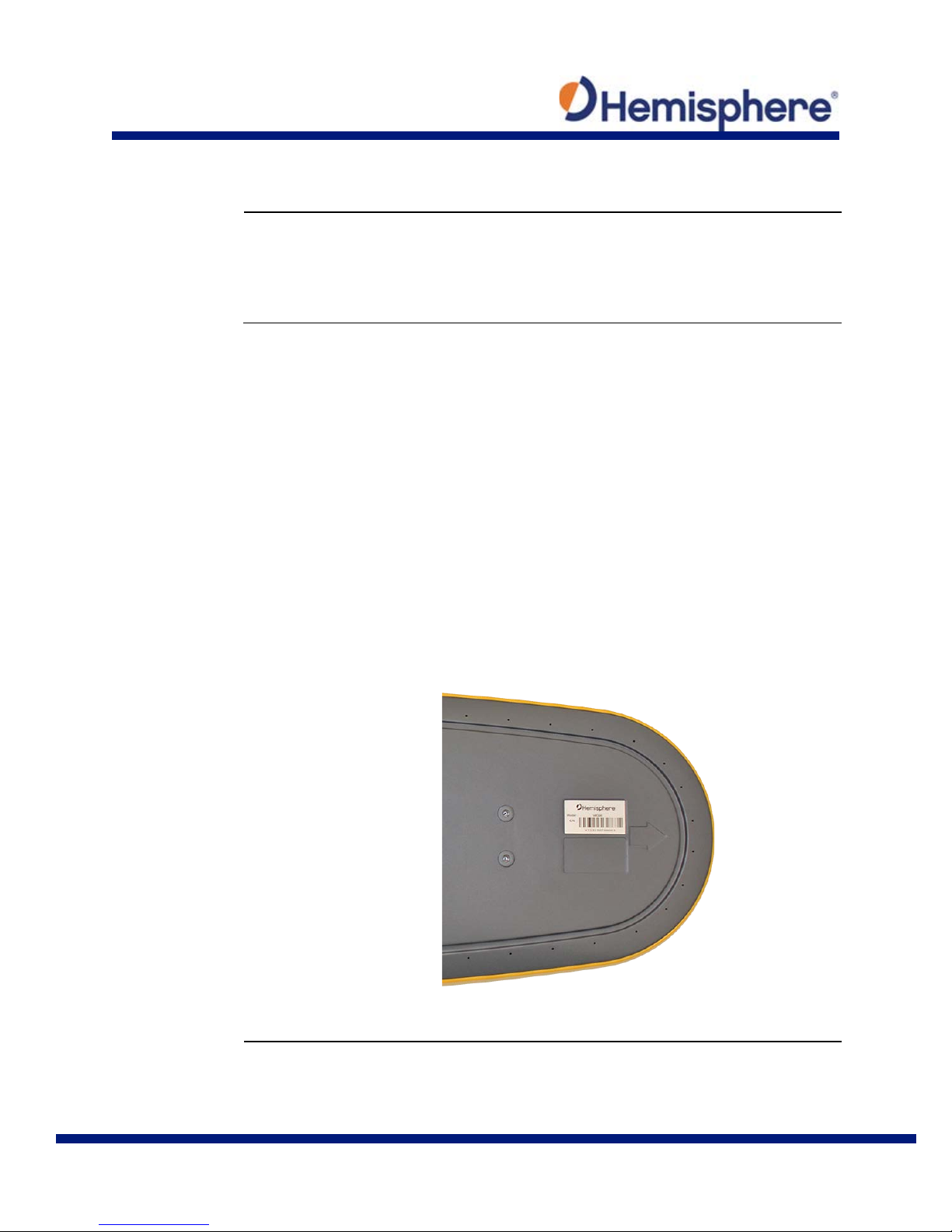

Figure 2-1: Recessed arro w
location, orientation considerations, environmental considerations, and
reception
satellite reception recommendations:
• Ensure there is a clear view of the sky available to the VR500 so the GNSS
and L-band satellites are not masked by obstructions that may reduce
system performance
• Mount the VR500 in a position in respect to the primary GNSS antenna
(located on the end opposite the recessed arrow on the underside of the
enclosure)
• Locate any transmitting antennas away from the VR500 by at least a few
meters to ensure tracking performance is not compromised
• Ensure cable length is adequate to route into the machine to reach a
breakout box or terminal strip
• Do not locate the antenna where environmental conditions exceed those
specified in Appendix B, Technical Specifications of this document.
Continued on next page
20 of 88
Page 21
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Environmental
Hemisphere Vector Smart Antennas are designed to withstand harsh
Humidity: IEC 16750-4:2010 Section 5.6 Humid heat, cyclic test
Mounting
The VR500 outputs heading, pitch, and roll readings regardless of the
antennas, working in conjunction, output heading, pitch, and roll values.
Parallel
Parallel installation orients the VR500 parallel to, and along the centerline of,
if the Vector is not installed in a horizontal plane.
Perpendicular
You can also install the antennae so they are oriented perpendicular to the
if the Vector is not installed in a horizontal plane.
considerations
orientation
orientation
environmental conditions; however, adhere to the following limits when
storing and using the VR500:
• Operating temperature: -40°C to +70°C (-40°F to +158°F)
• Storage temperature: -40°C to +85°C (-40°F to +185°F)
•
orientation of the antennas. The relation of the antennas to the machine’s
axis determines if you need to enter a heading, pitch, or roll bias.
The primary antenna is used for positioning and the primary and secondary
the axis of the machine. This provides a true heading. In this orientation:
• If you use a gyrocompass and there is a need to align the Vector smart
antenna, you can enter a heading bias in the VR500 to calibrate the
physical heading to the true heading of the machine.
• You may need to adjust the pitch/roll output to calibrate the measurement
orientation
centerline of the machine’s axis. In this orientation:
• Enter a heading bias of +90° if the primary antenna is on the right side of
the machine and -90° if the primary antenna is on the left side of the
machine.
• Configure the receiver to specify the GNSS smart antenna is measuring the
roll axis using the VR500 WebUI.
• Enter a roll bias to properly output the pitch and roll values.
• You may need to adjust the pitch/roll output to calibrate the measurement
Continued on next page
21 of 88
Page 22
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Mounting

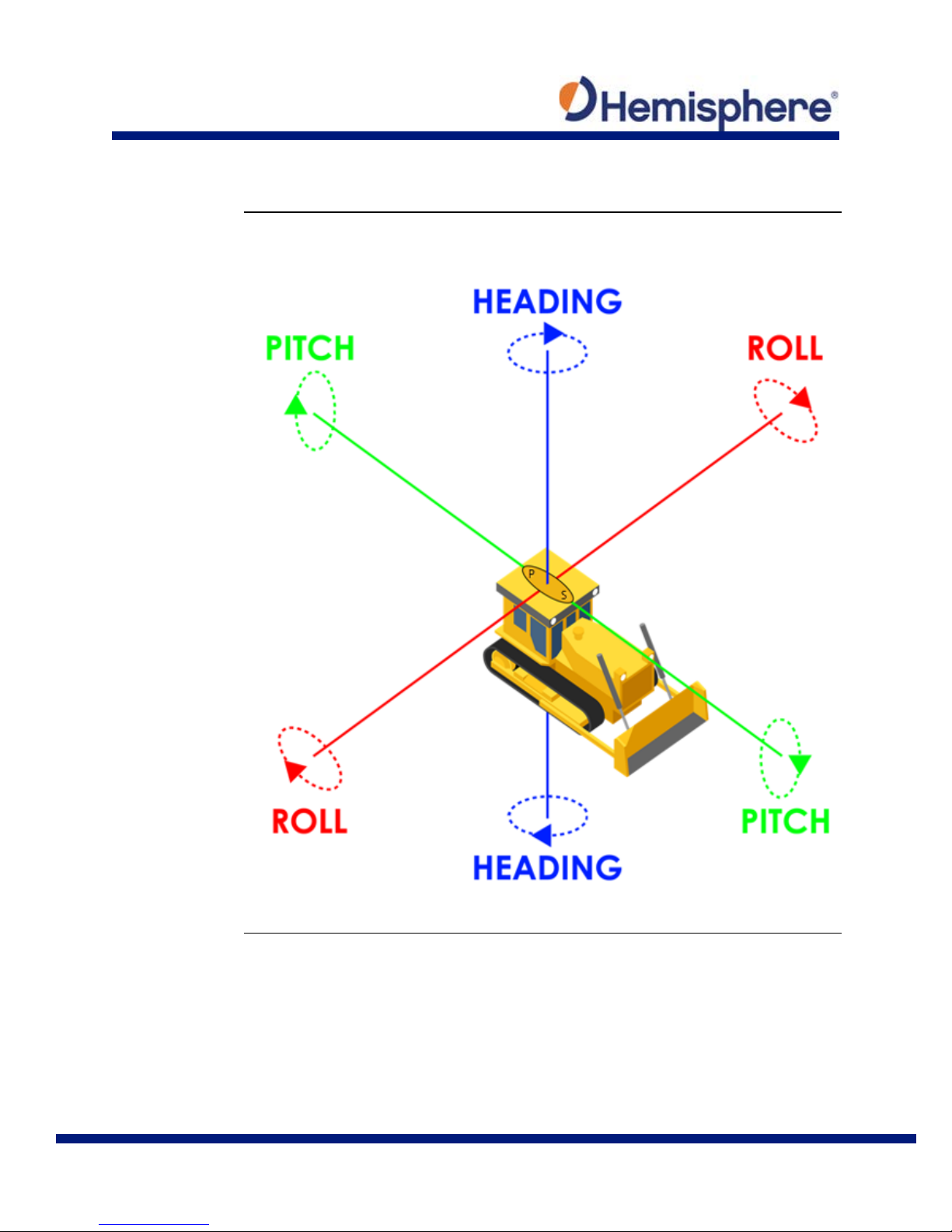

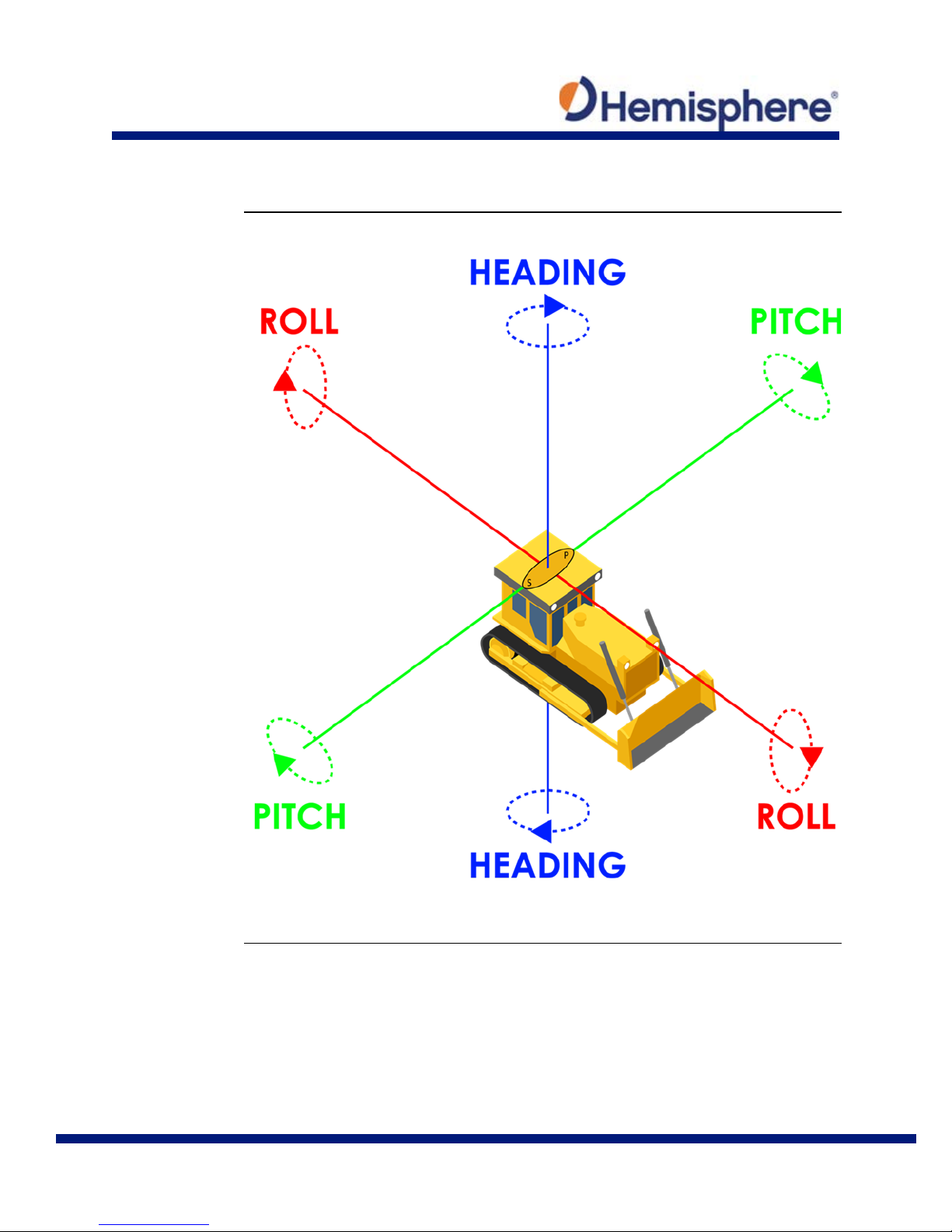

Figure 2-2: Recommended orientation and resulting signs of HPR values
orientation
example
Continued on next page
22 of 88
Page 23
875-0375-0 VR500 User Guide Rev A3
Page
Mounting
Figure 2-3: Alternate orientation and resulting signs of HPR values
Mounting the VR500, Continued
orientation
example,
continued
Continued on next page
23 of 88
Page 24
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Mounting

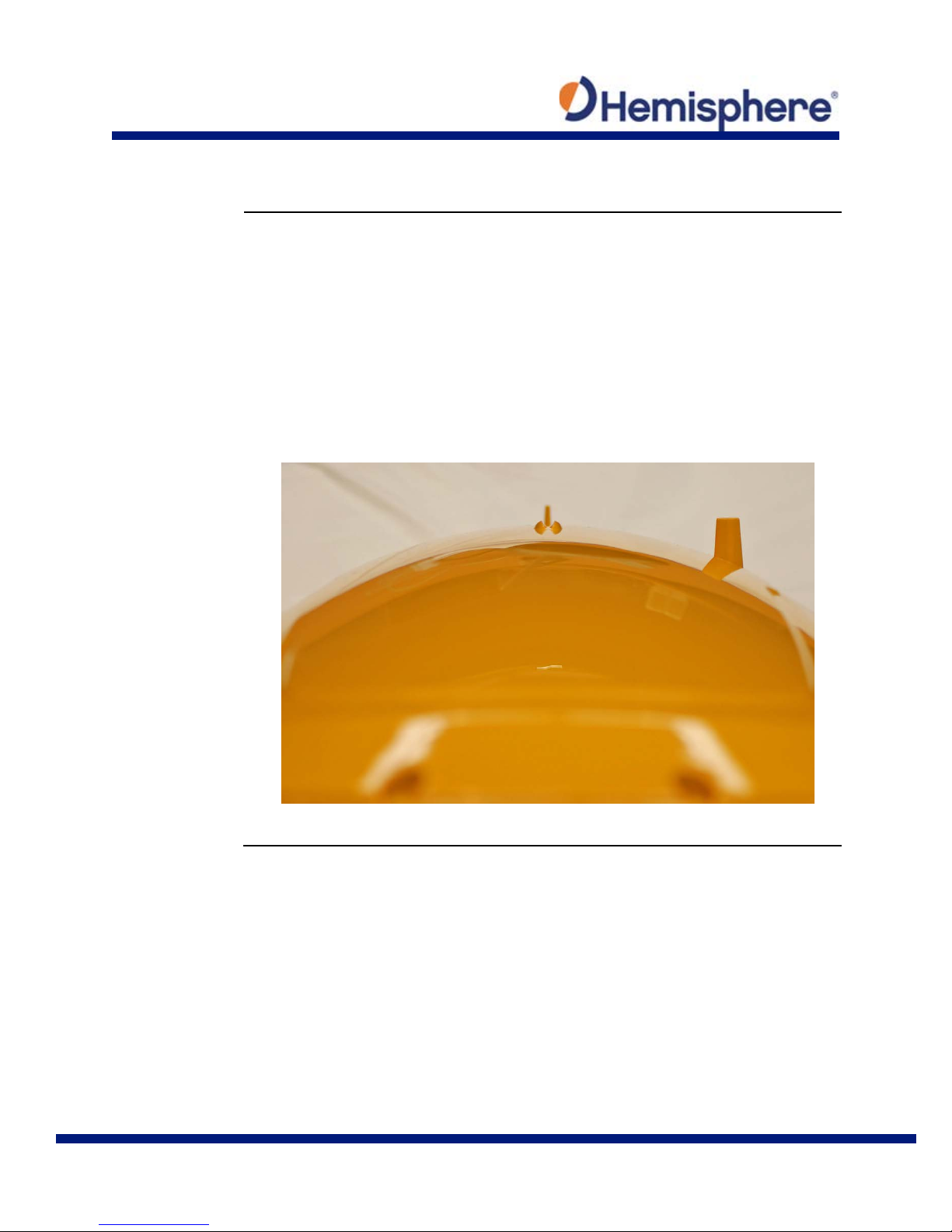

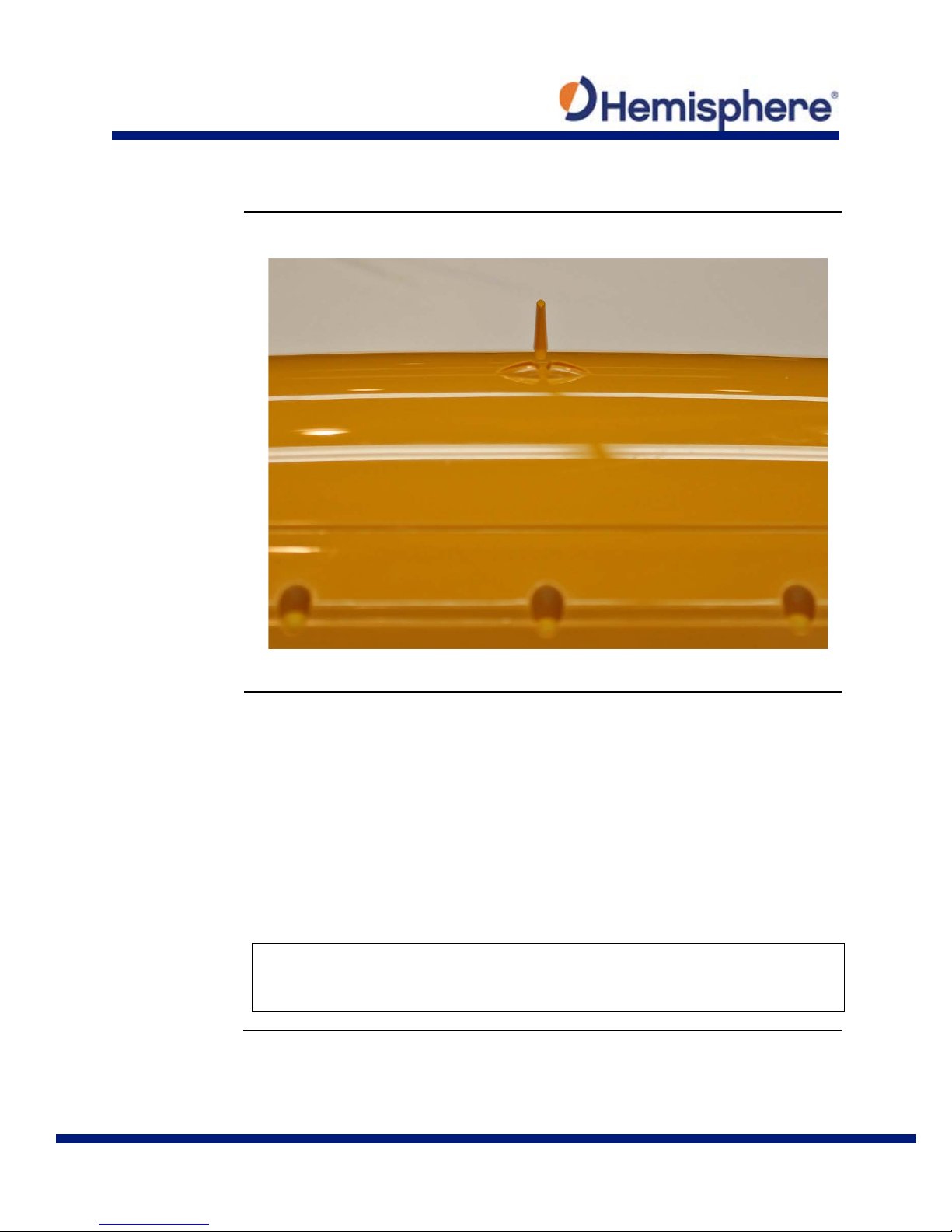

The top of the VR500 enclosure incorporates sight design features to help
Figure 2-4: Long site alignment
alignment
you align the enclosure on your machine.
To use the sights, center the small post on the opposite side of the enclosure
from you, within the channel made in the medallion located in the center of
the enclosure top as shown in Figure 2-4 and Figure 2-5.
The long site alignment accuracy (Figure 2-4) is approximately +/- 1°. Short
site alignment accuracy (Figure 2-5) is approximately +/- 2.5°.
Continued on next page
24 of 88
Page 25
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Mounting
Figure 2-5: Short sight alignment
Mounting
The VR500 allows for two different mounting options: flush-mount and pole-
required to complete VR500 installation.
alignment,
continued
options
mount.

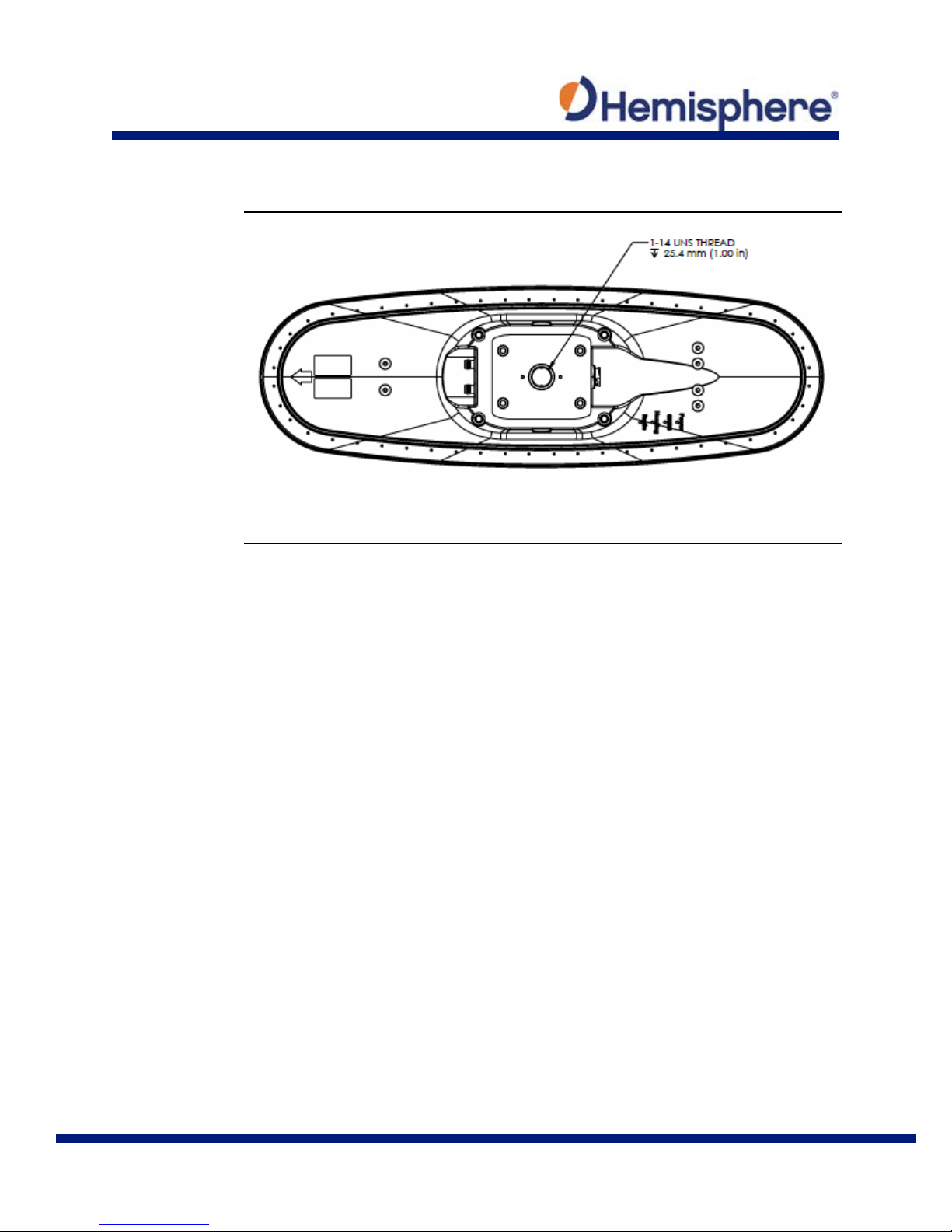

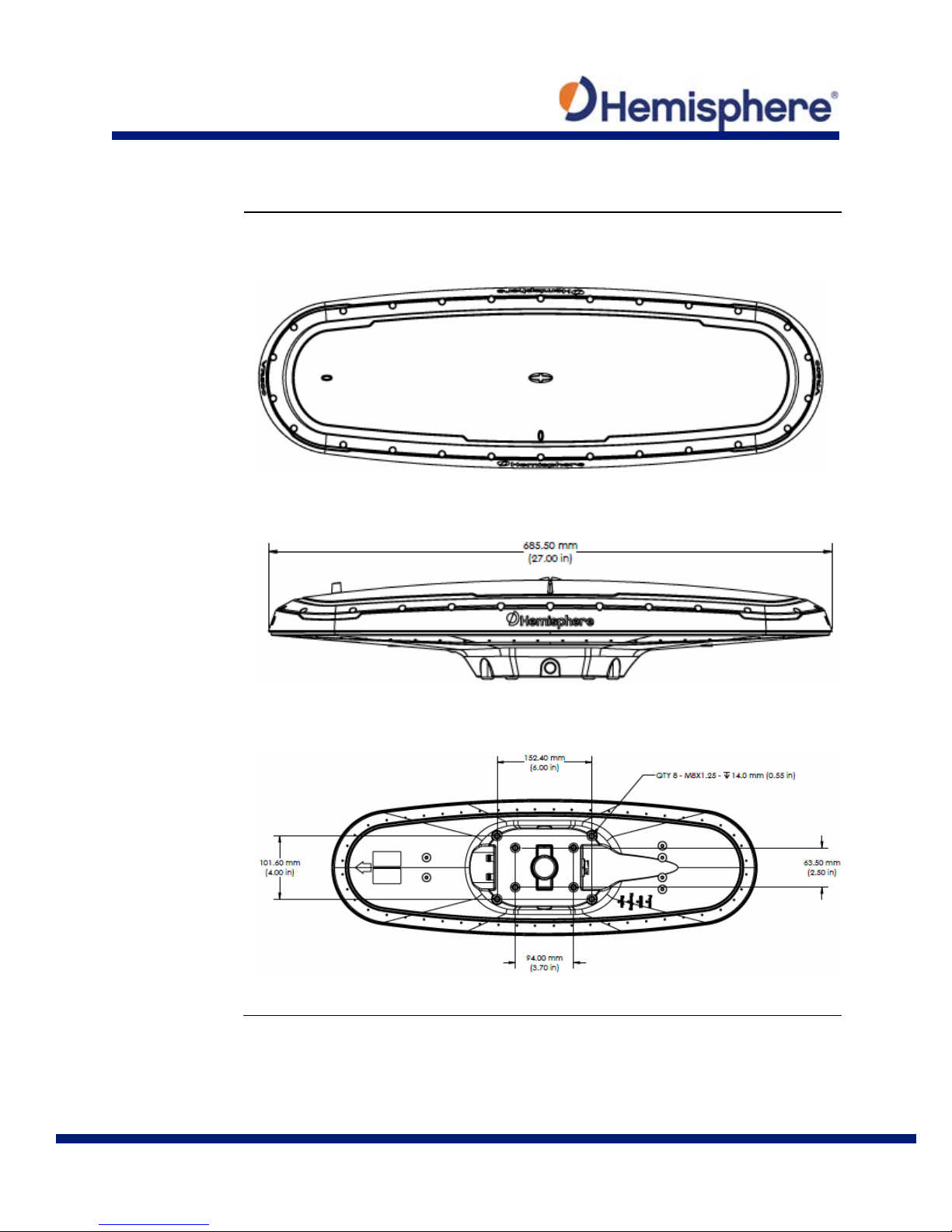

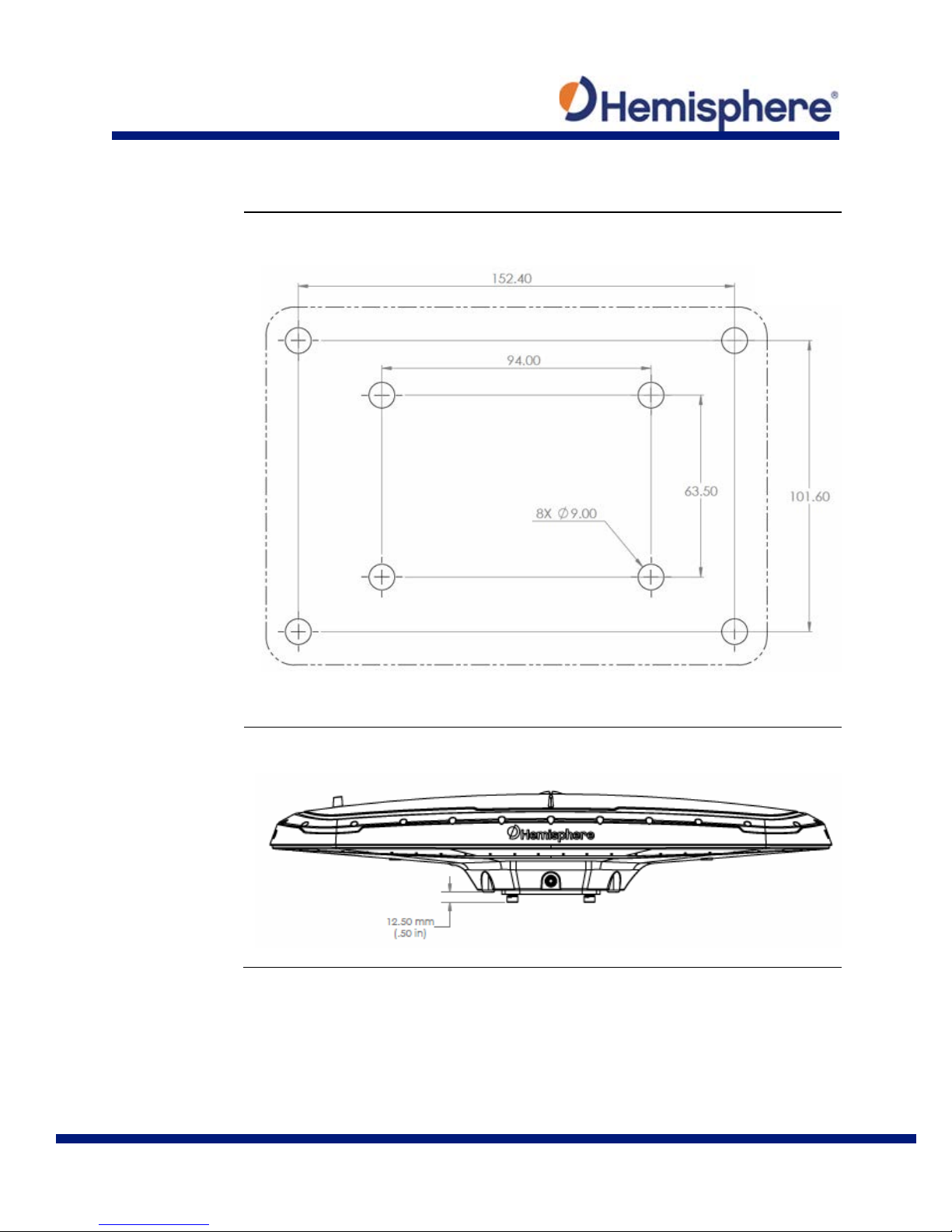

1. Flush-mount-The bottom of the VR500 contains eight M8-1.25 holes for
flush mounting the unit to a flat surface (see Figure 2-7). The eight holes
comprise two sets of four holes. Flush mounting does not provide any
additional dampening to the receiver. The VR500 can be mounted using
an optional mounting bracket. See Table 1-1 for bracket part
information.
2. Pole-mount-The VR500 can be mounted using a mounting pole.
Note: Hemisphere GNSS does not supply mounting surface hardware or a
mounting pole. You must supply the appropriate mounting hardware
Continued on next page
25 of 88
Page 26
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
VR500
Figure 2-6 illustrates the physical dimensions of the VR500.
dimensions
Continued on next page
26 of 88
Page 27
875-0375-0 VR500 User Guide Rev A3
Page
VR500
Mounting the VR500, Continued
dimensions,
continued
Figure 2-6: VR500 dimensions

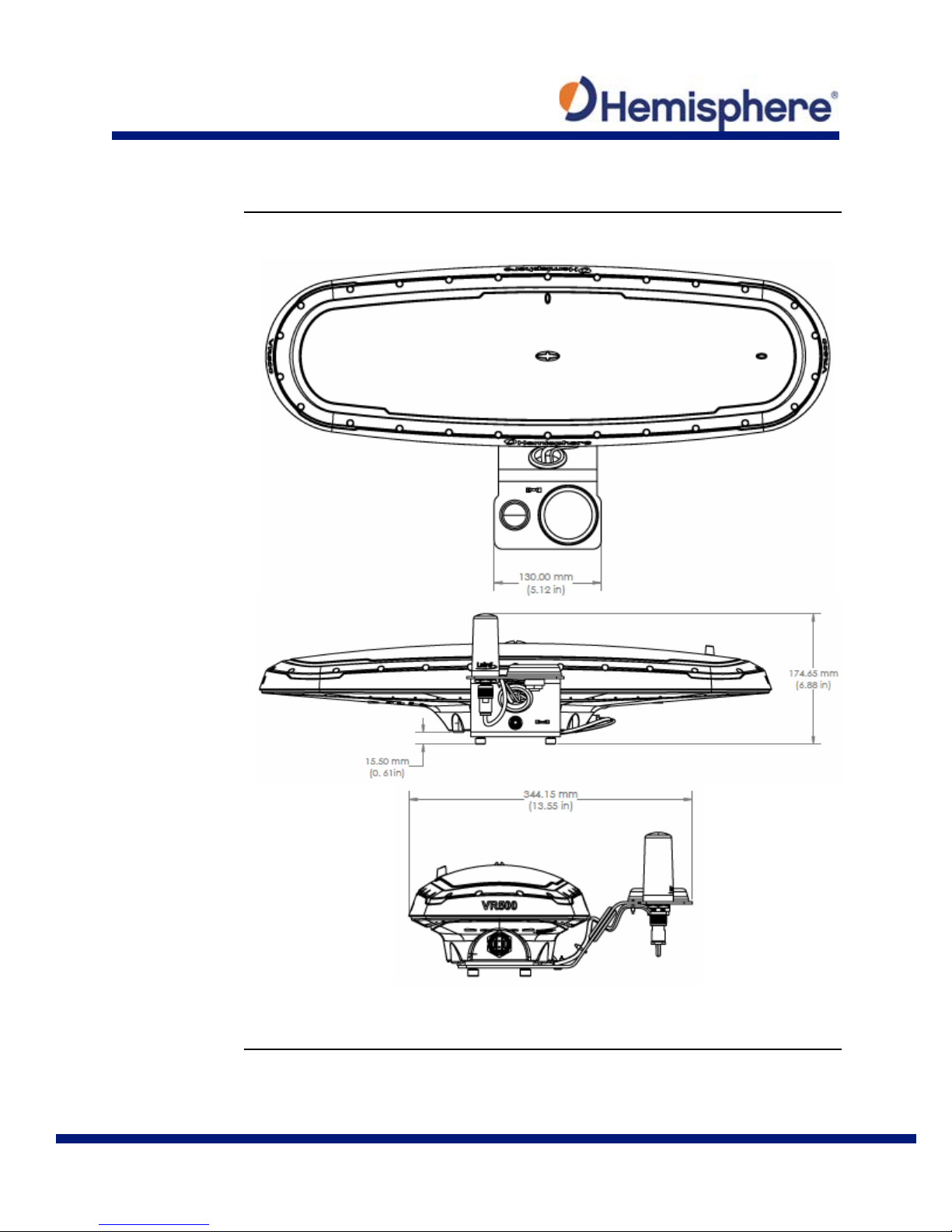

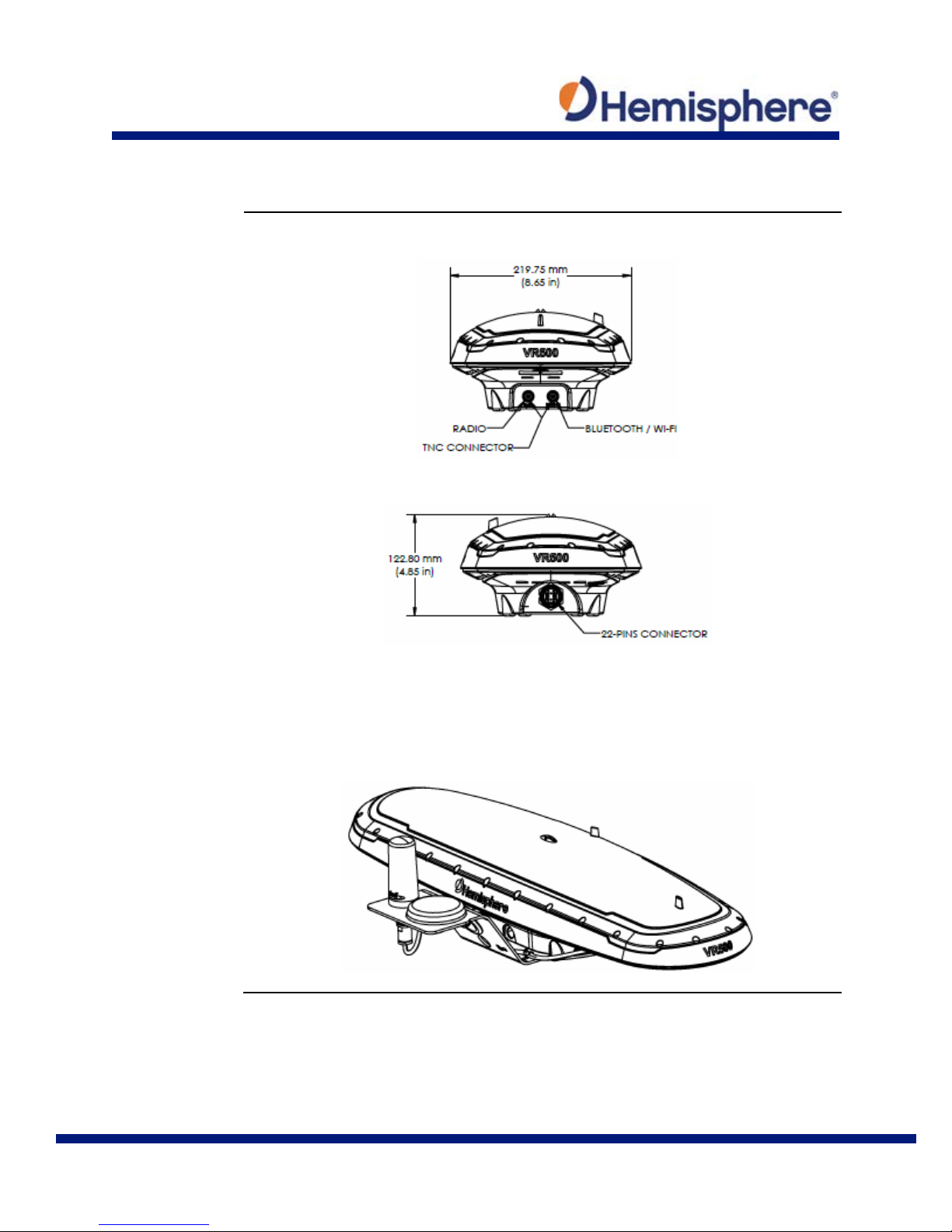

Figure 2-7 shows the VR500 with remote antennas dimensions.
Continued on next page
27 of 88
Page 28
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
VR500
Figure 2-7 VR500 with remote antennas dimensions
dimensions,
continued
Continued on next page
28 of 88
Page 29
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Power/Data
Before mounting the VR500, consider the following regarding power/data
Do
Do not
Ensure cable reaches appropriate
power source
Run cables in areas of excessive
heat
Keep cable away from corrosive
chemicals
Run cables through a door or
window jams
Connect to a data storage device,
accepts GNSS data
Crimp or excessively bend the cable
Keep cable away from rotating
machinery
Place tension on the cable
Remove unwanted slack from the
cable at the VR500 end
Secure along the cable route using
plastic wrapping
Improperly installed cable near machinery can be dangerous.
Connecting the
1. Align the cable connector key-way with the VR500 connector key.
washer.
cable
considerations
cable routing:
computer, or other device that
Serial
Power/Data
cable
2. Rotate the cable ring clockwise until it locks. The locking action is firm;
you will feel a positive “click” when it has locked.
3. Attach the power/data cable to the cable clamp.
4. Fasten the clamp to the bottom of the VR500 using the screw and
Continued on next page
29 of 88
Page 30
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Flush-mounting
The bottom of the VR500 contains eight holes (two sets of four holes) for

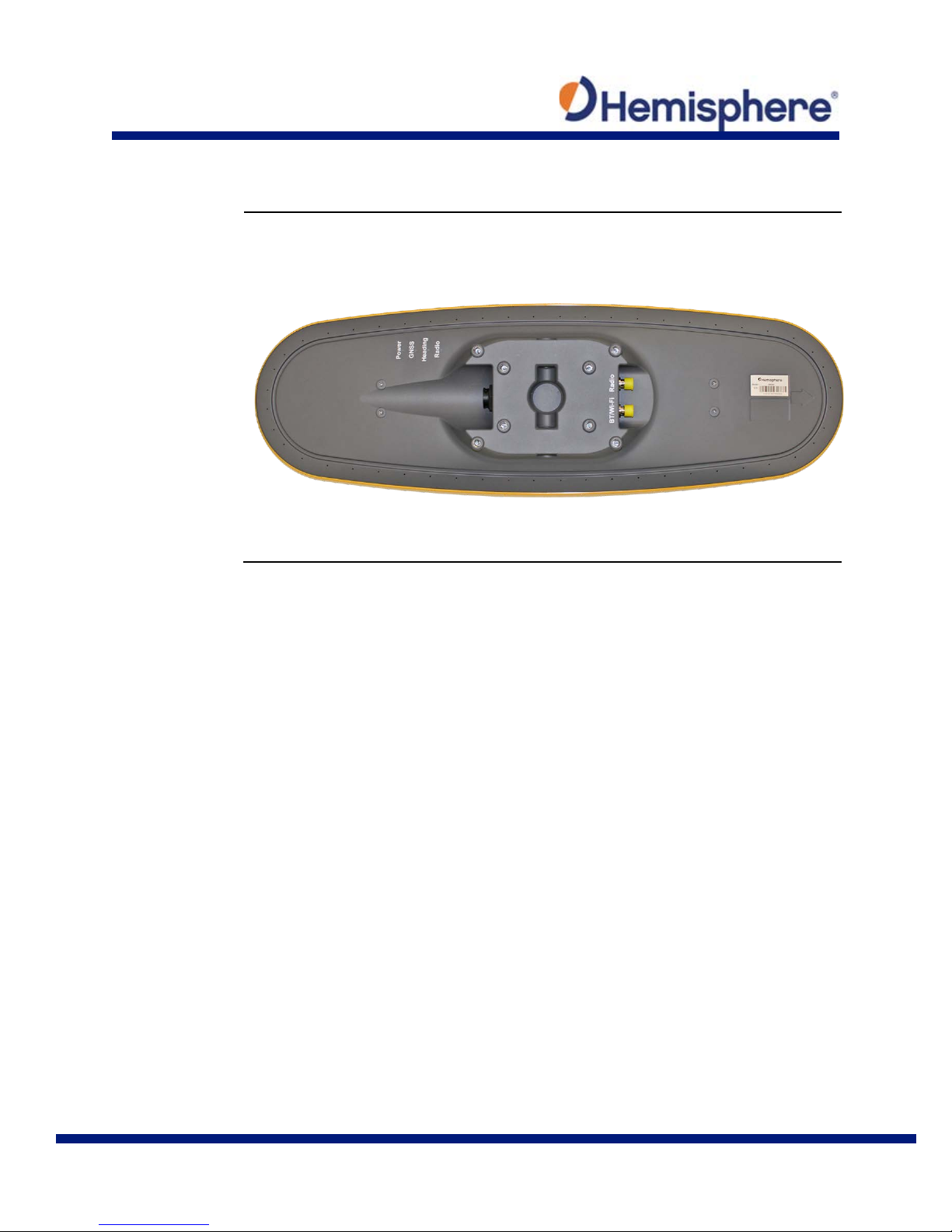

Figure 2-8: Flush-mounting holes on bottom of VR500
the VR500
flush-mounting the unit to a flat surface (Figure 2-8).
Continued on next page
30 of 88
Page 31
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Assembly
Figure 2-9: Assembly drawing
Pole-mounting
drawing
the VR500
Continued on next page
31 of 88
Page 32
875-0375-0 VR500 User Guide Rev A3
Page
Mounting the VR500, Continued
Pole-mounting
Figure 2-10: Pole-mounting specifications
the VR500,
continued
32 of 88
Page 33
875-0375-0 VR500 User Guide Rev A3
Page
UHF Radio Antenna
VR500 UHF
The VR500 has an internal UHF radio for receiving RTK corrections.
If ...
Then ...
RTK corrections are to
an external UHF radio antenna may be installed
(opposite side as the power/data cable).
an external antenna is
the UHF antenna should be mounted to the top
run safely and securely to the VR500.

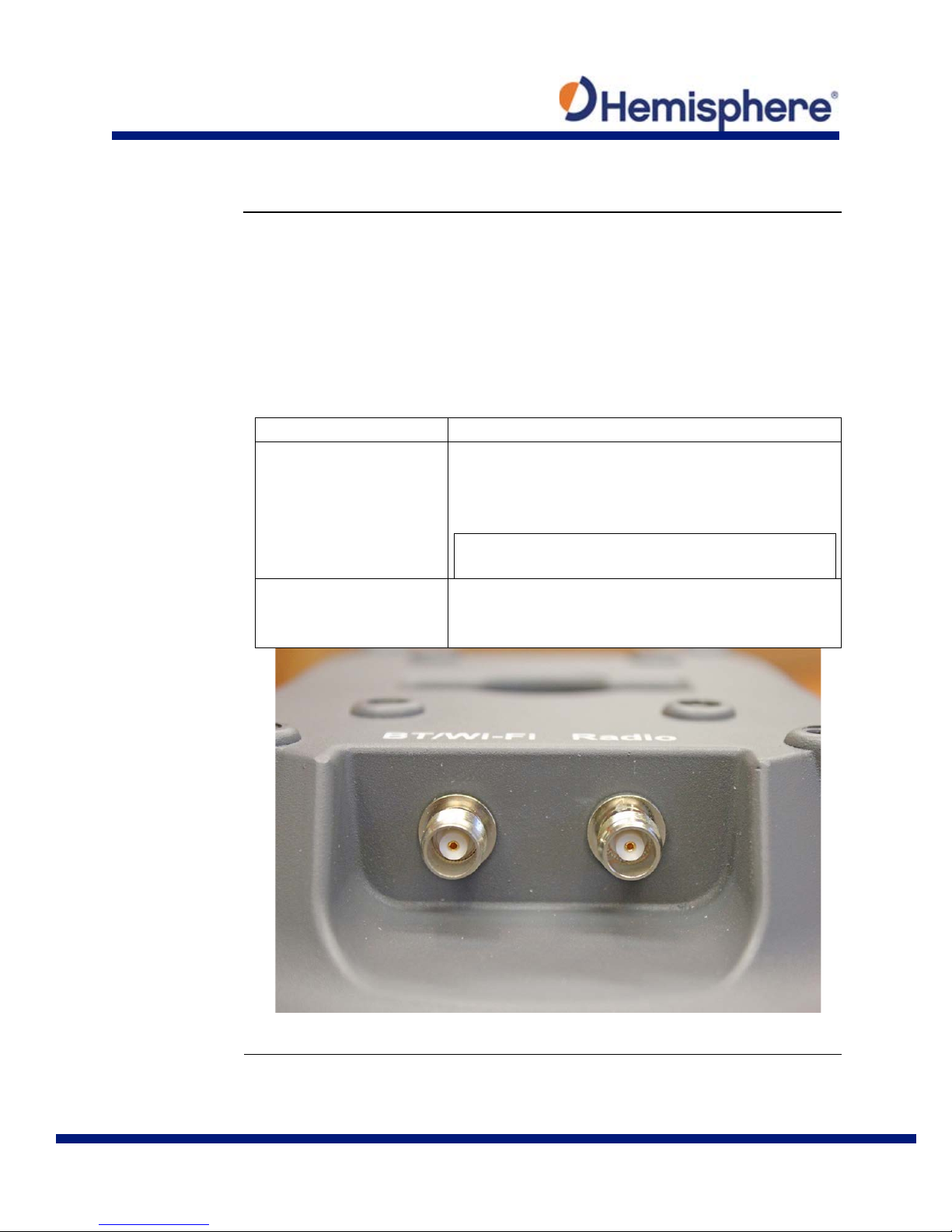

Figure 2-11: UHF antenna connections
Radio Antenna
The VR500 also has an internal UHF radio antenna to receive RTK with no
need for an external radio or antenna.
If the UHF range needs to be increased, an external antenna can be installed
using a TNC connector.
be sent to the internal
UHF radio
for increased range, or the internal radio antenna
can be used.
Note: The VR500 has an external TNC connector
to be used
of the machine and the coaxial cable should be
33 of 88
Page 34
875-0375-0 VR500 User Guide Rev A3
Page
Ports
Overview
The VR500 offers serial port, CAN, and Ethernet port functionality.
Serial ports
The VR500 has two serial ports:
Note: The VR500 has maximum baud rate of 115200.
Serial port
You may configure Port A or Port B of the GNSS receiver to output any
they are connected. Flow control is not supported.
• Port A can be both full-duplex RS-232 and half-duplex RS-422 (transmit
only)
• Port B is full-duplex RS-232 or RS-422
You can receive external differential corrections via either Port A (full-duplex
RS-232) or Port B (full-duplex RS-232 or full-duplex RS-422). You can connect
up to three devices at one time using two ports.
One device can receive data via Port A (RS-422 transmit only) while two
devices can transmit and receive data via Ports A and B (one connected to
Port A RS- 232 and one connected to Port B).
You can update firmware via Port A (RS-232) or Port B.
configuration
combination of data.
Port A can have a different configuration from Port B in data message
output, data rates, and the baud rate of the port, and configure the ports
independently based upon your needs. Both RS-232 and RS-422 output
signals may be used simultaneously.
The RS-232 Port A and RS-422 Port A output the same data messages at the
same baud rate. If the baud rate or messages for the RS-422 port need to be
changed, this needs to be commanded through the RS-232 port.
Note: For successful communications, use the 8-N-1 protocol and set the
baud rate of the VR500’s serial ports to match that of the devices to which
34 of 88
Page 35
875-0375-0 VR500 User Guide Rev A3
Page
Selecting Baud Rates and Message Types
Baud Rates &
When selecting your baud rate and message types, use the following formula
Technical Reference Manual.
Message Types
to calculate the bits/sec for each message and sum the results to determine
the baud rate for your required data throughput.
Message output rate * Message length (bytes) * bits in byte = Bits/second
(1 character = 1 byte, 8 bits = 1 byte, use 10 bits/byte to account for
overhead).
For information on message output rates refer to the Hemisphere GNSS
35 of 88
Page 36
875-0375-0 VR500 User Guide Rev A3
Page
Connecting the VR500 to External Devices
Recommend-
When interfacing to other devices, ensure the transmit data output and the
please refer to Configuring the VR500 using WebUI.
Power/Data
The VR500 uses a single 15m (49 ft) cable for power and data input/ output.
stripping and tinning.
ations for
connecting to
other devices
cable
considerations
signal grounds from the VR500 is connected to the data input of the other
device.
The RS-422 is a balanced signal with positive and negative signals referenced
to ground; ensure you maintain the correct polarity.
When connecting the transmit data output positive signal to the receive line
of the other device, it should be connected to the receive positive terminal.
The negative transmit data signal from the VR500 is then connected to the
receive data negative input of the other device.
For a list of Hemisphere GNSS commands, please refer to the Hemisphere
GNSS Technical Reference Manual. To configure the unit through the WebUI,

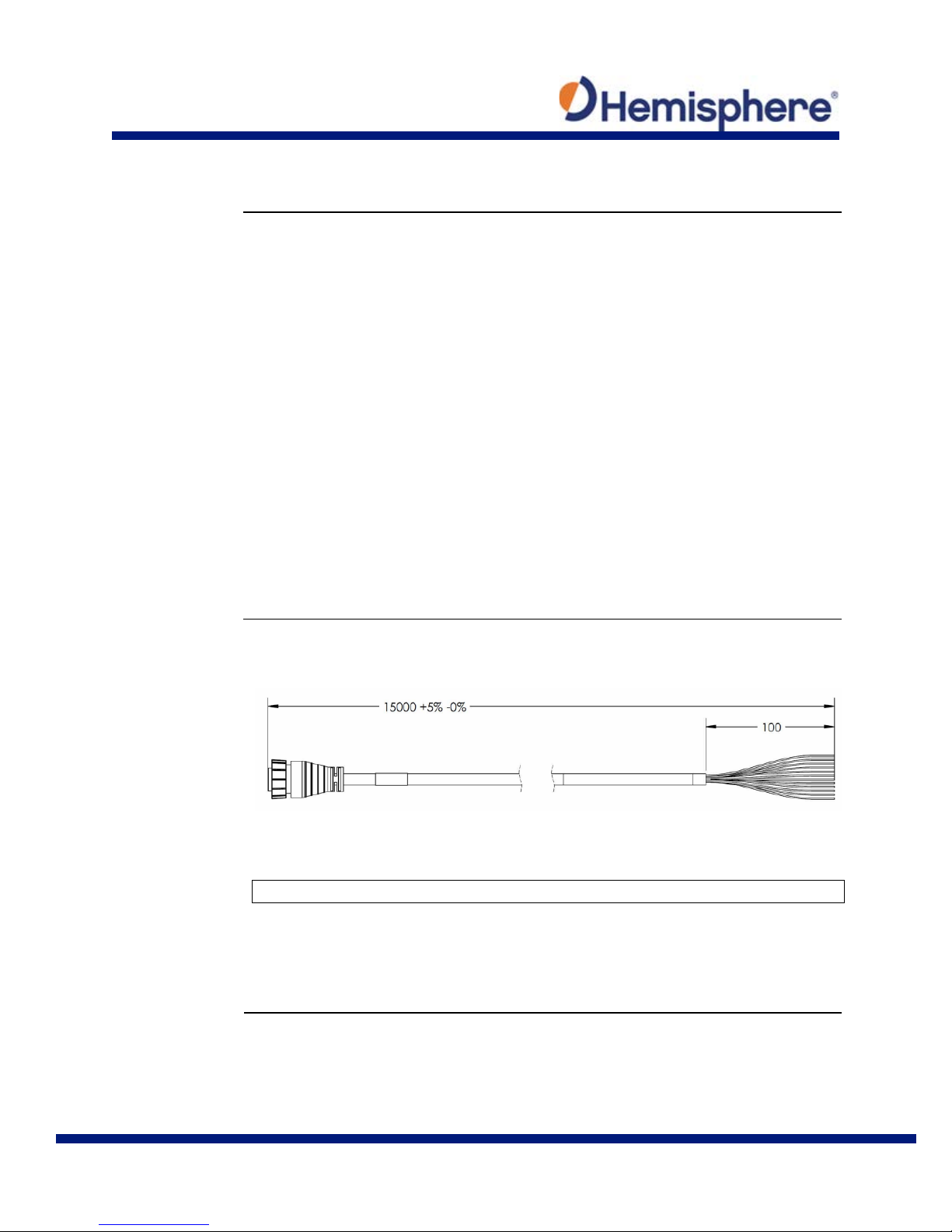

Figure 2-12: Power/Data cable, 15m
Note: Cover drain wire with black shrink tube.
The receiver end of the cable is terminated with an environmentally-sealed
22-pin connection while the opposite end is unterminated and requires field
Continued on next page
36 of 88
Page 37
875-0375-0 VR500 User Guide Rev A3
Page
Connecting the VR500 to External Devices, Continued
Power/Data
Depending on the application and installation needs, you may need to
• Minimize RS-232 cable length to ensure reliable communication.
VR500 with 22
Use the 22 to 18 pin adapter if you want to use a V320 cable.
cable
considerations,
continued
to 18 pins
adapter
shorten this cable. However, if you require a longer cable run than 15m, you
can bring the cable into a break-out box that incorporates terminal strips,
within the machine.
When lengthening the cable keep the following in mind:
• To lengthen the serial lines inside the machine, use 20-gauge twisted pairs
and minimize the additional wire length.
• When lengthening the power input leads to the VR500, ensure the
additional voltage drop is small enough that your power system can
continue to power the system above the minimum voltage of the system.
Wire of 18-gauge or larger should also be used.
Note: Using the adapter will cause you to lose ethernet capability.
Figure 2-11 shows the VR500 with 22 to 18 pins adapter.
Continued on next page
37 of 88
Page 38
875-0375-0 VR500 User Guide Rev A3
Page
Connecting the VR500 to External Devices, Continued
VR500 with 22
Figure 2-13: VR500 with 22 to 18 pins adapter
Power/data

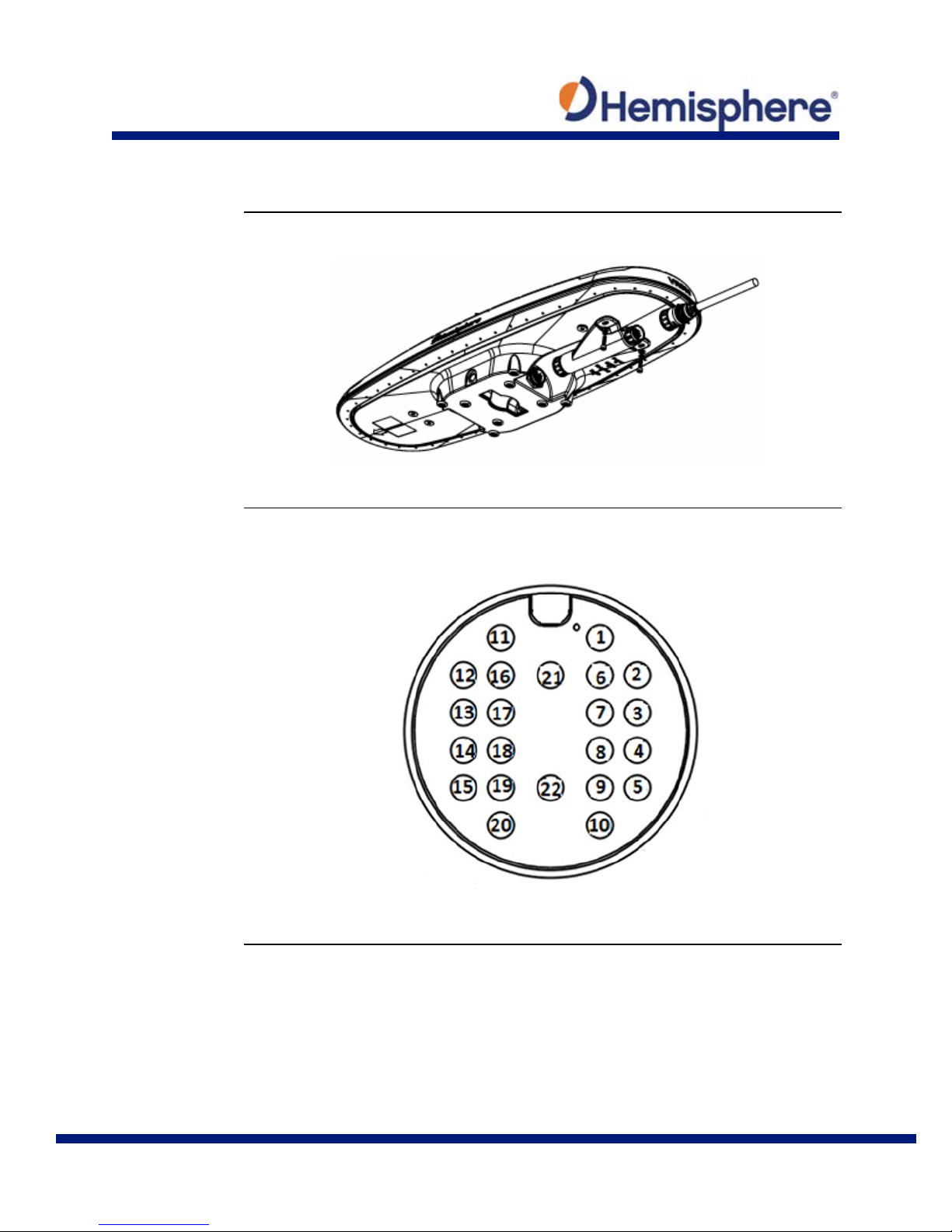

Figure 2-14 shows the power/data cable pin-out assignments.
Figure 2-14: VR500 pin-out assignments
to 18 pins
adapter,
continued
cable pin-out
assignments
Continued on next page
38 of 88
Page 39
875-0375-0 VR500 User Guide Rev A3
Page
Connecting the VR500 to External Devices, Continued
Power/data
Table 2-1 shows the cable pin-out specifications.
Pin
Signal
Color
1
Power+
Red
2
CAN1_H
Orange-Black stripe
3
CAN1_L
Yellow Black stripe
4
R232_IPT2/RS422_A
Orange
5
RS232_OPT1/RS422_Z
Yellow
6
CAN2_H
Green
7
CAN2_L
Blue
8
RS422_B
Purple
9
RS422_Y
Grey
10
1PPS_OUTPUT
White
11
ECLIPSE-PA-RXD_RS232
Pink
12
ECLIPSE-PA-TXD_RS232
Turquoise
13
GND
Black-White stripe
14
TD+
Brown-White stripe
15
TD-
Red-White stripe
16
HEADING WARNING
Orange-White stripe
17
SPEED_OUTPUT
Green-White stripe
18
RD+
Blue-White stripe
19
RD-
Purple-White stripe
20
MARK_INPUT
Red-Black stripe
21
POWER+
Brown
22
POWER-
Black
cable pin-out
specifications
Table 2-1: VR500 pin-out specifications
39 of 88
Page 40
875-0375-0 VR500 User Guide Rev A3
Page
Overview
Introduction
The GNSS receiver begins tracking satellites when it powers up and an
Contents
Topic
See Page
Differential and RTK Operation
41
SBAS Tracking
42
Athena RTK
43
Atlas L-band
44
Supported Constellations
45
Supplemental Sensors
46
Time Constants
49
Chapter 3: Understanding the VR500
antenna has connected to the antenna port on the receiver. Position and
heading accuracy vary depending upon location and environment. Position
performance can be improved with RTK or DGNSS.
The following sections provide the steps to configure your VR500 to use
Atlas, SBAS, or RTK.
Note: Differential source and RTK status impact only positioning and heave.
There is no impact to heading, pitch, or roll.
40 of 88
Page 41
875-0375-0 VR500 User Guide Rev A3
Page
Differential and RTK Operation
Differential
The purpose of differential GNSS (DGNSS) and RTK is to remove the effects of
commands refer to the Hemisphere GNSS Technical Reference Manual.
(DGNSS) and
RTK operation
atmospheric errors, timing errors and satellite orbit errors, while enhancing
system integrity.
Autonomous positioning capabilities of the VR500 will result in positioning
accuracies of 2.5m 95% of the time.
To improve positioning quality, the VR500 can receive DGNSS corrections
over SBAS, L-band corrections with Hemisphere GNSS’ Atlas L-band
technology, or RTK corrections over serial.
For more information on the differential services and the associated
41 of 88
Page 42
875-0375-0 VR500 User Guide Rev A3
Page
SBAS Tracking
SBAS tracking
SBAS is a standard feature on the VR500 and does not require an activation
will not affect heading accuracy.
or subscription code.
The VR500 automatically scans and tracks SBAS signals without the need to
tune the receiver.
The VR500 features two-channel tracking that provides an enhanced ability
to maintain a lock on an SBAS satellite when more than one satellite is in
view.
This redundant tracking approach results in more consistent tracking of an
SBAS signal in areas where signal blockage of a satellite is possible.
Note: The VR500 moving base station algorithm uses only GNSS to calculate
heading. Differential and RTK corrections are not used in this calculation and
42 of 88
Page 43
875-0375-0 VR500 User Guide Rev A3
Page
Athena RTK
Athena RTK
Athena RTK requires the use of two separate receivers: a stationary base
VR500 Using the WebUI.
station (primary receiver) that broadcasts corrections over a wireless link to
the rover (secondary receiver).
The VR500 can use RTK through either serial port or its internal UHF radio.
The receiver uses any RTK message coming in over a serial port if the RTK
message type is included in the list of available differential sources.
If you do not know which RTK message type is being sent by the base station,
you can include RTCM3, ROX, and CMR.
Including extra differential sources will not affect the receiver if those
differential sources are not being received.
After setting the differential source configure the baud rate of the serial port
receiving the RTK corrections. Ensure that the serial port configuration of the
external device (such as radio or modem) is 8 bits/byte, 1 stop bit, no parity
and no flow control.
Connect the external device to the serial port of the VR500. Some cables may
require the use of a gender changer and/or null modem adapter. For
instructions on configuring the internal UHF radio, please see Configuring the
43 of 88
Page 44
875-0375-0 VR500 User Guide Rev A3
Page
Atlas L-band
Atlas L-band
Atlas L-band corrections are available worldwide. With Atlas, the positioning
purchased.
accuracy does not degrade as a function of distance to a base station, as the
data content is not composed of a single base station’s information, but an
entire network’s information.
The VR500 can calculate a position with 4 cm RMS (horizontal) accuracy in an
industry-leading time of 20 minutes.
To configure the receiver to use Atlas L-band, a subscription must be
44 of 88
Page 45
875-0375-0 VR500 User Guide Rev A3
Page
Supported Constellations
GLONASS,
VR500 is available in its base form as L1 GPS, G1 GLONASS, E1 Galileo, and B1
GNSS heading solution.
Galileo &
BeiDou
BeiDou.
By adding multi-frequency GPS, GLONASS, Galileo, and BeiDou, the number
of available signals increases, improving the ability to obtain and maintain a
heading solution.
For a heading calculation, GPS, GLONASS, Galileo and BeiDou satellites are
used interchangeably, as intersystem biases cancel inside the VR500—this
translates into being able to work in more obstructed areas and maintain a
45 of 88
Page 46
875-0375-0 VR500 User Guide Rev A3
Page
Supplemental Sensors
Overview
The VR500 has an integrated gyro and two tilt sensors, which are enabled by
and methodology required to recalibrate, query, or change the sensor status.
Tilt Aiding
The VR500’s accelerometers (internal tilt sensors) are factory calibrated and
Figure 3-2: VR500 tilt aiding
default. Each supplemental sensor may be individually enabled or disabled.
Both supplemental sensors are mounted on the printed circuit board inside
the VR500.
The sensors act to reduce the RTK search volume, which improves heading
startup and reacquisition times. This improves the reliability and accuracy of
selecting the correct heading solution by eliminating other possible,
erroneous solutions.
The Hemisphere GNSS Technical Reference Manual describes the commands
enabled by default and constrains the RTK heading solution beyond the
volume associated with a fixed antenna separation.
The VR500 knows the approximate inclination of the secondary antenna with
respect to the primary antenna. The search space defined by the tilt sensor is
reduced to a horizontal ring on the sphere’s surface by reducing the search

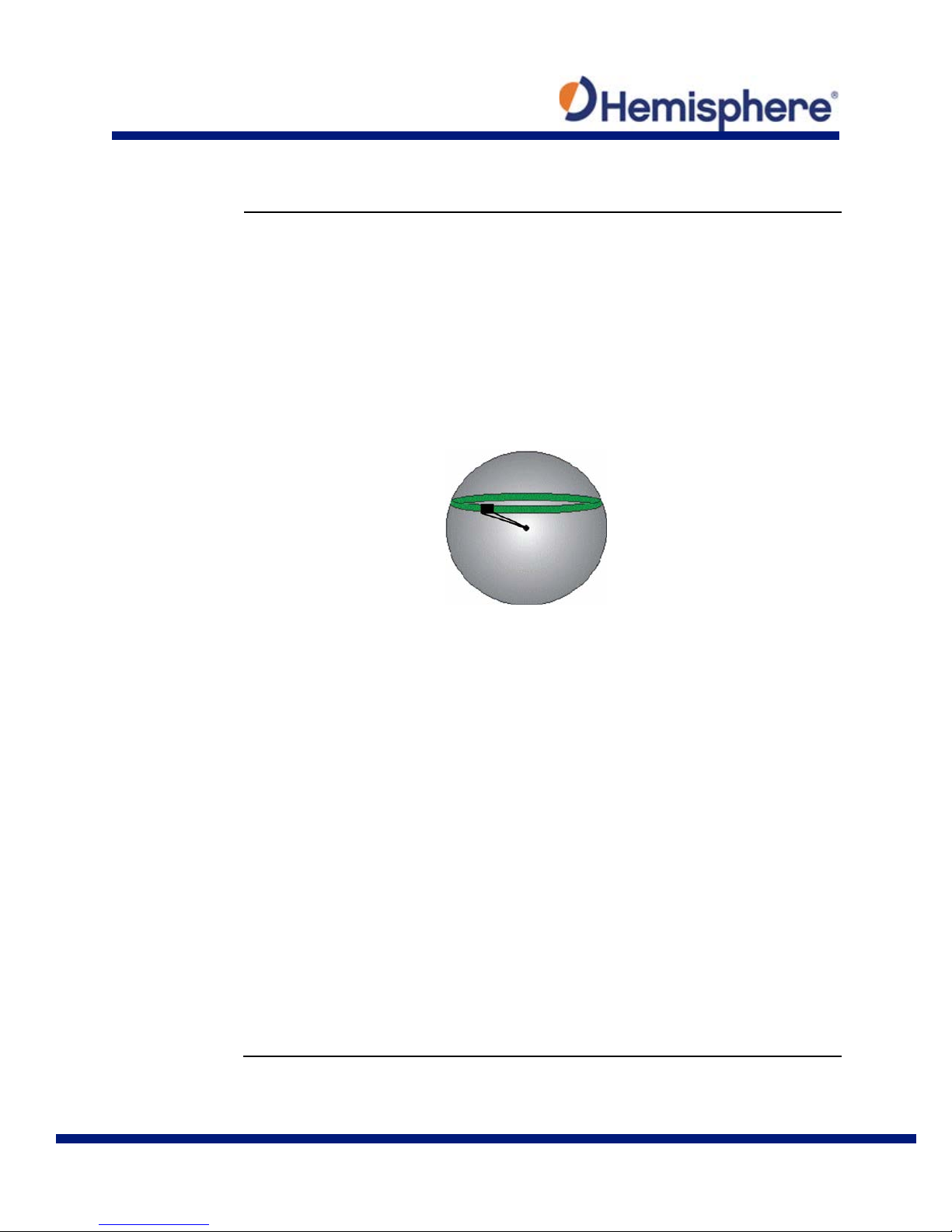

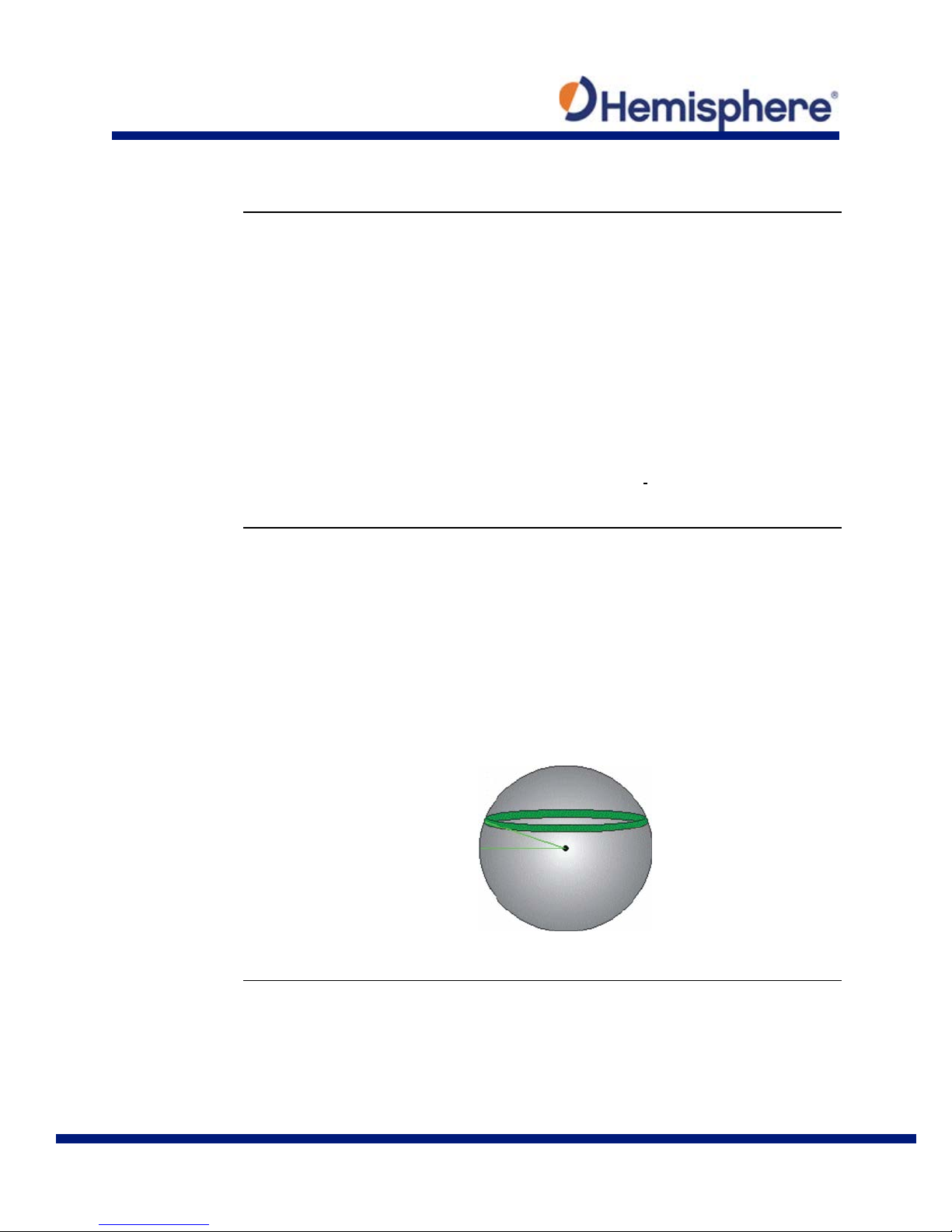

volume and decreases startup and reacquisition times (see Figure 3-2).
Tilt angle
Continued on next page
46 of 88
Page 47
875-0375-0 VR500 User Guide Rev A3
Page
Supplemental Sensors, Continued
Gyro aiding
The VR500’s internal gyro reduces the sensor volume for an RTK solution and
operating dynamics.
shortens reacquisition times when a GNSS heading is lost due to blocked
satellite signals.
The gyro provides a relative change in angle since the last computed heading,
and, when used in conjunction with the tilt sensor, defines the search space
as a wedge-shaped location (see Figure 3-3).
Figure 3-3: VR500 gyro aiding
The gyro aiding accurately smooths the heading output and the rate of turn,
and provides an accurate substitute heading for a short period depending on
the roll and pitch of the machine (ideally seeing the system through to
reacquisition).
The gyro provides an alternate source of heading, accurate to within 1º per
minute for up to three minutes, in times of GNSS loss for either antenna. If
the outage lasts longer than three minutes, the gyro will have drifted too far
and the VR500 begins outputting null fields in the heading output messages.
There is no user control over the timeout period of the gyro.
The gyro initializes itself at power up and during initialization, or you can
calibrate it as outlined in the Hemisphere GNSS Technical Reference Manual.
For optimal performance, when the gyro is first initializing, the dynamics the
gyro experiences during this warm-up period are similar to the regular
Continued on next page
47 of 88
Page 48
875-0375-0 VR500 User Guide Rev A3
Page
Supplemental Sensors, Continued
Gyro aiding,
With the gyro enabled, it is used to update the post HTAU smoothed heading
setting an appropriate HTAU value for the application.
continued
output from the moving base station RTK GNSS heading computation.
If the HTAU value is increased while gyro aiding is enabled, there will be little
to no lag in heading output due to vehicle manoeuvres.
The Hemisphere GNSS Technical Reference Manual includes information on
48 of 88
Page 49
875-0375-0 VR500 User Guide Rev A3
Page
Time Constants
Overview
The VR500 incorporates user-configurable time constants that can provide a
this value, it is best to be conservative and leave it at the default setting.
Heading
Use the $JATT,HTAU command to adjust the level of responsiveness of the
increases lag.
Pitch
Use the $JATT,PTAU command to adjust the level of responsiveness of the
increases lag.
degree of smoothing to the heading, pitch, Rate-of-Turn (ROT), Course-overGround (COG), and speed measurements.
You can adjust these parameters depending on the expected dynamics of the
machine. For example, increasing the time is reasonable if the machine is
very large and is not able to turn quickly or would not pitch quickly. The
resulting values would have reduced “noise,” resulting in consistent values
with time. If the machine is quick and nimble, increasing this value can create
a lag in measurements.
Formulas for determining the level of smoothing are located in the
Hemisphere GNSS Technical Reference Manual. If you are unsure how to set
true heading measurement provided in the $GPHDT message. The default
value of this constant is 0.1 seconds of smoothing when the gyro is enabled.
The gyro is enabled by default but can be disabled.
By disabling the gyro, the equivalent default value of the heading time
constant would be 0.5 seconds of smoothing. This is not automatic, and
therefore it must be manually entered.
Increasing the time constant increases, the level of heading smoothing and
pitch measurement provided in the $PSAT,HPR message. The default value of
this constant is 0.5 seconds of smoothing.
Increasing the time constant increases the level of pitch smoothing and
Continued on next page
49 of 88
Page 50
875-0375-0 VR500 User Guide Rev A3
Page
Time Constants, Continued
Rate-of-Turn
Use the $JATT,HRTAU command to adjust the level of responsiveness of the
Increasing the time constant increases the level of ROT smoothing.
Course-Over-
Use the $JATT,COGTAU command to adjust the level of responsiveness of the
This value is invalid when the machine is stationary.
Speed
Use the $JATT,SPDTAU command to adjust the level of responsiveness of the
smoothing.
(ROT)
Ground (COG)
ROT measurement provided in the $GPROT message. The default value of
this constant is 2.0 seconds of smoothing.
COG measurement provided in the $GPVTG message. The default value of
this constant is 0.0 seconds of smoothing.
Increasing the time constant increases the level of COG smoothing.
COG is computed using only the primary GNSS antenna and its accuracy
depends upon the speed of the machine (noise is proportional to 1/speed).
speed measurement provided in the $GPVTG message. The default value of
this parameter is 0.0 seconds of smoothing.
Increasing the time constant increases the level of speed measurement
50 of 88
Page 51
875-0375-0 VR500 User Guide Rev A3
Page
Overview
Introduction
The chapter includes information about powering and configuring your
VR500 receiver.
Contents
Topic
See Page
Powering the Receiver On/Off
52
LED Indicators
53
Configuring the VR500 Using the WebUI
54
Chapter 4: Operating the VR500
51 of 88
Page 52
875-0375-0 VR500 User Guide Rev A3
Page
Powering the Receiver On/Off
Power the
To power on the VR500, connect the ends of the VR500 power cable to a
Electrical
The VR500’s power supply is isolated from the communication lines and the
machine hull electrolysis).
receiver on/off
clean power source providing 9 to 32VDC, and hold the soft power switch
until the screen illuminates.
The VR500 accepts an input voltage of 9to 32 VDC via the power cable. The
supplied power should be continuous and clean for best performance. Refer
to Appendix B for the power specifications of the VR500.
Do not apply a voltage higher than 32 VDC. This will damage the receiver
and void the warranty. Also, do not attempt to operate the VR500 with the
fuse bypassed as this will void the warranty.
The VR500 features reverse polarity protection to prevent damage if the
power leads are accidentally reversed. Although the VR500 proceeds through
an internal startup sequence when you apply power, it will be ready to
communicate immediately.
Initial startup may take 5 to 15 minutes depending on the location.
Subsequent startups will output a valid position within 1 to 5 minutes
depending on the location and time since the last startup.
The VR500 may take up to 5 minutes to receive a full ionospheric map from
SBAS. Optimum accuracy is obtained once the VR500 is processing corrected
positions using complete ionospheric information.
Note: Hemisphere GNSS recommends using a weather-tight connection and
connector if the connection is located outside.
isolation
enclosure isolates the electronics mechanically from the machine (preventing
52 of 88
Page 53
875-0375-0 VR500 User Guide Rev A3
Page
LED Indicators
Overview
The VR500 has four LED lights located bottom of the unit. Table 4-1 below
Indicator
Description/Function
Power
Solid red light when receiver is powered on
GNSS
Solid amber light when the primary antenna is
tracking four or more satellites
Heading
Indicates the Vector has calculated a heading value
UHF
Blinks each time an RTK message is received over
UHF
describes each LED indicator.
Table 4-1: LED indicators

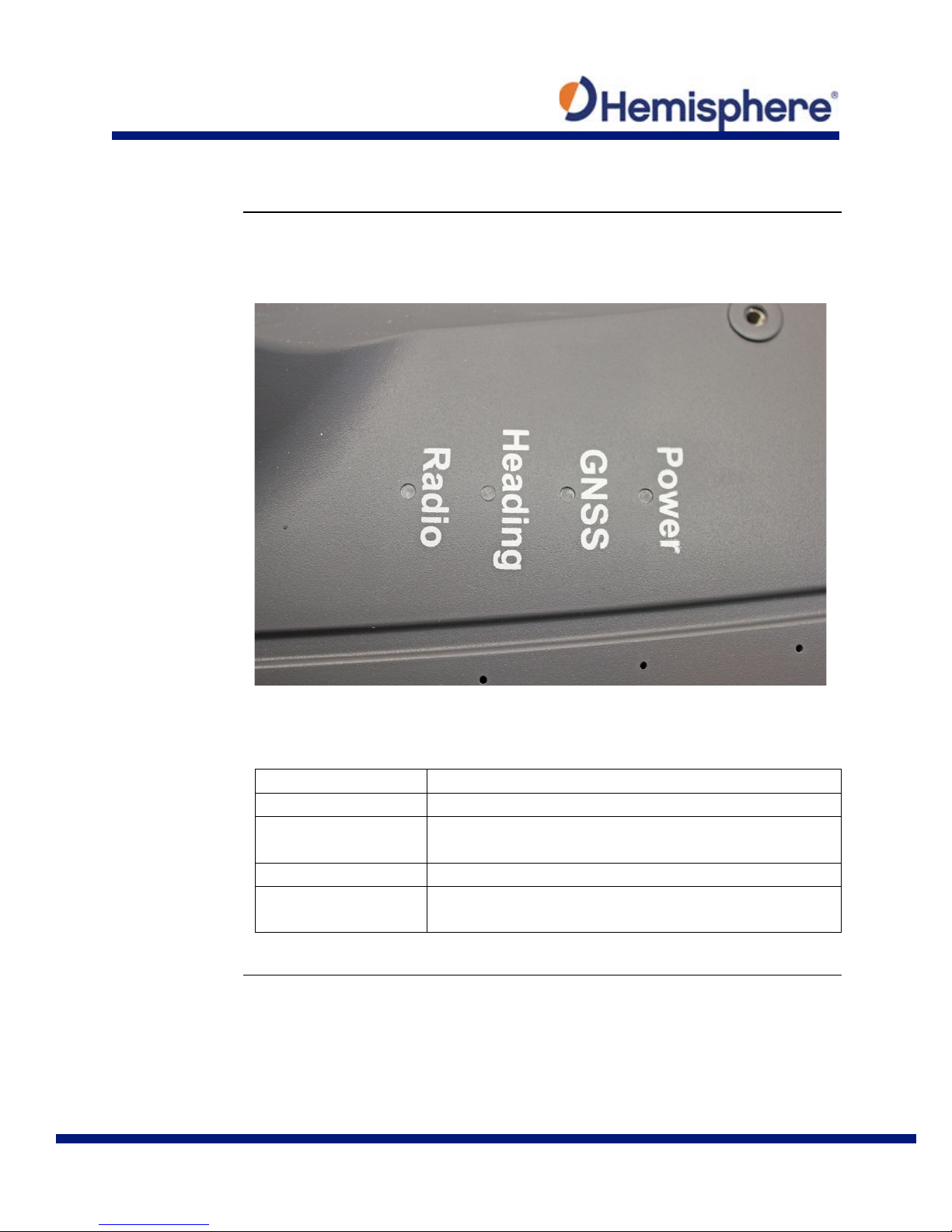

Figure 4-1: VR500 LED
53 of 88
Page 54
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI
Overview
The VR500 is equipped with an onboard WebUI.
First, connect the Bluetooth/WiFi antenna to the connector. The receiver
displays as an available Wi-Fi device in your available networks. Connect the
tablet or PC to the VR500’s WiFi.
To log in use the password: hgnss1234
Open a web browser window and type the following IP address:
192.168.100.1

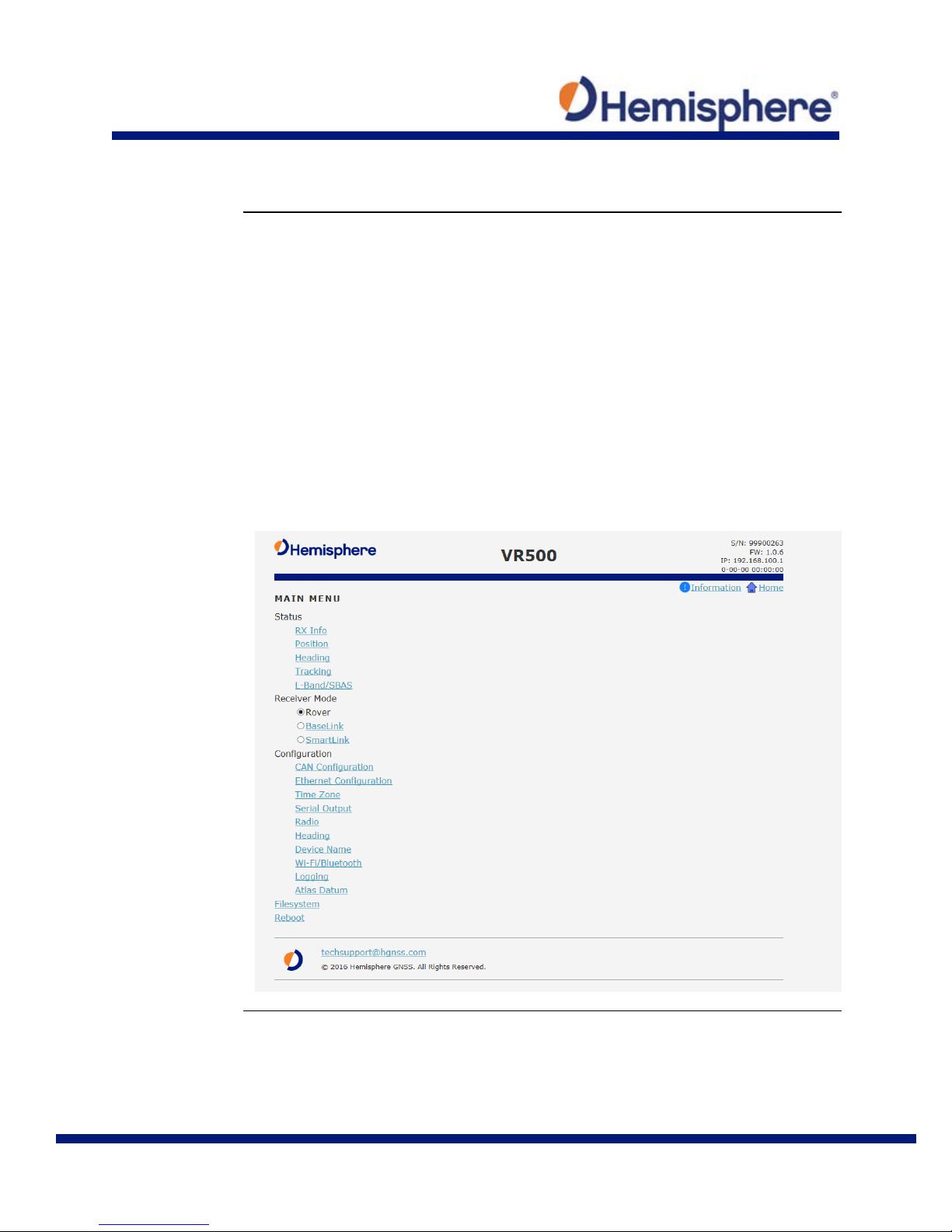

The VR500 Main Menu displays.
Continued on next page
54 of 88
Page 55
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

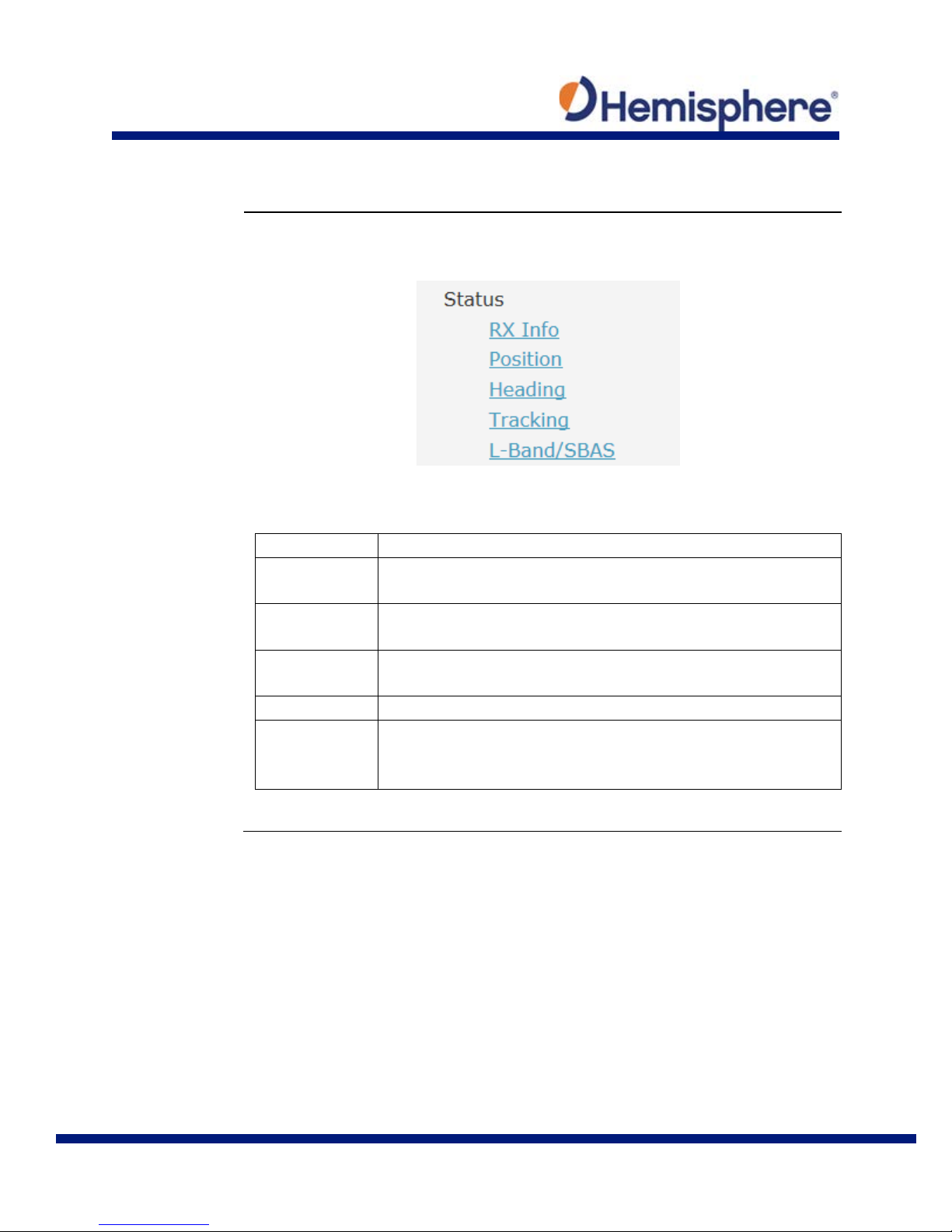

Status
You can configure RX Info, Position, Heading, Tracking, L-band and SBAS.
Link
Description
RX Info
Serial number of the board, firmware versions, and
subscriptions
Position
Position, accuracy, HDOP, number of satellites used, and
differential/RTK status
Heading
Heading, COG, the offset between heading and COG, ROT,
yaw, pitch, roll, heave and speed
Tracking
Sky plot and SNRs of signals tracked
L-band/SBAS
Manually tune the antenna to track a specific L-band
the correct SBAS satellite
Table 4-2: Status links
satellite or to set the receiver up to automatically select
Continued on next page
55 of 88
Page 56
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

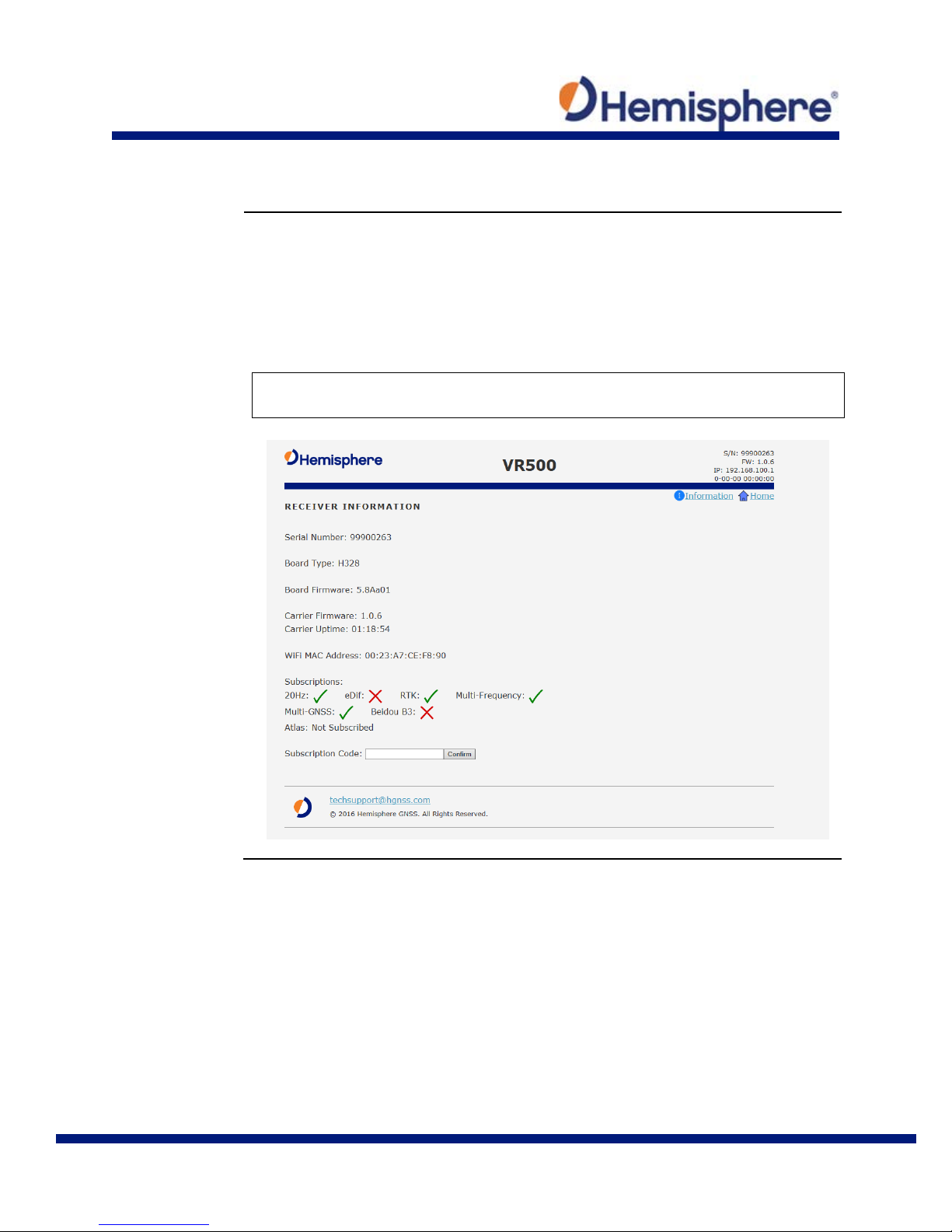

RX info
The Serial Number, Board Type, Carrier Firmware (for both GNSS and carrier
board), Carrier Uptime, WiFi MAC Address, and your Subscriptions are
displayed.
Activated items have a green check mark.
Important: If you have purchased an activation or subscription, use the field
at the bottom of the screen to type the Subscription Code, and click Confirm.
Continued on next page
56 of 88
Page 57
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

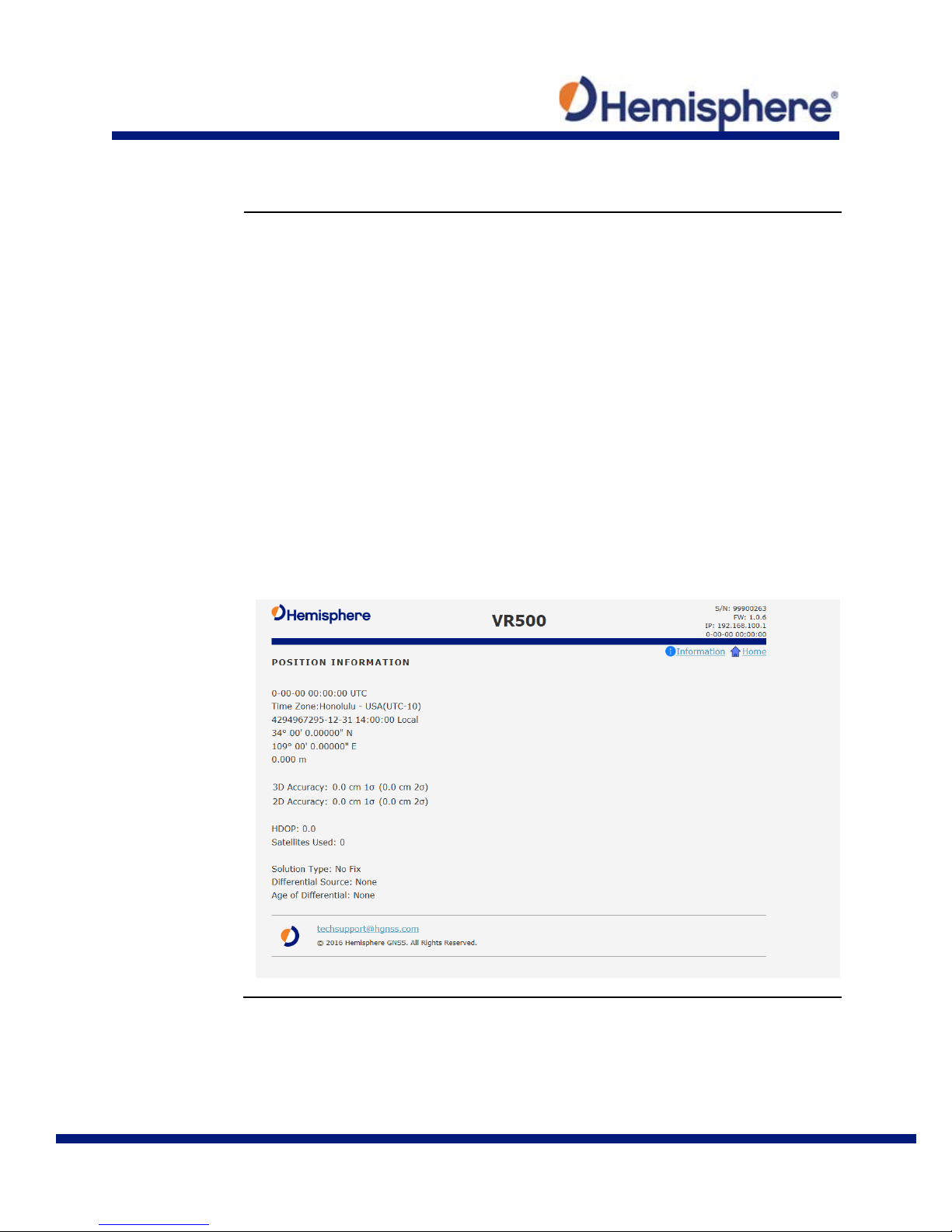

Position
Position and time are displayed at the top of the screen. In the example
below, the Time Zone is set to UTC-10, Honolulu time.
To change the Time Zone, go to the main page and click Time Zone. Please
note this does not affect UTC time in NMEA output.
An estimate of your 3D (and 2D) position accuracy is given in both RMS and
2DRMS.
HDOP-Horizontal Dilution of Precision
Satellites Used-Number of satellites used
Solution Type-Fixed, Float, etc.
Differential Source-Atlas, RTK, etc.
Age of Differential-RTK latency
Continued on next page
57 of 88
Page 58
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

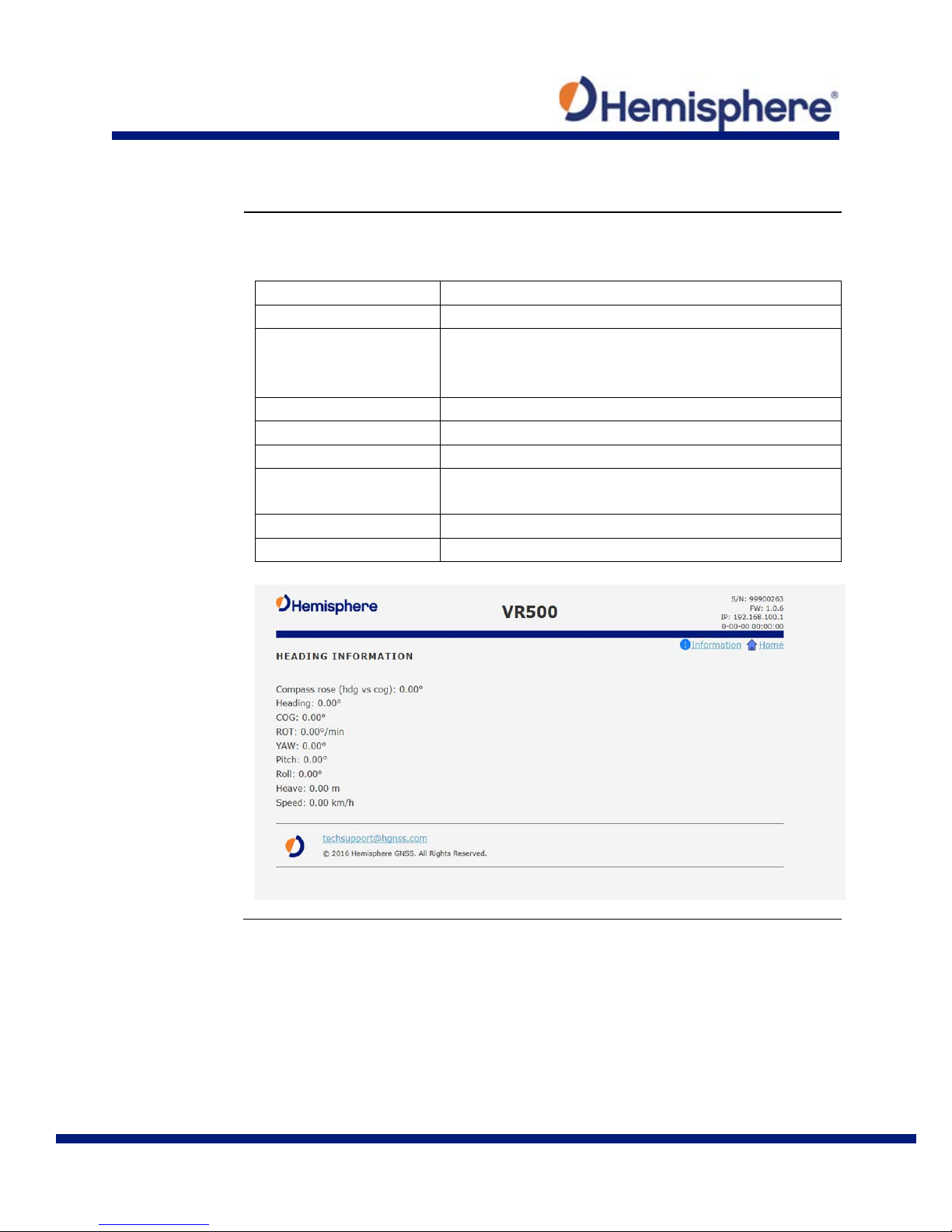

Heading
The Heading Information screen displays the following data:
Term
Definition
Compass rose
the difference between heading and COG
Heading
the direction of the vector created from the
measured using true north
COG
the direction the machine is moving
YAW
the difference between COG and heading
Pitch
angle between the front and back of the machine
Roll
angle between the left and right side of the
machine
Heave
the upward movement of the ground
Speed
speed of machine in km/h
primary to secondary antenna. Heading is
-
Continued on next page
58 of 88
Page 59
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

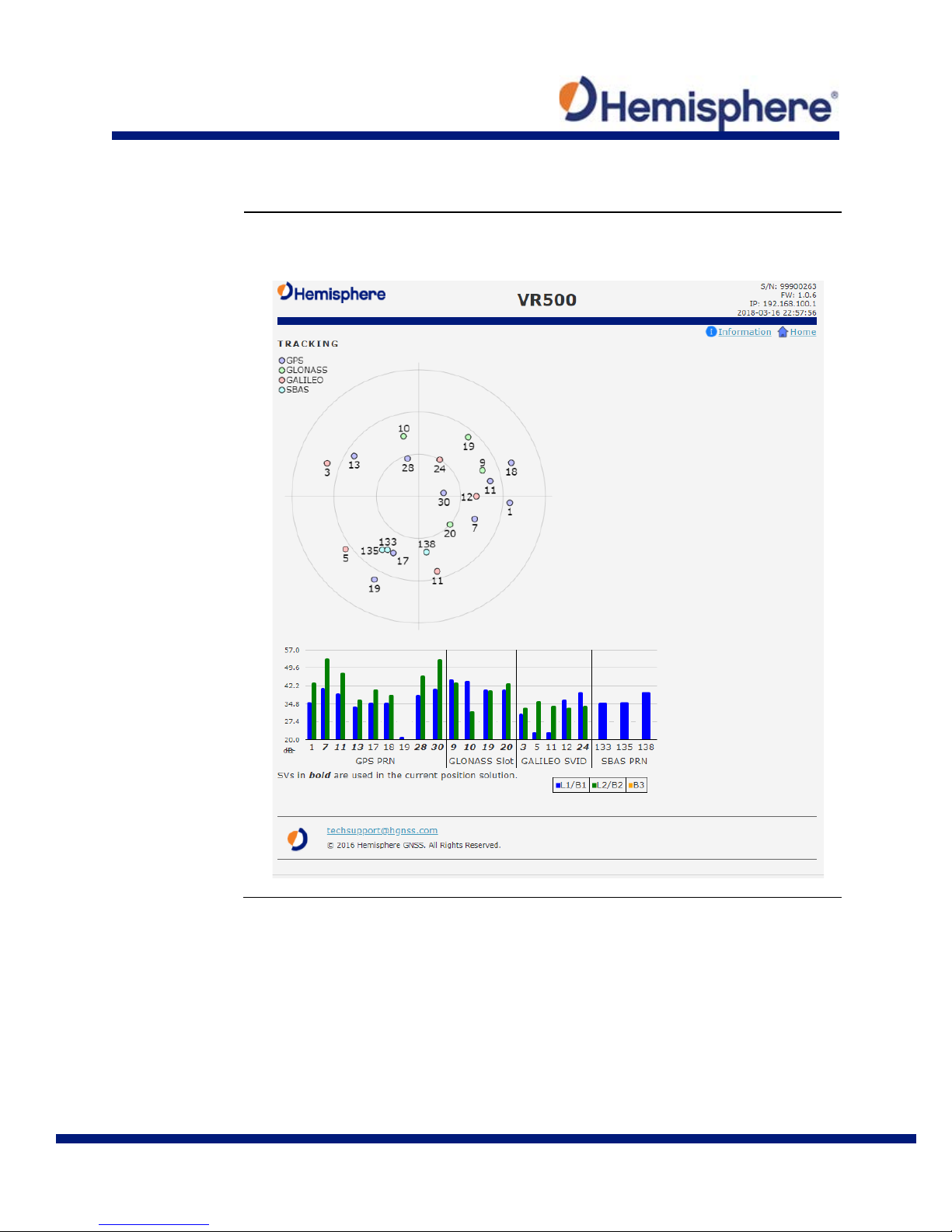

Tracking
The Sky Plot shows the azimuth and elevation of all tracked satellites.
Continued on next page
59 of 88
Page 60
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

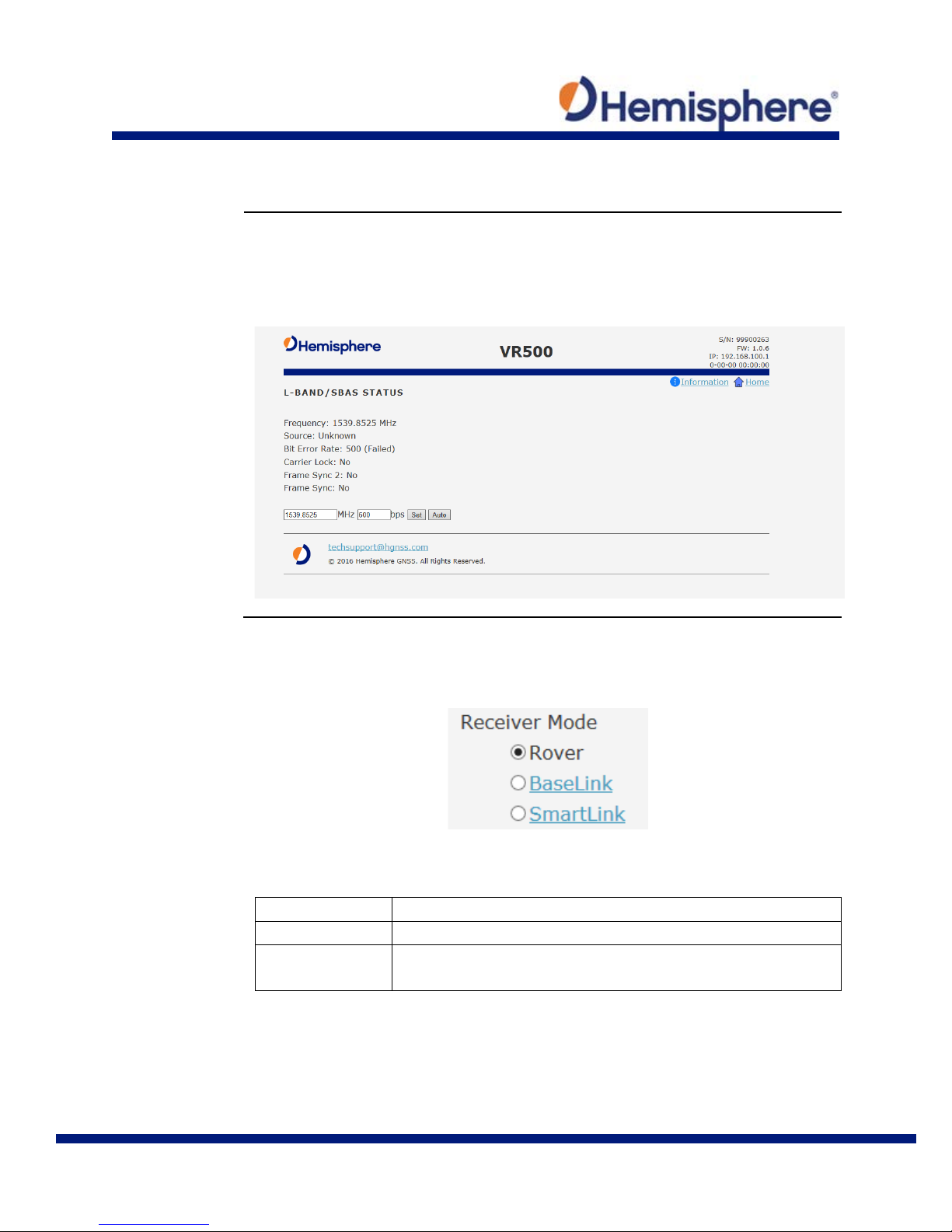

L-band/SBAS
You can manually configure the frequency and bandwidth of the L-band
Receiver mode
Use the Receiver Mode menu to configure the VR500 as a standard GNSS
Link
Description
Rover
Configure the VR500 as a standard GNSS receiver
SmartLink
Uses Atlas as a correction source and outputs the
correction over serial as a standard RTCM3 message
satellite you wish to track, or simply click the Auto button and let the
receiver track automatically.
overview
receiver, or as a SmartLink receiver.
Table 4-3: Receiver mode
60 of 88
Page 61
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Rover
If you are using this as a Rover receiver, select Rover Receiver Mode. To use
appropriate mode.
SmartLink
SmartLink allows the VR500 to use Atlas as a correction source and then
threshold, RTCM3 messages begin to output over the serial port.
in the SmartLink receiver mode, select Change Mode and select the
output the correction over serial as a standard RTCM 3 message.
Click the SmartLink hyperlink. Configure the RTCM3 format (such as MSM4)
using the Correction Output dropdown menu.
Set the baud rate of the serial port that will output the correction. Set a
target accuracy. Once the Atlas solution has converged to below this
Continued on next page
61 of 88
Page 62
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

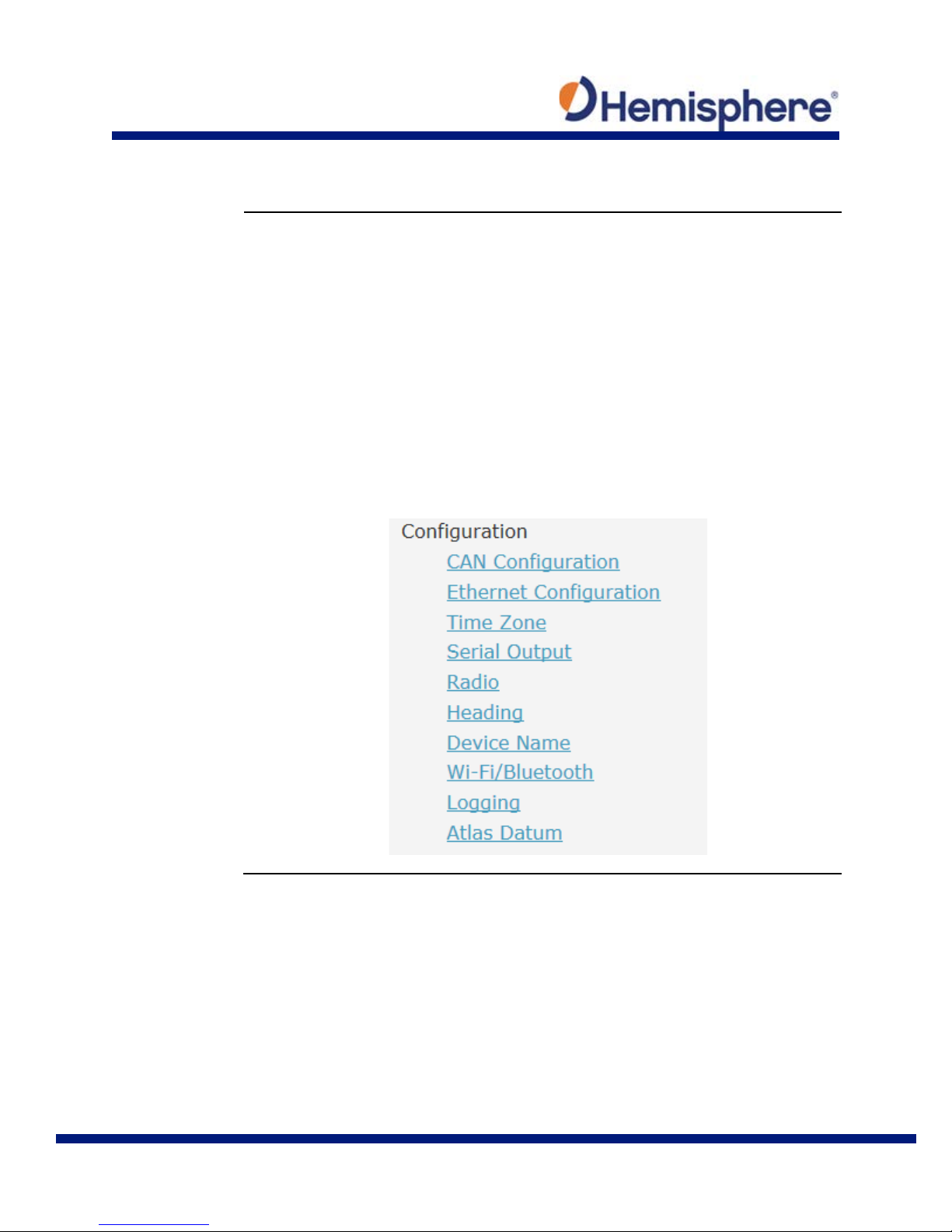

Configuration
You can configure the following using the VR500 WebUI:
overview
• CANbus
• Ethernet
• Time zone
• Serial port baud rate and output
• Radio
• Heading constants
• Device name
• WiFi Bluetooth settings
• Logging options
• Data (used by Atlas corrections)
Continued on next page
62 of 88
Page 63
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

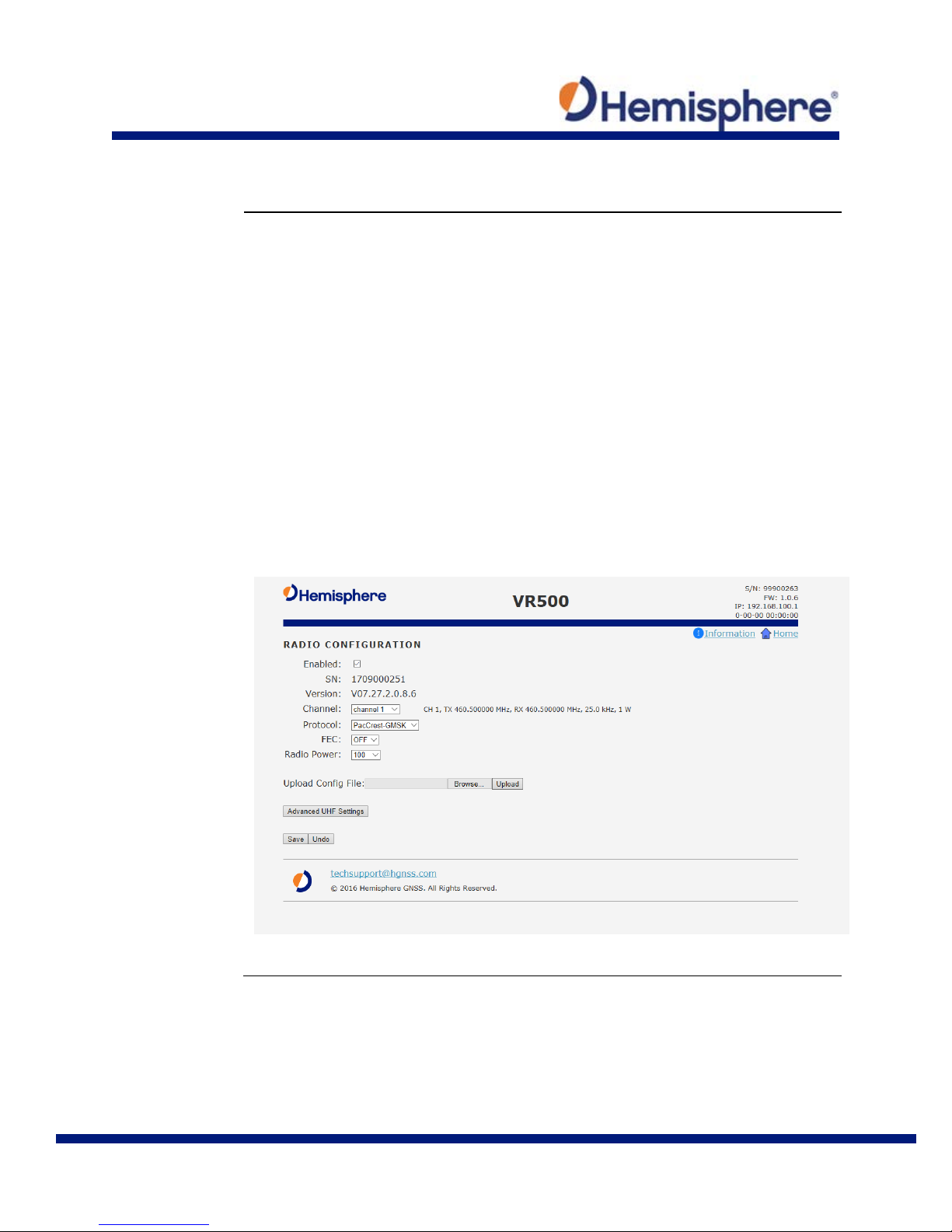

Radio
Use Radio to configure the internal UHF radio (protocol, frequency, etc.). The
Radio Configuration defaults to a no-frequency setting.
Use the drop-down arrows to select pre-configured channels. Each channel
has an associated frequency, and bandwidth.
Select a protocol (see Table 4-4 Radio Mode). The list of available protocols is
dependent upon the bandwidth of your channel. For example, if the
bandwidth of the channel you are using is 12.5KHz, Trimtalk 2 will not
display.
To add new channels, obtain and load a .ucf file from your dealer using the
Upload Config File button. Choose a channel and select the protocol. For
Satel protocol, you may turn FEC OFF/ON.
Continued on next page
63 of 88
Page 64
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Radio,
Use the following table to configure Radio settings. You may configure any
continued
settings in the blue boxes.

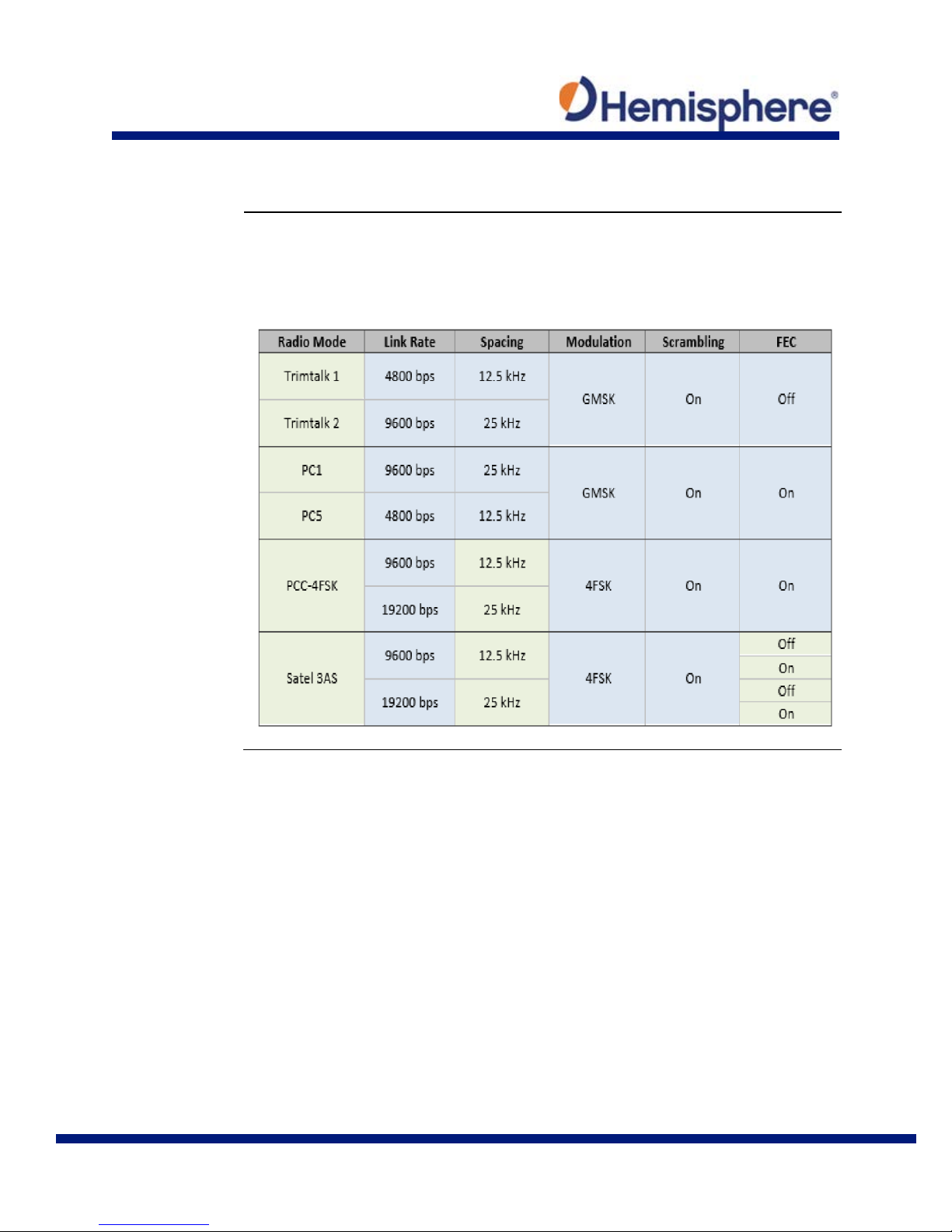

Table 4-4: Radio mode
Continued on next page
64 of 88
Page 65
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

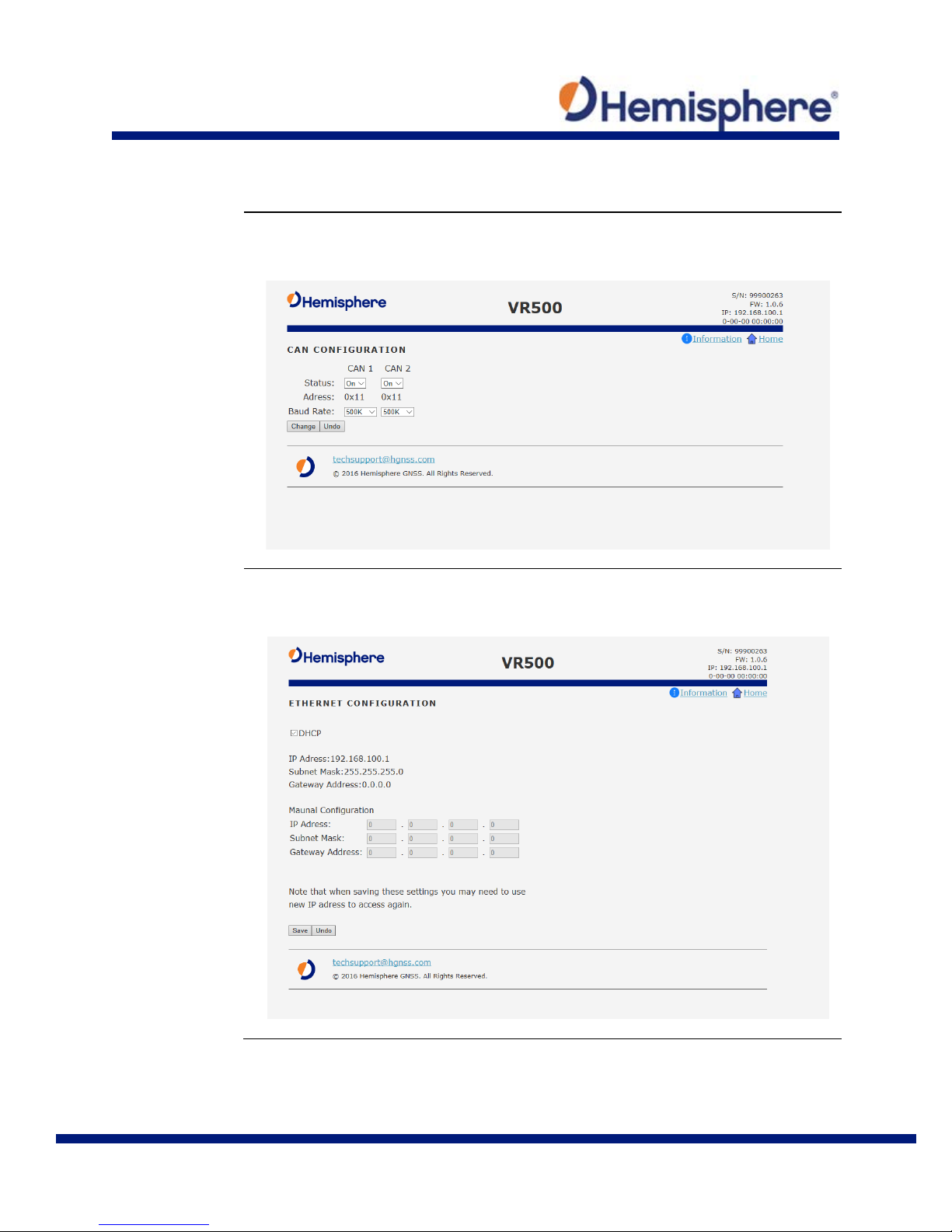

CAN
Turn ON/OFF CAN and select the baud rate (250 kbps or 500 kbps).
Ethernet
Use the VR500 WebUI to configure the Ethernet connection.
Continued on next page
65 of 88
Page 66
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

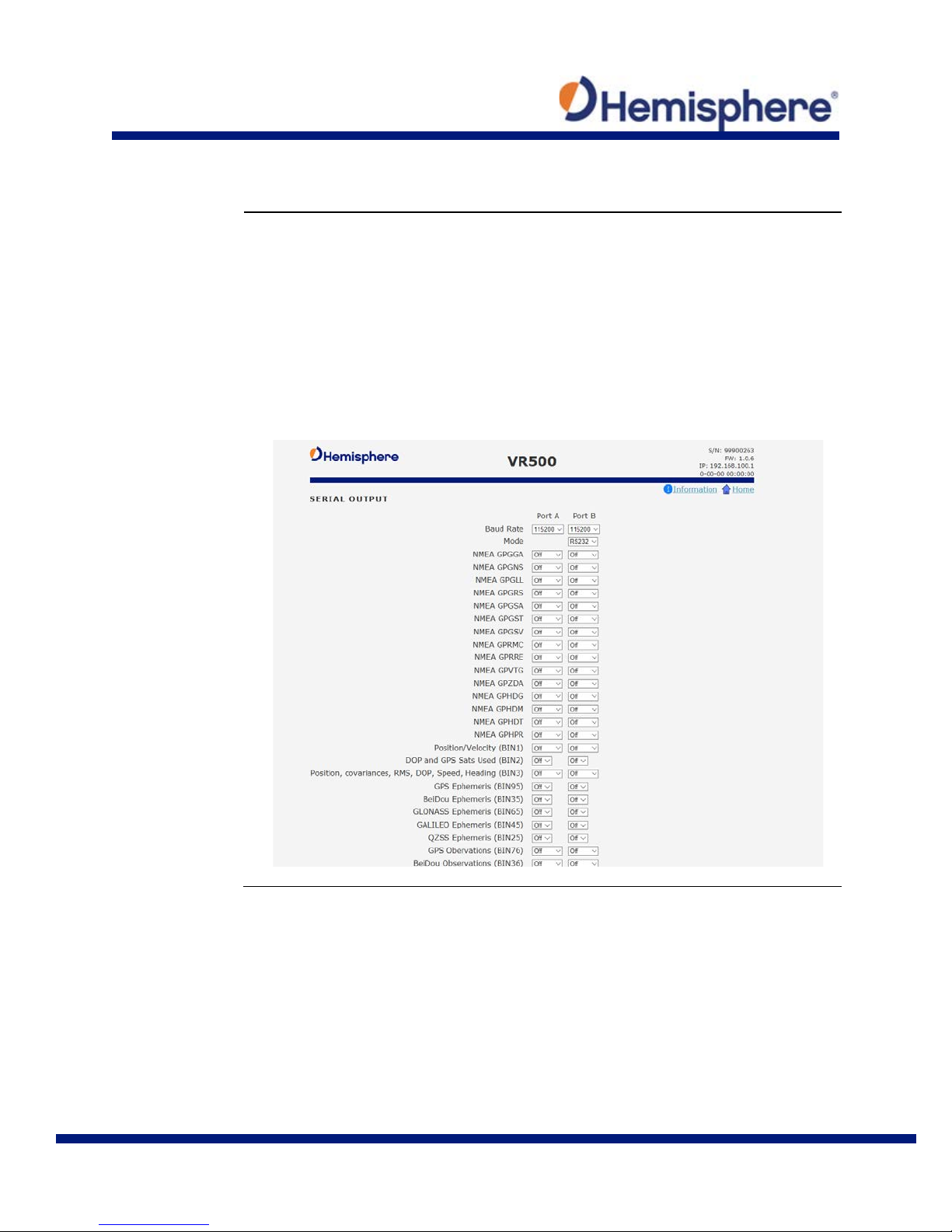

Serial Output
Use Serial Output to configure the baud rate of each serial port (PortA and
PortB and turn off/on specific NMEA 0183 messages and proprietary
Hemisphere BIN messages.
You can also change Port B from RS232 to RS422 and RS422 to RS232
reciprocally.
Configure the baud rates of the serial ports and click Change.
Continued on next page
66 of 88
Page 67
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

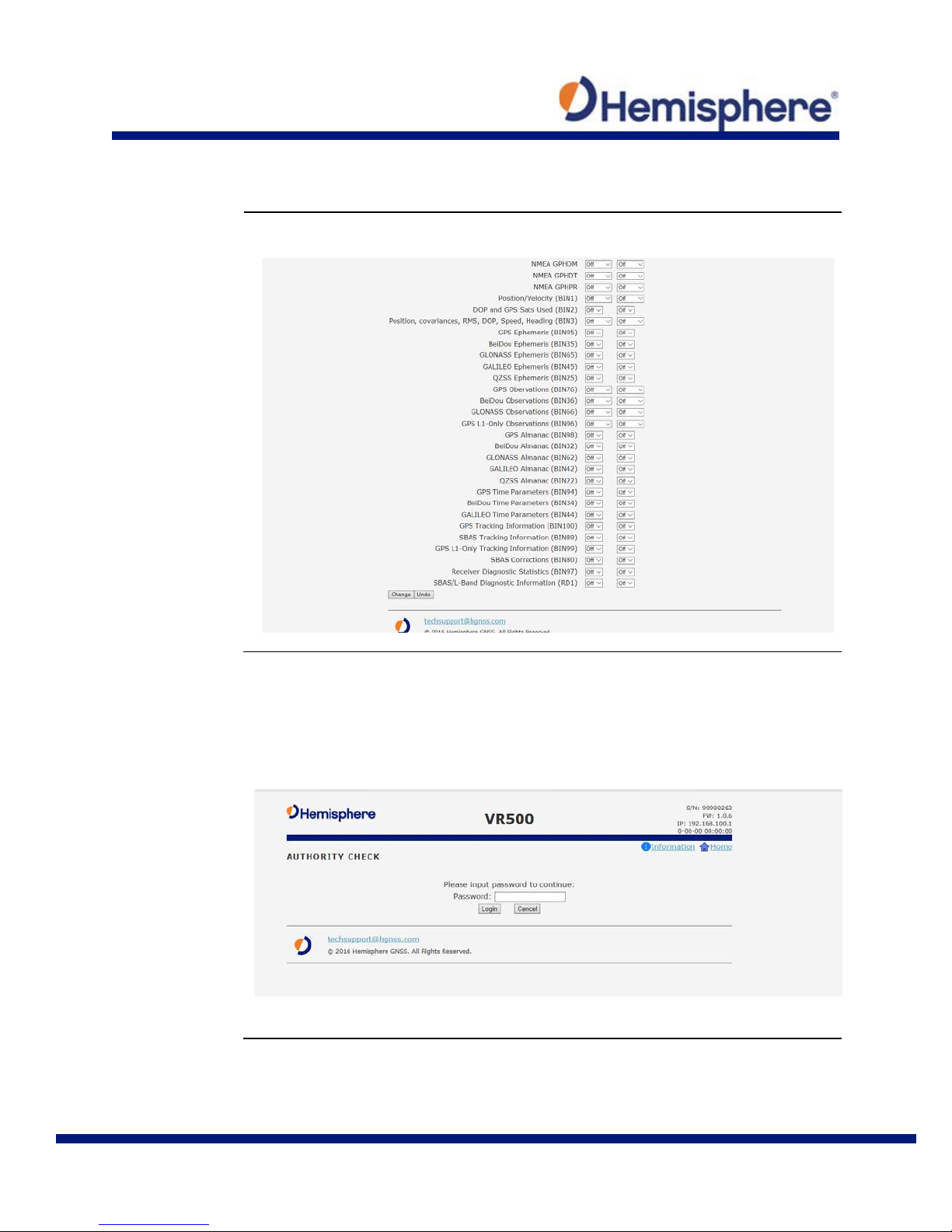

Serial Output,
Heading
Authorized users may change the Heading configuration.
continued
Under the Configuration menu, click Heading. If you are an authorized user,
type the Hemisphere GNSS provided password, and click Login.
Continued on next page
67 of 88
Page 68
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

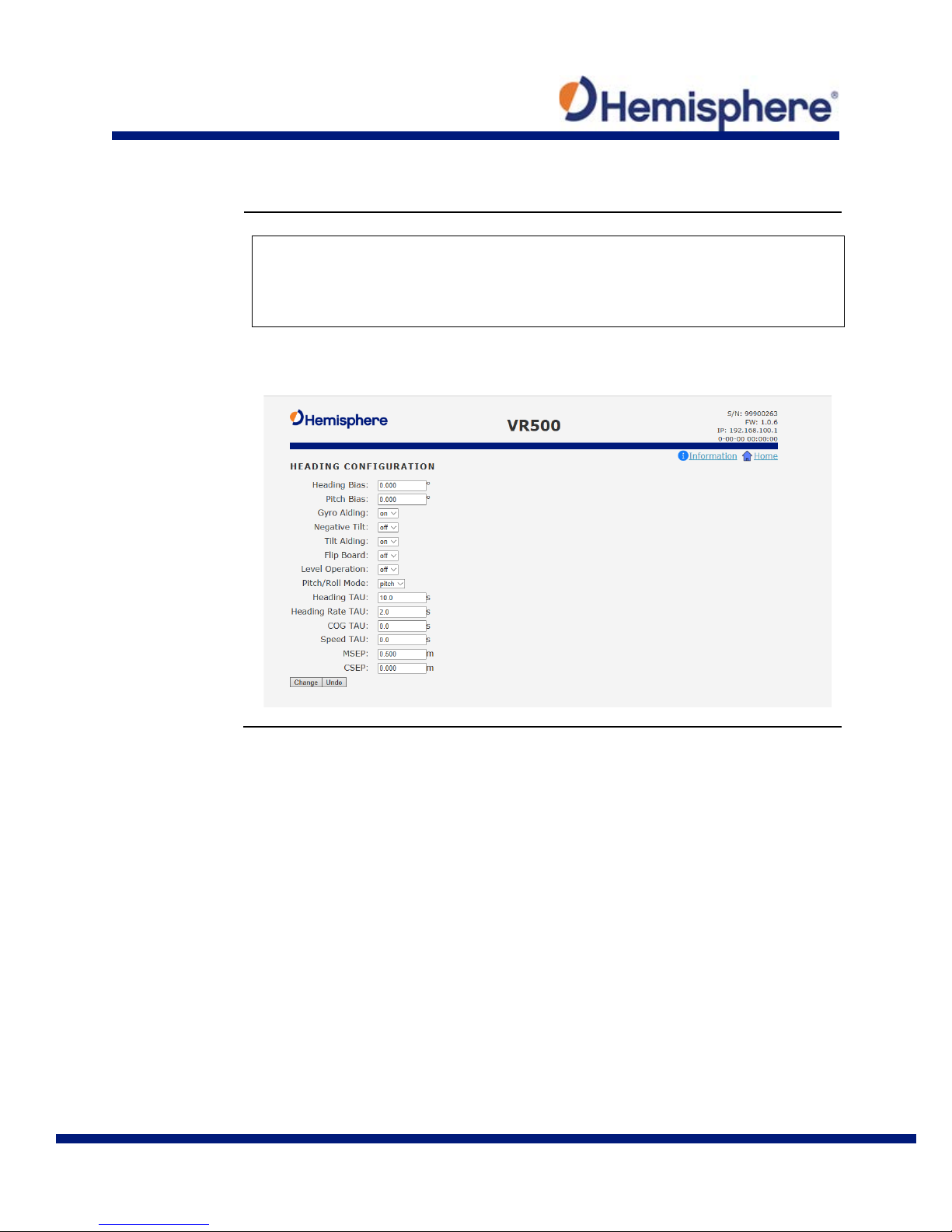

Heading,
Note: Default settings can be changed to set the time constants to smooth
continued
heading, Course-over-Ground (COG), and speed measurements.
Various heading settings can also be configured.
Click the box of the desired setting and type the configuration setting values.
Continued on next page
68 of 88
Page 69
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Heading,
Table 4-5: Heading configurations
Time Constant
Description
Heading Bias
Add a bias to the heading value the receiver
Range: -180 – +180
Pitch Bias
Add a bias to the pitch value the receiver outputs.
Range: -15 – +15
Gyro Aiding
Gyro aiding enables the use of the internal gyro
obstruction in GNSS signal.
Negative Tilt
Change the sign of the pitch/roll measurement.
Tilt Aiding
Turn OFF or ON tilt aiding. When on, the sensors are
heading startup and reacquisition times.
Flip Board
N/A
Pitch/Roll Mode
If the antennas are mounted such that they model
ROLL. If your HBIAS is 0 or 180, set this to PITCH.
continued
outputs.
If the receiver is in “roll” mode, this will add a bias
to the roll instead.
sensor and allows for the continuous output of
heading for up to three minutes during a GNSS
outage. Gyro aiding improves the reacquisition time
when GNSS heading is lost because of an
used to reduce the RTK search volume – improving
pitch, set to PITCH.
If the antennas are mounted such that they model
roll), set this to ROLL.
Note: If your HBIAS is -90 or +90, this will be set to
Continued on next page
69 of 88
Page 70
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Heading,
Table 4-5: Heading configurations (continued)
Time Constant
Description
HTAU
Adjust the responsiveness to true heading.
gyro OFF
HRTAU
Adjust the responsiveness to the rate of heading
(°/s2)
continued
(Heading)
(Rate of Turn)
If the machine is large and unable to turn quickly,
increase this value.
For longer baselines (10 m) HTAU should be
between 0.1 and 0.5, since the gyro introduces
noise.
Default value: 0.1 s with gyro enabled Range: 0.0 to
60 s
Formula: htau (s) = 40 / max rate of turn (°/s) with
gyro ON htau (s) = 10 / max rate of turn (°/s) with
change.
If the machine is large and unable to turn quickly,
increase this value.
Default value: 2.0 s with gyro enabled Range: 0.0 to
60 s
Formula: hrtau (s) = 10 / max rate of the rate of turn
Continued on next page
70 of 88
Page 71
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Heading,
Table 4-5: Heading configurations (continued)
Time Constant
Description
COGTAU
Adjust the responsiveness to the course over
course (°/sec)
SPDTAU
Adjust the responsiveness to speed.
Formula: spdtau (s) = 10 / max acceleration (m/s2)
CSEP
This is the antenna separation calculated by the
secondary antennas.
continued
(Course Over
Ground)
(Speed)
ground measurement.
If the machine is small and dynamic, leave this value
at 0.0 s to be conservative.
If the machine is large and resistant to motion,
increase this value.
Default value: 0.0 s Range: 0.0 to 60 s
Formula: cogtau (s) = 10 / max rate of change of
If the machine is small and dynamic, leave this value
at 0.0 s to be conservative.
If the machine is large and resistant to motion,
increase this value.
Default value: 0.0 s Range: 0.0 to 60 s
receiver. Ensure the CSEP value is within 0.2 of 0.5
(within two cm of 50 cm).
Note: If CSEP value is “0” the receiver is unable to
calculate the separation between the primary and
Continued on next page
71 of 88
Page 72
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

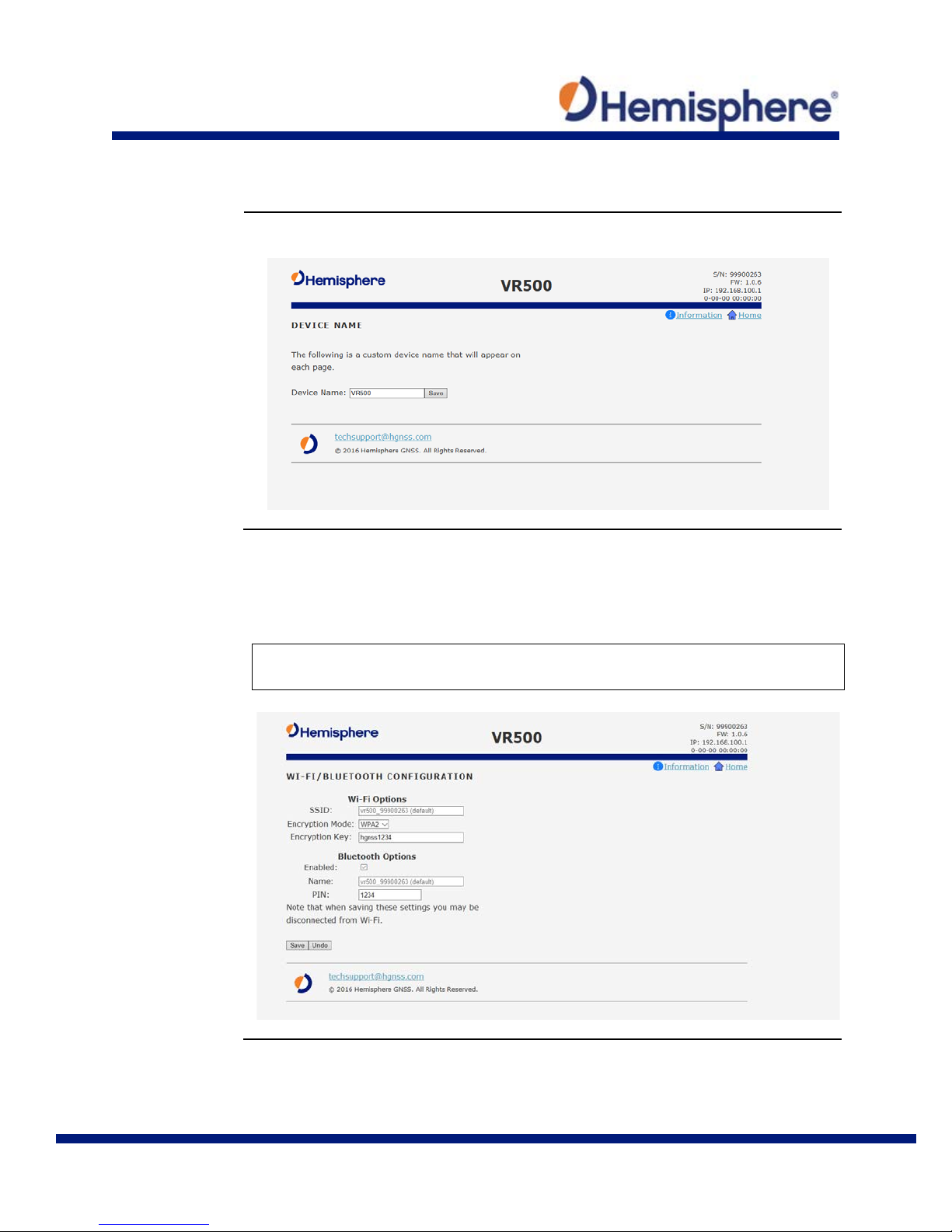

Device name
Change the name of the receiver (displayed at the top of the WebUI).
Wi-Fi Bluetooth
Configure the WiFi access name, encryption mode, and encryption key of the
configuration
VR500 in the WiFi/Bluetooth configuration settings. Click to enable Bluetooth
options and type the PIN of the VR500.
Note: The VR500 internal filesystem cannot be accessed when Bluetooth is
enabled. To access the internal filesystem, disable Bluetooth.
Continued on next page
72 of 88
Page 73
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

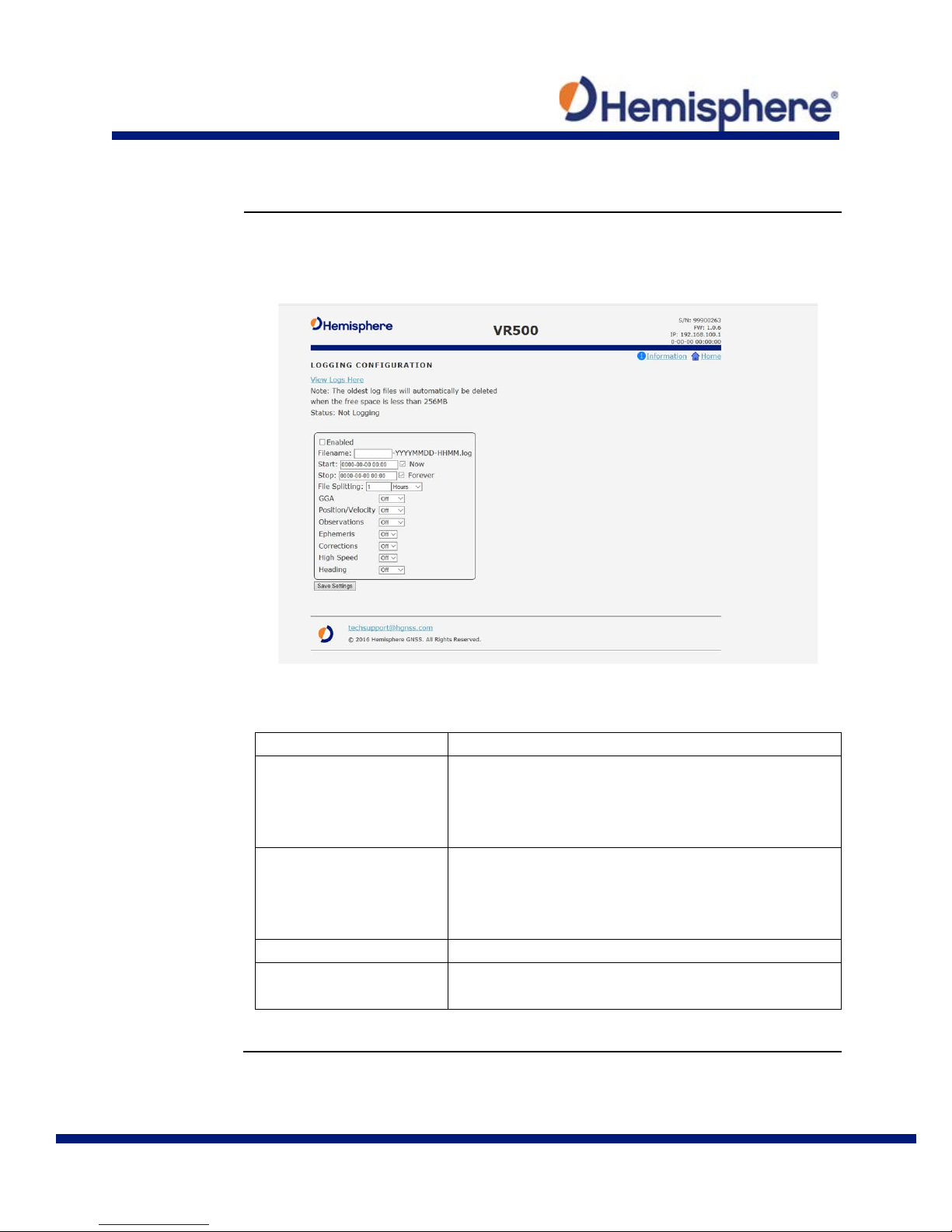

Logging
Log data to the internal memory of the VR500 or download a previously
Field
Description
Enabled checkbox
Click to enable logging.
begins with the specified settings.
Filename
Choose a filename.
date and timestamp.
Start/Stop
Set a time to start and a time to stop logging.
Now/Forever
Select the logs to start logging now, or to log
indefinitely (until shut off).
saved log.
Table 4-6: Logging configuration
Each time the VR500 is powered on, logging
All filenames automatically have an appended
Continued on next page
73 of 88
Page 74
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Logging,
Table 4-6: Logging configuration (continued)
Field
Description
File Splitting
Automatically closes a file and restarts a new file
data
GGA
Turn on GGA message logging at 0.2Hz, 1Hz, 10Hz,
20Hz included).
Position Velocity
Log the position and velocity of the receiver at
20Hz included).
Observations*
Log raw GNSS observations at 0.2Hz, 1Hz, 10Hz, or
receiver.
continued
after a period of time.
Use file splitting to decrease file sizes or to
prevent the loss of a file resulting in the loss of all
or 20HZ.
Note: 10Hz and 20Hz are only available with
activations (some kits may come with 10Hz or
0.2Hz, 1Hz, 10Hz, or 20HZ.
Note: 10Hz and 20Hz are only available with
activations (some kits may come with 10Hz or
20HZ.
Note: 10Hz and 20Hz are only available with
activations (some kits may come with 10Hz or
20Hz included).
*This feature is only available if you have a “Raw” activation on the
Continued on next page
74 of 88
Page 75
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued
Logging,
Table 4-6: Logging configuration (continued)
Field
Description
Ephemeris*
Log raw GNSS ephemeris messages at 0.2Hz, 1Hz,
receiver.
Corrections
Log the correction messages coming into the
receiver.
High Speed
High Speed logs diagnostic data.
Heading
Heading logs the following messages:
BIN3
become corrupted.
continued
To stop logging, de-select the Enabled button and press Save Settings.
10Hz, or 20HZ.
Note: 10Hz and 20Hz are only available with
activations (some kits may come with 10Hz or
20Hz included).
*This feature is only available if you have a “Raw” activation on the
Note: Selecting that dropdown option forces the
GGA, “corrections” and “ephemeris” options on.
• GPHDT
• GPHDM
• GPHDG
• HPR
•
If you turn off the receiver without properly closing a log, the log file will
Continued on next page
75 of 88
Page 76
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

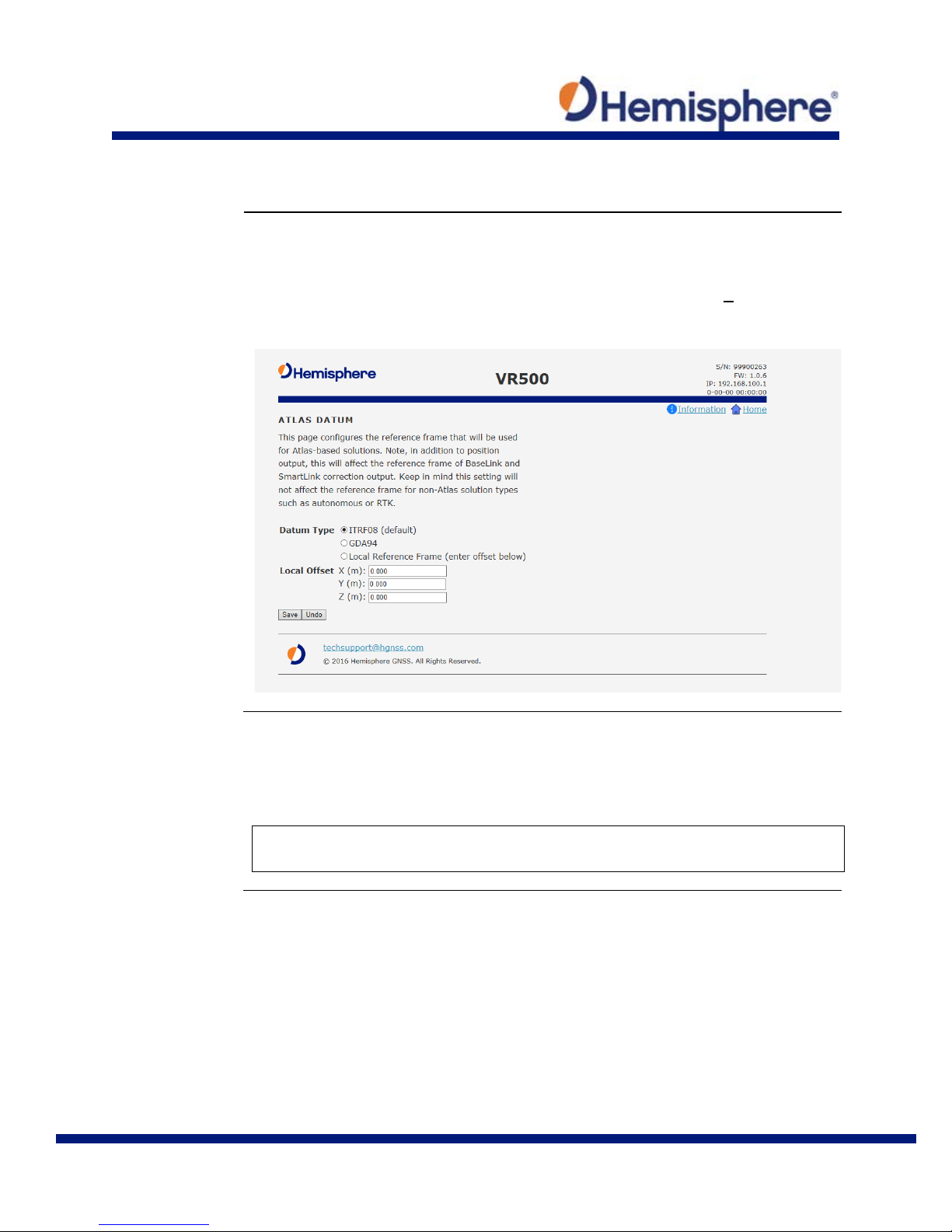

Atlas Datum
If using Atlas (not RTK), datum defaults to ITRF08.
Filesystem
The filesystem can be used to download log files that have been previously
is enabled, an option will be given to disable Bluetooth.
You can change Datum Type to GDA94 or enter custom reference frame
offsets.
firmware or carrier board firmware.
Note: The filesystem cannot be used when Bluetooth is enabled. If Bluetooth
stored onto the VR500, or the filesystem can be used to upgrade both GNSS
Continued on next page
76 of 88
Page 77
875-0375-0 VR500 User Guide Rev A3
Page

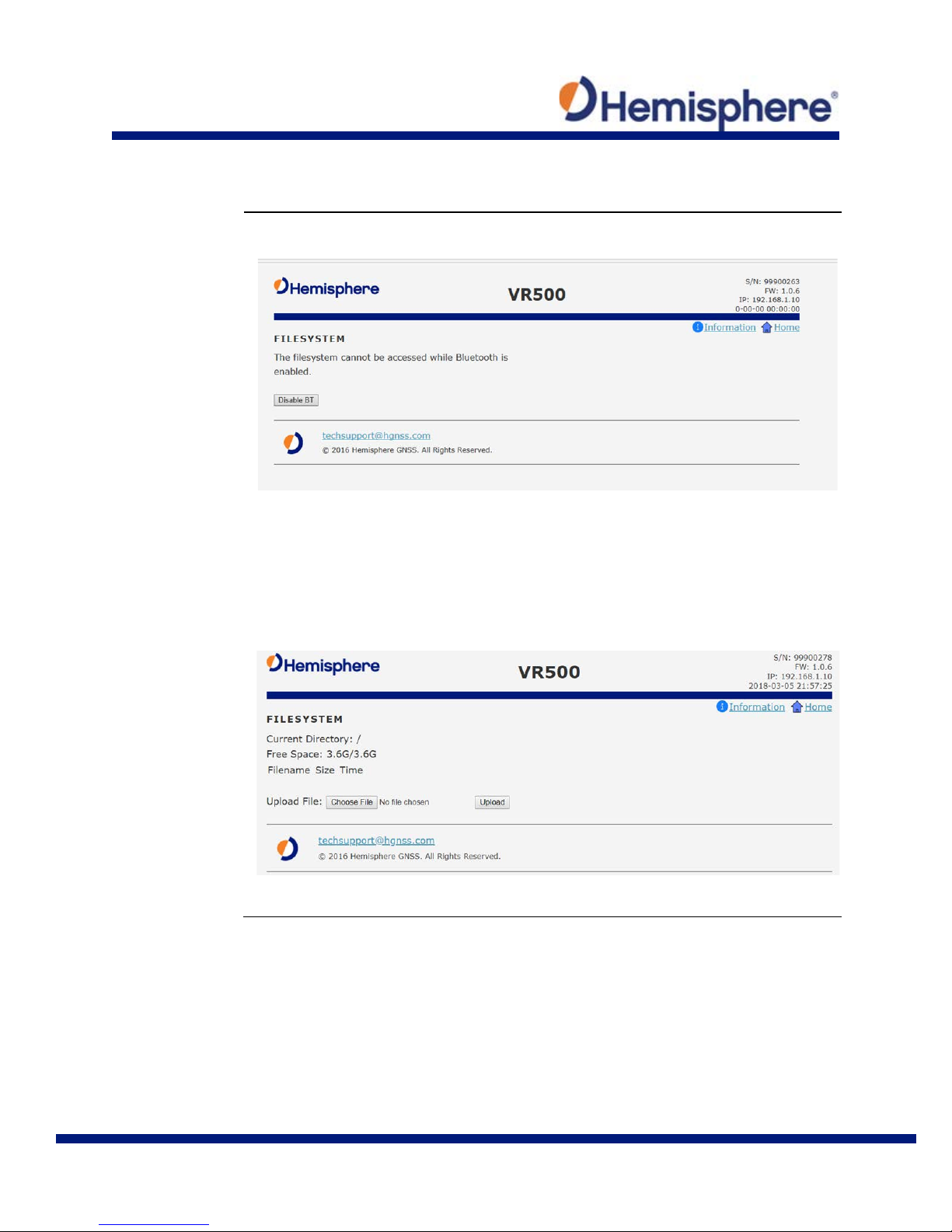

Filesystem,
Configuring the VR500 Using the WebUI, Continued
continued
After Bluetooth is disabled, the filesystem displays. Any log files stored on
the receiver will be available for download.
To upgrade firmware, click Choose File, select the GNSS or carrier board
firmware, and press “Upload.”
Continued on next page
77 of 88
Page 78
875-0375-0 VR500 User Guide Rev A3
Page
Configuring the VR500 Using the WebUI, Continued

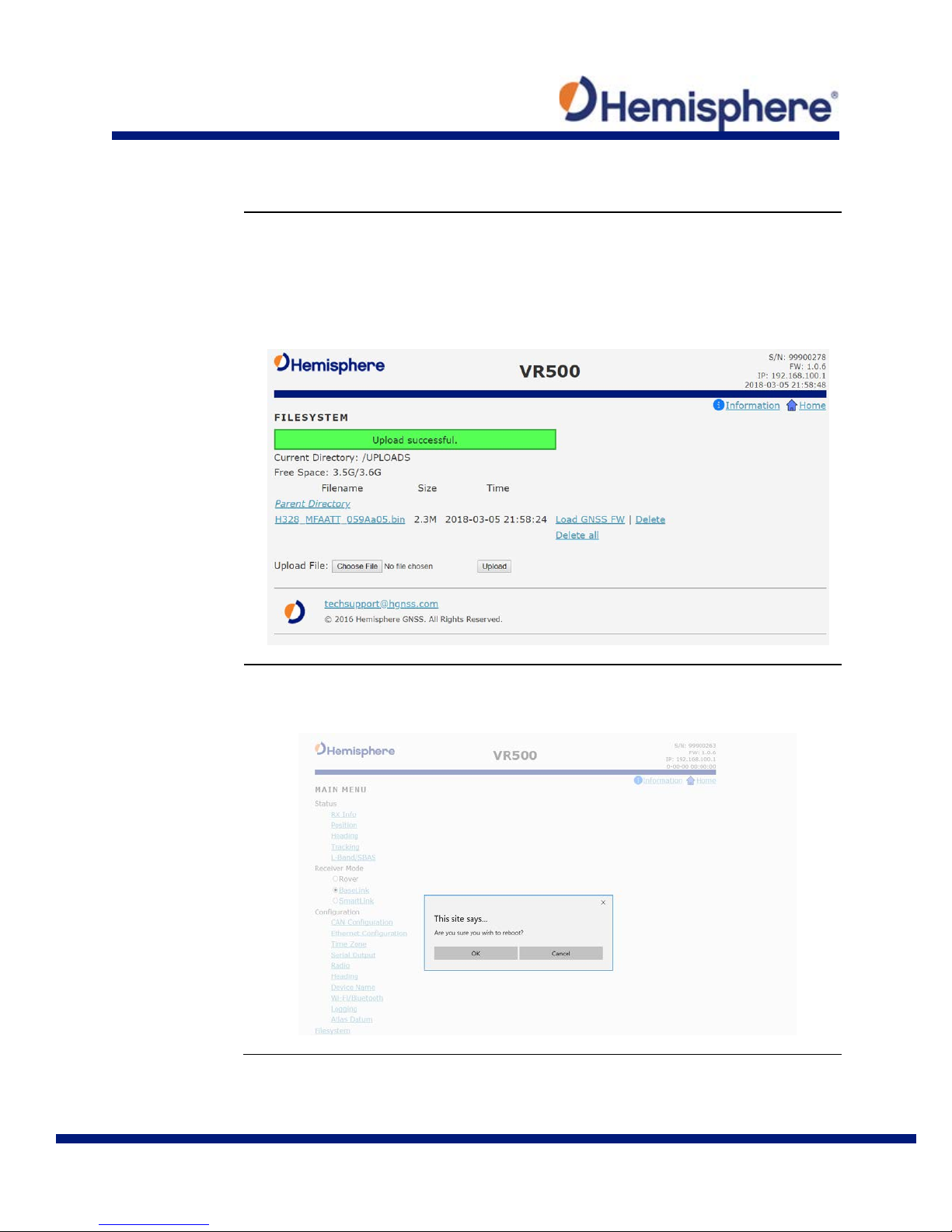

Filesystem,
After the file is uploaded, the list of files display.
Reboot
Click OK to hard-boot the receiver.
continued
Click Load GNSS FW or Load Carrier FW. When the FW is complete, click
Delete.
78 of 88
Page 79
875-0375-0 VR500 User Guide Rev A3
Page
Overview
Introduction
Appendix A provides troubleshooting for common problems.
Contents
Topic
See Page
Troubleshooting
80
Appendix A: Troubleshooting
79 of 88
Page 80
875-0375-0 VR500 User Guide Rev A3
Page
Troubleshooting
Appendix A
Table A-1: VR500 Troubleshooting
Symptom
Possible Solution
Receiver fails to
• Check to see if the power LED is turned on
(minimum available should be > 1.0 A)
No data from
• Check receiver power status to ensure the
data cable connections
Random data
• Verify that RTCM or binary messages are not
rate of the COM port
No GNSS lock
• Verify the VR500 has a clear view of the sky
satellites are in view and the SNR values
troubleshooting
power
VR500
from VR500
• Verify polarity of power leads
• Check integrity of power cable connectors
• Check power input voltage (7 to 36 VDC)
• Check the voltage from the connector at the end of
the cable
• Check current restrictions imposed by power source
receiver is powered
• Verify desired messages are activated (using
PocketMax4, the WebUI, or $JSHOW command in
any terminal program)
• Ensure the baud rate of the VR500 matches that
of the receiving device
• Check integrity and connectivity of power and
being output (use the WebUI to see which
messages are turned on)
• Ensure the baud rate of the VR500 matches that
of the remote device
• Ensure the requested throughput does not
exceed the amount of data allowed by the baud
• Use PocketMax4 or the WebUI to see how many
Continued on next page
80 of 88
Page 81
875-0375-0 VR500 User Guide Rev A3
Page
Troubleshooting, Continued
Appendix A
Table A-1: VR500 Troubleshooting (continued)
Symptom
Possible Solution
No heading or
• Check CSEP value is constant without varying more
the heading solution
VR500 will not go
• Check to see if the UHF indicator is blinking. If it is
improve UHF performance
troubleshooting
, continued
incorrect heading
value
RTK fixed
than 1 cm (0.39 in)—larger variations may indicate a
high multipath environment and require moving the
receiver location
• $JATT,SEARCH command forces the VR500 to
acquire a new heading solution (unless gyro is
enabled)
• Enable GYROAID to provide heading for up to three
minutes during GNSS signal loss
• Enable TILTAID to reduce heading search times
• Monitor the number of satellites and SNR values for
both antennas within PocketMax—at least four
satellites should have strong SNR values
• The VR500 calculates heading from the primary to
secondary GNSS antenna (the secondary antenna
has an arrow underneath). Ensure via the WebUI or
PocketMax4 there is not a heading bias added to
not blinking, check to see if the UHF base radio is
transmitting data
• Ensure the frequency and settings (modulation,
protocol, channel spacing, forward error
corrections, and scrambling) of the base radio
match the VR500 radio
• Check other VR500 receivers in the same area are
going RTK Fixed. If they are not, the area may not
have UHF coverage. Check if the VR500 works closer
to the base radio. Installation of a repeater may be
necessary
• An external UHF radio antenna may be installed to
Continued on next page
81 of 88
Page 82
875-0375-0 VR500 User Guide Rev A3
Page
Troubleshooting, Continued
Appendix A
Table A-1: VR500 Troubleshooting (continued)
Symptom
Possible Solution
VR500 will not go
• Check the RTK latency. If the VR500 is going RTK
activation
Constellations
• If the VR500 is not using satellites from a specific
• Check the WebUI for multi-GNSS activation
Atlas Corrections
• Check your subscription end-date in the WebUI
tune to the correct frequency for your region
troubleshooting
, continued
RTK fixed
(continued)
Are Not Working
Float, but the latency keeps climbing, this usually
indicates the radio settings are correct, but the
environment is poor (or lacks adequate UHF
coverage)
If the RTK latency is consistently 1, but the VR500
stays RTK Float, ensure the VR500 has an RTK
constellation (such as Galileo or BeiDou), verify the
base station supports those constellations. Only
satellites used at the base station can be used at
the rover
• Use the L-band tab to check the frequency and
bandwidth of the tracked satellite. We suggest
pressing Auto to use your position to automatically
82 of 88
Page 83
875-0375-0 VR500 User Guide Rev A3
Page
Appendix B: Technical Specifications
Introduction
Appendix B provides the VR500 technical specifications and the VR500
certification information.
Contents
Topic
See Page
VR500 Technical Specifications
84
Index
90
TSP201852910420401_MapTitles
89
TSP201852910420501_MapTitles
90
End User License Agreement
91
Warranty Notice
95
Technical Specifications
83 of 88
Page 84
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Technical Specifications
VR500 sensor
Table B-1: VR500 Sensor
Item
Specification
Receiver type
GPS, GLONASS, BeiDou, Galileo and RTK
antenna
Channels
788
Satellites
12 L1CA GPS
3 SBAS or 3 additional L1CA GPS 2 L-band
Primary antenna
GPS L1,L1P,L2C,L2P,L5
L-band
specifications
with carrier phase and L-band dual
12 L1P GPS
12 L2P GPS
12 L2C GPS
15 L5 GPS
12 G1 GLONASS
12 G2 GLONASS
12 G3 GLONASS
22 B1 BeiDou
22 B2 BeiDou
14 B3 BeiDou
12 Galileo E1
12 Galileo E5a
12 Galileo E5b
GLONASS G1,G2,Pcode
BeiDou B1,B2,B3
Galileo E1,E5a,E5b
Continued on next page
84 of 88
Page 85
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Technical Specifications, Continued
VR500 sensor
Table B-1: VR500 Sensor (continued)
Item
Specification
Secondary antenna
GPS L1,L1P,L2C,L2P
L-band
GPS sensitivity
-142 dBm
SBAS tracking
3-channel, parallel tracking
Update rate
10 Hz standard, 20 Hz and 50 Hz available
Horizontal accuracy
RMS
(67%)
2DMRS
(95%)
RTK
1,2
8 mm + 1
ppm
15 mm
+2 ppm
Atlas
0.04 m
0.08 m
SBAS (WAAS)1
0.3 m
0.6 m
Autonomous,
no SA1
1.2 m
2.4 m
Heading accuracy
< 0.17º RMS @ 0.5 m antenna separation
< 0.02º RMS @ 5.0 m antenna separation
Pitch/roll accuracy
< 1° RMS
Heave accuracy
30 cm4
ROT
145°/s maximum
Timing (1PPS) accuracy
20 ns
Cold start time
< 60 s typical (no almanac or RTC)
Warm start time
< 30 s typical (almanac and RTC)
Hot start time
< 10 s (almanac, RTC, and position)
Maximum speed
1,850 km/h (999 kts)
specifications,
continued
GLONASS G1,G2
BeiDou B1,B2
Galileo E1,E5b
< 0.09º RMS @ 1.0 m antenna separation
< 0.04º RMS@ 2.0 m antenna separation
Continued on next page
85 of 88
Page 86
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Technical Specifications, Continued
VR500 sensor
Table B-1: VR500 Sensor (continued)
Item
Specification
Maximum altitude
18,288 m (60,000 ft)
Differential options
SBAS, Autonomous, External RTCM v2.3,
RTK v3, L-band (Atlas), and DGPS
Antenna LNA gain input
10 to 40 dB
VR500
Table B-2: VR500 Communication
Item
Specification
Serial ports
3x full-duplex UART’s 2x 3.3V CMOS 1x RS-232
CAN
2 CAN ports NMEA2000, ISO-11783
Baud rates
4800 - 115200
Data I/O protocol
NMEA 0183, CAN, Hemisphere GPS binary
Correction I/O
protocol
Hemisphere GNSS’ ROX, RTCM v2.3 (DGPS),
RTCM v3 (RTK), CMR, CMR+3, and Atlas
Timing output
1 PPS CMOS, active high, rising edge sync, 10 kΩ,
10 pF load
Event marker input
CMOS, active low, falling edge sync, 10 kΩ 10 pF
load
USB
1 USB Device, OTG with future firmware update
Ethernet
1x 10/100 base-T
VR500 power
Table B-3: VR500 Power
Item
Specification
Input voltage
9-32 VDC
Power consumption
10.5W Maximum (All signals and L-band)
Current consumption
1.2A Maximum
Antenna voltage input
5 VDC Maximum
Antenna short circuit
Yes
Antenna input
50 Ω
specifications,
continued
communication
specifications
specifications
Continued on next page
86 of 88
Page 87
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Technical Specifications, Continued
VR500
Table B-4: VR500 Environmental
Item
Specification
Operating temperature
-40°C to +85°C (-40°F to +185°F)
Storage temperature
-40°C to +85°C (-40°F to +185°F)
Humidity
95% non-condensing (when installed in an
enclosure)
Shock and vibration4
Vibration: EP455 Section 5.15.1 Random
with screw mounting holes utilized)
EMC5
CE (ISO 14982 Emissions and Immunity) FCC Part
15, Subpart B CISPR22
VR500
Table B-5: VR500 Mechanical
Item
Specification
Dimensions
100 L x 60 W x 10 H mm (2.81 L x 1.60 W x 0.40
H in)
Weight
35-37 grams
Status indication
Power, GNSS lock, Differential lock, DGNSS
position, Heading lock
Power/Data connector
24-pin (12x2) male header 0.078 in (2 mm)
16-pin (8x2) male header 0.078 in (2 mm) pitch
Antenna connector
MMCX, female, straight
environmental
specifications
mechanical
specifications
Mechanical Shock: EP455 Section 5.14.1
Operational (when mounted in an enclosure
pitch
Continued on next page
87 of 88
Page 88
875-0375-0 VR500 User Guide Rev A3
Page
VR500 Technical Specifications, Continued
VR500 L-band
Table B-6: VR500 L-band sensor
Item
Specification
Receiver type
Single Channel
Channels
1525 to 1560 MHz
Sensitivity
140 dBm
Channel spacing
5.0 kHz
Satellite selection
Manual and Automatic
Reacquisition time
15 seconds (typical)
VR500 aiding
Table B-7: VR aiding device
Device
Description
Gyro
Provides smooth heading, fast heading reacquisition, and
of GPS has occurred.5
Tilt sensor
Provide pitch and roll data and assist in fast startup and
reacquisition of heading solution.
sensor
specifications
device
specifications
reliable < 3° heading for periods up to 3 minutes when loss
1
Depends on multi-path environment, number of satellites in view, satellite geometry, and ionospheric activity
2
Depends also on baseline length
3
Receive only, does not transmit this format
4
When integrated in conjunction with the recommended shielding and protection as outlined in this guide
5
Under static conditions
88 of 88
Page 89
Index
1PPS....................................................... 6, 39
Activate Loader .................................. 17, 18
Activation .................................................... 6
Age of Differential .................................... 57
Atlas ....... 6, 11, 12, 40, 41, 44, 57, 61, 76, 86
Atlas Datum ............................................... 76
Base Station ................................................ 6
Baud Rates ................................................ 35
BeiDou ..................................6, 12, 45, 84, 85
Bluetooth .......................... 54, 62, 72, 76, 77
Configuration ............................................ 62
Convergence time .................................... 11
course-over-ground ............................ 49, 68
Course-Over-Ground (COG ....................... 50
CSEP........................................................... 71
DGPS/DGNSS ............................................... 6
Differential Corrections .............................. 6
Differential Source- .................................. 57
Electrical isolation ..................................... 52
Elevation Mask ............................................ 7
environmental ..................................... 20, 21
Ephemeris ................................................. 75
Ethernet .................................. 34, 62, 65, 86
File Splitting ............................................... 74
firmware ................. 14, 15, 16, 17, 18, 34, 55
Firmware .................. 7, 14, 15, 16, 17, 18, 56
Flush-mount .............................................. 25
GALILEO ....................................................... 7
GGA ..................................................... 74, 75
GLONASS ........................ 7, 10, 12, 45, 84, 85
GPS ......................... 6, 7, 8, 45, 84, 85, 86, 88
Gyro aiding .................................... 47, 48, 69
HDOP- ....................................................... 57
Heading . 7, 10, 49, 53, 55, 58, 62, 67, 68, 69,
70, 71, 75, 85, 87
HPR values ................................................ 22
HTAU ............................................. 48, 49, 70
LED indicators ........................................... 53
Logging .................................... 62, 73, 74, 75
long site alignment.................................... 24
Message Types .......................................... 35
Multipath .................................................... 7
NMEA ........................................ 7, 57, 66, 86
Now/Forever ............................................. 73
Parallel orientation ................................... 21
Perpendicular orientation ......................... 21
Pitch .................................. 12, 49, 58, 69, 85
Pole-mount ............................................... 25
Position ..................................................... 55
Position Velocity ....................................... 74
Positioning accuracy ................................. 11
Positioning sustainability ......................... 11
Power/Data cable ......................... 29, 36, 37
Program Type ........................................... 16
Radio ..................................................... 8, 63
Rate-of-Turn .............................................. 49
Rate-of-Turn (ROT) .............................. 49, 50
Reboot ....................................................... 78
Receiver mode .......................................... 60
Receiver Mode .......................................... 61
RightArm ........................... 14, 15, 16, 17, 18
Rover ......................................................... 61
ROX ........................................................ 8, 86
RS-422 ................................................. 34, 36
RTCM ......................................... 8, 61, 80, 86
RTK .... 6, 8, 10, 11, 12, 33, 40, 41, 43, 46, 47,
48, 55, 57, 69, 76, 84, 86
RX Info ....................................................... 55
Satellites Used .......................................... 57
SBAS . 8, 12, 40, 41, 42, 52, 55, 60, 84, 85, 86
Scalable service levels .............................. 11
Serial Output ....................................... 66, 67
Serial port configuration ........................... 34
Serial ports .......................................... 34, 86
Short site alignment .................................. 24
SmartLink .................................................. 61
Solution Type-........................................... 57
SPDTAU ..................................................... 71
Speed ...................................... 50, 58, 71, 75
Status ............................................ 17, 55, 87
Subscription ...................................... 6, 8, 56
Tilt Aiding ............................................ 46, 69
UHF ................................. 6, 33, 53, 63, 81, 82
UHF Radio Antenna ................................... 33
Page 90
WAAS .................................................... 8, 85 WebUI ............................... 14, 36, 54, 72, 80
Page 91
End User license
IMPORTANT - This is an agreement (the "Agreement") between you, the end purchaser ("Licensee") and
Software. Hemisphere reserves the right to reduce and limit access to such support at anytime.
End User License Agreement
agreement
Hemisphere GNSS Inc. ("Hemisphere") which permits Licensee to use the Hemisphere software (the "Software")
that accompanies this Agreement. This Software may be licensed on a standalone basis or may be embedded in a
Product. Please read and ensure that you understand this Agreement before installing or using the Software Update
or using a Product.
In this agreement any product that has Software embedded in it at the time of sale to the Licensee shall be referred
to as a "Product". As well, in this Agreement, the use of a Product shall be deemed to be use of the Software which
is embedded in the Product.
BY INSTALLING OR USING THE SOFTWARE UPDATE OR THE PRODUCT, LICENSEE THEREBY AGREES TO BE LEGALLY
BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS, (I) DO NOT INSTALL OR USE
THE SOFTWARE, AND (II) IF YOU ARE INSTALLING AN UPDATE TO THE SOFTWARE, DO NOT INSTALL THE UPDATE
AND PROMPTLY DESTROY IT.
HEMISPHERE PROVIDES LIMITED WARRANTIES IN RELATION TO THE SOFTWARE. AS WELL, THOSE WHO USE THE
EMBEDDED SOFTWARE DO SO AT THEIR OWN RISK. YOU SHOULD UNDERSTAND THE IMPORTANCE OF THESE AND
OTHER LIMITATIONS SET OUT IN THIS AGREEMENT BEFORE INSTALLING OR USING THE SOFTWARE OR THE
PRODUCT.
1.
LICENSE. Hemisphere hereby grants to Licensee a non-transferable and non-exclusive license to
use the Software as embedded in a Product and all Updates (collectively the "Software"), solely
in binary executable form.
2.
RESTRICTIONS ON USE. Licensee agrees that Licensee and its employees will not directly or
indirectly, in any manner whatsoever:
a.
install or use more copies of the Software than the number of copies that have been
licensed;
b.
use or install the Software in connection with any product other than the Product the
Software was intended to be used or installed on as set out in the documentation that
accompanies the Software.
c.
copy any of the Software or any written materials for any purpose except as part of
Licensee's normal backup processes;
d.
modify or create derivative works based on the Software;
e.
sub-license, rent, lease, loan or distribute the Software;
f.
permit any third party to use the Software;
g.
use or operate Product for the benefit of any third party in any type of service
outsourcing, application service, provider service or service bureau capacity;
h.
reverse engineer, decompile or disassemble the Software or otherwise reduce it to a
human perceivable form;
i.
Assign this Agreement or sell or otherwise transfer the Software to any other party except
as part of the sale or transfer of the whole Product.
3.
UPDATES. At Hemisphere's discretion Hemisphere may make Updates available to Licensee. An
update ("Update") means any update to the Software that is made available to Licensee
including error corrections, enhancements and other modifications. Licensee may access,
download and install Updates during the Warranty Period only. All Updates that Licensee
downloads, installs or uses shall be deemed to be Software and subject to this Agreement.
Hemisphere reserves the right to modify the Product without any obligation to notify, supply or
install any improvements or alterations to existing Software.
4.
SUPPORT. Hemisphere may make available directly or through its authorized dealers telephone
and email support for the Software. Contact Hemisphere to find the authorized dealer near you.
As well, Hemisphere may make available user and technical documentation regarding the
Continued on next page
Page 92
End User license
BACKUPS AND RECOVERY. Licensee shall back-up all data used, created or stored by the
parties.
End User License Agreement, Continued
agreement,
continued
5.
Software on a regular basis as necessary to enable proper recovery of the data and related
systems and processes in the event of a malfunction in the Software or any loss or corruption of
data caused by the Software. Licensee shall assume all risks of loss or damage for any failure to
comply with the foregoing.
6.
OWNERSHIP. Hemisphere and its suppliers own all rights, title and interest in and to the
Software and related materials, including all intellectual property rights. The Software is
licensed to Licensee, not sold.
7.
TRADEMARKS. "Hemisphere GNSS", "Crescent", "Eclipse" and the associated logos are
trademarks of Hemisphere. Other trademarks are the property of their respective owners.
Licensee may not use any of these trademarks without the consent of their respective owners.
8.
LIMITED WARRANTY. Hemisphere warrants solely to the Licensee, subject to the exclusions and
procedures set forth herein below, that for a period of one (1) year from the original date of
purchase of the Product in which it is embedded (the "Warranty Period"), the Software, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Software and any media will be free of defects in materials and
workmanship. For any Update, Hemisphere warrants, for 90 days from performance or delivery,
or for the balance of the original Warranty Period, whichever is greater, that the Update, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Update and any media will be free of defects in materials and workmanship.
Notwithstanding the foregoing, Hemisphere does not warrant that the Software will meet
Licensee's requirements or that its operation will be error free.
9.
WARRANTY EXCLUSIONS. The warranty set forth in Section (8) will not apply to any deficiencies
caused by (a) the Product not being used as described in the documentation supplied to
Licensee, (b) the Software having been altered, modified or converted in any way by anyone
other than Hemisphere approved by Hemisphere, (c) any malfunction of Licensee's equipment
or other software, or (d) damage occurring in transit or due to any accident, abuse, misuse,
improper installation, lightning (or other electrical discharge) or neglect other than that caused
by Hemisphere. Hemisphere GNSS does not warrant or guarantee the precision or accuracy of
positions obtained when using the Software (whether standalone or embedded in a Product).
The Product and the Software is not intended and should not be used as the primary means of
navigation or for use in safety of life applications. The potential positioning and navigation
accuracy obtainable with the Software as stated in the Product or Software documentation
serves to provide only an estimate of achievable accuracy based on specifications provided by
the US Department of Defense for GPS positioning and DGPS service provider performance
specifications, where applicable.
10.
WARRANTY DISCLAIMER. EXCEPT AS EXPRESSLY SET OUT IN THIS AGREEMENT, HEMISPHERE
MAKES NO REPRESENTATION, WARRANTY OR CONDITION OF ANY KIND TO LICENSEE,
WHETHER VERBAL OR WRITTEN AND HEREBY DISCLAIMS ALL REPRESENTATIONS, WARRANTIES
AND CONDITIONS OF ANY KIND INCLUDING FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, ACCURACY, RELIABILITY OR THAT THE USE OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR-FREE AND HEREBY DISCLAIMS ALL REPRESENTATIONS,
WARRANTIES AND CONDITIONS ARISING AS A RESULT OF CUSTOM, USAGE OR TRADE AND
THOSE ARISING UNDER STATUTE.
11.
LIMITS ON WARRANTY DISCLAIMER. Some jurisdictions do not allow the exclusion of implied
warranties or conditions, so some of the above exclusions may not apply to Licensee. In that
case, any implied warranties or conditions which would then otherwise arise will be limited in
duration to ninety (90) days from the date of the license of the Software or the purchase of the
Product. The warranties given herein give Licensee specific legal rights and Licensee may have
other rights which may vary from jurisdiction to jurisdiction.
12.
CHANGE TO WARRANTY.No employee or agent of Hemisphere is authorized to change the
warranty provided or the limitation or disclaimer of warranty provisions. All such changes will
only be effective if pursuant to a separate agreement signed by senior officers of the respective
Continued on next page
Page 93
End User license
WARRANTY CLAIM. In the event Licensee has a warranty claim Licensee must first check for
functionality of the Product,
End User License Agreement, Continued
agreement,
continued
13.
and install all Updates that are made available. The warranty will not otherwise be honored.
Proof of purchase may be required. Hemisphere does not honor claims asserted after the end
of the Warranty Period.
14.
LICENSEE REMEDIES. In all cases which involve a failure of the Software to conform in any
material respect to the documentation during the Warranty Period or a breach of a warranty,
Hemisphere's sole obligation and liability, and Licensee's sole and exclusive remedy, is for
Hemisphere, at Hemisphere's option, to (a) repair the Software, (b) replace the Software with
software conforming to the documentation, or (c) if Hemisphere is unable, on a reasonable
commercial basis, to repair the Software or to replace the Software with conforming software
within ninety (90) days, to terminate this Agreement and thereafter Licensee shall cease using
the Software. Hemisphere will also issue a refund for the price paid by Licensee less an amount
on account of amortization, calculated on a straight-line basis over a deemed useful life of three
(3) years.
15.
LIMITATION OF LIABILITY. IN NO EVENT WILL HEMISPHERE BE LIABLE TO LICENSEE FOR ANY
INCIDENTAL, CONSEQUENTIAL, SPECIAL OR INDIRECT DAMAGES INCLUDING ARISING IN
RELATION TO ANY LOSS OF DATA, INCOME, REVENUE, GOODWILL OR ANTICIPATED SAVINGS
EVEN IF HEMISPHERE HAS BEEN INFORMED OFTHE POSSIBILITY OF SUCH LOSS OR DAMAGE.
FURTHER, IN NO EVENT WILL HEMISPHERE'S TOTAL CUMULATIVE LIABILITY HEREUNDER, FROM
ALL CAUSES OF ACTION OF ANY KIND, EXCEED THE TOTAL AMOUNT PAID BY LICENSEE TO
HEMISPHERE TO PURCHASE THE PRODUCT. THIS LIMITATION AND EXCLUSION APPLIES
IRRESPECTIVE OF THE CAUSE OF ACTION, INCLUDING BUT NOT LIMITED TO BREACH OF
CONTRACT, NEGLIGENCE, STRICT LIABILITY, TORT, BREACH OF WARRANTY,
MISREPRESENTATION OR ANY OTHER LEGAL THEORY AND WILL SURVIVE A FUNDAMENTAL
BREACH.
16.
LIMITS ON LIMITATION OF LIABILITY. Some jurisdictions do not allow for the limitation or
exclusion of liability for incidental or consequential damages, so the above limitation or
exclusion may not apply to Licensee and Licensee may also have other legal rights which may
vary from jurisdiction to jurisdiction.
17.
BASIS OF BARGAIN. Licensee agrees and acknowledges that Hemisphere has set its prices and
the parties have entered into this Agreement in reliance on the limited warranties, warranty
disclaimers and limitations of liability set forth herein, that the same reflect an agreed-to
allocation of risk between the parties (including the risk that a remedy may fail of its essential
purpose and cause consequential loss), and that the same forms an essential basis of the
bargain between the parties. Licensee agrees and acknowledges that Hemisphere would not
have been able to sell the Product at the amount charged on an economic basis without such
limitations.
18.
PROPRIETARY RIGHTS INDEMNITY. Hemisphere shall indemnify, defend and hold harmless
Licensee from and against any and all actions, claims, demands, proceedings, liabilities, direct
damages, judgments, settlements, fines, penalties, costs and expenses, including royalties and
attorneys' fees and related costs, in connection with or arising out of any actual infringement of
any third party patent, copyright or other intellectual property right by the Software or by its
use, in accordance with this Agreement and documentation, PROVIDED THAT: (a) Hemisphere
has the right to assume full control over any action, claim, demand or proceeding, (b) Licensee
shall promptly notify Hemisphere of any such action, claim, demand, or proceeding, and (c)
Licensee shall give Hemisphere such reasonable assistance and tangible material as is
reasonably available to Licensee for the defense of the action, claim, demand or proceeding.
Licensee shall not settle or compromise any of same for which Hemisphere has agreed to
assume responsibility without Hemisphere's prior written consent. Licensee may, at its sole cost
and expense, retain separate counsel from the counsel utilized or retained by Hemisphere.
INFRINGEMENT. If use of the Software may be enjoined due to a claim of infringement by a
third party then, at its sole discretion and expense, Hemisphere may do one of the following: (a)
negotiate a license or other agreement so that the Product is no longer subject to such a
potential claim, (b) modify the Product so that it becomes non- infringing, provided such
modification can be accomplished without materially affecting the performance and
19.
Continued on next page
Page 94
End User license
(c) replace the Software, or the Product, with non-infringing software, or product, of equal or
force and effect.
End User License Agreement, Continued
agreement,
continued
better performance and quality, or (d) if none of the foregoing can be done on a commercially
reasonable basis, terminate this license and Licensee shall stop using the Product and
Hemisphere shall refund the price paid by Licensee less an amount on account of amortization,
calculated on a straight-line basis over a deemed useful life of three (3) years.
19.
The foregoing sets out the entire liability of Hemisphere and the sole obligations of Hemisphere
to Licensee in respect of any claim that the Software or its use infringes any third party rights.
20.
INDEMNIFICATION. Except in relation to an infringement action, Licensee shall indemnify and
hold Hemisphere harmless from any and all claims, damages, losses, liabilities, costs and
expenses (including reasonable fees of lawyers and other professionals) arising out of or in
connection with Licensee's use of the Product, whether direct or indirect, including without
limiting the foregoing, loss of data, loss of profit or business interruption. TERMINATION.
Licensee may terminate this Agreement at any time without cause. Hemisphere may terminate
this Agreement on 30 days notice to Licensee if Licensee fails to materially comply with each
provision of this Agreement unless such default is cured within the 30 days. Any such
termination by a party shall be in addition to and without prejudice to such rights and remedies
as may be available, including injunction and other equitable remedies. Upon receipt by
Licensee of written notice of termination from Hemisphere or termination by Licensee, Licensee
shall at the end of any notice period (a) cease using the Software; and (b) return to Hemisphere
(or destroy and provide a certificate of a Senior Officer attesting to such destruction) the
Software and all related material and any magnetic or optical media provided to Licensee. The
provisions of Sections 6), 7), 8), 9), 10), 15), 21), 26) and 27) herein shall survive the expiration
or termination of this Agreement for any reason.
21.
EXPORT RESTRICTIONS. Licensee agrees that Licensee will comply with all export control
legislation of Canada, the United States, Australia and any other applicable country's laws and
regulations, whether under the Arms Export Control Act, the International Traffic in Arms
Regulations, the Export Administration Regulations, the regulations of the United States
Departments of Commerce, State, and Treasury, or otherwise as well as the export control
legislation of all other countries.
22.
PRODUCT COMPONENTS. The Product may contain third party components. Those third party
components may be subject to additional terms and conditions. Licensee is required to agree to
those terms and conditions in order to use the Product.
23.
FORCE MAJEURE EVENT. Neither party will have the right to claim damages as a result of the
other's inability to perform or any delay in performance due to unforeseeable circumstances
beyond its reasonable control, such as labor disputes, strikes, lockouts, war, riot, insurrection,
epidemic, Internet virus attack, Internet failure, supplier failure, act of God, or governmental
action not the fault of the non-performing party.
24.
FORUM FOR DISPUTES. The parties agree that the courts located in Calgary, Alberta, Canada
and the courts of appeal there from will have exclusive jurisdiction to resolve any disputes
between Licensee and Hemisphere concerning this Agreement or Licensee's use or inability to
use the Software and the parties hereby irrevocably agree to attorn to the jurisdiction of those
courts. Notwithstanding the foregoing, either party may apply to any court of competent
jurisdiction for injunctive relief.
25.
APPLICABLE LAW. This Agreement shall be governed by the laws of the Province of Alberta,
Canada, exclusive of any of its choice of law and conflicts of law jurisprudence.
26.
CISG. The United Nations Convention on Contracts for the International Sale of Goods will not
GENERAL. This is the entire agreement between Licensee and Hemisphere relating to the Product and Licensee's
use of the same, and supersedes all prior, collateral or contemporaneous oral or written representations,
warranties or agreements regarding the same. No amendment to or modification of this Agreement will be binding
unless in writing and signed by duly authorized representatives of the parties. Any and all terms and conditions set
out in any correspondence between the parties or set out in a purchase order which are different from or in
addition to the terms and conditions set forth herein, shall have no application and no written notice of same shall
be required. In the event that one or more of the provisions of this Agreement is found to be illegal or
unenforceable, this Agreement shall not be rendered inoperative but the remaining provisions shall continue in full
apply to this Agreement or any transaction hereunder.
Page 95
Warranty notice
COVERED PRODUCTS: This warranty covers all products manufactured by Hemisphere GNSS and purchased by the
settings. UNSAFE DRIVING OR SYSTEM CONTROL SETTINGS CAN RESULT IN PROPERTY DAMAGE, INJURY, OR DEATH.
Warranty Notice
end purchaser (the "Products"), unless otherwise specifically and expressly agreed in writing by Hemisphere GNSS.
LIMITED WARRANTY: Hemisphere GNSS warrants solely to the end purchaser of the Products, subject to the
exclusions and procedures set forth below, that the Products sold to such end purchaser and its internal
components shall be free, under normal use and maintenance, from defects in materials, and workmanship and will
substantially conform to Hemisphere GNSS's applicable specifications for the Product, for a period of 12 months
from delivery of such Product to such end purchaser (the ”Warranty Period”). Repairs and replacement components
for the Products are warranted, subject to the exclusions and procedures set forth below, to be free, under normal
use and maintenance, from defects in material and workmanship, and will substantially conform to Hemisphere
GNSS's applicable specifications for the Product, for 90 days from performance or delivery, or for the balance of the
original Warranty Period, whichever is greater.
EXCLUSION OF ALL OTHER WARRANTIES. The LIMITED WARRANTY shall apply only if the Product is properly and
correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS
relevant User’s Manual and Specifications, AND the Product is not modified or misused. The Product is provided “AS
IS” and the implied warranties of MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE and ALL OTHER
WARRANTIES,
express, implied or arising by statute, by course of dealing or by trade usage, in connection with the design, sale,
installation, service or use of any products or any component thereof, are EXCLUDED from this transaction and shall
not apply to the Product. The LIMITED WARRANTY is IN LIEU OF any other warranty, express or implied, including
but not limited to, any warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, title, and noninfringement.
LIMITATION OF REMEDIES. The purchaser’s EXCLUSIVE REMEDY against Hemisphere GNSS shall be, at Hemisphere
GNSS's option, the repair or replacement of any defective Product or components thereof. The purchaser shall
notify Hemisphere GNSS or a Hemisphere GNSS's approved service center immediately of any defect. Repairs shall
be made through a Hemisphere GNSS approved service center only. Repair, modification or service of Hemisphere
GNSS products by any party other than a Hemisphere GNSS approved service center shall render this warranty null
and void. The remedy in this paragraph shall only be applied in the event that the Product is properly and correctly
installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS's relevant
User’s Manual and Specifications, AND the Product is not modified or misused. NO OTHER REMEDY (INCLUDING,
BUT NOT LIMITED TO, SPECIAL, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR CONTINGENT DAMAGES FOR LOST
PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS)
SHALL BE AVAILABLE
TO PURCHASER, even if Hemisphere GNSS has been advised of the possibility of such damages. Without limiting the
foregoing, Hemisphere GNSS shall not be liable for any damages of any kind resulting from installation, use, quality,
performance or accuracy of any Product.
HEMISPHERE IS NOT RESPONSIBLE FOR PURCHASER’S NEGLIGENCE OR UNAUTHORIZED USES OF THE PRODUCT.
IN NO EVENT SHALL Hemisphere GNSS BE IN ANY WAY RESPONSIBLE FOR ANY DAMAGES RESULTING FROM
PURCHASER’S OWN NEGLIGENCE, OR FROM OPERATION OF THE PRODUCT IN ANY WAY OTHER THAN AS SPECIFIED
IN Hemisphere GNSS's RELEVANT USER’S MANUAL AND SPECIFICATIONS. Hemisphere GNSS is NOT
RESPONSIBLE for defects or performance problems resulting from (1) misuse, abuse, improper installation, neglect
of Product; (2) the utilization of the Product with hardware or software products, information, data, systems,
interfaces or devices not made, supplied or specified by Hemisphere GNSS; (3) the operation of the Product under
any specification other than, or in addition to, the specifications set forth in Hemisphere GNSS's relevant User’s
Manual and Specifications; (4) damage caused by accident or natural events, such as lightning (or other electrical
discharge) or fresh/ salt water immersion of Product; (5) damage occurring in transit; (6) normal wear and tear; or
(7) the operation or failure of operation of any satellite-based positioning system or differential correction service;
or the availability or performance of any satellite-based positioning signal or differential correction signal.
THE PURCHASER IS RESPONSIBLE FOR OPERATING THE VEHICLE SAFELY. The purchaser is solely responsible for the
safe operation of the vehicle used in connection with the Product, and for maintaining proper system control
Continued on next page
Page 96
Warranty
The purchaser is solely responsible for his/her safety and for the safety of others. The purchaser is solely
TECHSUPPORT@HREGNSS.COM WWW.HGNSS.COM
Warranty Notice, Continued
notice,
continued
responsible for maintaining control of the automated steering system at all times. THE PURCHASER IS SOLELY
RESPONSIBLE FOR ENSURING THE PRODUCT IS PROPERLY AND CORRECTLY INSTALLED, CONFIGURED, INTERFACED,
MAINTAINED, STORED, AND OPERATED IN ACCORDANCE WITH Hemisphere GNSS's RELEVANT USER’S MANUAL
AND SPECIFICATIONS. Hemisphere GNSS does not warrant or guarantee the positioning and navigation precision or
accuracy obtained when using Products. Products are not intended for primary navigation or for use in safety of life
applications. The potential accuracy of Products as stated in Hemisphere GNSS literature and/or Product
specifications serves to provide only an estimate of achievable accuracy based on performance specifications
provided by the satellite service operator (i.e. US Department of Defense in the case of GPS and differential
correction service provider. Hemisphere GNSS reserves the right to modify Products without any obligation to
notify, supply or install any improvements or alterations to existing Products.
GOVERNING LAW. This agreement and any disputes relating to, concerning or based upon the Product shall be
governed by and interpreted in accordance with the laws of the State of Arizona.
OBTAINING WARRANTY SERVICE. In order to obtain warranty service, the end purchaser must bring the Product to
a Hemisphere GNSS approved service center along with the end purchaser's proof of purchase. Hemisphere GNSS
does not warrant claims asserted after the end of the warranty period. For any questions regarding warranty
service or to obtain information regarding the location of any of Hemisphere GNSS approved service center, contact
Hemisphere GNSS at the following address:
Hemisphere GNSS
8515 E. Anderson Drive Scottsdale, AZ 85255, USA
Phone: +1-480-348-6380
Fax: +1-480-270-5070
Page 97
Hemisphere GNSS Inc.
8515 East Anderson Drive, Suite A
Scottsdale, Arizona, US 85255
Phone: 480-348-6380
Fax: 480-270-5070
PRECISION@HGNSS.COM
WWW.HGNSS.COM
Loading...
