Page 1
875
User Guide
Rev
June 27, 2018
ision: A1
-0387-0 Vector V123/133
GPS Compass
Page 2
875-0387-0 V123/133 User Guide Rev A1
Page
Table of Contents
Device Compliance, License and Patents ............................................................................ 4
Terms and Definitions ......................................................................................................... 6
Chapter 1: Introduction .............................................................................................................. 8
Overview ............................................................................................................................. 8
Product Overview ............................................................................................................... 9
Key Features ...................................................................................................................... 13
What’s Included in Your Kit............................................................................................... 14
Using PocketMax4 to Communicate with the V123/133 ................................................. 16
Firmware Upgrades ........................................................................................................... 20
Chapter 2: Installing the V123/133 ........................................................................................... 25
Overview ........................................................................................................................... 25
Mounting the V123/133 ................................................................................................... 26
Ports .................................................................................................................................. 43
Selecting Baud Rates and Message Types ........................................................................ 45
Connecting the V123/133 to External Devices ................................................................. 46
Chapter 3: Understanding the V123/133 ................................................................................. 49
Overview ........................................................................................................................... 49
Differential Operation ....................................................................................................... 50
SBAS Tracking .................................................................................................................... 50
GNSS Overview ................................................................................................................. 51
Atlas L-band ...................................................................................................................... 52
Supplemental Sensors....................................................................................................... 53
Time Constants ................................................................................................................. 56
Chapter 4: Operating the V123/133 ......................................................................................... 58
Overview ........................................................................................................................... 58
Powering the V123/133 .................................................................................................... 59
Beacon Operation ............................................................................................................. 60
Alarm Functionality ........................................................................................................... 61
2 of 93
Page 3
875-0387-0 V123/133 User Guide Rev A1
Page
Appendix A: Troubleshooting ................................................................................................... 62
Overview ........................................................................................................................... 62
Troubleshooting ................................................................................................................ 63
Appendix B: Technical Specifications ........................................................................................ 67
Technical Specifications .................................................................................................... 67
V123/133 Technical Specifications ................................................................................... 68
Appendix C: Commands and Messages .................................................................................... 72
Overview ........................................................................................................................... 72
Commands ........................................................................................................................ 73
Binary Messages ............................................................................................................... 75
NMEA Messages ............................................................................................................... 77
Index .................................................................................................................................. 94
End User License Agreement ............................................................................................ 95
Warranty Notice ................................................................................................................ 99
3 of 93
Page 4
875-0387-0 V123/133 User Guide Rev A1
Page
Device Compliance, License and Patents
Device Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
declaration of conformity may be consulted at HTTPS://HEMISPHEREGNSS.COM/ABOUT-US/QUALITY-COMMITMENT.
Copyright Notice
Copyright Hemisphere GNSS, Inc. (2018). All rights reserved.
chemical, manual or otherwise, without the prior written permission of Hemisphere GNSS.
Trademarks
Hemisphere GNSS®, the Hemisphere GNSS logo, TRACERTM, Crescent®, EclipseTM, e-Dif®, L-DifTM, PocketMax4TM,
are the properties of their respective owners.
Patents
Hemisphere GNSS products may be covered by one or more of the following patents:
6111549
6876920
7400956
8000381
6397147
7142956
7429952
8018376
6469663
7162348
7437230
8085196
6501346
7277792
7460942
8102325
6539303
7292185
7689354
8138970
6549091
7292186
7808428
8140223
6711501
7373231
7835832
8174437
6744404
7388539
7885745
8184050
6865465
7400294
7948769
8190337
8214111
8217833
8265826
8271194
8307535
8311696
8334804
RE41358
Australia Patents
2002244539
2002325645
2004320401
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
This product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The
No part of this manual may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into
any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
S320TM, SBX-4TM, VectorTM, XF1TM, and XF2
TM
are proprietary trademarks of Hemisphere GNSS, Inc. Other trademarks
Continued on next page
4 of 93
Page 5
875-0387-0 V123/133 User Guide Rev A1
Page
Device Compliance, License and Patents, Continued
Notice to Customers
Contact your local dealer for technical assistance. To find the authorized dealer near you:
WWW.HGNSS.COM
Technical Support
If you need to contact Hemisphere GNSS Technical Support:
SUPPORT.HGNSS.COM
Documentation
Hemisphere GNSS is committed to the quality and continuous improvement of our products and services. We urge
website: SUPPORT.HGNSS.COM
Hemisphere GNSS, Inc
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: (480) 348-6380
Fax: (480) 270-5070
PRECISION@HGNSS.COM
Hemisphere GNSS, Inc.
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: (480) 348-6380
Fax: (480) 270-5070
Feedback
you to provide Hemisphere GNSS with any feedback regarding this guide by opening a support case at the following
5 of 93
Page 6
875-0387-0 V123/133 User Guide Rev A1
Page
Terms and Definitions
Introduction
The following table lists the terms and definitions used in this document.
V123/133 terms
Term
Definition
Activation
Activation refers to a feature added through a onetime purchase.
Atlas
Atlas is a subscription-based service provided by
meter accuracy without a base station or datalink.
Beacon
Refers to a base station that transmits a DGPS signal
over a radio frequency between 283.5 and 325.0 kHz.
Base Station
The Base Station is a receiver placed over a familiar
or the internet.
BeiDou
BeiDou is a Chinese satellite-based navigation system.
DGPS/DGNSS
Differential GPS/GNSS refers to a receiver using
Differential Corrections.
Differential
A method of improving precision of a GNSS rover. Two
point.
Elevation Mask
Elevation Mask is the minimum angle between a
satellite in the solution.
& definitions
Hemisphere that enables the V123/133 to achieve sub-
point, provides real-time observations, and sends
those observations to nearby RTK rovers via UHF radio
Corrections
GNSS receivers placed in a nearby area will have
similar error. A base station is placed over a known
satellite and the horizon for the receiver to use that
Continued on next page
6 of 93
Page 7
875-0387-0 V123/133 User Guide Rev A1
Page
Terms and Definitions, Continued
V123/133 terms
Term
Definition
Firmware
Firmware is the software loaded into the receiver that
GNSS engine.
GALILEO
Galileo is a global navigation satellite system
Space Agency.
GLONASS
Global Orbiting Navigation Satellite System (GLONASS)
maintained by Russia.
Heading
The vector created from the primary to secondary
facing
Vector Receiver
A Hemisphere GNSS receiver capable of providing
heading
& definitions,
continued
controls the functionality of the receiver and runs the
implemented by the European Union and European
is a Global Navigation Satellite System deployed and
antenna. It points to the direction that the receiver is
7 of 93
Page 8
875-0387-0 V123/133 User Guide Rev A1
Page
Overview
Introduction
This User Guide provides information to help you quickly set up your
website at
.
Contents
Topic
See Page
Product Overview
9
Key Features
13
What’s Included in Your Kit
14
Using PocketMax4 to Communicate with the V123/133
16
Firmware Upgrades
20
Chapter 1: Introduction
V123/133. You can download this manual from the Hemisphere GNSS
WWW.HGNSS.COM
8 of 93
Page 9
875-0387-0 V123/133 User Guide Rev A1
Page
Product Overview
Product
The Vector V123/V133™ GNSS Compass supports GPS, GLONASS, Galileo,
ECDIS, scanning sonar and vessel control applications.
overview
QZSS, and BeiDou satellites using Hemisphere GNSS’ Crescent Vector H220™
GNSS module. This User Guide is available for download on the
www.HGNSS.com.
Note: When referring to both the Vector V123 and V133™ GNSS Compass,
this manual uses the term V123/133. When referring to either product this
manual uses either V123 or V133, respectively.
The V123/V133 is designed for marine and land applications that require
precise heading and sub-meter position performance. Featuring a Crescent
Vector GNSS receiver and two separate antennas, V123/V133 achieves
heading accuracy of 0.30º RMS.
The V123/V133 tracks single frequency GPS, GLONASS, Galileo, QZSS, and
BeiDou. The V123/133 can be upgraded via activations to support Atlas Lband.
The V123/133 is a complete multi-GNSS compass system for heading and
positioning in a single enclosure that requires only one power/data cable
connection. With its CAN support and ease of installation, the V123/133 is
the perfect solution for professional, commercial marine, Radar/ARPA, AIS,
Continued on next page
9 of 93
Page 10
875-0387-0 V123/133 User Guide Rev A1
Page
Product Overview, Continued
Product
There are no mechanical parts such as gimbals or a rotating motor, thus the
heading-based products.
overview,
continued
V123 and V133 Compass is free from routine maintenance. Heading is
determined from GNSS, and there is no need to wait for settling time,
gyrocompass calibration and speed corrections. Vector performance is not
affected by geomagnetism making it the perfect solution for any marine
application.
The V123/133 is an integrated system that houses the following:
• Crescent and Crescent Vector H220 module
• Dual GNSS multipath-resistant antennas
• DGPS beacon module and H-field beacon antenna (V133 only)
• Power supply
• Six-axis sensor
The sensor is present to improve system performance and to provide backup
heading information in the event a GNSS heading is not available due to
signal blockage. The sensor provides a substitute heading, accurate to within
1º per minute for up to three minutes.
The V133 has an internal Beacon antenna capable of receiving these signals,
demodulating them, and applying the differential correction to the GNSS
position
Note: The V123 GNSS Compass is identical to the V133 GNSS Compass;
however, the V123 GNSS Compass does not contain a DGPS beacon module
and antenna. If you purchased the V123 GNSS Compass, disregard the
sections of this manual that discuss the beacon signal, receiver operation,
and implications to installation relating to the beacon signal.
The Crescent Vector H220 module supports multiple RF front ends - enabling
tighter coupling of measurements from separate antennas for use in
Continued on next page
10 of 93
Page 11
875-0387-0 V123/133 User Guide Rev A1
Page
Product Overview, Continued
Product
The V123/133’s GPS antennas are separated by 50.0 cm between phase
Figure 1-1: V123/V133
overview,
continued
centers, resulting in a heading performance better than 0.30° RMS. The
V123/133 can provide heading and positioning updates of up to 50 Hz and
delivers positioning accuracy of 0.6 m 95% of the time when using
differential GPS corrections from beacon (V133 only) or from Satellite Based
Augmentation Systems (SBAS).
The V123/133 also features Hemisphere GNSS’ exclusive Tracer™ technology,
which enables Hemisphere GNSS receivers to utilize old differential GPS
correction data for 40 minutes or more without significantly affecting the
positioning quality. The V123/133 is less likely to be affected by differential
signal outages due to signal blockages, weak signals, or interference when
using Tracer.
If you are new to GNSS and SBAS, refer to the Hemisphere GNSS Technical
Reference Manual (for further information on these services and
technologies before proceeding.
Continued on next page
11 of 93
Page 12
875-0387-0 V123/133 User Guide Rev A1
Page
Product Overview, Continued
Atlas L-band
Atlas L-band is Hemisphere's industry leading correction service, which can
the absence of correction signals, using Hemisphere’s patented technology
For more
For more information about Athena RTK, see:
://
be added to the V123/133 as a subscription. Atlas L-band has the following
benefits:
• Positioning accuracy - Competitive positioning accuracies down to 30 cm
RMS in certain applications
• Positioning sustainability - Cutting edge position quality maintenance in
information
HTTP://HGNSS.COM/TECHNOLOGY
For more information about Atlas L-band, see:
HTTP
HGNSS.COM/ATLAS
12 of 93
Page 13
875-0387-0 V123/133 User Guide Rev A1
Page
Key Features
V123/133 Key
Key features of the V123/133 include:
during temporary loss of GNSS
features
• Sub-meter positioning
• DGNSS corrections from all SBAS constellations and over beacon
• Position accuracies of 30 cm horizontal RMS without the need of a base
station by using Atlas L-band* (*Requires the purchase of a subscription)
• Heave of 30 cm RMS (DGNSS)
• Heading accuracy of 0.30
º
RMS
• Pitch and roll < 1° RMS
• Simple menu operations
• 1 PPS output
• Event marker input
• 2 full-duplex RS232 and 1 half-duplex RS422 serial ports for NMEA 0183
output and serial configuration
• Up to 50 Hz output
• Accurate heading up to 3 minutes during GNSS outages
• Integrated sensor delivers fast startup times and provide heading updates
13 of 93
Page 14
875-0387-0 V123/133 User Guide Rev A1
Page
What’s Included in Your Kit
V123/133 kit
Table 1-1 lists the parts included with your V123 or V133. The V123/133 GPS
the weather.”
V123/133 Parts
Table 1-1 V123/133 Parts list
Part No.
Description
Qty
Vector kit
• Vector V133 IMO GNSS Compass
Vector receiver model
V133
Compass and the power/data cable (accessory item) are the only two
required components.
Note: The V123/133’s parts comply with IEC 60945 Section 4.4: “Exposed to
list
940-3123-xx
940-3131-xx
940-3124-xx
940-3132-xx
804-0156-xx
804-0157-xx
• Vector V123 GNSS Compass
• Vector V123 IMO GNSS Compass
• Vector V133 GNSS Compass
(one of the following models):
• V123
•
1
1
Continued on next page
14 of 93
Page 15
875-0387-0 V123/133 User Guide Rev A1
Page
What’s Included in Your Kit, Continued
V123/133 Parts
All the following are accessory items available for purchase separately from
Part No.
Description
Qty
880-1042-000
Power/data cable, 15 m
1
880-1043-000
Power/data cable, 30 m
• Washer
1
710-0113-000#
Serial-to-NMEA 2000 adapter, includes the
Washers
1
602-1113-000#
Installation bracket (black)
1
400-0246-000#
Replacement connector, 18-pin
1
list, continued
your V123 or V133.
Each cable includes:
• Clamp
• Screw
following items:
• Screws
•
15 of 93
Page 16
875-0387-0 V123/133 User Guide Rev A1
Page
Using PocketMax4 to Communicate with the V123/133
Using
First, power on and connect the receiver to your computer’s com port. A
PocketMax4 to
communicate
with the
V123/133

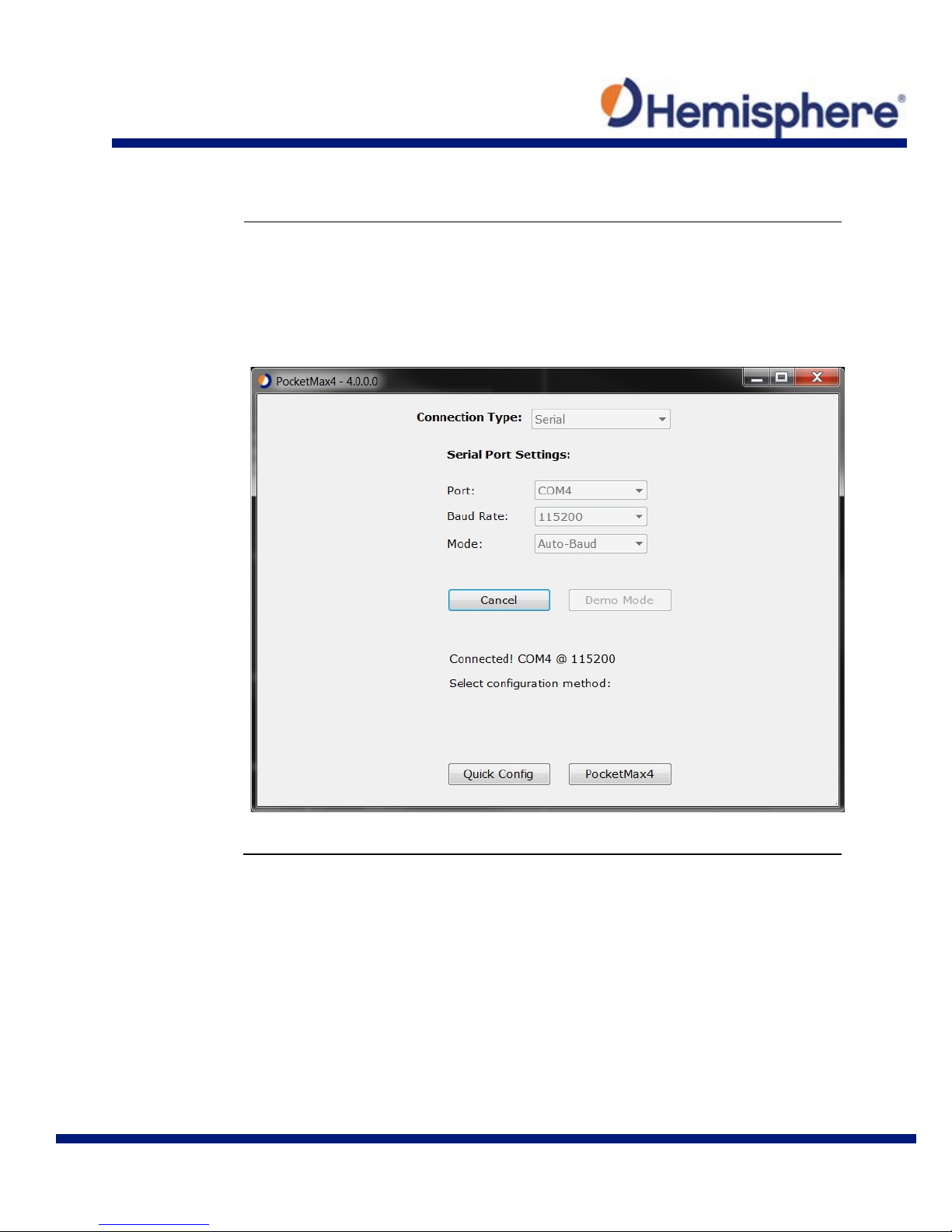

configuration screen appears prompting you to choose the COM port and
baud rate of the receiver.
Choose from the following communications settings options:
• Select COM Port.
• If you do not know the baud rate, select the Auto-Baud feature to
cycle through all possible baud rates, and click Connect.
Continued on next page
16 of 93
Page 17
875-0387-0 V123/133 User Guide Rev A1
Page
Using PocketMax4 to Communicate with the V123/133, Continued
Using
PocketMax4 to
communicate
with the
V123/133,
continued
Continued on next page
17 of 93
Page 18
875-0387-0 V123/133 User Guide Rev A1
Page
Using PocketMax4 to Communicate with the V123/133, Continued
Using
You can monitor your connection status through the message displayed at
PocketMax4 to
communicate
with the
V123/133,
continued
the bottom of the screen.
If you receive a message “Receiver not found…” check your connections,
your com port, and your baud rate and try to re-send.
Continued on next page
18 of 93
Page 19
875-0387-0 V123/133 User Guide Rev A1
Page
Using PocketMax4 to Communicate with the V123/133, Continued
Using

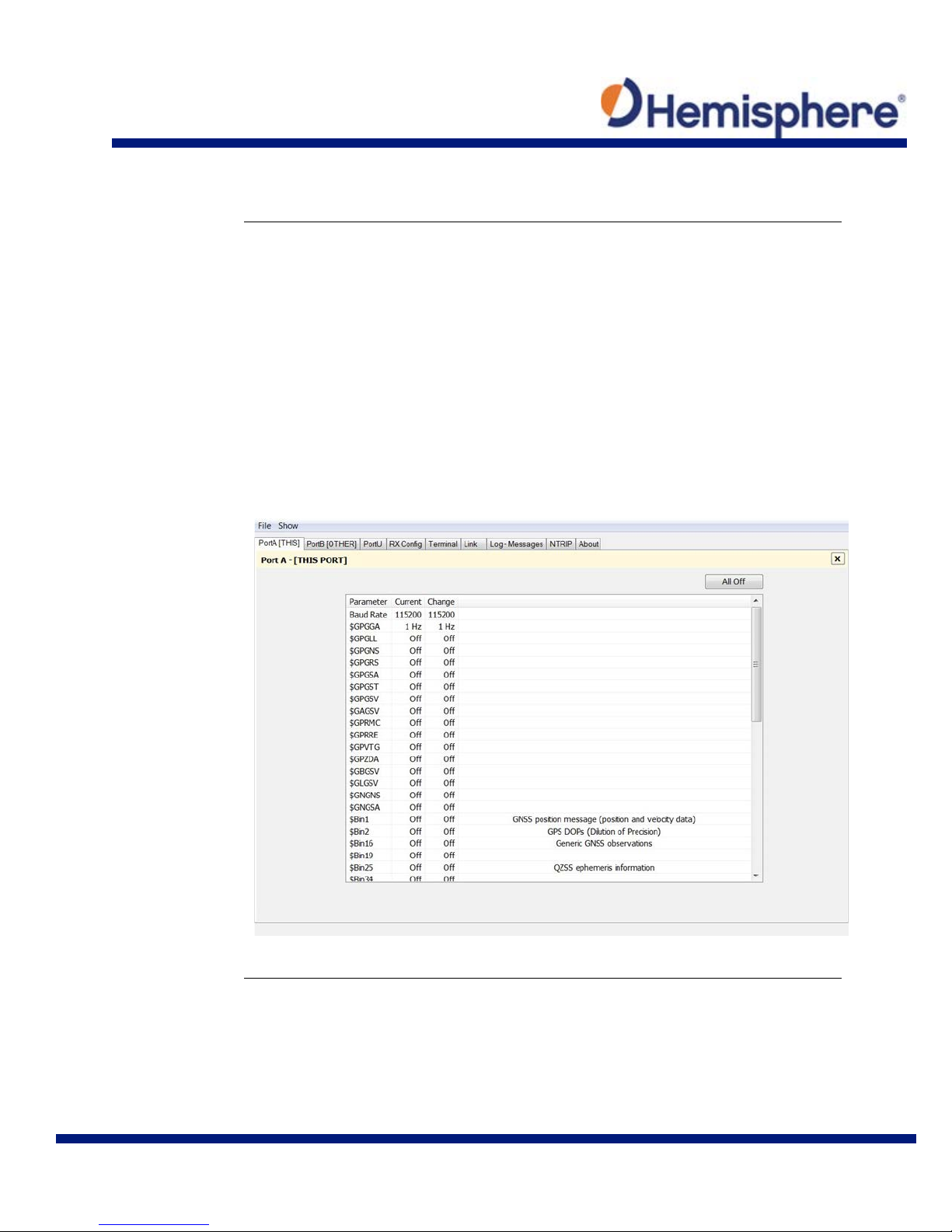

The Quick Configuration screen allows you to use “PortA” and “PortB” tabs
PocketMax4 to
communicate
with the
V123/133,
continued
to configure the output messages and baud rates of these two ports.
The Port displaying “[THIS]” is the port currently connected. “[OTHER]” is the
other port.
Enable all desired messages for PortA and PortB.
Use RxConfig to make basic receiver configurations. To exit the software,
click Save Settings and Disconnect. For all other PocketMax4 questions,
please reference the PocketMax4 User Guide on the HGNSS website.
19 of 93
Page 20
875-0387-0 V123/133 User Guide Rev A1
Page
Firmware Upgrades
Overview
Periodically, Hemisphere GNSS releases firmware upgrades to improve
HTTPS://HGNSS.COM/RESOURCES-SUPPORT/SOFTWARE.
RightArm
Connect the V123/133 to a computer over serial. Firmware can be loaded
performance, fix bugs, or add new features to a product. To update the
firmware on the V123/133:
1. Download the latest version of Hemisphere GNSS RightArm from the
following link:
updates
over either serial port. Set the baud rate of the serial port you are using to
19200.

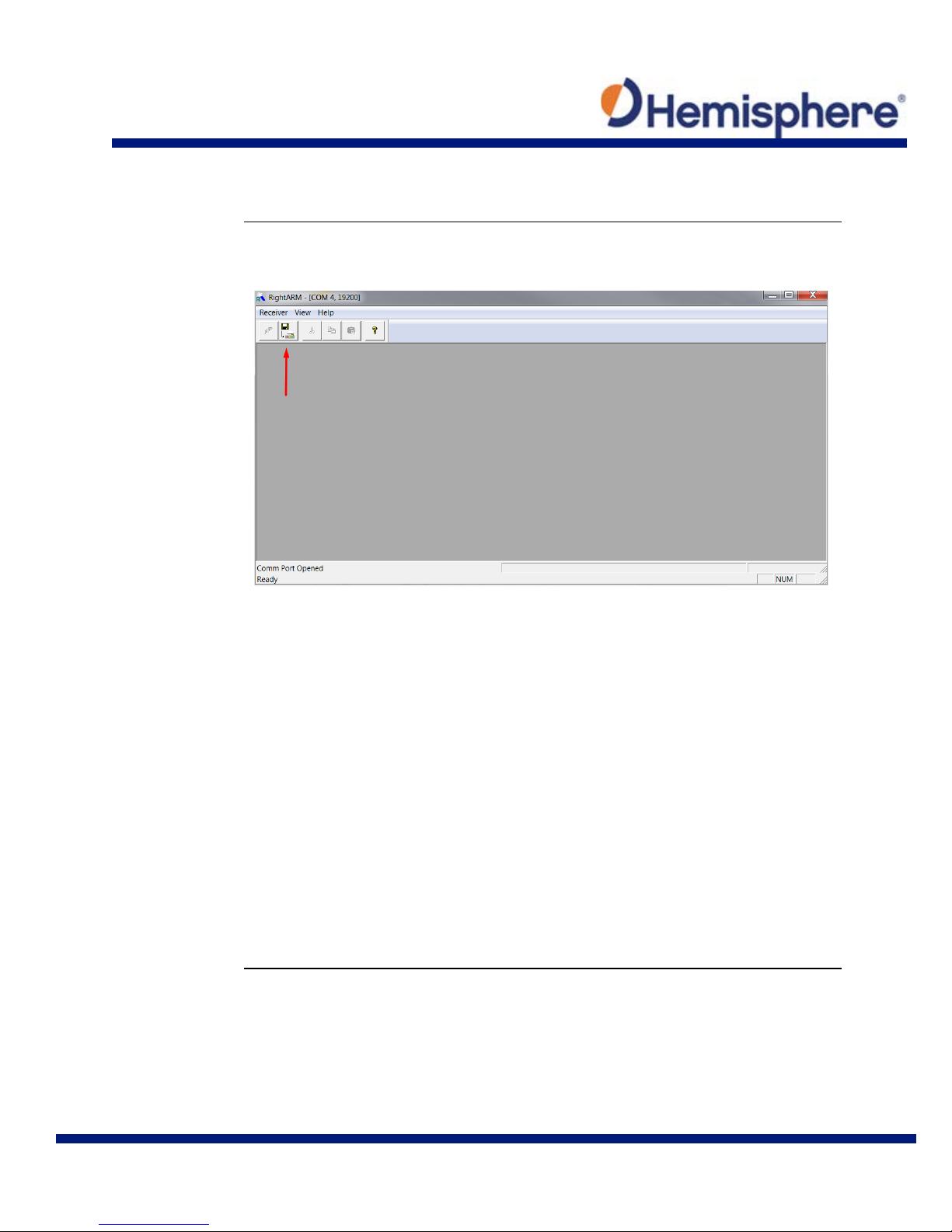

Launch RightArm.

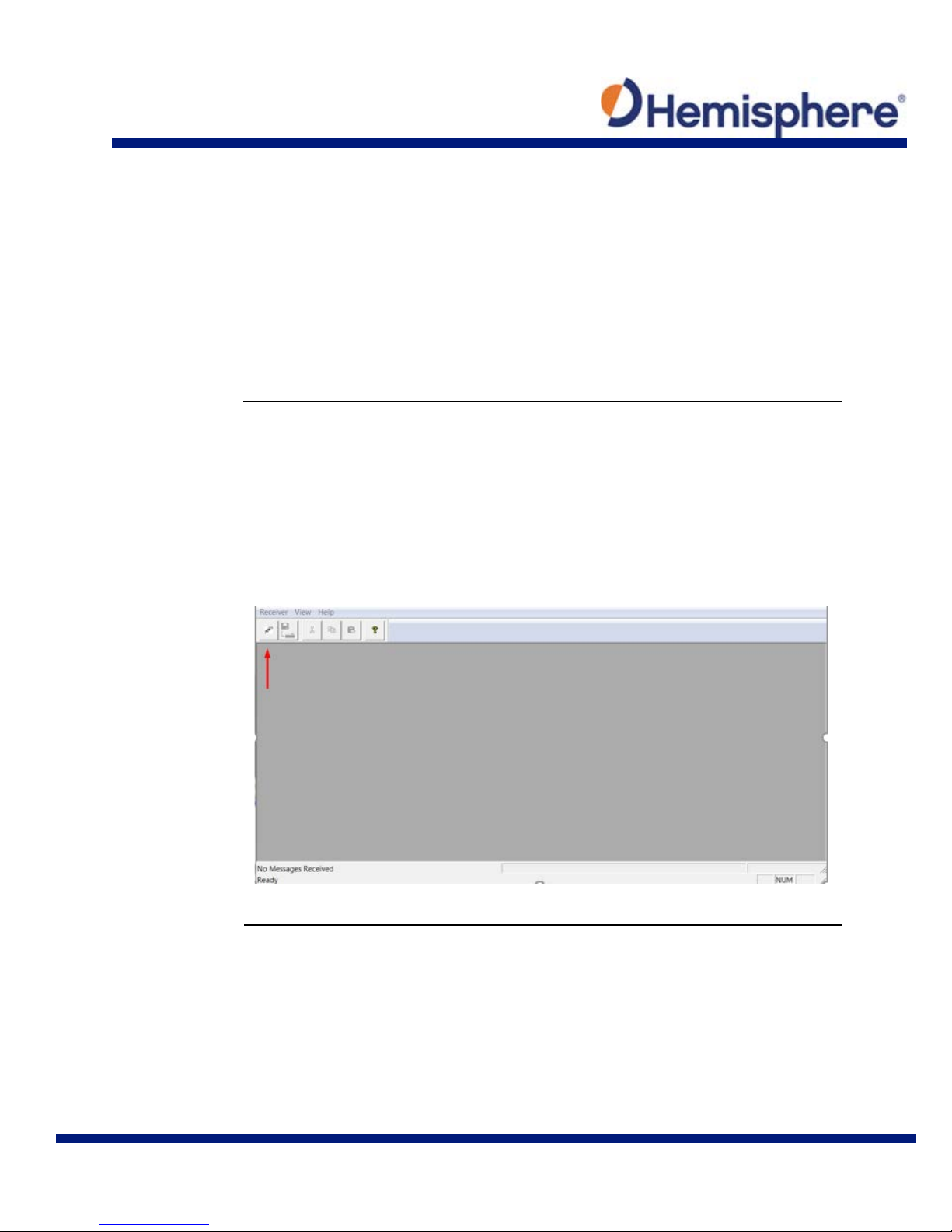

Click the Connect button or navigate to Receiver -> Connect.
Continued on next page
20 of 93
Page 21
875-0387-0 V123/133 User Guide Rev A1
Page
Firmware Upgrades, Continued
RightArm
Choose the COM port connected to the V123/133 and click OK.
updates,
continued
Note: The baud rate of the serial port should be set to 19200 bps. Select
“Allow Auto Baud” to change the baud rate during the firmware upgrade for
a faster update.
Continued on next page
21 of 93
Page 22
875-0387-0 V123/133 User Guide Rev A1
Page
Firmware Upgrades, Continued
RightArm
Click the Programming button.
Choose the Application, and press Select File to select the firmware file.
updates,
continued
Select a Program Type.
The V123/133 has two firmware applications, allowing two different versions
of GNSS firmware. Hemisphere GNSS suggests loading the new firmware
onto both applications.
After the firmware update is completed, check the current GNSS firmware.
If the current firmware is not the same as the newly loaded firmware, the
V123/133 could be using the other application. You can switch applications
by sending the following command:
$JAPP,OTHER.
Continued on next page
22 of 93
Page 23
875-0387-0 V123/133 User Guide Rev A1
Page
RightArm
Firmware Upgrades, Continued
updates,
continued
Choose the firmware, and click Erase and Program.
The Activate Loader checkbox in the Programming View window is selected.
After pressing the Erase and Program button, this checkbox will de-select,
and the Status field indicates the receiver is in loader mode (ready to receive
the new firmware file).
Continued on next page
23 of 93
Page 24
875-0387-0 V123/133 User Guide Rev A1
Page
Firmware Upgrades, Continued
RightArm
Note: If the Activate Loader check box remains selected, power the receiver
repeating this process for the other application.
updates,
continued
off and on. When the receiver powers back on, the Activate Loader box
should be de-selected.
Do not to interrupt the power supply to the receiver, and do not interrupt
the communication link between the PC and the receiver until
programming is complete. Failure to do so may cause the receiver to
become inoperable and will require factory repair.
Note: After completing the firmware update, Hemisphere GNSS suggests
24 of 93
Page 25
875-0387-0 V123/133 User Guide Rev A1
Page
Chapter 2: Installing the V123/133
Introduction
This chapter provides instructions on how to mount and install your
V123/133 receiver.
Contents
Topic
See Page
Mounting the V123/133
26
Ports
43
Selecting Baud Rates and Message Types
45
Connecting the V123/133 to External Devices
46
Overview
25 of 93
Page 26
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133
Introduction
This section provides information on mounting the V123/133 in the optimal
other mounting options.
GNSS satellite
When considering where to mount the V123/133, consider the following

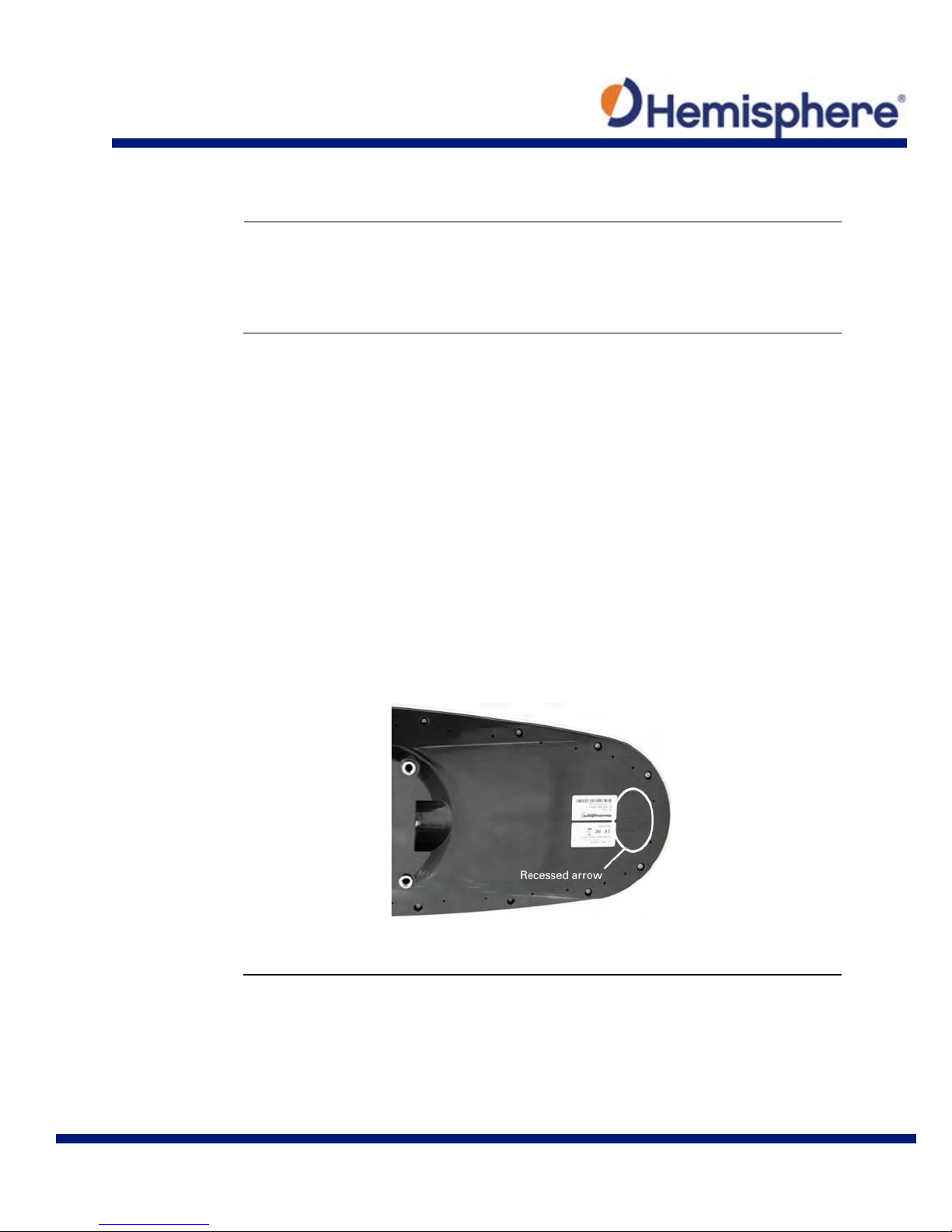

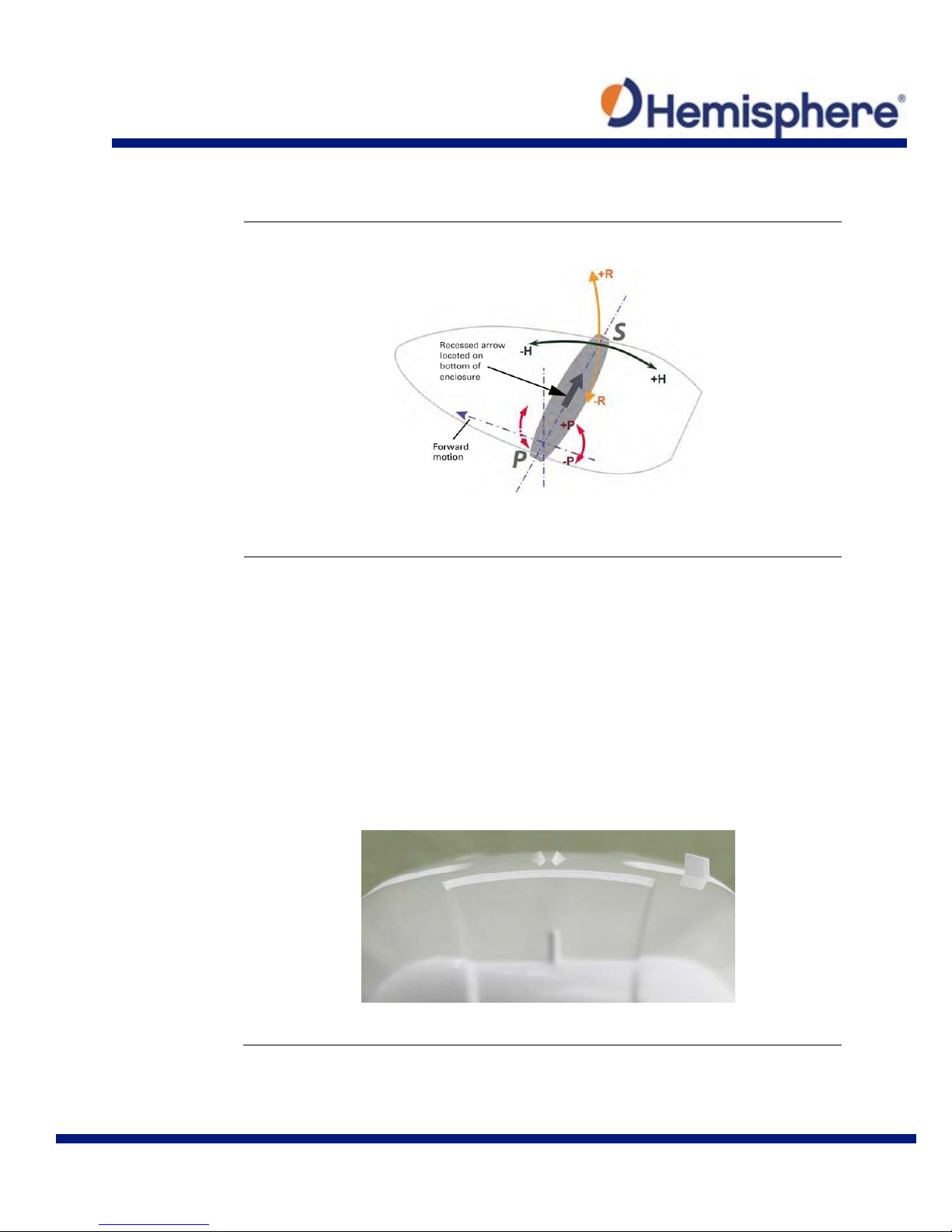

Figure 2-1: Recessed arro w
location, orientation considerations, environmental considerations, and
reception
satellite reception recommendations:
• Ensure there is a clear view of the sky available to the V123/133 so the
GNSS and L-band satellites are not masked by obstructions that may reduce
system performance
• Mount the V123/133 in a position in respect to the primary GNSS antenna
(located on the end opposite the recessed arrow on the underside of the
enclosure)

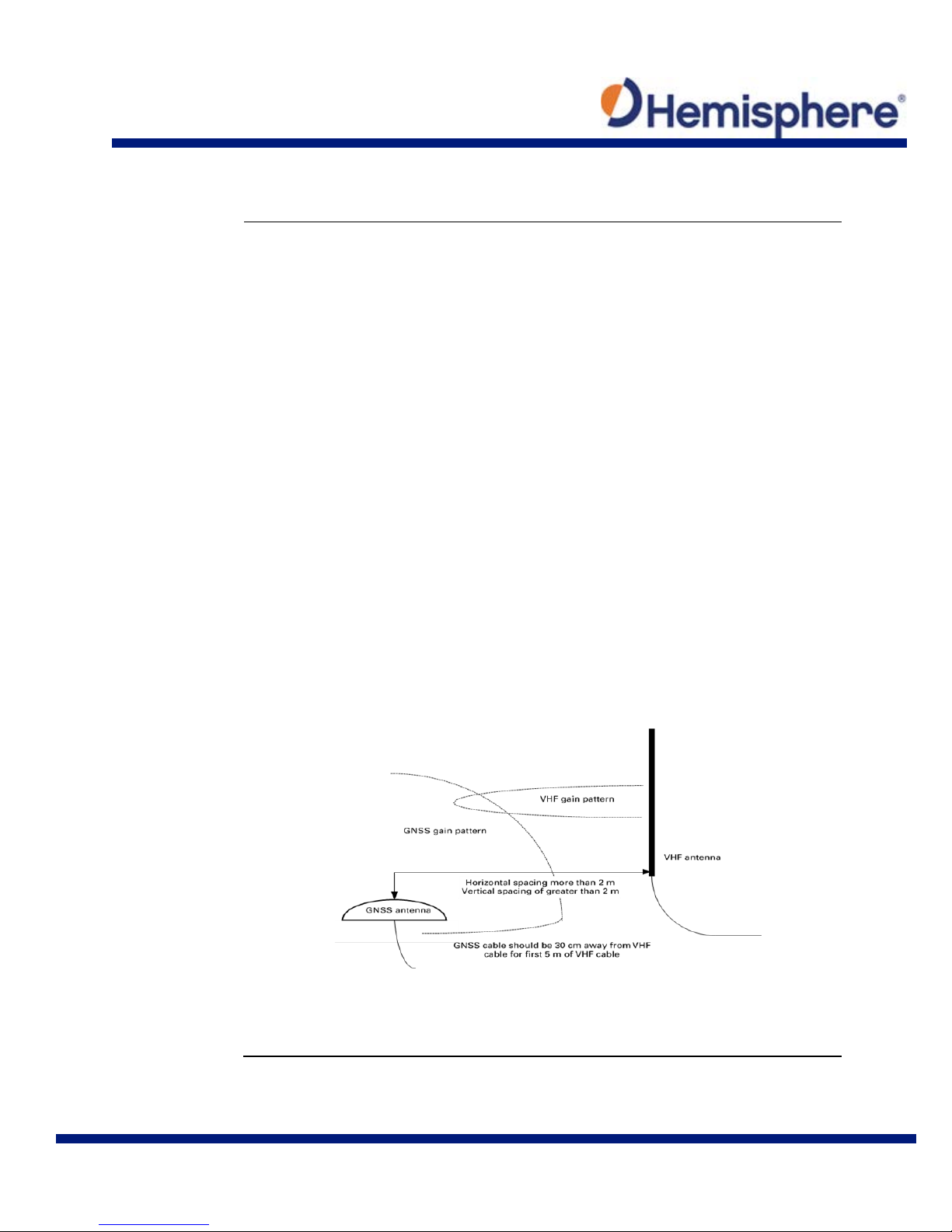

• Locate any transmitting antennas away from the V123/133 by at least a
few meters to ensure tracking performance is not compromised
• Ensure cable length is adequate to route into the vessel to reach a
breakout box or terminal strip
• Do not locate the antenna where environmental conditions exceed those
specified in Appendix B, Technical Specifications of this document.
Continued on next page
26 of 93
Page 27
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Beacon
When using the V133’s internal beacon receiver as the correction source,
the Hemisphere GNSS Technical Reference Manual.
reception
consider the possible mounting locations from the perspective of ambient
noise within the beacon band.
Keep the following in mind when deciding upon a location with respect to
maximizing beacon performance:
• Ensure that the antenna is as far as possible from all other equipment that
emits electromagnetic interference (EMI), including DC motors, alternators,
solenoids, radios, power cables, display units, and other electronic devices.
• If you are installing the antenna on a vessel, mount the Vector compass as
high as possible, considering maintenance and accessibility. In addition,
ensure that the antenna is higher than the highest metal object on the
vessel.
• If a radar system is present, mount the antenna outside the path of the
radar beam.
The V133’s internal beacon receiver calculates a signal-to-noise ratio (SNR),
measured in decibels (dB), that indicates the receiver’s performance. The
SNR is the height of the signal above the noise floor: the higher the SNR, the
better your beacon receiver demodulates the signal.
The optimum antenna location is a position where your average SNR is
highest. You should turn on all accessories you intend to use during normal
operation when locating the best position for the antenna. By monitoring the
SNR, you can determine the optimum location with respect to beacon
reception. The SNR is available in the $CRMSS NMEA message described in
Continued on next page
27 of 93
Page 28
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
VHF
VHF interference from such devices as cellular phones and radio transmitters
interference
may interfere with GPS operation, however the Vector compass can still
track other constellations, maintaining heading and position.
For example, if installing the V123/133 near marine radios, consider the
following:
• VHF marine radio working frequencies (Channels 1 to 28 and 84 to 88)
range from 156.05 to 157.40 MHz. The L1 GPS working center frequency is
1575.42 MHz. The bandwidth is +/- 2MHz to +/- 10 MHz, which is
dependent on the GNSS antenna and receiver design.
• VHF marine radios emit strong harmonics. The 10th harmonic of VHF radio,
in some channels, falls into the GPS working frequency band, which may
cause the SNR of GNSS to degrade significantly.
• The radiated harmonic signal strength of different brands/models varies.
• Follow VHF radio manufacturers’ recommendations on how to mount their
radios and what devices to keep a safe distance away.
• Handheld 5W VHF radios may not provide suitable filtering and may
interfere with the V123/133’s operation if too close.
Before installing the Vector Compass, use the following diagram to ensure
there are no nearby devices that may cause VHF interference.
Figure 2-2: V123/133 distance from nearby VHF radios
Continued on next page
28 of 93
Page 29
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Environmental
Hemisphere Vector Smart Antennas are designed to withstand harsh
• Humidity: 95% non-condensing
Mounting
The V123/133 outputs heading, pitch, and roll readings regardless of the
Hemisphere GNSS Technical Reference Manual.
Parallel
Parallel installation orients the V123/133 parallel to, and along the centerline
if the Vector is not installed in a horizontal plane.
considerations
orientation
environmental conditions; however, adhere to the following limits when
storing and using the V123/133:
• Operating temperature: -30°C to +70°C (-22°F to +158°F)
• Storage temperature: -40°C to +85°C (-40°F to +185°F)
orientation of the antennas. The relation of the antennas to the vessel’s axis
determines if you need to enter a heading, pitch, or roll bias.
The primary antenna is used for positioning and the primary and secondary
antennas, working in conjunction, output heading, pitch, and roll values.
Note: Regardless of which mounting orientation you use, the V123/133
provides the ability to output the heave of the vessel. This output is available
via the $GPHEV message. For more information on this message refer to the
orientation
of, the axis of the vessel. This provides a true heading. In this orientation:
• If you use a gyrocompass and there is a need to align the Vector smart
antenna, you can enter a heading bias in the V123/133 to calibrate the
physical heading to the true heading of the vessel.
• You may need to adjust the pitch/roll output to calibrate the measurement
Continued on next page
29 of 93
Page 30
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Perpendicular
You can also install the antennae, so they are oriented perpendicular to the
if the Vector is not installed in a horizontal plane.
Mounting

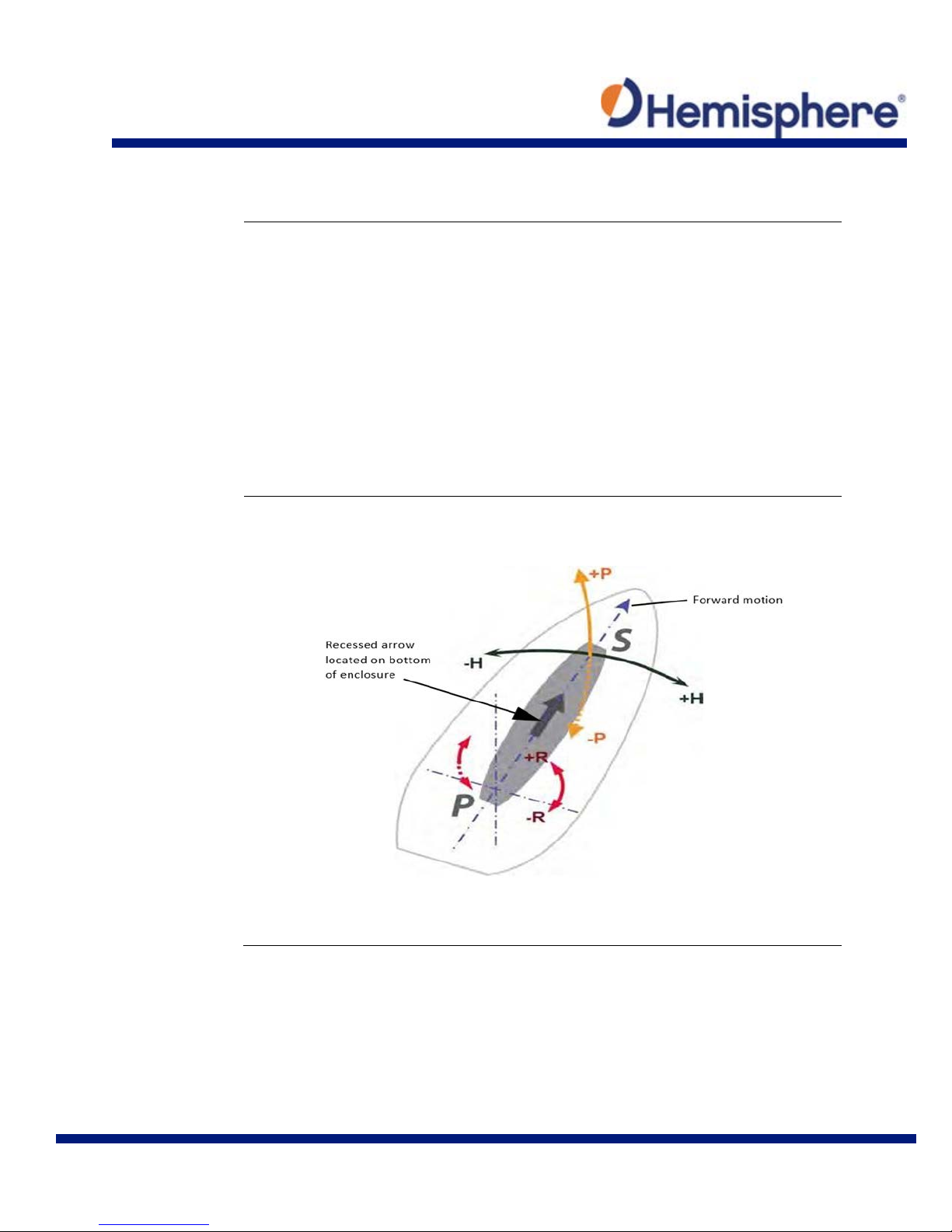

Figure 2-3: Recommended orientation and resulting signs of HPR values
orientation
orientation
example
centerline of the vessel’s axis. In this orientation:
• Enter a heading bias of +90° if the primary antenna is on the starboard side
of the vessel and -90° if the primary antenna is on the port side of the
vessel.
• Configure the receiver to specify the GNSS smart antenna is measuring the
roll axis using $JATT,ROLL,YES.
• Enter a roll bias to properly output the pitch and roll values.
• You may need to adjust the pitch/roll output to calibrate the measurement
Continued on next page
30 of 93
Page 31
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Mounting
Figure 2-4: Alternate orientation and resulting signs of HPR values
Mounting
The top of the V123/133 enclosure incorporates sight design features to help
Figure 2-5: Long site alignment
orientation
example,
continued
alignment
you align the enclosure on your vessel.
To use the sights, center the small post on the opposite side of the enclosure
from you, within the channel made in the medallion located in the center of
the enclosure top as shown in Figure 2-5 and Figure 2-6.
Alignment accuracy when looking through the long site (Figure 2-5) is
approximately +/- 1°, while alignment through the short site (Figure 2-6) is
approximately +/- 2.5°.
Continued on next page
31 of 93
Page 32
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Mounting
renders the correct heading measurement or add a software offset.
Mounting
The V123/133 allows for three different mounting options: flush-mount,
required to complete V123/133 installation.
alignment,
continued
Figure 2-6: Short site alignment
If you have another accurate source of heading data on your vessel, such as a
gyrocompass, you may use its data to correct for a bias in V123/133
alignment within the V123/133 software configuration.
Alternatively, you can physically adjust the heading of the V123/133 so that it
options
pole-mount, and bracket-mount:
1. Flush-mount - The bottom of the V123/133 contains eight M8-1.25
holes for flush mounting the unit to a flat surface (see Figure 2-7). The
eight holes comprise two sets of four holes. Flush mounting does not
provide any additional dampening to the receiver. The V123/133 can be
mounted using an optional mounting bracket. See Table 1-1 for bracket
part information.
2. Pole-mount - The V123/133 can be mounted using a mounting pole.
The set screws on the long sides of the base (see middle drawing in
Figure 2-7) allow you to secure the V123/133 in place (3/16" Allen
wrench not included). Hand tighten until snug (do not overtighten).
3. Bracket-mount - You can purchase on optional mounting bracket. See
Table 1-1 for bracket part information.
Note: Hemisphere GNSS does not supply mounting surface hardware or a
mounting pole. You must supply the appropriate mounting hardware
Continued on next page
32 of 93
Page 33
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
V123/133

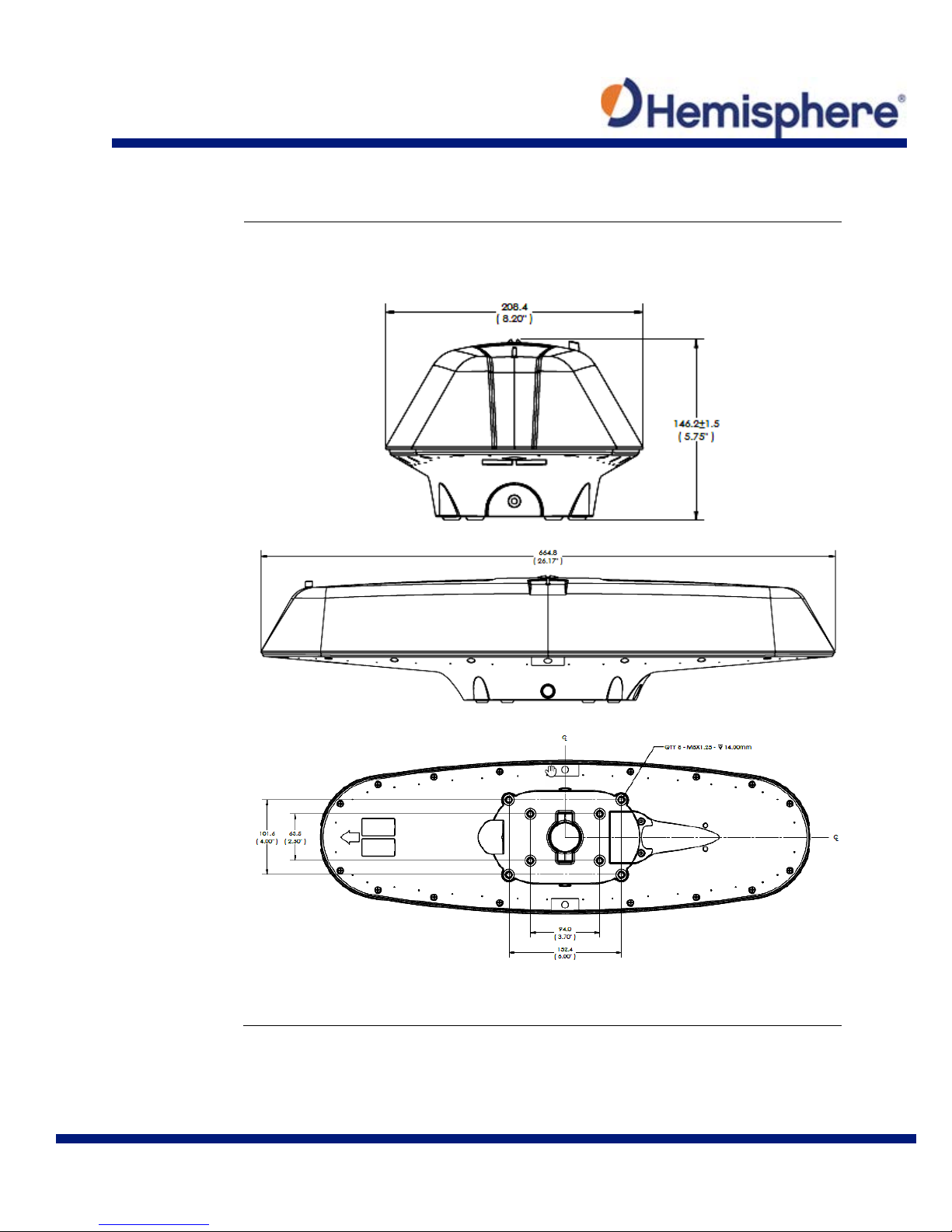

Figure 2-7 illustrates the physical dimensions of the V123/133.
Figure 2-7: V123/133 dimensions
dimensions
Continued on next page
33 of 93
Page 34
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Power/data
Before mounting the V123/133, consider the following regarding power/data
Do
Do not
Ensure cable reaches appropriate
power source
Run cables in areas of excessive
heat
Keep cable away from corrosive
chemicals
Run cables through a door or
window jams
Connect to a data storage device,
accepts GNSS data
Crimp or excessively bend the cable
Keep cable away from rotating
machinery
Place tension on the cable
Remove unwanted slack from the
cable at the V123/133 end
Secure along the cable route using
plastic wrapping
Improperly installed cable near machinery can be dangerous.
cable
considerations
cable routing:
computer, or other device that
Continued on next page
34 of 93
Page 35
875-0387-0 V123/133 User Guide Rev A1
Page
Connecting the
Step
Action
1
Align the cable connector key-way with the V123/133 connector
key.
2
Rotate the cable ring clockwise until it locks. The locking action
is firm; you will feel a positive “click” when it has locked.
3
Attach the power/data cable to the cable clamp.
4
Fasten the clamp to the bottom of the V123/133 using the
screw and washer.
5
Attach the cable cover.
Mounting the V123/133, Continued
serial
power/data
cable
Continued on next page
35 of 93
Page 36
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Connecting the

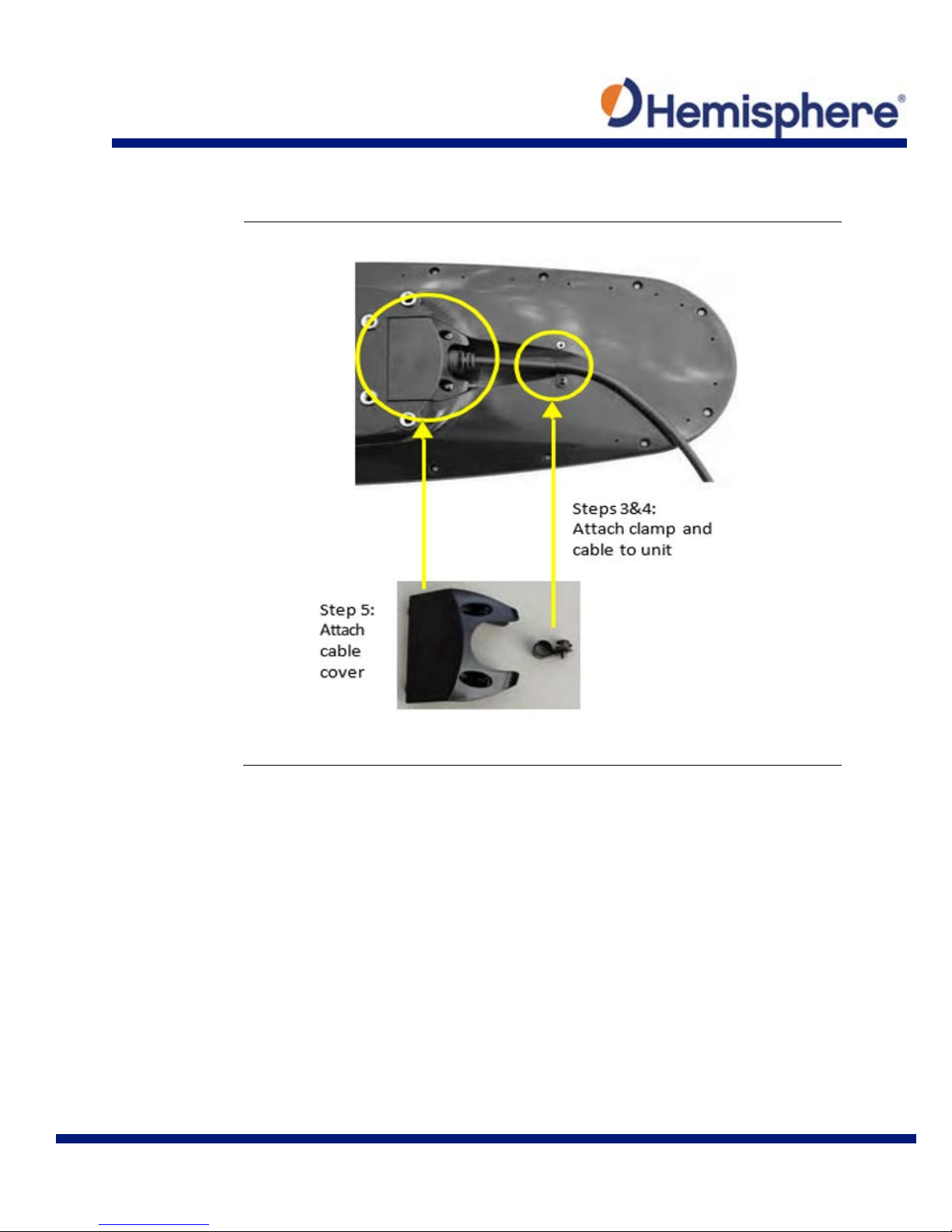

Figure 2-8: Connecting the serial power/data cable
serial
power/data
cable, continued
Continued on next page
36 of 93
Page 37
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Connecting to
Step
Action
1
Align the adapter connector keyway with the V123/133
connector key.
2
Rotate the cable ring clockwise until it locks. The locking action
is firm; you will feel a positive “click” when it has locked.

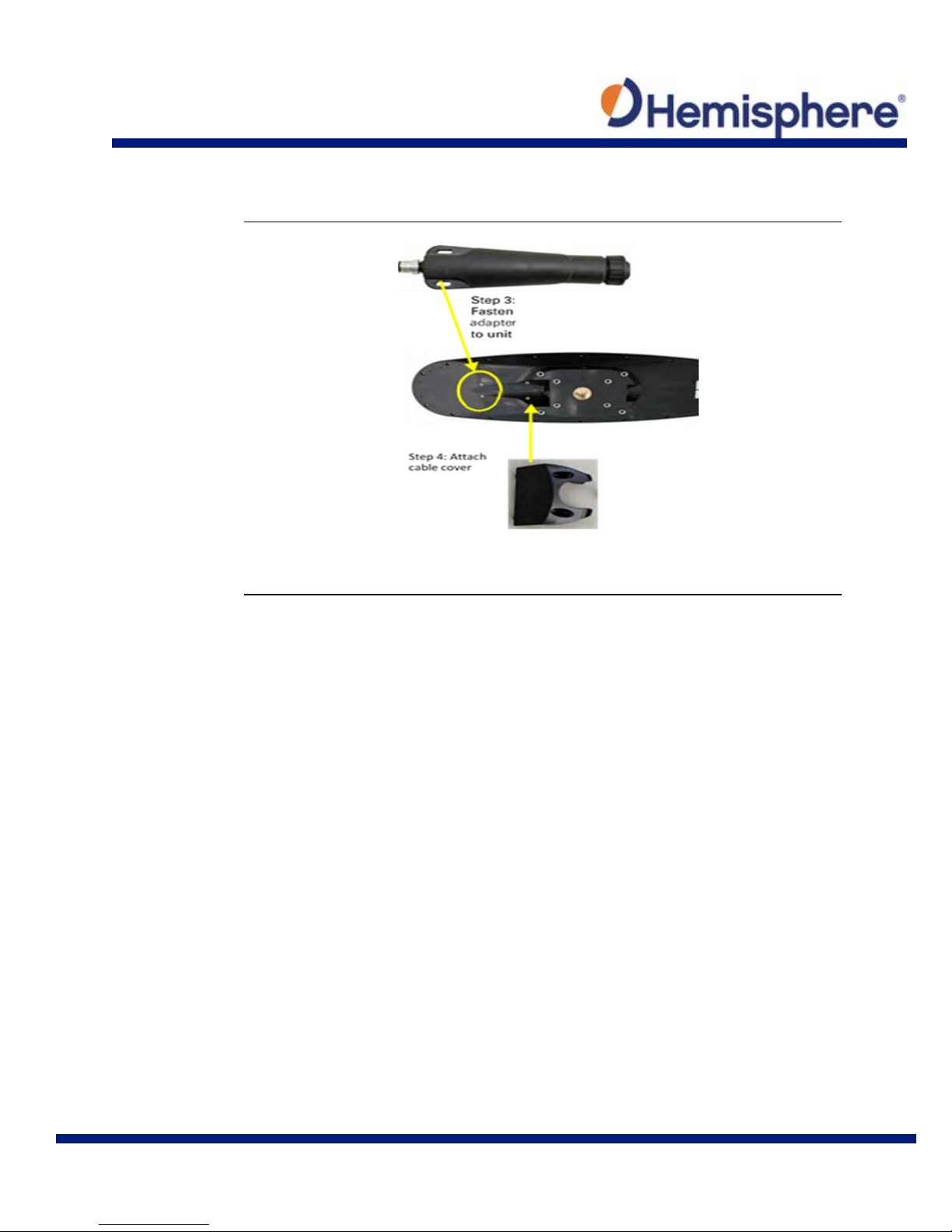

3
Fasten the adapter to the body of the V123/133 using the
provided screws and the two slots in the adapter.
4
Attach the cable cover.
2000 Port”.
the serial-to
NMEA 2000
adapter
or the serial-to-NMEA 2000 adapter to the V123/133.
Note: For more information on the serial-to-NMEA 2000 adapter see “NMEA
Continued on next page
37 of 93
Page 38
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Connecting to
the serial-to
NMEA 2000
adapter,
continued
Continued on next page
38 of 93
Page 39
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Connecting to

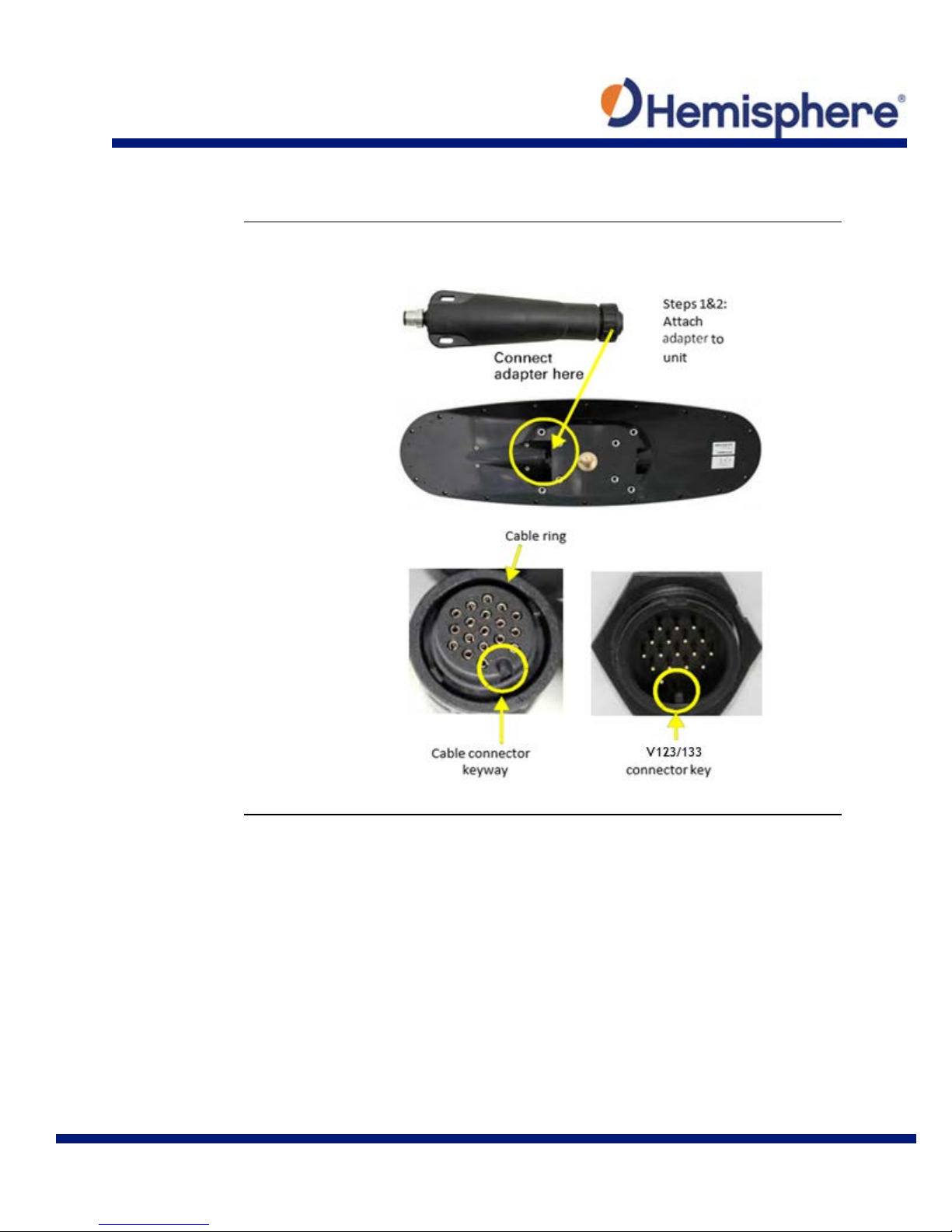

Figure 2-9: Connecting to the serial-to-NMEA 2000 adapter
the serial-to
NMEA 2000
adapter,
continued
Continued on next page
39 of 93
Page 40
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Flush-mounting
This section describes how to flush-mount or pole-mount the V123/133.
mounting specifications.
the V123/133
Be mindful of the following when planning your installation:
• Hemisphere GNSS does not supply mounting surface hardware or a
mounting pole. You must supply the appropriate hardware or mounting
pole required to complete V123/133 installation.
• You can enter a software offset to accommodate for a heading
measurement bias due to installation.
The bottom of the V123/133 contains eight holes (two sets of four holes) for
flush-mounting the unit to a flat surface (Figure 2-10).
The flat surface may be fabricated per your installation, an off-the-shelf item
(such as a radar mounting plate), or an existing surface on your vessel.
Figure 2-10: Flush-mounting holes on bottom of V123/133
Note: For flush mounting the V123/133, refer to the dimensions drawing for
Continued on next page
40 of 93
Page 41
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Flush-mounting
Complete the following steps to mount the V123/133:
Step
Action
1
Determine the desired location and proper orientation for the
determining the desired orientation.
2
Navigate to the HGNSS website Home / Products / Products /
Position & Heading / V123/133.
3
Use the supplied template or photocopy the section of the
four holes or the outer four holes per your installation.
4
If using a photocopy, make sure it is scaled one-to-one with the
mounting holes on the bottom of the V123/133.
5
Mark the mounting hole centers on the mounting surface.
6
Place the V123/133 over the marks to ensure the planned hole
centers align with the true hole centers (adjusting as necessary).
7
Use a center punch to mark the hole centers.
8
Drill the mounting holes with a 9mm bit appropriate for the
surface.
9
Place the V123/133 over the mounting holes and insert the
into the V123/133.
overtightening is not covered by the warranty.
the V123/133,
continued
V123/133. See “Mounting Orientation” for information on
V123/133 that contains the eight mounting for use as a
template to plan the mounting hole locations. Use the inner
mounting screws through the bottom of the mounting surface
When installing the V123/133, hand-tighten only. Damage resulting from
Continued on next page
41 of 93
Page 42
875-0387-0 V123/133 User Guide Rev A1
Page
Mounting the V123/133, Continued
Pole-mounting
If you need the GNSS-assisted roll measurement, install the V123/133
Step
Action
1
Determine the desired location and proper orientation for
determining the desired orientation.
2
Hand tighten the V123/133 on the pole until snug (unit is stable
not covered by the warranty.
3
Use the set screws on the long sides of the base to secure the
V123/133 in place (3/16" Allen wrench not included).
Figure 2-11: Pole-mounting specifications
the V123/133
perpendicular to the vessel’s axis. If you do not need this measurement,
install the V123/133 parallel with the vessel’s axis.
Complete the following steps to pole-mount the V123/133:
theV123/133. See “Mounting Orientation” for information on
on pole) while ensuring correct orientation.
Hand tighten only. Damage resulting from over-tightening is
42 of 93
Page 43
875-0387-0 V123/133 User Guide Rev A1
Page
Ports
Overview
The V123/133 offers either serial port or NMEA 2000 functionality.
Serial ports
The V123/133 has three serial ports:
Note: The V123/133 has maximum baud rate of 115200.
1. Port A can be both full-duplex RS-232 and half-duplex RS-422 (transmit
2. Port B is full-duplex RS-232 or RS-422
3. Port C is for NMEA 2000 and only available via serial-to-NMEA adapter
You can receive external differential corrections via either Port A (full-duplex
RS-232) or Port B (full-duplex RS-422).
You can connect up to three devices at one time using two ports.
One device can receive data via Port A (RS-422 transmit only) while two
devices can transmit and receive data via Ports A and B (one connected to
Port A RS- 232 and one connected to Port B).
Note: Port A (RS-422) or Port B is required for communicating to an IMOcertified device.
You can update firmware via Port A (RS-232) or Port B.
only)
Continued on next page
43 of 93
Page 44
875-0387-0 V123/133 User Guide Rev A1
Page
Ports, Continued
Serial port
You may configure Port A or Port B of the GNSS receiver to output any
which they are connected. Flow control is not supported.
configuration
combination of data.
Port A can have a different configuration from Port B in data message
output, data rates, and the baud rate of the port, and configure the ports
independently based upon your needs. Both RS-232 and RS-422 output
signals may be used simultaneously.
The RS-232 Port A and RS-422 Port A output the same data messages at the
same baud rate. If the baud rate or messages for the RS-422 port need to be
changed, this needs to be commanded through the RS-232 port.
Note: For successful communications, use the 8-N-1 protocol and set the
baud rate of the V123/133’s serial ports to match that of the devices to
44 of 93
Page 45
875-0387-0 V123/133 User Guide Rev A1
Page
Selecting Baud Rates and Message Types
Baud rates &
When selecting your baud rate and message types, use the following formula
Technical Reference Manual.
NMEA 2000
To use the V123/133 for NMEA 2000, connect the included serial-to-NMEA
Figure 2-12: Serial-to-NMEA adapter
Message types
port
to calculate the bits/sec for each message and sum the results to determine
the baud rate for your required data throughput.
Message output rate * Message length (bytes) * bits in byte = Bits/second
(1 character = 1 byte, 8 bits = 1 byte, use 10 bits/byte to account for
overhead).
For information on message output rates refer to the Hemisphere GNSS
2000 adapter (P/N 710-0113-000#, see Figure 2-12) to the unit. Insert the 18pin connector of the adapter into the male end of the 18-pin connector on
the V123/133 by aligning the keys.
Attach the adapter to the unit using the supplied screws (machine, 8-32, ½”,
PPHC, SS) and washer (flat, #8, SS). The 5-pin male Micro-C connector
connects to your NMEA 2000 drop cable.
Note: The serial-to-NMEA 2000 adapter is not an IMO requirement and may
not be used in such an application.
45 of 93
Page 46
875-0387-0 V123/133 User Guide Rev A1
Page
Connecting the V123/133 to External Devices
Recommend-
When interfacing with other devices, ensure the transmit data output and
GNSS Technical Reference Manual.
Power/data
The V123/133 uses a single 15 m (49 ft) or 30 m (98 ft) cable for power and
Note: Cover drain wire with black shrink tube.
ations for
connecting to
other devices
cable
considerations
the signal grounds from the V123/133 is connected to the data input of the
other device. The signal grounds must also be connected.
The RS-422 is a balanced signal with positive and negative signals referenced
to ground, ensure you maintain the correct polarity.
When connecting the transmit data output positive signal to the receive line
of the other device, it should be connected to the receive positive terminal.
The negative transmit data signal from the V123/133 is connected to the
receive data negative input of the other device.
For a list of Hemisphere GNSS commands, please refer to the Hemisphere
data input/output.
Figure 2-13: Power/data cable
Continued on next page
46 of 93
Page 47
875-0387-0 V123/133 User Guide Rev A1
Page
Connecting the V123/133 to External Devices, Continued
Power/data
The receiver end of the cable is terminated with an environmentally-sealed
adapter.
Power/data
Depending on the application and installation needs, the cable may need to
Figure 2-14: V123/133 p in-out assignments
cable
considerations,
continued
18-pin connection while the opposite end is unterminated and requires field
stripping and tinning.
Note: This section refers to a serial connection. For connecting external
NMEA 2000 devices, plug the serial-to-NMEA 2000 adapter into the
V123/133 and then attach a standard NMEA 2000 dropline cable to the
cable pin-out
assignments
be shortened. However, if you require a longer cable run than 30 m, you can
bring the cable into a break-out box that incorporates terminal strips, within
the vessel.
When lengthening the cable keep the following in mind:
• To lengthen the serial lines inside the vessel, use 20-gauge twisted pairs
and minimize the additional wire length.
• When lengthening the power input leads to the V123/133, ensure the
additional voltage drop is small enough to power the system above the
minimum voltage of the system. Wire of 18-gauge or larger should also be
used.
• Minimize RS-232 cable length to ensure reliable communication.
Figure 2-14 shows the power/data cable pin-out assignments.
Continued on next page
47 of 93
Page 48
875-0387-0 V123/133 User Guide Rev A1
Page
Connecting the V123/133 to External Devices, Continued
Power/data
Table 2-1 shows the cable pin-out specifications.
Pin
Signal
Color
1
Power (+)
Red
2
Power (-)
Black
3
Port A Tx RS-232
Blue
4
Port A Rx RS-232
Black/blue stripe
5
Reserved
6 Port A Tx RS-422(+)
Green
7
Port B Rx RS-422(+)
Brown
8
Port B Rx RS-422(-)
Black/brown stripe
9
Reserved
10
Drain
Bare wire
11
Port A Tx RS-422(-)
Green/black stripe
12
Signal ground
Grey
13
Alarm
White
14
Alarm
White/red stripe
15
1 PPS(+)
Orange
16
Port B Tx RS-422(+)
Yellow
17
Port B Tx RS-422(-)
Yellow/black stripe
18
1 PPS(-)
Orange/black stripe
cable pin-out
specifications
Table 2-1: V123/133 pin-out specifications
48 of 93
Page 49
875-0387-0 V123/133 User Guide Rev A1
Page
Overview
Introduction
The GNSS receiver begins tracking satellites when it powers up and is placed
Contents
Topic
See Page
Differential Operation
50
SBAS Tracking
50
GNSS Overview
51
Atlas L-band
52
Supplemental Sensors
53
Time Constants
56
Chapter 3: Understanding the V123/133
outside in an open area. Position and heading accuracy vary depending upon
location and environment. Position performance can be improved with RTK
or DGNSS.
The following sections provide the steps to configure your V123/133 to use
Atlas, Beacon, SBAS, or RTK.
Note: Differential source and RTK status impact only positioning and heave.
There is no impact to heading, pitch, or roll.
49 of 93
Page 50
875-0387-0 V123/133 User Guide Rev A1
Page
Differential Operation
Differential
The V123/133 delivers positioning accuracies of 2.5 m 95% and provides
band, or through externally-supplied RTCM corrections.
SBAS tracking
The V123/133 features two-channel tracking that provides an enhanced
of an SBAS signal in areas where signal blockage of a satellite is possible.
(DGNSS)
operation
positioning quality to better than 0.6 m 95% using differential corrections
received through the internal SBAS demodulator, beacon receiver, Atlas L-
SBAS Tracking
ability to maintain a lock on an SBAS satellite when more than one satellite is
in view. This redundant tracking approach results in more consistent tracking
50 of 93
Page 51
875-0387-0 V123/133 User Guide Rev A1
Page
GNSS Overview
GNSS operation
The GNSS receiver is always operating, regardless of the DGNSS mode of
arrow.
operation. The following sections describe the general operation of the
V123/133’s internal GNSS receiver.
Note: Differential source and status have no impact on heading, pitch, or roll.
They only have an impact on positioning and heave.
The V123/133 provides accurate and reliable heading and position
information at high update rates. To accomplish this task, the V123/133 uses
a high performance GNSS receiver and two antennas for GNSS signal
processing.
One antenna is designated as the primary GNSS antenna and the other is the
secondary GNSS antenna. Positions computed by the V123/133 are
referenced to the phase center of the primary GNSS antenna. Heading data
references the Vector formed from the primary GNSS antenna phase center
to the secondary GNSS antenna phase center.
The heading arrow located on the bottom of the V123/133 enclosure defines
system orientation. The arrow points in the direction the heading
measurement is computed (when the antenna is installed parallel to the
fore-aft line of the vessel). The secondary antenna is directly above the
51 of 93
Page 52
875-0387-0 V123/133 User Guide Rev A1
Page
Atlas L-band
Atlas L-band
Atlas L-band corrections are available worldwide. With Atlas, the positioning
purchased.
accuracy does not degrade as a function of distance to a base station, as the
data content is not composed of a single base station’s information, but an
entire network’s information.
The V123/133 can calculate a position with 30 cm RMS (horizontal) accuracy.
To configure the receiver to use Atlas L-band, a subscription must be
52 of 93
Page 53
875-0387-0 V123/133 User Guide Rev A1
Page
Supplemental Sensors
Overview
The V123/133 has a supplemental sensor integrated into the H220 GNSS
and methodology required to recalibrate, query, or change the sensor status.
Tilt aiding
The V123/133’ s internal sensor is factory calibrated and enabled by default
Figure 3-1: V123/133 tilt aiding
board that is enabled by default. You can enable/disable the sensor.
The sensor acts to reduce the RTK search volume, which improves heading
startup and reacquisition times. This improves the reliability and accuracy of
selecting the correct heading solution by eliminating other possible,
erroneous solutions.
The Hemisphere GNSS Technical Reference Manual describes the commands
and constrains the RTK heading solution beyond the volume associated with
a fixed antenna separation.
The V123/133 knows the approximate inclination of the secondary antenna
with respect to the primary antenna. The search space defined by the sensor
is reduced to a horizontal ring on the sphere’s surface by reducing the search
volume and decreases startup and reacquisition times (see Figure 3-1).
Tilt angle
Continued on next page
53 of 93
Page 54
875-0387-0 V123/133 User Guide Rev A1
Page
Supplemental Sensors, Continued
Gyro aiding
The V123/133’s internal sensor reduces reacquisition times when a GNSS
operating dynamics.
heading is lost due to blocked satellite signals.
The sensor provides a relative change in angle since the last computed
heading and defines the search space as a wedge-shaped location (see Figure
3-2).
Figure 3-2: V123/133 gyro aiding
The gyro aiding accurately smooths the heading output and the ROT, and
provides an accurate substitute heading for a short period depending on the
roll and pitch of the vessel.
The sensor provides an alternate source of heading, accurate to within 1º per
minute for up to three minutes, in times of GNSS loss for either antenna. If
the outage lasts longer than three minutes, the sensor will have drifted too
far and the V123/133 begins outputting null fields in the heading output
messages. There is no user control over the timeout period of the sensor.
The sensor initializes itself at power up and during initialization, or you can
calibrate it as outlined in the Hemisphere GNSS Technical Reference Manual.
For optimal performance, when the sensor is first initializing, the dynamics
the sensor experiences during this warm-up period are similar to the regular
Continued on next page
54 of 93
Page 55
875-0387-0 V123/133 User Guide Rev A1
Page
Supplemental Sensors, Continued
Gyro aiding,
Gyro-aiding updates the post HTAU-smoothed heading. As a result, if the
setting an appropriate HTAU value for the application.
continued
HTAU value is increased while gyro aiding is enabled, there will be little to no
lag in heading output due to vessel maneuvers.
The Hemisphere GNSS Technical Reference Manual includes information on
55 of 93
Page 56
875-0387-0 V123/133 User Guide Rev A1
Page
Time Constants
Overview
The V123/133 incorporates user-configurable time constants that can
this value, it is best to be conservative and leave the default setting.
Heading
Use the $JATT,HTAU command to adjust the level of responsiveness of the
and increases lag (with gyro-aid disabled).
provide a degree of smoothing to the heading, pitch, Rate-of-Turn (ROT),
Course-over-Ground (COG), and speed measurements.
You can adjust these parameters depending on the expected dynamics of the
vessel. For example, increasing the time is reasonable if the vessel is very
large and is not able to turn quickly or would not pitch quickly. The resulting
values would have reduced “noise,” resulting in consistent values with time.
If the vessel is quick and nimble, increasing this value can create a lag in
measurements.
If you are unsure on how to set this value, it is best to be conservative and
leave it at the default setting.
Note: For heading and rate of turn there is no lag once the sensor is
calibrated and enabled.
Formulas for determining the level of smoothing are located in the
Hemisphere GNSS Technical Reference Manual. If you are unsure how to set
true heading measurement provided in the $GPHDT message. The default
value of this constant is 0.1 seconds of smoothing when gyro-aid is enabled.
By disabling gyro-aid, the equivalent default value of the heading time
constant should be 0.5 seconds of smoothing. This is not automatic, and
therefore it must be manually entered.
Note: Increasing the time constant increases the level of heading smoothing
Continued on next page
56 of 93
Page 57
875-0387-0 V123/133 User Guide Rev A1
Page
Time Constants, Continued
Pitch
Use the $JATT,PTAU command to adjust the level of responsiveness of the
and increases lag.
Rate-of-Turn
Use the $JATT,HRTAU command to adjust the level of responsiveness of the
Note: Increasing the time constant increases the level of ROT smoothing.
Course-Over-
Use the $JATT,COGTAU command to adjust the level of responsiveness of the
calculation inaccuracies are not representative of a vessel’s movement.
Speed
Use the $JATT,SPDTAU command to adjust the level of responsiveness of the
measurement smoothing.
pitch measurement provided in the $PSAT,HPR message. The default value of
this constant is 0.5 seconds of smoothing.
Note: Increasing the time constant increases the level of pitch smoothing
(ROT)
Ground (COG)
ROT measurement provided in the $GPROT message. The default value of
this constant is 2.0 seconds of smoothing.
COG measurement provided in the $GPVTG message. The default value of
this constant is 0.0 seconds of smoothing.
Note: Increasing the time constant increases the level of COG smoothing.
COG is computed using only the primary GNSS antenna and its accuracy
depends upon the speed of the vessel (noise is proportional to 1/speed).
This value is invalid when the vessel is stationary, as tiny movements due to
speed measurement provided in the $GPVTG message. The default value of
this parameter is 0.0 seconds of smoothing.
Note: Increasing the time constant increases the level of speed
57 of 93
Page 58
875-0387-0 V123/133 User Guide Rev A1
Page
Overview
Introduction
This section provides information on how to power and operate your
V123/133 receiver.
Contents
Topic
See Page
Powering the V123/133
59
Beacon Operation
60
Alarm Functionality
61
Chapter 4: Operating the V123/133
58 of 93
Page 59
875-0387-0 V123/133 User Guide Rev A1
Page
Powering the V123/133
Power
For best performance, use a clean and continuous power supply. The
leads of the extension cable.
Electrical
The V123/133’s power supply is isolated from the communication lines and
vessel (addressing the issue of vessel hull electrolysis).
connections
V123/133 power supply features reverse polarity protection but will not
operate with reverse polarity. See Table B-4 for complete power
specifications.
Note: This section refers to powering the unit via serial connection. To power
the unit via NMEA 2000 connection, follow the standard procedure for
powering up via NMEA 2000.
Before you power up the V123/133 you must terminate the wires of the
power cable as required. There are a variety of power connectors and
terminals on the market from which to choose, depending on your specific
requirements.
Do not apply a voltage higher than 36 VDC. This will damage the receiver
and void the warranty.
To interface the V123/133 power cable to the power source:
• Connect the red wire of the cable’s power input to DC positive (+)
• Connect the black wire of the cable’s power input to DC negative (-)
The V123/133 starts when an acceptable voltage is applied to the power
isolation
the PC-ABS plastic enclosure isolates the electronics mechanically from the
59 of 93
Page 60
875-0387-0 V123/133 User Guide Rev A1
Page
Beacon Operation
V123/133
Many marine authorities, such as coast guards, have installed networks of
station in compliance with IEC61108-4 standards.
beacon
radio- beacons that broadcast DGNSS corrections to system users.
The dual channel beacon receiver in the V133 can operate in manual or
automatic tuning mode, or, using database mode, will select the closest
60 of 93
Page 61
875-0387-0 V123/133 User Guide Rev A1
Page
Alarm Functionality
Overview
A relay is located on the Transmit Heading Device (THD) circuit board. The
Alarm signal
There are two wires (24 AWG multi-strands) on the output cable that are
device.
Watchdog
The watchdog is a timer controlled by the software which monitors heading
loss. The watchdog software is compliant with IEC 60945.
relay contacts are isolated from all circuitry in the THD. The THD is connected
to the coil side of the relay, but not to the contacts that are connected to the
external pins through the main IO connector.
If the THD loses power or heading, the coil voltage is lost, and the relay
opens and activates the notification method employed by the user. When
the heading is output, the relay contacts remain closed, completing the
circuit as an indication that the V123/133 is operational.
Note: Alarm functionality is only valid for serial communication. Alarm pins
must be connected to an IMO-certified device.
used for the external alarm function. The color codes for the two wires are
white and white/red stripe and are the output of a relay. When this relay
closes, the connection is complete on the user-defined external notification
61 of 93
Page 62
875-0387-0 V123/133 User Guide Rev A1
Page
Appendix A: Troubleshooting
Introduction
Appendix A provides troubleshooting for common problems.
Contents
Topic
See Page
Troubleshooting
63
Overview
62 of 93
Page 63
875-0387-0 V123/133 User Guide Rev A1
Page
Troubleshooting
Appendix A
Symptom
Possible Solution
Receiver fails to
• Verify polarity of power leads
source (minimum available should be > 1.0 A)
No data from
• Check receiver power status to ensure the
data cable connections
Random data from
• Verify the RTCM or binary messages are not
being output)
No GNSS lock
• Verify the V123/133 has a clear view of the sky
are in view and the SNR values
troubleshooting
power
V123/133
V123/133
• Check integrity of power cable connectors
• Check power input voltage (9 to 36 VDC)
• Check the voltage coming out of the connector
at the end of the cable
• Check current restrictions imposed by power
receiver is powered
• Verify desired messages are activated (using
PocketMax4 or $JSHOW command in any
terminal program)
• Ensure the baud rate of the V123/133 matches
that of the receiving device
• Check integrity and connectivity of power and
output accidentally (send a $JSHOW command)
• Ensure the baud rate of the V123/133 matches
that of the remote device
• The volume of data requested for output by the
V123/133 could be higher than the current baud
rate supports (try using 19200 as the baud rate
for all devices or reduce the amount of data
• Use PocketMax4 to check how many satellites
Continued on next page
63 of 93
Page 64
875-0387-0 V123/133 User Guide Rev A1
Page
Troubleshooting, Continued
Appendix A
Symptom
Possible Solution
No SBAS lock
• Verify the V123/133 has a clear view of the
hemisphere.
No Atlas
• First, check to see for an Atlas Basic
by sending $JFREQ,AUTO
troubleshooting
, continued
sky
• Set SBAS mode to automatic with the
$JWAASPRN,AUTO command
Note: SBAS lock is only possible if you are in an
appropriate SBAS region; currently, there is
limited SBAS availability in the southern
subscription by sending $JK,SHOW to see
which commands are listed. Or, connect to
PocketMax4, go to the About tab, and check
the listed activations
• Ensure you are tracking the correct Atlas
satellite, or set the receiver to ‘Auto-Tune’
Continued on next page
64 of 93
Page 65
875-0387-0 V123/133 User Guide Rev A1
Page
Troubleshooting, Continued
Appendix A
Symptom
Possible Solution
No heading or incorrect
• Check CSEP value is constant without varying
amount of data being output)
troubleshooting
, continued
heading value
more than 1 cm (0.39 in)—larger variations
may indicate a high multipath environment
and require moving the receiver location
• Heading is from primary GPS antenna to
secondary GPS antenna, so the arrow on the
underside of the V123/133 is directed to the
bow side
• $JATT,SEARCH command forces the
V123/133 to acquire a new heading solution
(unless gyro is enabled)
• Enable GYROAID to provide heading for up
to three minutes during GPS signal loss
• Enable TILTAID to reduce heading search
times
• Monitor the number of satellites and SNR
values for both antennas within
PocketMax4—at least four satellites should
have strong SNR values
• The volume of data requested for output by
the V123/133 could be higher than the
current baud rate supports (try using 19200
as the baud rate for all devices or reduce the
Continued on next page
65 of 93
Page 66
875-0387-0 V123/133 User Guide Rev A1
Page
Troubleshooting, Continued
Appendix A
Symptom
Possible Solution
No DGPS position in
• Verify the baud rate of the RTCM input port
through Port B
troubleshooting
, continued
external RTCM mode
matches the baud rate of the external
source
• Verify the pinout between the RTCM source
and the RTCM input port (transmit from the
source must go to receive of the RTCM input
port and grounds must be connected)
• Ensure corrections are being transmitted to
the correct port— using the $JDIFF,PORTB
command on Port A will cause the receiver
to expect the corrections to be input
66 of 93
Page 67
875-0387-0 V123/133 User Guide Rev A1
Page
Appendix B: Technical Specifications
Introduction
Appendix B provides the V123/133 technical specifications, and the
V123/133 certification information.
Contents
Topic
See Page
V123/133 Technical Specifications
68
Technical Specifications
67 of 93
Page 68
875-0387-0 V123/133 User Guide Rev A1
Page
V123/133 Technical Specifications
V123/133
Table B-1: V123/ 133 sensor
Item
Specification
Receiver type
GNSS L1
Signals Received
GPS, GLONASS, BeiDou, Galileo,
QZSS3, and Atlas
Channels
300
GPS sensitivity
-142 dBm
SBAS tracking
2-channel, parallel tracking
Update rate (position and heading)
10 Hz standard, optional 20 Hz
IMO)
Position accuracy
1.2 m RMS (autonomous)
0.3 m RMS (Atlas)
Heading accuracy (GNSS)
< 0.30° RMS
Heave accuracy (GNSS)
< 30cm RMS
1
Pitch accuracy
< 1° RMS
Roll accuracy
< 1° RMS using accelerometer
Timing (1 PPS) accuracy
20 ns
Rate of turn
145°/s maximum
Cold start
< 40 s typical (no almanac or RTC)
Warm start
< 20 s typical (almanac and RTC)
Hot start
< 1 s typical (almanac, RTC, and
position)
Heading fix
< 10 s typical (valid position)
Compass safe distance
75 cm (29.5 in)2
Maximum speed
1,850 kph (999 kts)
Maximum altitude
18,288m (60,000 ft)
technical
specifications
(Non-IMO) and 50 Hz (IMO/Non-
0.3 m RMS (SBAS)
Continued on next page
68 of 93
Page 69
875-0387-0 V123/133 User Guide Rev A1
Page
V123/133 Technical Specifications, Continued
V123/133
Table B-2: Beacon sensor (V133 only)
Item
Specification
Operating modes
Manual, automatic, and database
Compliance
IEC 61108-4 beacon standard
Item
Specification
Serial ports
RS-232 (full-duplex)
RS-422 (1 full duplex, 1 half duplex)
Baud rates
4800, 9600, 19200, 57600, 115200
Correction I/O
protocol
RTCM Atlas L-band
Data I/O protocol
NMEA 0183, NMEA 2000
Item
Specification
Input voltage
6 to 36 VDC
Power
V123
V133
~ 4.3 W nominal
~ 4.6 W nominal
Current
V123
V133
~ 0.36 A nominal
~ 0.38 A nominal
Power isolation
Isolated to enclosure
Reverse polarity
protection
Yes
technical
specifications,
continued
Table B-3: Communication
Table B-4: Power
consumption
consumption
Continued on next page
69 of 93
Page 70
875-0387-0 V123/133 User Guide Rev A1
Page
V123/133 Technical Specifications, Continued
V123/133
Table B-5: Mechanical
Item
Specification
Enclosure
Top Enclosure: ASA/PC Blend
Bottom Enclosure: PC
Dimensions
66.5 L x 20.8 W x 14.6 H (cm)
26.2 L x 8.2 W x 5.8 H (in)
Weight
V123
V133
2.1 kg (4.6 lb)
2.4 kg (5.4 lb)
Power/data connector
18-pin, environmentally sealed
Item
Specification
Operating temperature
-30°C to +70°C (-22°F to +158°F)
Storage temperature
-40°C to +85°C (-40°F to +185°F)
Humidity
95% non-condensing
Vibration
IEC 60945
EMC
CE (IEC 60945 Emissions and
Immunity), RED (2014/53/EU)
technical
specifications,
continued
Table B-6: Environmental
Continued on next page
70 of 93
Page 71
875-0387-0 V123/133 User Guide Rev A1
Page
V123/133 Technical Specifications, Continued
V123/133
Table B-7: Certifications
Certification
IMO Resolution MSC.116(73)
ISO 22090-3:2014
IMO Resolution A.694(17)
IEC 60945 Ed.4.0, 2002 incl. Corr.1,
IMO Resolution MSC.191(79)
IEC 61162-1 Ed.4.0 2010
IMO Resolution MSC.302(87)
IEC 61162-2 Ed.1.0, 1998
IEC 62288 Ed. 2.0 (2014-07)
With future firmware upgrade and activation
technical
specifications,
continued
The following certifications apply to the V123 and V133 models only and do
not apply to the V123 Non-IMO and V133 Non-IMO models.
2008
IMO wheel marked for MED/4.41 Transmitting heading device THD (GNSS
method). Based on the Directive 2014/90/EU, Regulation (EU) 2017/306
1
Based on a 40 second time constant
2
Minimum safe distance measured when the product is placed in the vicinity of the steering magnetic compass. The
ISO 694 defines “vicinity” relative to the compass as within 5 m (16.4 ft) separation.
3
71 of 93
Page 72
875-0387-0 V123/133 User Guide Rev A1
Page
Overview
Introduction
Appendix C contains the common commands and messages used by the
Example
message
Rate
Bytes
Bits in
byte
Bits/sec
GPHDT
10
20
10
2000
GPROT
5
18
10
900
GPHDG
1
33
10
330
GPGGA
1
83
10
830
GPZDA
1
38
10
380
Total
4440
Contents
Topic
See Page
Commands
73
Binary Messages
75
NMEA Messages
77
Index
94
TSP2018627104934740_MapTitles
94
End User License Agreement
95
Warranty Notice
99
Appendix C: Commands and Messages
V123/133. Reference the following tables for sending and receiving
commands and messages.
For information on message output rates refer to the Hemisphere GNSS
Technical Reference Manual.
72 of 93
Page 73
875-0387-0 V123/133 User Guide Rev A1
Page
Commands
Commands
The V123/133 has a maximum baud rate of 115200.
Command
Description
$GPMSK
Tune beacon to specific frequency
$JAGE
Specify maximum DGPS (COAST) correction age
(6 to 8100 seconds)
$JAPP
Query or specify receiver application firmware
$JASC
Specify ASCII messages to output to specific ports
$JBAUD
Specify RS-232, RS-422 (output) communication
rate
$JBIN
Specify binary messages to output to specific
ports (see Table 3-4)
$JDIFF
Query or specify differential correction mode
$JGEO
Query or specify SBAS for current location and
SBAS satellites
$JI
Query unit’s serial number and firmware versions
$JOFF
Turn off all data messages
$JQUERY,GUIDE
Query accuracy suitability for navigation
$JMODE,GPSONLY,YES
GPS only mode
Note: When selecting baud rate and message types, use the following
formula and example to calculate the bits/sec for each message and then
sum the results to determine the baud rate for your required data
throughput.
Message length (bytes) * bits in byte = Bits/second
(1 character = 1 byte, 8 bits = 1 byte, use 10 bits/byte to account for
overhead)
Table C-1: Commands
Continued on next page
73 of 93
Page 74
875-0387-0 V123/133 User Guide Rev A1
Page
Commands, Continued
Commands,
Table C-1: Commands (continued)
Command
Description
$JMODE,GPSONLY,NO
Multi-GNSS mode
$JRESET
Reset unit’s configuration to firmware defaults
almanacs, and reboots the receiver when done
$JSAVE
Save session’s configuration changes
continued
Note: $JRESET clears all parameters. For the
V123/133 you will have to issue the $JATT,
FLIPBRD,YES command to properly redefine the
circuitry orientation inside the product once the
receiver has reset. Failure to do so will cause
radical heading behavior.
You can also issue the $JRESET command with an
optional field as follows:
• $JRESET,ALL does everything $JRESET does,
plus it clears almanacs
• $JRESET,BOOT does everything $JRESET,ALL
does, plus clears use of the real-time clock at
startup, clears use of backed-up ephemeris and
74 of 93
Page 75
875-0387-0 V123/133 User Guide Rev A1
Page
Binary Messages
Binary
Table C-2 lists the Binary messages used by the V123/133. To log raw binary
$JBIN
Message
Description
1
GPS position
2
GPS DOPs
80
SBAS
93
SBAS ephemeris data
94
Ionosphere and UTC conversion parameters
95
Satellite ephemeris data
96
Code and carrier phase (not needed if using Bin 16, Bin 16
includes information for all constellations)
97
Processor statistics
98
Satellites and almanac
99
GPS diagnostics
16
All constellation code and phase observation data. Use
observation. Galileo does not have a separate message
34
BeiDou time conversion
35
BeiDou ephemeris information
messages
data to convert to Rinex, turn on Bin 76 (GPS), Bin 66 (GLONASS), Bin 36
(BeiDou), or turn on Bin 16 (all constellations; required for Galileo).
Additionally, enable ephemeris messages: Bin 95 (GPS), Bin 65 (GLONASS),
Bin 35 (BeiDou), and Bin 45 (Galileo).
Enable the time conversion messages: Bin 94 (GPS), Bin 34 (BeiDou), and Bin
44 (Galileo).
Table C-2: Binary messages
Bin16 if you need Galileo code and carrier phase
Continued on next page
75 of 93
Page 76
875-0387-0 V123/133 User Guide Rev A1
Page
Binary Messages, Continued
Binary
Table C-2: Binary messages (continued)
$JBIN
Message
Description
36
BeiDou code and carrier phase information (not needed if
constellations)
44
Galileo time conversion
45
Galileo ephemeris
65
GLONASS ephemeris information
66
GLONASS code and carrier phase information (not needed if
constellations)
messages,
continued
using Bin 16, Bin 16 includes information for all
using Bin 16, Bin 16 includes information for all
76 of 93
Page 77
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages
V123/133
messages
Table C-3: NMEA messages received based on a request
PGN
Description
Default
(msec)
Freq (Hz)
059392
ISO Acknowledgement
requests addressed to a specific ECU.
On Request
On Request
059904
ISO Request
addressed or broadcast.
On Request
On Request
060928
ISO Address Claim
claimed by an ECU.
On Request
On Request
126996
Product Information
and other product- specific information.
On Request
On Request
NMEA received
Used to acknowledge the status of certain
Request the transmission of a specific PGN,
Update Rate
Used to identify to other ECUs the address
NMEA 2000 database version supported,
manufacturer’s product code, NMEA 2000
certification level, Load Equivalency number,
Continued on next page
77 of 93
Page 78
875-0387-0 V123/133 User Guide Rev A1
Page
V123/133
Table C-3: NMEA messages received based on a request (continued)
PGN
Description
Default
(msec)
Freq (Hz)
126464
Receive/Transmit PGNs group function
of function is defined by the first field.
On Request
On Request
129545
GNSS RAIM Output
Settings.
On Request
On Request
129546
GNSS RAIM Settings
Monitoring (RAIM) process.
On Request
On Request
NMEA Messages, Continued
NMEA received
messages,
continued
Update Rate
The Transmit / Receive PGN List Group type
Used to provide the output from a GNSS
receiver's Receiver Autonomous Integrity
Monitoring (RAIM) process.
The Integrity field value is based on the
parameters set in PGN 129546 GNSS RAIM
Used to report the control parameters for a
GNSS Receiver Autonomous Integrity
Continued on next page
78 of 93
Page 79
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
messages
Table C-3: NMEA transmitted messages
PGN
Description
Default
(msec)
Freq (Hz)
126992
System Time
measurement data
1000
1
126993
Heartbeat
network.
60000
1/60
127250
Vessel Heading
a True heading.
100
10
127251
Rate of Turn
Rate of change of heading.
100
10
NMEA
transmitted
Update Rate
The purpose of this PGN is twofold:
1) To provide a regular transmission of
UTC time and date, and
2) To provide synchronism for
Confirms a device is still present on the
Heading sensor value with a flag for True or
Magnetic.
If the sensor value is Magnetic, the deviation
field can be used to produce a Magnetic
heading, and the variation field can be used
to correct the Magnetic heading to produce
Continued on next page
79 of 93
Page 80
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-3: NMEA transmitted messages (continued)
PGN
Description
Default
(msec)
Freq (Hz)
127257
Altitude
stabilization.
1000
1
127258
Magnetic Variation
service if multiple transmissions exist.
1000
1
NMEA
transmitted
messages,
continued
Update Rate
Provides a single transmission that describes
the position of a vessel relative to both
horizontal and vertical planes.
Altitude can be used for vessel stabilization,
vessel control and onboard platform
Message for transmitting variation.
The message contains a sequence number
to synchronize other messages such as
Heading or Course over Ground.
The quality of service and age of service are
provided to determine appropriate level of
Continued on next page
80 of 93
Page 81
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-3: NMEA transmitted messages (continued)
PGN
Description
Default
(msec)
Freq (Hz)
129025
Position, Rapid Update
bandwidth.
100
10
129026
COG & SOG, Rapid Update
(SOG).
250
4
NMEA
transmitted
messages,
continued
Update Rate
Provides latitude and longitude referenced
to WGS84.
A single frame message (opposed to other
PGNs that include latitude and longitude and
are defined as fast or multi- packet), this
PGN lends itself to more frequent
transmission without using excessive
Single frame PGN that provides Course Over
Ground (COG) and Speed Over Ground
Continued on next page
81 of 93
Page 82
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-3: NMEA transmitted messages (continued)
PGN
Description
Default
(msec)
Freq (Hz)
129027
Position Delta, High Precision Rapid Update
accurate to 5 msec.
100
10
NMEA
transmitted
messages,
continued
Update Rate
The ‘Position Delta, High Precision Rapid
Update’ Parameter Group is for applications
requiring high precision and very fast update
rates for position data.
This PGN provides delta position changes
down to 1 mm with a delta time period
Continued on next page
82 of 93
Page 83
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-3: NMEA transmitted messages (continued)
PGN
Description
Default Update
Rate (msec)
Freq (Hz)
129028
Altitude Delta, High Precision Rapid Update
period accurate to 5 msec.
100
10
NMEA
transmitted
messages,
continued
The ‘Altitude Delta, High Precision Rapid
Update’ Parameter Group is intended for
applications requiring high precision and fast
update rates are needed for altitude and
course over ground data.
This PGN can provide delta altitude changes
down to 1 millimeter, a change in direction
as small as 0.0057°, and with a delta time
Continued on next page
83 of 93
Page 84
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-3: NMEA transmitted messages (continued)
PGN
Description
Default
(msec)
Freq (Hz)
129029
GNSS Position Data
parameters, including position information.
1000
1
129033
Time & Date
UTC Date, and Local Offset.
1000
1
129539
GNSS DOPs
(TDOP).
1000
1
NMEA
transmitted
messages,
continued
Update Rate
Conveys a comprehensive set of Global
Navigation Satellite System (GNSS)
Single transmission that provides UTC time,
Provides a single transmission containing
GNSS status and dilution of precision
components (DOP) that indicate the
contribution of satellite geometry to the
overall positioning error.
Three DOP parameters are reported:
horizontal (HDOP), Vertical (VDOP), and time
Continued on next page
84 of 93
Page 85
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-3: NMEA transmitted messages (continued)
PGN
Description
Default
(msec)
Freq (Hz)
129540
GNSS Sats in View
the information.
1000
1
NMEA
transmitted
messages,
continued
Update Rate
GNSS information on current satellites in
view tagged by sequence ID.
Information includes PRN, elevation,
azimuth, SNR, defines the number of
satellites; defines the satellite number and
Continued on next page
85 of 93
Page 86
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-4 NMEA 0183 and other messages
Message
Info
Max Output
Description
IEC Approved Message
$GPDTM
P
1 Hz
Datum reference
Yes
$GPGGA
P
50 Hz
GPS position and fix
data
Yes
$GPGLL
P
50 Hz
Geographic position lit/long
Yes
$GPGNS
P
50 Hz
GNSS position and fix
data
Yes
$GPGRS
S
1 Hz
GNSS range residual
(RAIM)
Yes
$GPGSA
S
1 Hz
GNSS DOP and active
satellites
Yes
$GPGST
S
1 Hz
GNSS pseudo range
position accuracy
Yes
$GPGSV
S
1 Hz
GNSS satellites in view
Yes
*$GPHDG
H
50 Hz
Provides magnetic
or true heading
Yes
NMEA 0183 and
other messages
In Table C-4 the Info Type value is one of the following:
• P = Position
• V = Velocity, Time
• H = Heading, Attitude S = Sets, Stats, Quality
Type
Rate
error statistics and
deviation and
variation for
calculating magnetic
Continued on next page
86 of 93
Page 87
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-4 NMEA 0183 and other messages (continued)
Message
Info
Type
Max Output
Rate
Description
IEC Approved Message
*$GPHDM
H
50 Hz
Magnetic heading
declination)
No
*$GPHDT
H
50 Hz
GPS-derived true
heading
Yes
$GPHEV
H
50 Hz
Heave value (in
meters)
Yes
$GPRMC
P
50 Hz
Recommended
GNSS data
Yes
*$GPROT
H
50 Hz
GPS-derived rate of
turn (ROT)
Yes
$GPRRE
S
1 Hz
Range residual and
error
Yes
$GPVTG
V
50 Hz
COG and ground
speed
Yes
$GPZDA
V
50 Hz
Time and date
Yes
$HEACK
S
1 Hz
Acknowledge alarm
Yes
$HEACN
S
1 Hz
Alert command
Yes
$HEALF
S
1 Hz
Alert sentence
Yes
$HEALC
S
1 Hz
Cyclic alert list
Yes
$HEALR
S
1 Hz
Set alarm state
Yes
$HEHBT
S
1 Hz
Heartbeat supervision
sentence
Yes
NMEA 0183 and
other messages,
continued
(based on GPS-derived
heading and magnetic
minimum specific
estimated position
Continued on next page
87 of 93
Page 88
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-4 NMEA 0183 and other messages (continued)
Message
Info
Type
Max Output
Rate
Description
IEC Approved Message
$HETHS
H
50 Hz
True heading and
status
Yes
$PASHR
H
50 Hz
Time, heading, roll,
message
No
$PSAT,GBS
S
1 Hz
Satellite fault
detection (RAIM)
Yes
$PSAT,HPR
H
50 Hz
Proprietary NMEA
message
No
$PSAT,INTLT
H
1 Hz
Proprietary NMEA
degrees)
Yes
$RD1
S
1 Hz
SBAS diagnostic
information
Yes
$TSS1
H
50 Hz
Heading, pitch, roll,
TSS1 message format
No
NMEA 0183 and
other messages,
continued
and pitch data in one
message that provides
heading, pitch, roll,
and time in single
message that provides
the pitch and roll
measurements from
the internal
inclinometers (in
and heave message in
the commonly used
Continued on next page
88 of 93
Page 89
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-4 NMEA 0183 and other messages (continued)
Notes:
Technical Reference Manual.
NMEA 0183 and
other messages,
continued
• The GP of the message is the talker ID
• You can change the message header for the HDG, HDM, HDT, and ROT messages to
either GP or HE uses the $JATT,NMEAHE command
− To preface these messages with GP, issue the following command:
$JATT,NMEAHE,0<CR><LF>
− To preface these messages with HE, issue the following command:
$JATT,NMEAHE,1<CR><LF>
• GPGRS, GPGSA, GPGST, and GPGSV support external integrity checking; synchronize
with corresponding fix data (GPGGA or GPGNS)
• For information on outputting roll, pitch, and heave data in one message refer to the
Hemisphere GNSS Technical Reference Manual
• HBT is sent every 30 seconds
• After 60 seconds, a heading loss warning is escalated to an alarm
• Silence timeout is 30 seconds
• THS message definition (from IEC61162-1 ed5): THS – True heading and status
• $HETHS,x.x,a*hh<CR><LF>
• x.x Heading, degrees true
• a Mode indicator (This field should not be null): A = Autonomous, E = Estimated (dead
reckoning), V = Data not valid (including standby)
• 50Hz output requires 50Hz-capable firmware plus 50Hz activation
For more information on the $JATT,NMEAHE command refer to the Hemisphere GNSS
Continued on next page
89 of 93
Page 90
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
$JATT command
Table C-5: Parameters specific to the $JATT command
Parameter
Description
Query
Specify
BALERT
Enables Bridge Alert
Functionality
X
X
COGTAU
Set/query COG time
3600.0 sec)
X
X
CSEP
Query antenna
separation
X
EXACT
Enable/disable
separation
X
X
FLIPBRD
Turn the flip feature
on/off
X
X
GYROAID
Enable/disable gyro
X
X
HBIAS
Set/query heading
180.0º)
X
X
HELP
Show the available
and status
X
HIGHMP
Set/query the high
environments
X
X
Parameters
specific to the
Management
constant (0.0 to
internal filter
reliance on the
entered antenna
bias (-180.0º to
commands for GPS
heading operation
multipath setting for
use in poor GPS
Continued on next page
90 of 93
Page 91
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-5: Parameters specific to the $JATT command (continued)
Parameter
Description
Query
Specify
HRTAU
Set/query ROT time
3600.0 sec)
X
X
HTAU
Set/query heading
3600.0 sec)
X
X
LEVEL
Enable/disable level
operation
X
X
MSEP
Manually set or
separation
X
X
NEGTILT
Enable/disable
negative tilt
X
X
NMEAHE
Change the HDG,
between GP and HE
X
X
PBIAS
Set/query pitch/roll
bias (-15.0º to 15.0º)
X
X
PTAU
Set/query pitch time
3600.0 sec)
X
X
Parameters
specific to the
$JATT
command,
continued
constant (0.0 to
time constant (0.0 to
query antenna
HDM, HDT, and ROT
message headers
constant (0.0 to
Continued on next page
91 of 93
Page 92
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-5: Parameters specific to the $JATT command (continued)
Parameter
Description
Query
Specify
ROLL
Configure for roll or
pitch GPS orientation
X
X
SEARCH
Force a new GPS
heading search
X
SPDTAU
Set/query speed
3600.0 sec)
X
X
Parameters
specific to the
$JATT
command,
continued
time constant (0.0 to
Continued on next page
92 of 93
Page 93
875-0387-0 V123/133 User Guide Rev A1
Page
NMEA Messages, Continued
V123/133
Table C-5: Parameters specific to the $JATT command (continued)
Parameter
Description
Query
Specify
SUMMARY
Display a summary of
Vector settings
X
TILTAID
Enable/disable
calibrated
X
X
TILTCAL
Calibrate
accelerometers
X
Parameters
specific to the
$JATT
command,
continued
the current Crescent
accelerometer, pre-
93 of 93
Page 94
Index
Activate Loader ........................................ 23
Activation .................................................... 6
Atlas .......................................... 6, 12, 49, 52
Base Station ................................................ 6
beacon .............. 10, 11, 13, 27, 50, 60, 69, 73
BeiDou ......................................................... 6
Bracket-mount .......................................... 32
cable length ......................................... 26, 47
COAST .................................................. 11, 73
course-over-ground .................................. 56
Course-Over-Ground (COG) ...................... 57
Crescent Vector ............................... 9, 10, 93
CSEP value ................................................. 65
DGPS/DGNSS ............................................... 6
Differential Corrections .............................. 6
Elevation Mask ............................................ 6
environmental ..................................... 26, 29
firmware .......................20, 21, 22, 23, 24, 43
Firmware ................................................... 20
Flush-mount.............................................. 32
GPS .............................................................. 6
gyro ......................................... 54, 56, 65, 90
Heading ............................................... 79, 80
HPR values ................................................ 30
NMEA ........................................................ 77
NMEA 2000 adapter .....15, 37, 38, 39, 45, 47
Pitch .............................................. 13, 57, 68
Pole-mount ............................................... 32
Port A ...................................... 43, 44, 48, 66
Port B....................................... 43, 44, 48, 66
Positioning accuracy ................................. 12
Positioning sustainability ......................... 12
Program Type ........................................... 22
radar mounting plate ................................ 40
Rate-of-Turn .............................................. 56
Rate-of-Turn (ROT) .............................. 56, 57
RightArm ................................................... 20
RTCM ....................................... 50, 63, 66, 69
RTK ................................. 6, 12, 49, 53, 55, 68
SBAS ........... 11, 13, 49, 50, 64, 68, 73, 75, 88
Speed .................................................. 57, 81
THD ............................................................ 61
Tilt aiding ................................................... 53
tilt sensors ........................................... 10, 53
TILTAID ................................................ 65, 93
VHF interference ....................................... 28
VHF marine radio ...................................... 28
watchdog................................................... 61
WebUI ....................................................... 20
Page 95
End User license
IMPORTANT - This is an agreement (the "Agreement") between you, the end purchaser ("Licensee") and
Software. Hemisphere reserves the right to reduce and limit access to such support at anytime.
End User License Agreement
agreement
Hemisphere GNSS Inc. ("Hemisphere") which permits Licensee to use the Hemisphere software (the "Software")
that accompanies this Agreement. This Software may be licensed on a standalone basis or may be embedded in a
Product. Please read and ensure that you understand this Agreement before installing or using the Software Update
or using a Product.
In this agreement any product that has Software embedded in it at the time of sale to the Licensee shall be referred
to as a "Product". As well, in this Agreement, the use of a Product shall be deemed to be use of the Software which
is embedded in the Product.
BY INSTALLING OR USING THE SOFTWARE UPDATE OR THE PRODUCT, LICENSEE THEREBY AGREES TO BE LEGALLY
BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS, (I) DO NOT INSTALL OR USE
THE SOFTWARE, AND (II) IF YOU ARE INSTALLING AN UPDATE TO THE SOFTWARE, DO NOT INSTALL THE UPDATE
AND PROMPTLY DESTROY IT.
HEMISPHERE PROVIDES LIMITED WARRANTIES IN RELATION TO THE SOFTWARE. AS WELL, THOSE WHO USE THE
EMBEDDED SOFTWARE DO SO AT THEIR OWN RISK. YOU SHOULD UNDERSTAND THE IMPORTANCE OF THESE AND
OTHER LIMITATIONS SET OUT IN THIS AGREEMENT BEFORE INSTALLING OR USING THE SOFTWARE OR THE
PRODUCT.
1.
LICENSE. Hemisphere hereby grants to Licensee a non-transferable and non-exclusive license to
use the Software as embedded in a Product and all Updates (collectively the "Software"), solely
in binary executable form.
2.
RESTRICTIONS ON USE. Licensee agrees that Licensee and its employees will not directly or
indirectly, in any manner whatsoever:
a.
install or use more copies of the Software than the number of copies that have been
licensed;
b.
use or install the Software in connection with any product other than the Product the
Software was intended to be used or installed on as set out in the documentation that
accompanies the Software.
c.
copy any of the Software or any written materials for any purpose except as part of
Licensee's normal backup processes;
d.
modify or create derivative works based on the Software;
e.
sub-license, rent, lease, loan or distribute the Software;
f.
permit any third party to use the Software;
g.
use or operate Product for the benefit of any third party in any type of service
outsourcing, application service, provider service or service bureau capacity;
h.
reverse engineer, decompile or disassemble the Software or otherwise reduce it to a
human perceivable form;
i.
Assign this Agreement or sell or otherwise transfer the Software to any other party except
as part of the sale or transfer of the whole Product.
3.
UPDATES. At Hemisphere's discretion Hemisphere may make Updates available to Licensee. An
update ("Update") means any update to the Software that is made available to Licensee
including error corrections, enhancements and other modifications. Licensee may access,
download and install Updates during the Warranty Period only. All Updates that Licensee
downloads, installs or uses shall be deemed to be Software and subject to this Agreement.
Hemisphere reserves the right to modify the Product without any obligation to notify, supply or
install any improvements or alterations to existing Software.
4.
SUPPORT. Hemisphere may make available directly or through its authorized dealers telephone
and email support for the Software. Contact Hemisphere to find the authorized dealer near you.
As well, Hemisphere may make available user and technical documentation regarding the
Continued on next page
Page 96
End User license
BACKUPS AND RECOVERY. Licensee shall back-up all data used, created or stored by the
parties.
End User License Agreement, Continued
agreement,
continued
5.
Software on a regular basis as necessary to enable proper recovery of the data and related
systems and processes in the event of a malfunction in the Software or any loss or corruption of
data caused by the Software. Licensee shall assume all risks of loss or damage for any failure to
comply with the foregoing.
6.
OWNERSHIP. Hemisphere and its suppliers own all rights, title and interest in and to the
Software and related materials, including all intellectual property rights. The Software is
licensed to Licensee, not sold.
7.
TRADEMARKS. "Hemisphere GNSS", "Crescent", "Eclipse" and the associated logos are
trademarks of Hemisphere. Other trademarks are the property of their respective owners.
Licensee may not use any of these trademarks without the consent of their respective owners.
8.
LIMITED WARRANTY. Hemisphere warrants solely to the Licensee, subject to the exclusions and
procedures set forth herein below, that for a period of one (1) year from the original date of
purchase of the Product in which it is embedded (the "Warranty Period"), the Software, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Software and any media will be free of defects in materials and
workmanship. For any Update, Hemisphere warrants, for 90 days from performance or delivery,
or for the balance of the original Warranty Period, whichever is greater, that the Update, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Update and any media will be free of defects in materials and workmanship.
Notwithstanding the foregoing, Hemisphere does not warrant that the Software will meet
Licensee's requirements or that its operation will be error free.
9.
WARRANTY EXCLUSIONS. The warranty set forth in Section (8) will not apply to any deficiencies
caused by (a) the Product not being used as described in the documentation supplied to
Licensee, (b) the Software having been altered, modified or converted in any way by anyone
other than Hemisphere approved by Hemisphere, (c) any malfunction of Licensee's equipment
or other software, or (d) damage occurring in transit or due to any accident, abuse, misuse,
improper installation, lightning (or other electrical discharge) or neglect other than that caused
by Hemisphere. Hemisphere GNSS does not warrant or guarantee the precision or accuracy of
positions obtained when using the Software (whether standalone or embedded in a Product).
The Product and the Software is not intended and should not be used as the primary means of
navigation or for use in safety of life applications. The potential lpositioning and navigation
accuracy obtainable with the Software as stated in the Product or Software documentation
serves to provide only an estimate of achievable accuracy based on specifications provided by
the US Department of Defense for GPS positioning and DGPS service provider performance
specifications, where applicable.
10.
WARRANTY DISCLAIMER. EXCEPT AS EXPRESSLY SET OUT IN THIS AGREEMENT, HEMISPHERE
MAKES NO REPRESENTATION, WARRANTY OR CONDITION OF ANY KIND TO LICENSEE,
WHETHER VERBAL OR WRITTEN AND HEREBY DISCLAIMS ALL REPRESENTATIONS, WARRANTIES
AND CONDITIONS OF ANY KIND INCLUDING FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, ACCURACY, RELIABILITY OR THAT THE USE OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR-FREE AND HEREBY DISCLAIMS ALL REPRESENTATIONS,
WARRANTIES AND CONDITIONS ARISING AS A RESULT OF CUSTOM, USAGE OR TRADE AND
THOSE ARISING UNDER STATUTE.
11.
LIMITS ON WARRANTY DISCLAIMER. Some jurisdictions do not allow the exclusion of implied
warranties or conditions, so some of the above exclusions may not apply to Licensee. In that
case, any implied warranties or conditions which would then otherwise arise will be limited in
duration to ninety (90) days from the date of the license of the Software or the purchase of the
Product. The warranties given herein give Licensee specific legal rights and Licensee may have
other rights which may vary from jurisdiction to jurisdiction.
12.
CHANGE TO WARRANTY.No employee or agent of Hemisphere is authorized to change the
warranty provided or the limitation or disclaimer of warranty provisions. All such changes will
only be effective if pursuant to a separate agreement signed by senior officers of the respective
Continued on next page
Page 97
End User license
WARRANTY CLAIM. In the event Licensee has a warranty claim Licensee must first check for
functionality of the Product,
End User License Agreement, Continued
agreement,
continued
13.
and install all Updates that are made available. The warranty will not otherwise be honored.
Proof of purchase may be required. Hemisphere does not honor claims asserted after the end
of the Warranty Period.
14.
LICENSEE REMEDIES. In all cases which involve a failure of the Software to conform in any
material respect to the documentation during the Warranty Period or a breach of a warranty,
Hemisphere's sole obligation and liability, and Licensee's sole and exclusive remedy, is for
Hemisphere, at Hemisphere's option, to (a) repair the Software, (b) replace the Software with
software conforming to the documentation, or (c) if Hemisphere is unable, on a reasonable
commercial basis, to repair the Software or to replace the Software with conforming software
within ninety (90) days, to terminate this Agreement and thereafter Licensee shall cease using
the Software. Hemisphere will also issue a refund for the price paid by Licensee less an amount
on account of amortization, calculated on a straight-line basis over a deemed useful life of three
(3) years.
15.
LIMITATION OF LIABILITY. IN NO EVENT WILL HEMISPHERE BE LIABLE TO LICENSEE FOR ANY
INCIDENTAL, CONSEQUENTIAL, SPECIAL OR INDIRECT DAMAGES INCLUDING ARISING IN
RELATION TO ANY LOSS OF DATA, INCOME, REVENUE, GOODWILL OR ANTICIPATED SAVINGS
EVEN IF HEMISPHERE HAS BEEN INFORMED OFTHE POSSIBILITY OF SUCH LOSS OR DAMAGE.
FURTHER, IN NO EVENT WILL HEMISPHERE'S TOTAL CUMULATIVE LIABILITY HEREUNDER, FROM
ALL CAUSES OF ACTION OF ANY KIND, EXCEED THE TOTAL AMOUNT PAID BY LICENSEE TO
HEMISPHERE TO PURCHASE THE PRODUCT. THIS LIMITATION AND EXCLUSION APPLIES
IRRESPECTIVE OF THE CAUSE OF ACTION, INCLUDING BUT NOT LIMITED TO BREACH OF
CONTRACT, NEGLIGENCE, STRICT LIABILITY, TORT, BREACH OF WARRANTY,
MISREPRESENTATION OR ANY OTHER LEGAL THEORY AND WILL SURVIVE A FUNDAMENTAL
BREACH.
16.
LIMITS ON LIMITATION OF LIABILITY. Some jurisdictions do not allow for the limitation or
exclusion of liability for incidental or consequential damages, so the above limitation or
exclusion may not apply to Licensee and Licensee may also have other legal rights which may
vary from jurisdiction to jurisdiction.
17.
BASIS OF BARGAIN. Licensee agrees and acknowledges that Hemisphere has set its prices and
the parties have entered into this Agreement in reliance on the limited warranties, warranty
disclaimers and limitations of liability set forth herein, that the same reflect an agreed-to
allocation of risk between the parties (including the risk that a remedy may fail of its essential
purpose and cause consequential loss), and that the same forms an essential basis of the
bargain between the parties. Licensee agrees and acknowledges that Hemisphere would not
have been able to sell the Product at the amount charged on an economic basis without such
limitations.
18.
PROPRIETARY RIGHTS INDEMNITY. Hemisphere shall indemnify, defend and hold harmless
Licensee from and against any and all actions, claims, demands, proceedings, liabilities, direct
damages, judgments, settlements, fines, penalties, costs and expenses, including royalties and
attorneys' fees and related costs, in connection with or arising out of any actual infringement of
any third party patent, copyright or other intellectual property right by the Software or by its
use, in accordance with this Agreement and documentation, PROVIDED THAT: (a) Hemisphere
has the right to assume full control over any action, claim, demand or proceeding, (b) Licensee
shall promptly notify Hemisphere of any such action, claim, demand, or proceeding, and (c)
Licensee shall give Hemisphere such reasonable assistance and tangible material as is
reasonably available to Licensee for the defense of the action, claim, demand or proceeding.
Licensee shall not settle or compromise any of same for which Hemisphere has agreed to
assume responsibility without Hemisphere's prior written consent. Licensee may, at its sole cost
and expense, retain separate counsel from the counsel utilized or retained by Hemisphere.
INFRINGEMENT. If use of the Software may be enjoined due to a claim of infringement by a
third party then, at its sole discretion and expense, Hemisphere may do one of the following: (a)
negotiate a license or other agreement so that the Product is no longer subject to such a
potential claim, (b) modify the Product so that it becomes non- infringing, provided such
modification can be accomplished without materially affecting the performance and
19.
Continued on next page
Page 98
End User
(c) replace the Software, or the Product, with non-infringing software, or product, of equal or
force and effect.
End User License Agreement, Continued
license
agreement,
continued
GENERAL. This is the entire agreement between Licensee and Hemisphere relating to the Product and Licensee's
use of the same, and supersedes all prior, collateral or contemporaneous oral or written representations,
warranties or agreements regarding the same. No amendment to or modification of this Agreement will be binding
unless in writing and signed by duly authorized representatives of the parties. Any and all terms and conditions set
out in any correspondence between the parties or set out in a purchase order which are different from or in
addition to the terms and conditions set forth herein, shall have no application and no written notice of same shall
be required. In the event that one or more of the provisions of this Agreement is found to be illegal or
unenforceable, this Agreement shall not be rendered inoperative but the remaining provisions shall continue in full
better performance and quality, or (d) if none of the foregoing can be done on a commercially
reasonable basis, terminate this license and Licensee shall stop using the Product and
Hemisphere shall refund the price paid by Licensee less an amount on account of amortization,
calculated on a straight-line basis over a deemed useful life of three (3) years.
19.
The foregoing sets out the entire liability of Hemisphere and the sole obligations of Hemisphere
to Licensee in respect of any claim that the Software or its use infringes any third party rights.
20.
INDEMNIFICATION. Except in relation to an infringement action, Licensee shall indemnify and
hold Hemisphere harmless from any and all claims, damages, losses, liabilities, costs and
expenses (including reasonable fees of lawyers and other professionals) arising out of or in
connection with Licensee's use of the Product, whether direct or indirect, including without
limiting the foregoing, loss of data, loss of profit or business interruption. TERMINATION.
Licensee may terminate this Agreement at any time without cause. Hemisphere may terminate
this Agreement on 30 days notice to Licensee if Licensee fails to materially comply with each
provision of this Agreement unless such default is cured within the 30 days. Any such
termination by a party shall be in addition to and without prejudice to such rights and remedies
as may be available, including injunction and other equitable remedies. Upon receipt by
Licensee of written notice of termination from Hemisphere or termination by Licensee, Licensee
shall at the end of any notice period (a) cease using the Software; and (b) return to Hemisphere
(or destroy and provide a certificate of a Senior Officer attesting to such destruction) the
Software and all related material and any magnetic or optical media provided to Licensee. The
provisions of Sections 6), 7), 8), 9), 10), 15), 21), 26) and 27) herein shall survive the expiration
or termination of this Agreement for any reason.
21.
EXPORT RESTRICTIONS. Licensee agrees that Licensee will comply with all export control
legislation of Canada, the United States, Australia and any other applicable country's laws and
regulations, whether under the Arms Export Control Act, the International Traffic in Arms
Regulations, the Export Administration Regulations, the regulations of the United States
Departments of Commerce, State, and Treasury, or otherwise as well as the export control
legislation of all other countries.
22.
PRODUCT COMPONENTS. The Product may contain third party components. Those third party
components may be subject to additional terms and conditions. Licensee is required to agree to
those terms and conditions in order to use the Product.
23.
FORCE MAJEURE EVENT. Neither party will have the right to claim damages as a result of the
other's inability to perform or any delay in performance due to unforeseeable circumstances
beyond its reasonable control, such as labor disputes, strikes, lockouts, war, riot, insurrection,
epidemic, Internet virus attack, Internet failure, supplier failure, act of God, or governmental
action not the fault of the non-performing party.
24.
FORUM FOR DISPUTES. The parties agree that the courts located in Calgary, Alberta, Canada
and the courts of appeal there from will have exclusive jurisdiction to resolve any disputes
between Licensee and Hemisphere concerning this Agreement or Licensee's use or inability to
use the Software and the parties hereby irrevocably agree to attorn to the jurisdiction of those
courts. Notwithstanding the foregoing, either party may apply to any court of competent
jurisdiction for injunctive relief.
25.
APPLICABLE LAW. This Agreement shall be governed by the laws of the Province of Alberta,
Canada, exclusive of any of its choice of law and conflicts of law jurisprudence.
26.
CISG. The United Nations Convention on Contracts for the International Sale of Goods will not
apply to this Agreement or any transaction hereunder.
Page 99
Warranty notice
COVERED PRODUCTS: This warranty covers all products manufactured by Hemisphere GNSS and purchased by the
settings. UNSAFE DRIVING OR SYSTEM CONTROL SETTINGS CAN RESULT IN PROPERTY DAMAGE, INJURY, OR DEATH.
Warranty Notice
end purchaser (the "Products"), unless otherwise specifically and expressly agreed in writing by Hemisphere GNSS.
LIMITED WARRANTY: Hemisphere GNSS warrants solely to the end purchaser of the Products, subject to the
exclusions and procedures set forth below, that the Products sold to such end purchaser and its internal
components shall be free, under normal use and maintenance, from defects in materials, and workmanship and will
substantially conform to Hemisphere GNSS's applicable specifications for the Product, for a period of 12 months
from delivery of such Product to such end purchaser (the ”Warranty Period”). Repairs and replacement components
for the Products are warranted, subject to the exclusions and procedures set forth below, to be free, under normal
use and maintenance, from defects in material and workmanship, and will substantially conform to Hemisphere
GNSS's applicable specifications for the Product, for 90 days from performance or delivery, or for the balance of the
original Warranty Period, whichever is greater.
EXCLUSION OF ALL OTHER WARRANTIES. The LIMITED WARRANTY shall apply only if the Product is properly and
correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS
relevant User’s Manual and Specifications, AND the Product is not modified or misused. The Product is provided “AS
IS” and the implied warranties of MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE and ALL OTHER
WARRANTIES,
express, implied or arising by statute, by course of dealing or by trade usage, in connection with the design, sale,
installation, service or use of any products or any component thereof, are EXCLUDED from this transaction and shall
not apply to the Product. The LIMITED WARRANTY is IN LIEU OF any other warranty, express or implied, including
but not limited to, any warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, title, and noninfringement.
LIMITATION OF REMEDIES. The purchaser’s EXCLUSIVE REMEDY against Hemisphere GNSS shall be, at Hemisphere
GNSS's option, the repair or replacement of any defective Product or components thereof. The purchaser shall
notify Hemisphere GNSS or a Hemisphere GNSS's approved service center immediately of any defect. Repairs shall
be made through a Hemisphere GNSS approved service center only. Repair, modification or service of Hemisphere
GNSS products by any party other than a Hemisphere GNSS approved service center shall render this warranty null
and void. The remedy in this paragraph shall only be applied in the event that the Product is properly and correctly
installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS's relevant
User’s Manual and Specifications, AND the Product is not modified or misused. NO OTHER REMEDY (INCLUDING,
BUT NOT LIMITED TO, SPECIAL, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR CONTINGENT DAMAGES FOR LOST
PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS)
SHALL BE AVAILABLE
TO PURCHASER, even if Hemisphere GNSS has been advised of the possibility of such damages. Without limiting the
foregoing, Hemisphere GNSS shall not be liable for any damages of any kind resulting from installation, use, quality,
performance or accuracy of any Product.
HEMISPHERE IS NOT RESPONSIBLE FOR PURCHASER’S NEGLIGENCE OR UNAUTHORIZED USES OF THE PRODUCT.
IN NO EVENT SHALL Hemisphere GNSS BE IN ANY WAY RESPONSIBLE FOR ANY DAMAGES RESULTING FROM
PURCHASER’S OWN NEGLIGENCE, OR FROM OPERATION OF THE PRODUCT IN ANY WAY OTHER THAN AS SPECIFIED
IN Hemisphere GNSS's RELEVANT USER’S MANUAL AND SPECIFICATIONS. Hemisphere GNSS is NOT
RESPONSIBLE for defects or performance problems resulting from (1) misuse, abuse, improper installation, neglect
of Product; (2) the utilization of the Product with hardware or software products, information, data, systems,
interfaces or devices not made, supplied or specified by Hemisphere GNSS; (3) the operation of the Product under
any specification other than, or in addition to, the specifications set forth in Hemisphere GNSS's relevant User’s
Manual and Specifications; (4) damage caused by accident or natural events, such as lightning (or other electrical
discharge) or fresh/ salt water immersion of Product; (5) damage occurring in transit; (6) normal wear and tear; or
(7) the operation or failure of operation of any satellite-based positioning system or differential correction service;
or the availability or performance of any satellite-based positioning signal or differential correction signal.
THE PURCHASER IS RESPONSIBLE FOR OPERATING THE VEHICLE SAFELY. The purchaser is solely responsible for the
safe operation of the vehicle used in connection with the Product, and for maintaining proper system control
Continued on next page
Page 100
Warranty
The purchaser is solely responsible for his/her safety and for the safety of others. The purchaser is solely
Warranty Notice, Continued
notice,
continued
responsible for maintaining control of the automated steering system at all times. THE PURCHASER IS SOLELY
RESPONSIBLE FOR ENSURING THE PRODUCT IS PROPERLY AND CORRECTLY INSTALLED, CONFIGURED, INTERFACED,
MAINTAINED, STORED, AND OPERATED IN ACCORDANCE WITH Hemisphere GNSS's RELEVANT USER’S MANUAL
AND SPECIFICATIONS. Hemisphere GNSS does not warrant or guarantee the positioning and navigation precision or
accuracy obtained when using Products. Products are not intended for primary navigation or for use in safety of life
applications. The potential accuracy of Products as stated in Hemisphere GNSS literature and/or Product
specifications serves to provide only an estimate of achievable accuracy based on performance specifications
provided by the satellite service operator (i.e. US Department of Defense in the case of GPS and differential
correction service provider. Hemisphere GNSS reserves the right to modify Products without any obligation to
notify, supply or install any improvements or alterations to existing Products.
GOVERNING LAW. This agreement and any disputes relating to, concerning or based upon the Product shall be
governed by and interpreted in accordance with the laws of the State of Arizona.
OBTAINING WARRANTY SERVICE. In order to obtain warranty service, the end purchaser must bring the Product to
a Hemisphere GNSS approved service center along with the end purchaser's proof of purchase. Hemisphere GNSS
does not warrant claims asserted after the end of the warranty period. For any questions regarding warranty
service or to obtain information regarding the location of any of Hemisphere GNSS approved service center, contact
Hemisphere GNSS at the following address:
Hemisphere GNSS
8515 E. Anderson Drive Scottsdale, AZ 85255, USA
Phone: +1-480-348-6380
Fax: +1-480-270-5070
TECHSUPPORT@HGNSS.COM
WWW.HGNSS.COM
Loading...
