Page 1
559-734-7451 800-367-5480 FAX 559-734-7460

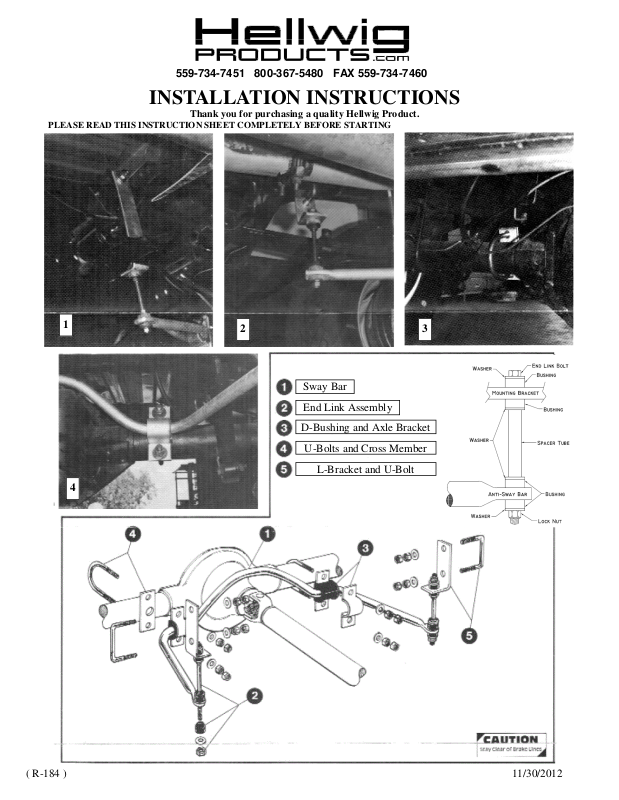

INSTALLATION INSTRUCTIONS
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORE STARTING
1
2 3
Sway Bar
End Link Assembly
D-Bushing and Axle Bracket
U-Bolts and Cross Member
L-Bracket and U-Bolt
4
( R-184 ) 11/30/2012
Page 2
559-734-7451 800-367-5480 FAX 559-734-7460
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – 1/2” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs
SAFETY:
NOTE: TO EASE INSTALLATION AND TO PROPERLY ADJUST THE SWAY BAR, THE WEIGHT OF THE VEHICLE MUST BE
PARK YOUR VEHICLE ON A FLAT LEVEL SURFACE, SET THE PARKING AND CHOCK THE FRONT TIRES.
ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE THE VEHICLE BY THE FRAME.
1. Install frame angle brackets and U-bolts as in photos No. 1 and 2. Be sure to have all wires, fuel
lines, etc clear of these components.
2. As in Photos No. 3 and 4 install sway bar on axle. Note the hole in the axle plate. This allows the
plate to locate on the stud welded to the axle. Install the axle U-bolts under the brake lines, then
the axle plate over the U-bolts and stud. Place the sway bar against this assembly and install the
tie down plate. Do No Tighten.
3. Raise the arms of the bar up and assemble end links. Note line drawing of end links and Photo
No. 2 when installing. Tighten the end link nuts just until the bushing begins to bulge slightly. Do
Not Overtighten.
4. Align frame brackets so the end links are in a vertical position. Tighten U-bolts and double nut
for a secure lock. Tighten axle U-bolts so all the plates lay flat against each other. Double nut
these U-bolts.
5. Bounce the vehicle and check for clearance on all undercarriage components. Be sure all nuts and
bolts are securely fastened and double nuts are used where necessary or provided.
6. Recheck your installation after a test drive, look for clearance on gas lines, exhaust pipes, brake
lines, wiring, etc. After one week of driving check your installation and periodically thereafter.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUCTION
( R-184 ) 11/30/2012
SHEET, ALL IMPORTANT NOTE CARDS AND THE WARRANTY FORM.
