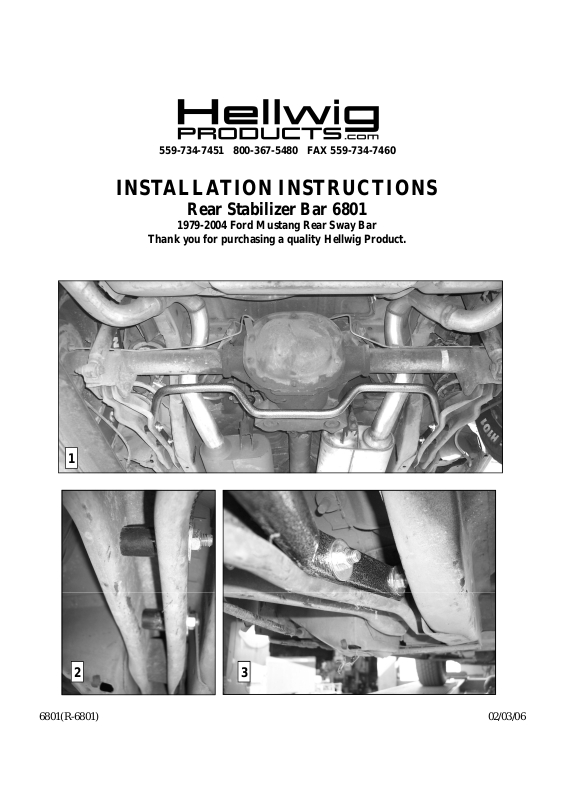

INSTALLATION INSTRUCTIONS
Rear Stabilizer Bar 6801
1979-2004 Ford Mustang Rear SwayBar
Thank you for purchasing a quality Hellwig Product.
1
2 3
6801(R-6801) 02/03/06
Page 2
559-734-7451 800-367-5480 FAX 559-734-7460
TORQUE TABLE
Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs
SAFETY: BEFOREBEGINNING INSTALLATION BE SURE TO SET THE PARKINGBRAKE AND
CHOCK THE WHEELS.
1. Ensure that the vehicle is secure and stable before working under the vehicle.
2. If vehicle is equipped with factory rear sway bar, remove factory rear sway bar.
3. Install spacers in control arm as shown in photo (2). The spacers may need to be ground down to fit between the walls of the
control arms. Theyare made slightly long to accommodate variations in the factory control arms. Spacers must be used to
avoid crushing the control arms when the bolts are tightened.
4. Attach sway bar to control arm using supplied hardware. Install large washers on surface of sway bar as shown in Photos
Two (2) and Three (3).
5. Torque bolts to 35 ft-lb
6. Bounce the vehicle checking for clearance on all under carriage components. Test drive the vehicle and recheck all clearances and the installation alignment. Adjust as needed. Re-check your installation after one week of driving
and periodically on a regular basis.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUCTION
SHEET, ALL IMORTANT NOTE CARDS AND THE WARRANTY FORM
6801 (R-6801) 02/03/06
