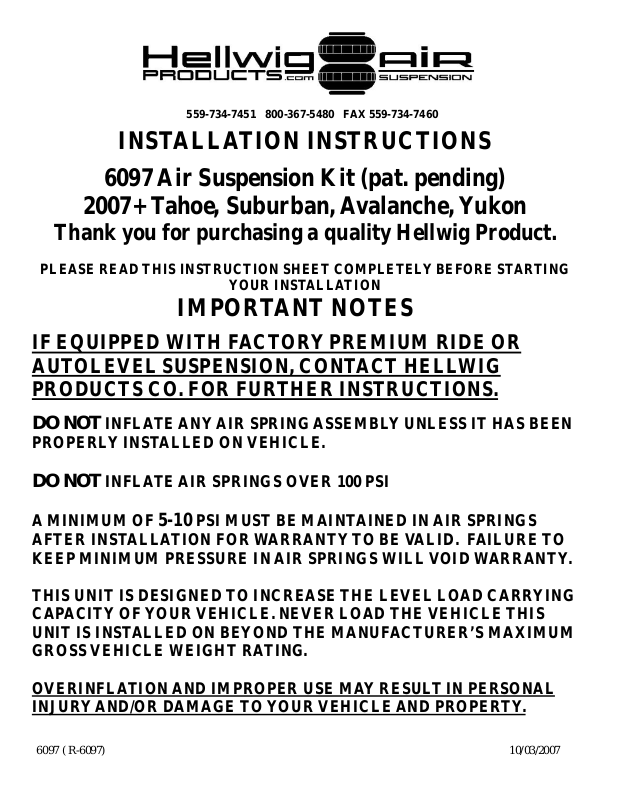

INSTALLATION INSTRUCTIONS

6097Air Suspension Kit (pat. pending)

2007+ Tahoe, Suburban, Avalanche, Yukon

Thank you for purchasing a quality Hellwig Product.

PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORE STARTING

YOUR INSTALLATION

IMPORTANT NOTES

IF EQUIPPED WITH FACTORY PREMIUM RIDE OR
AUTOLEVELSUSPENSION, CONTACT HELLWIG
PRODUCTS CO. FOR FURTHER INSTRUCTIONS.

DO NOT INFLATE ANYAIR SPRINGASSEMBLY UNLESS IT HAS BEEN

PROPERLY INSTALLED ONVEHICLE.

DO NOT INFLATE AIR SPRINGS OVER 100 PSI

AMINIMUM OF 5-10 PSI MUST BE MAINTAINED IN AIR SPRINGS
AFTER INSTALLATION FOR WARRANTY TO BE VALID. FAILURE TO
KEEPMINIMUM PRESSURE IN AIR SPRINGS WILL VOID WARRANTY.

THIS UNIT IS DESIGNED TO INCREASE THE LEVELLOAD CARRYING
CAPACITY OFYOUR VEHICLE. NEVER LOAD THE VEHICLE THIS
UNIT IS INSTALLED ON BEYOND THE MANUFACTURER’S MAXIMUM
GROSS VEHICLE WEIGHT RATING.

OVERINFLATIONAND IMPROPER USE MAY RESULT IN PERSONAL
INJURYAND/OR DAMAGE TO YOUR VEHICLE AND PROPERTY.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

BEFORE STARTINGYOUR PROJECT

WHEN LIFTING A VEHICLE WITH A JACK, BE SURE TO SET THE PARKING BRAKE AND USE SAFETY STANDS.
ENSURE THAT THE INSTALLATION OF COMPONENTS WILL NOT CRUSH OR DAMAGE FUEL AND BRAKE

LINES OR ELECTRICAL HARNESSES.
BEFORE DRILLING ANY HOLES, ENSURE THAT ALL ELECTRICAL WIRES, FUEL LINES, BRAKE LINES, BRAKE

HOSES AND ANY OTHER COMPONENTS ARE MOVED OR PROTECTED TO AVOID DAMAGE FROM DRILLING
ANY HOLES .

DO NOT ATTEMPT ANY MODIFICATIONS TO THE VEHICLE OTHER THAN THOSE OUTLINED IN THIS
INSTRUCTION SHEET. IF ANY INTERFERENCE WITH THE GAS TANK, FUEL LINES, BRAKE LINES, EXHAUST
PIPE, ETC. EXISTS, STOP YOUR INSTALLATION AND CALL HELLWIG PRODUCTS FOR TECHNICAL HELP.

IF WHEELS ARE REMOVED FOR INSTALLATION OF KIT, CHECK MANUFACTURERS SPECIFICATIONS FOR
PROPER LUG NUT TORQUE BEFORE REINSTALLING WHEELS.

WHEN CUTTING AIR BRAKE TUBING, A SQUARE CUT IS REQUIRED AND THE HOSE END MUST NOT BE
DEFORMED OR LEAKAGE MAY RESULT. IF DEFORMATION OF THE HOSE END OCCURS, THE HOSE END
MUST BE REWORKED SO THAT IT IS ROUND.

ENGAGEMENT OF THE SEALING O-RING WILL BE FELT WHEN THE AIR LINE HAS BEEN INSERTED
PROPERLY INTO THE FITTING. FITTINGS MAY BE DISCONNECTED IF REQUIRED BY PUSHING DOWN ON THE
OUTER RING WHILE PULLING FIRMLY ON THE AIR LINE.

ROUTE AIR LINES AWAY FROM EXHAUST PIPES OR ANY OTHER SOURCES OF HEAT AND ENSURE THAT THE
AIR LINES ARE PROTECTED FROM SHARP EDGES.

6097 ( R-6097) 10/03/2007

Part A Air Spring Installation

1. Prepare vehicle for installation by
chocking front tires and setting emer­gency brake. Before starting installa-

Measure this
distance

2. For ease of installation, posi­tion the rear wheels on automo­tive ramps. Ensure vehicle is
secure and disconnect shock
absorbers from rear axle. Raise
vehicle frame until coil springs
are unloaded. Support frame
with jack stands and remove
coil springs and insulators from
vehicle. Do not remove bump
stops from frame.

tion, measure the distance from the top
of rear wheel to fender lip as shown.
This is the original ride height of the ve­hicle. Write this measurement down as
this will be used to set the height of the
air springs later in the installation.

Remove insulators
from frame and axle

3. Remove Panhard Rod
bolt on passenger side and
reinstall with bolt head fac­ing front of vehicle to pro­vide additional clearance to
air spring on passenger
side. Torque to factory
specification.

6097 ( R-6097) 10/03/2007

7/16UNF x 2-1/4 Bolt

Push Nut Clip

3/8 UNF Nut

Driver Side

1/2 MPT x 3/8
Hose fitting

This side of bracket
faces inboard

4a. Prepare driver side air spring
assembly by installing 1/2” MPT
x 3/8 push to connect fitting into
air spring. Torque to 25-30 ft-lb.
The driver side frame bracket
has a full circle cut out for the
air fitting instead of a cut-out on
the edge. Attach frame bracket
to air spring with 3/8” UNF nuts.
Torque to 20 ft-lb. Place 7/16­20x2-1/4” bolt through hole in
frame bracket and retain with
push nut clip. Push nut can be
installed on bolt by pushing on
clip with a deep well socket
while holding head of bolt in
place.

7/16UNF x 2-1/4 Bolt

Push Nut Clip

This side of bracket
faces inboard

Passenger Side

3/8 UNF Nuts

1/2 MPT x 3/8
Hose fitting

Heat Shields

4b. Prepare passenger side air
spring assembly by installing
1/2” MPT x 3/8 push to connect
fitting into air spring. Torque to
25-30 ft-lb. The passenger side
frame bracket has a cut-out on the
edge of the bracket for the air fit­ting. Place two (2) heat shields
on top of air spring as shown and
attach frame bracket to air spring
with 3/8” UNF nuts. Torque to
20 ft-lb. Place 7/16-20x2-1/4”
bolt through hole in frame
bracket and retain with push nut
clip. Push nut can be installed on
bolt by pushing on clip with a
deep well socket while holding
head of bolt in place.

6097 ( R-6097) 10/03/2007

This end inboard This end inboard

3/8-16 x 1” Bolt

3/8-16 x 1-3/4”
Bolt Install 1­1/4” spacer
tube between
bracket and air
spring

3/8-16 x 1” Bolt

Driver Side

Passenger Side

5. Attach axle bracket to air spring as shown. The reinforcement braces are to be
installed over the coil seat on the axle. Note that the bracket is installed so that
the braces are under the air spring. The section of the axle bracket without
braces will be installed so that it faces inboard toward the center of the axle.
There are differences in how the brackets attach to the air spring for the driver
and passenger assemblies. On the passenger side assembly attach the 3/8-16 x
1-3/4” bolt and 1-1/4” spacer to air spring and axle bracket as shown. Then at­tach 3/8-16 x 1” bolt to air spring through middle hole of axle bracket as shown.
Snug bolts but do not tighten to allow for adjustment. On the driver side assem­bly attach the axle bracket to the air spring using the slotted holes as shown us­ing 3/8-16 x1” bolts. Snug bolts but do not tighten to allow for adjustment.

Passenger Side

3/8-16 x 1-3/4” Bolt
Install 1-1/4” spacer
tube between
bracket and air

Coil spring seat—install
bracket so that reinforcement
braces center bracket on seat.

6097 ( R-6097) 10/03/2007

Place frame bracket over coil spring
seat

6. Compress air spring assembly and install between axle and frame. Place brackets over
coil spring seats so that the cut-out in the frame bracket and the reinforcements in the axle
bracket fit over the raised lip of the seat. Adjust axle brackets so that air springs sit square
and tighten bolts to 20 ft-lb. Heat shields may need to be bent slightly to clear exhaust pipe.

Nut and lock washer

Frame Washer

7. To aid assembly of brackets to frame, lower frame of vehicle slightly so that the air spring
assembly holds itself in place between the axle and frame. While lowering frame, DO NOT
get under vehicle or place hands between axle and frame. Place frame on jack stands before
continuing work. Attach frame bracket by placing frame bracket over coil spring seat so that
the cut-out in the frame bracket fits over the raised lip of the seat. Place frame washer over
bolt and attach bracket with 7/16”nut and lock washer. Tighten 7/16” bolt to 35-40 ft-lb.
Due to the close quarters of the body and frame it is advised to hold the nut in place with a
wrench and tighten the bolt head. To gain additional clearance to tighten the nut, the plastic
inner fender wells can be unbolted.

6097 ( R-6097) 10/03/2007

Passenger Side

Driver side

Thick washers

Driver Side

8. Passenger side—Place 3/8-16x2-3/4” bolts through slotted holes in axle bracket as shown
and attach qty 2 axle straps to passenger side axle bracket using washers and 3/8” locknuts.
Driver side—Attach 1 axle strap to outboard side of axle bracket only. Place qty (2) 1/4”
thick washers between axle bracket and panhard axle bracket as shown. Shim axle bracket
with additional flat washers until bracket is parallel with axle. Insert 3/8-16 x 1-1/2 bolt and
tighten locknut to 20 ft-lb. Tighten nuts on axle straps until legs of axle straps bend slightly.
Relocate brake lines so that they do not interfere with axle brackets, bolts, straps and air
springs.

6097 ( R-6097) 10/03/2007

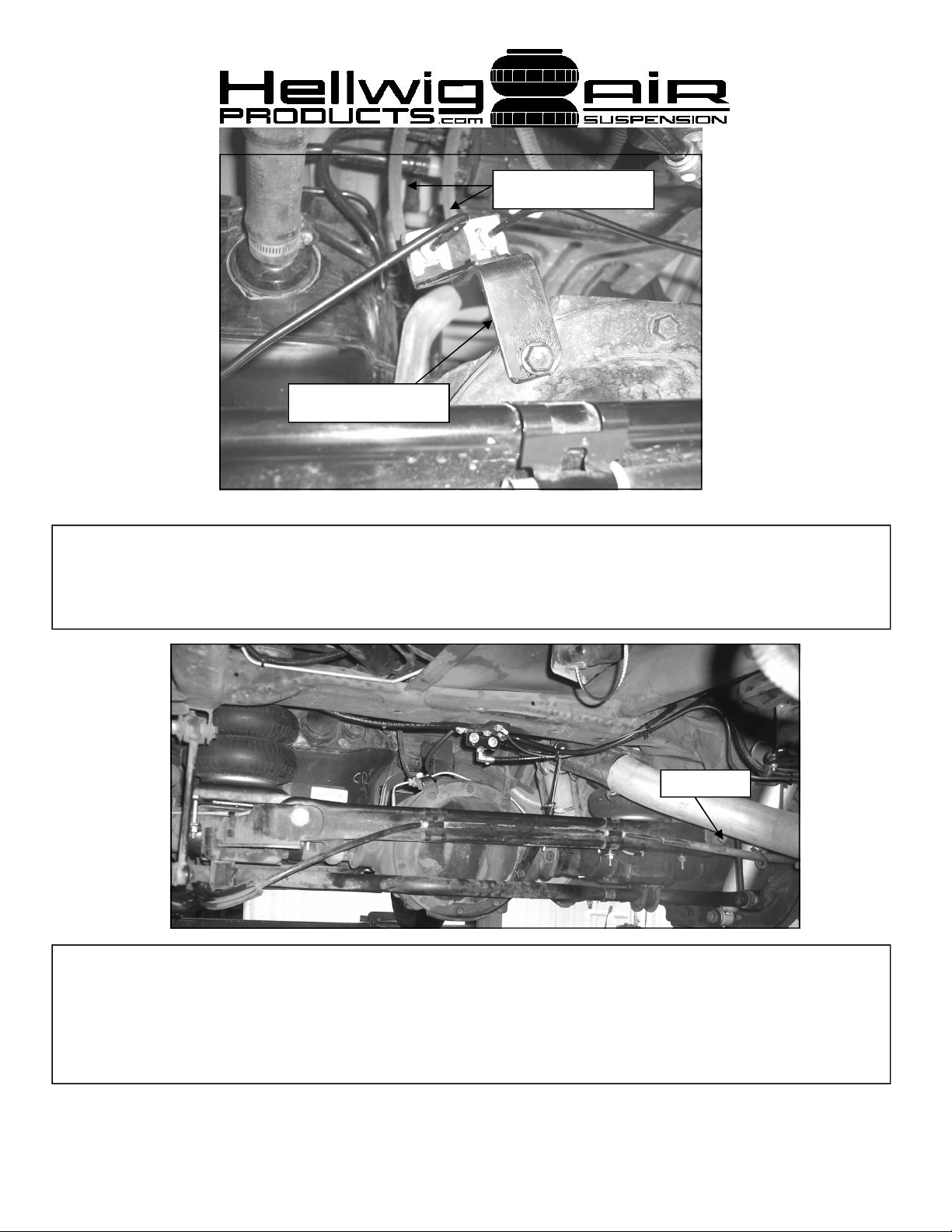

Dual brake hose.

Relocation Bracket

9. Remove factory brake line bracket from axle and install brake relocation bracket using axle
cover bolt and 5/16” bolt and nut to attach brake hoses to bracket. Failure to properly install
bracket will result in contact between the brake lines and leveling valve.

Panhard bolt

10. Recheck all fasteners for proper torque and ensure adequate clearance to all vehicle com­ponents – exhaust, brake hoses, brake lines, shocks, differential, etc. MAKE SURE THAT

PASSENGER SIDE PANHARD BOLT WILL NOT CONTACTAIR SPRING DURING
USE. A minimum of 1/2” clearance is required. If necessary, remove and re-install panhard

bolt with bolt head facing air spring to provide clearance.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

Part B Leveling Valve Installation

Subtract 1” from
reference dimension

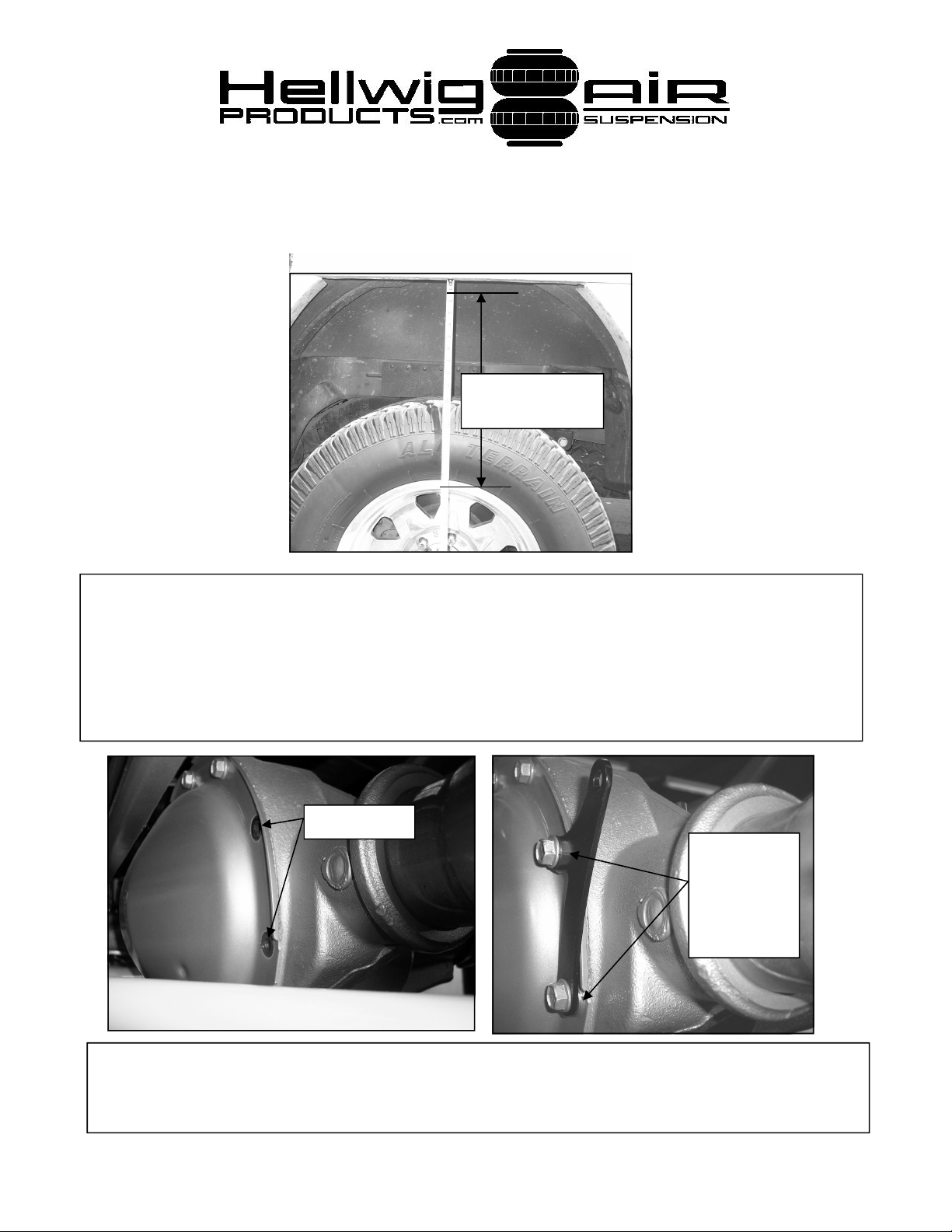

11. Reference the ride height from step (1) and subtract 1” from this measurement. Ad­just frame height to the new measurement and place frame on jack stands. This will al­low the vehicle to have a level attitude as GM built in rake to accommodate compres­sion of the coil spring under load. The air suspension will hold ride height regardless of
load. IMPORTANT- You must reduce the rear ride height 1” to prevent the leveling
valve linkage from contacting the floorpan.

Remove 2 bolts

Qty (2) 5/16”
washers be­tween bracket
and cover at
each bolt loca­tion .

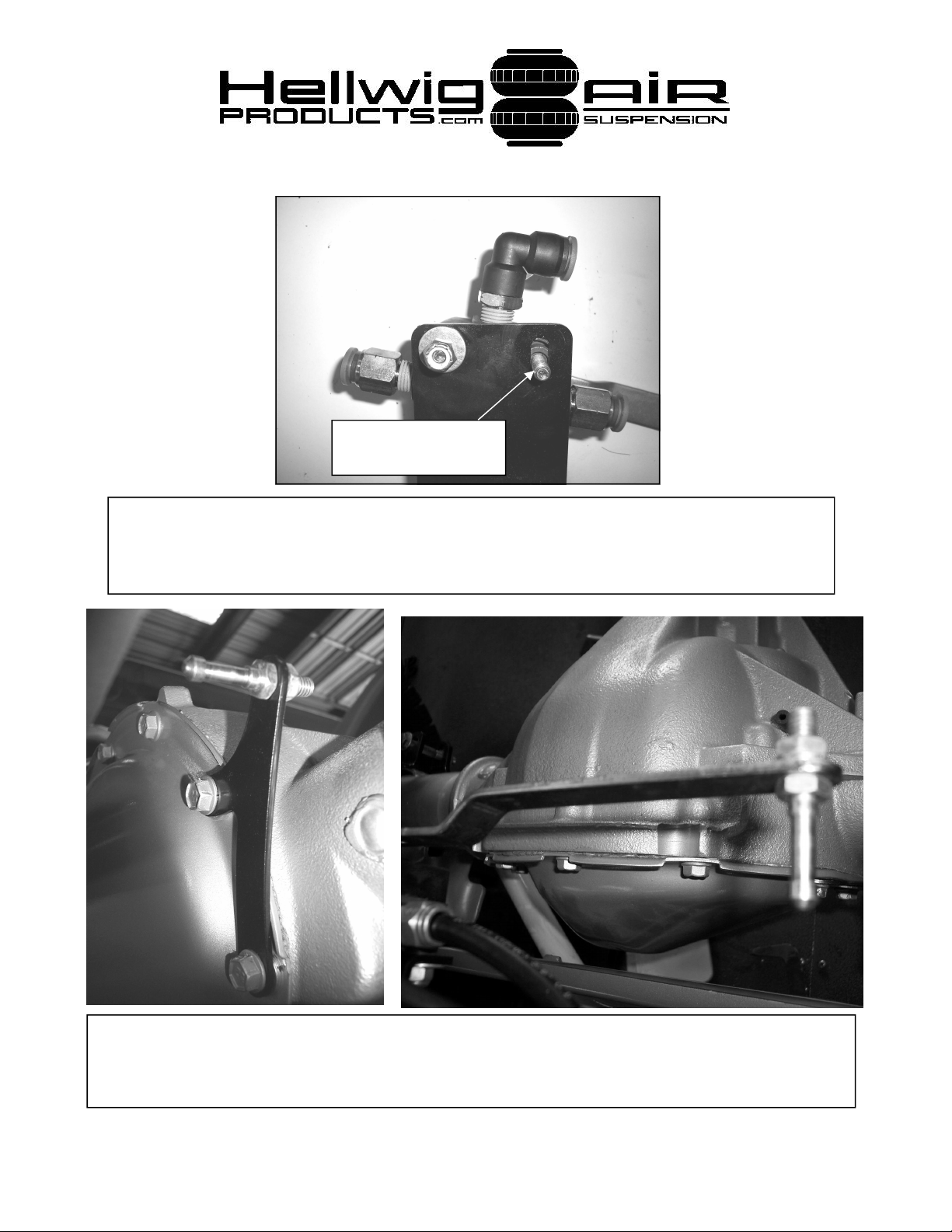

12. Remove 2 bolts from differential cover as shown. Re-use bolts to attach leveling
valve axle bracket as shown. Place qty (2) 5/16” washers between differential cover and
bracket at each bolt location to make bracket sit square. Torque to 10-12 ft-lb.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

Inlet/Exhaust Port Delivery Port

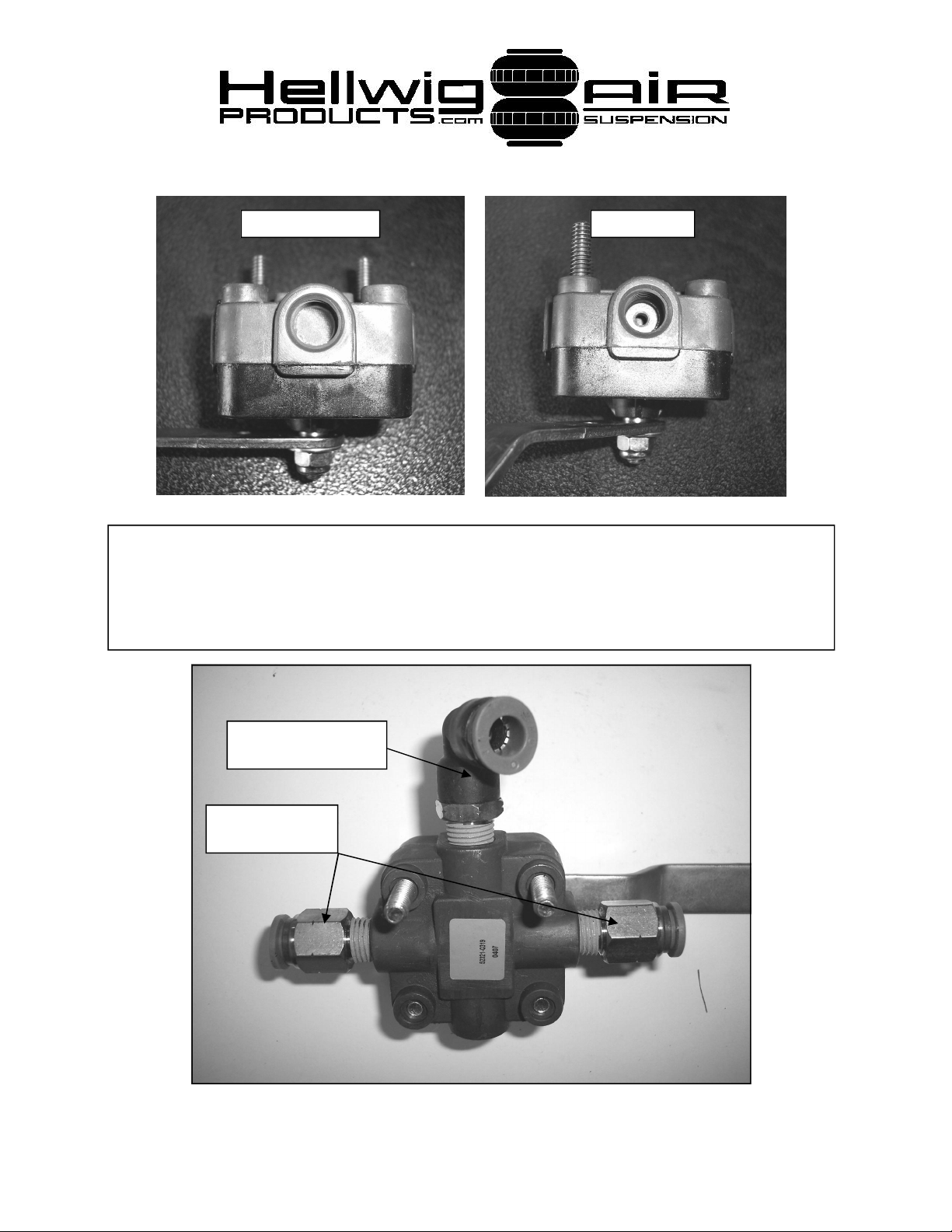

13. Prepare leveling valve for installation. The inlet and exhaust ports have a
screen across the base of the port while the delivery ports to the air springs have a
hole. See photos. Attach fittings to leveling valve as shown below. Torque fit­tings to 7-8 ft-lb. Do not overtighten.

3/8” tube –1/4” MPT
elbow

3/8” tube—1/4”
MPT connector

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

Nut/washer not shown to
illustrate stud orientation.

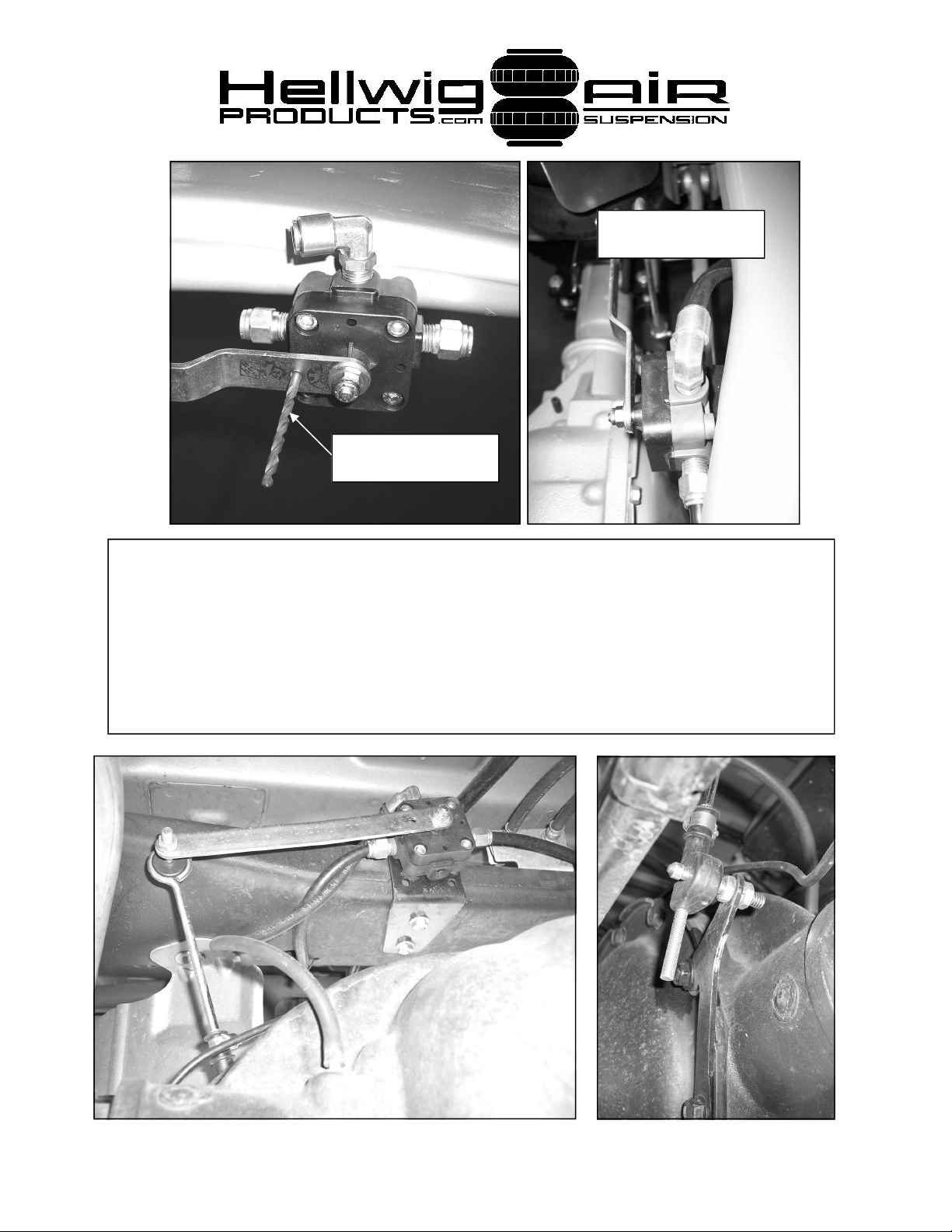

14. Attach leveling valve bracket to valve as shown using 1/4” nylon locknuts
and washers. Orient valve at angle shown in photo. The valve can be adjusted
using the slot to give best linkage alignment Tighten to 7 ft-lb.

15. Attach leveling valve linkage pins to valve and axle bracket in orientation shown.
Make sure that the axle bracket and linkage pin will not interfere with brake lines. Re­locate brake lines as required. Tighten nuts to 8-10 ft-lb.

6097 ( R-6097) 10/03/2007

Locate valve as close to
crossmember as possi-

Center lever arm on
valve with 11/64” drill

16. Assemble linkage as shown in photos and clamp leveling valve bracket to
frame crossmember in location shown so that linkage geometry matches photo.
Make sure leveling valve is as close to crossmember as possible to provide axle
clearance when suspension compresses. DO NOT drill mounting holes at this
time. Center leveling valve by inserting a 11/64” drill bit through hole in arm and
body of leveling valve. When satisfied with linkage geometry, REMOVE drill
bit.

6097 ( R-6097) 10/03/2007

Evaporative
canister.

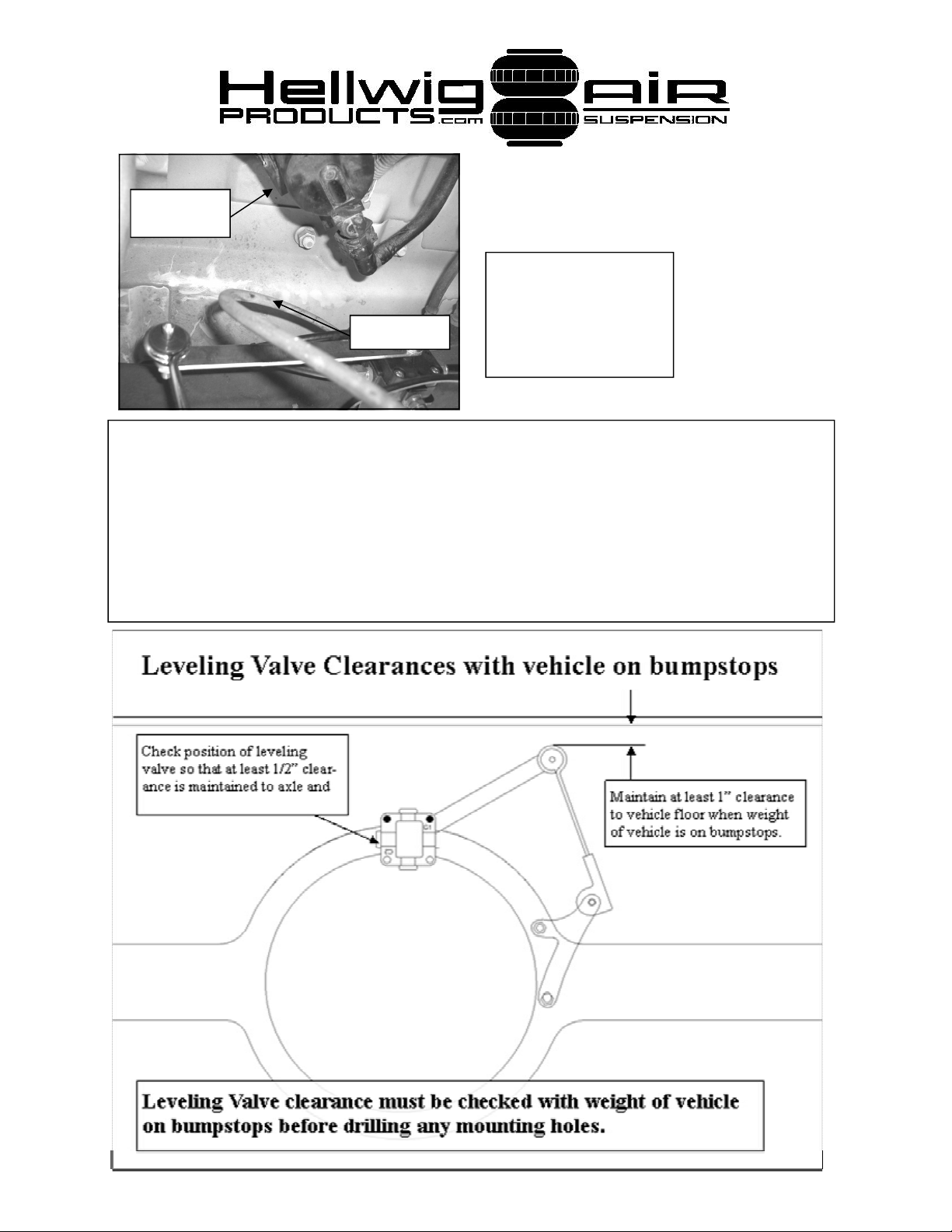

IMPORTANT: Ensure lev­eling valve and linkage will
not contact the floor, axle,

Vent Tube

or evaporative canister
when full weight of vehicle
is on the bumpstops.

17. IMPORTANT– BEFORE DRILLING ANY MOUNTING HOLES IN CROSS­MEMBER, remove jack stands and lower frame so that the weight of the vehicle is on
the bumpstops. CHECK POSITION OF LEVELING VALVE SO THAT IT CLEARS
AXLE ASSEMBLY AND BRAKE LINES. It will be a close fit but there should be at
least 1/2” of clearance. Relocate brake lines if required. Also check that the leveling
valve arm will not contact the floor of the vehicle or any other components—
evaporative canister, vent tube, exhaust pipe, etc. After verifying clearances proceed to
step 18—Do not drill holes at this time.

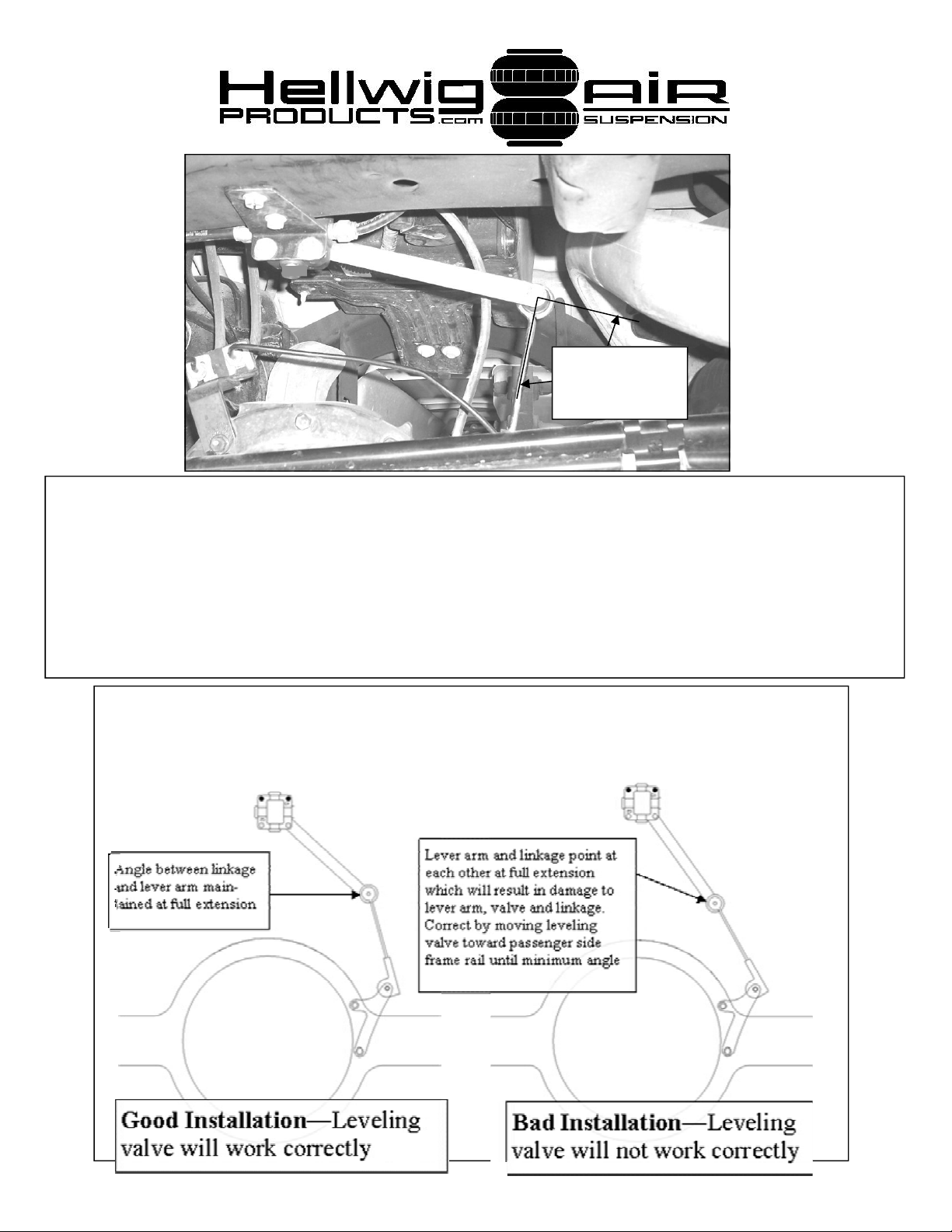

20 deg minimum
angle required at
full extension

18. Reconnect shock absorbers to axle brackets and torque bolts to 60-70 ft-lb. IMPORTANT— Raise
vehicle frame until the wheels come off the ground and support frame on jack stands. Note orientation
of leveling valve linkage. The leveling valve arm and link must NOT be in line when the suspension is
at full extension or the valve will not operate properly. Ensure there is at least a 20 degree angle be­tween the lever arm and linkage at full extension . The leveling valve can be moved toward the passen­ger side frame rail to increase this angle. The leveling valve MUST be RECHECKED at compression
and nominal ride height if the leveling valve is moved to ensure that the arm and linkage will not contact
the vehicle or any of its components.

Leveling valve orientation at full extension

559-734-7451 800-367-5480 FAX [phone]

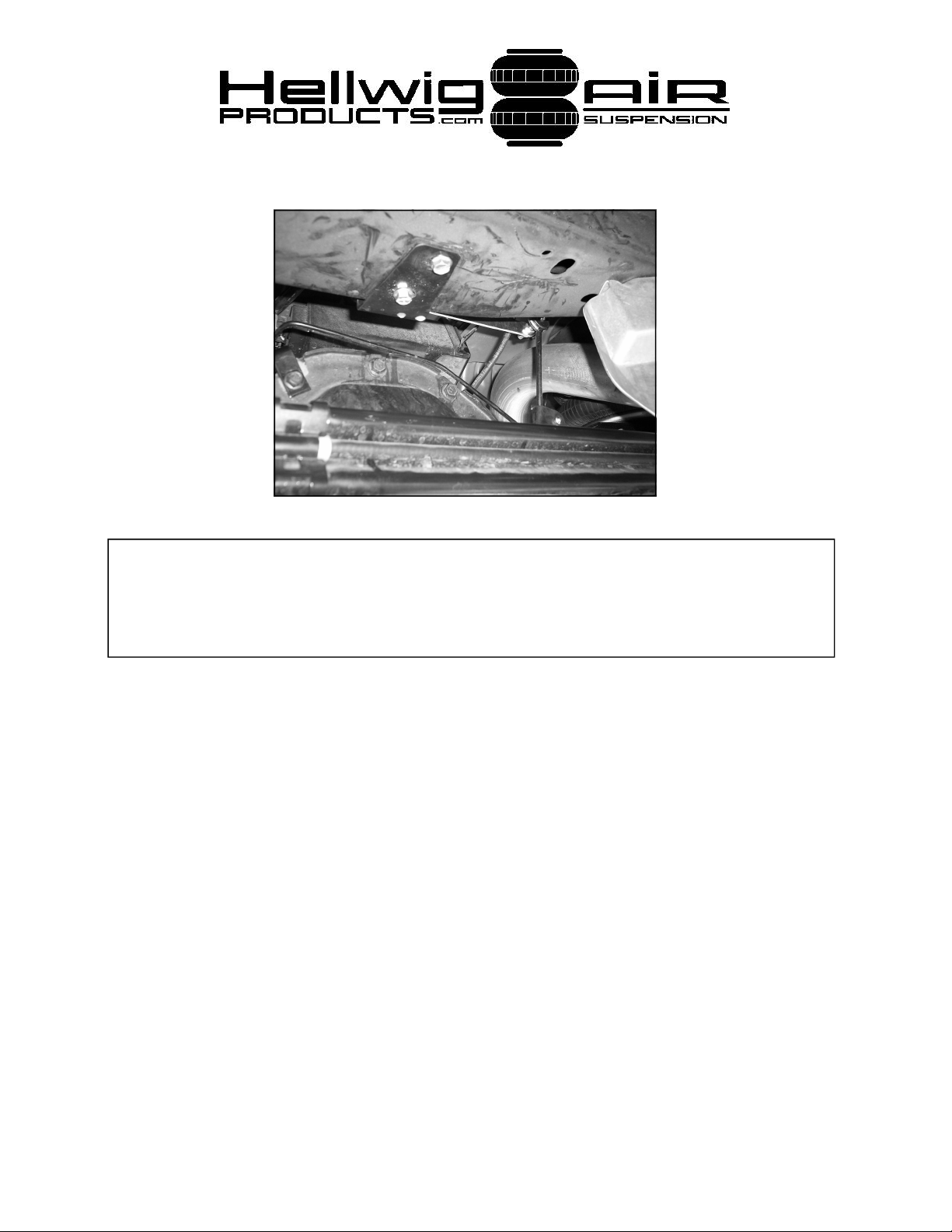

19. When satisfied with position of leveling valve and linkage has been checked
for proper operation and clearance, mark hole location to attach leveling valve
bracket to crossmember. Drill (2) 1/4” holes and install (2) 5/16” self tapping
bolts to attach bracket to crossmember. Torque bolts to 10 ft-lb

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

Part C Compressor Installation

Air Filter

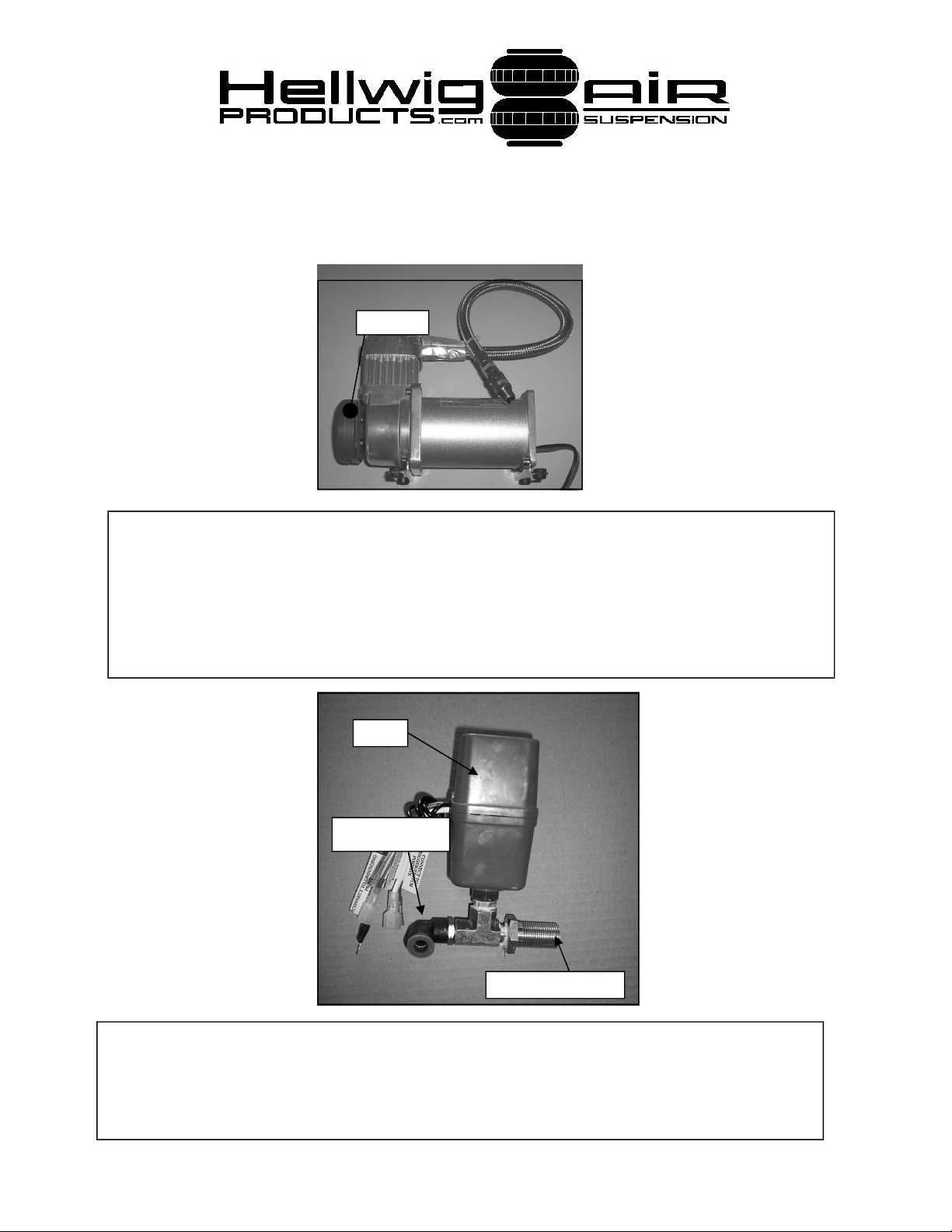

20. Prepare the compressor for mounting by HAND-TIGHTENING the air filter
into the port on the compressor. If necessary, adapters are provided with the com­pressor to connect nylon hose from the tank to the compressor hose. Do not re­move the braided hose or check valve from the compressor. If the vehicle will
be operated in a manner where the compressor may draw in water, the air filter
should be remotely mounted with components included with compressor.

Relay

3/8” MPT Elbow

!/4” NPT Bulkhead

21. Attach 1/4” NPT bulkhead to tee as shown in photo. Attach 3/8” MPT elbow
to tee. Attach relay to tee as shown. Use pipe sealant or Teflon tape (provided)
as required.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

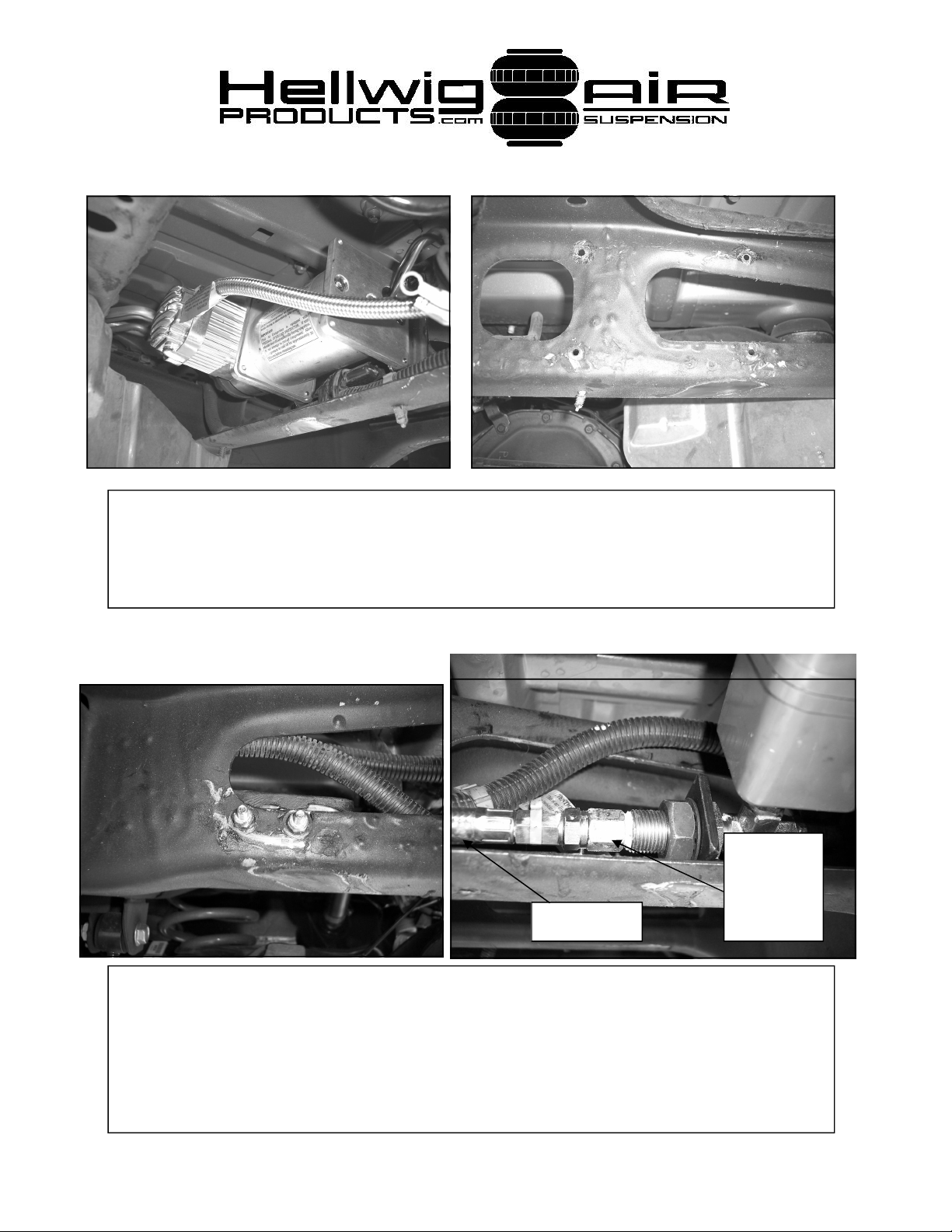

22. Locate compressor on forward side of spare tire crossmember on passenger
side of vehicle as shown in photo. Mark holes for compressor and drill qty 4
3/16” (.188”) holes as shown in photo. Install compressor as shown using hard­ware supplied with compressor.

Tighten this
part of fitting
only to avoid

Braided hose

damaging
check valve

23. Locate Relay mounting bracket as shown on forward side of spare tire cross­member on driver side as shown in photos. Mark holes and drill qty (2) 1/4”
holes. Install Relay bracket as shown using 1/4” bolts and locknuts. Attach hose
from compressor to bulkhead. Make sure to apply pipe sealant or Teflon tape to
threads and take care to tighten only the specified fitting to avoid damaging check
valve.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

Blowoff Valve

3/8” Tube X 1/4”
MPT Elbow

1/4” Pipe Plug

3/8: Tube X 1/4”
MPT Connector

1/4” Street Tee

Drain Valve

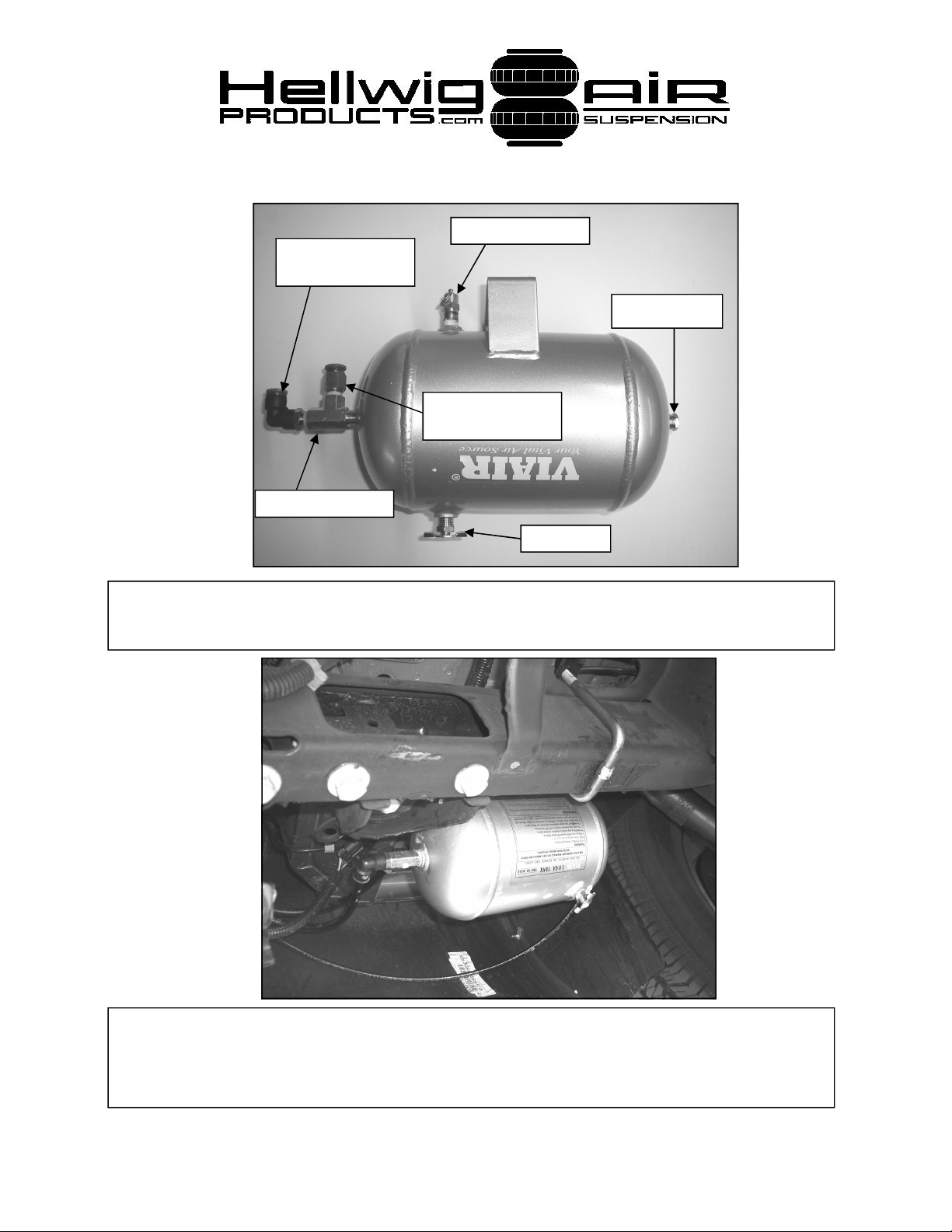

22. Prepare air tank as shown. Apply pipe sealant or Teflon tape to all fittings.
Attach tank to tank bracket with 3/8-16 x 1” bolts, washers and locknuts.

23. Remove spare tire and install U-bolt on driver side frame rail in location
shown in photo. Attach tank mounting plate with tank located on outboard side
of frame rail using U-bolt, 7/16” locknuts and washers.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

Connect to elbow on
relay bulkhead.

Connect to leveling
valve.

Tank connection to relay

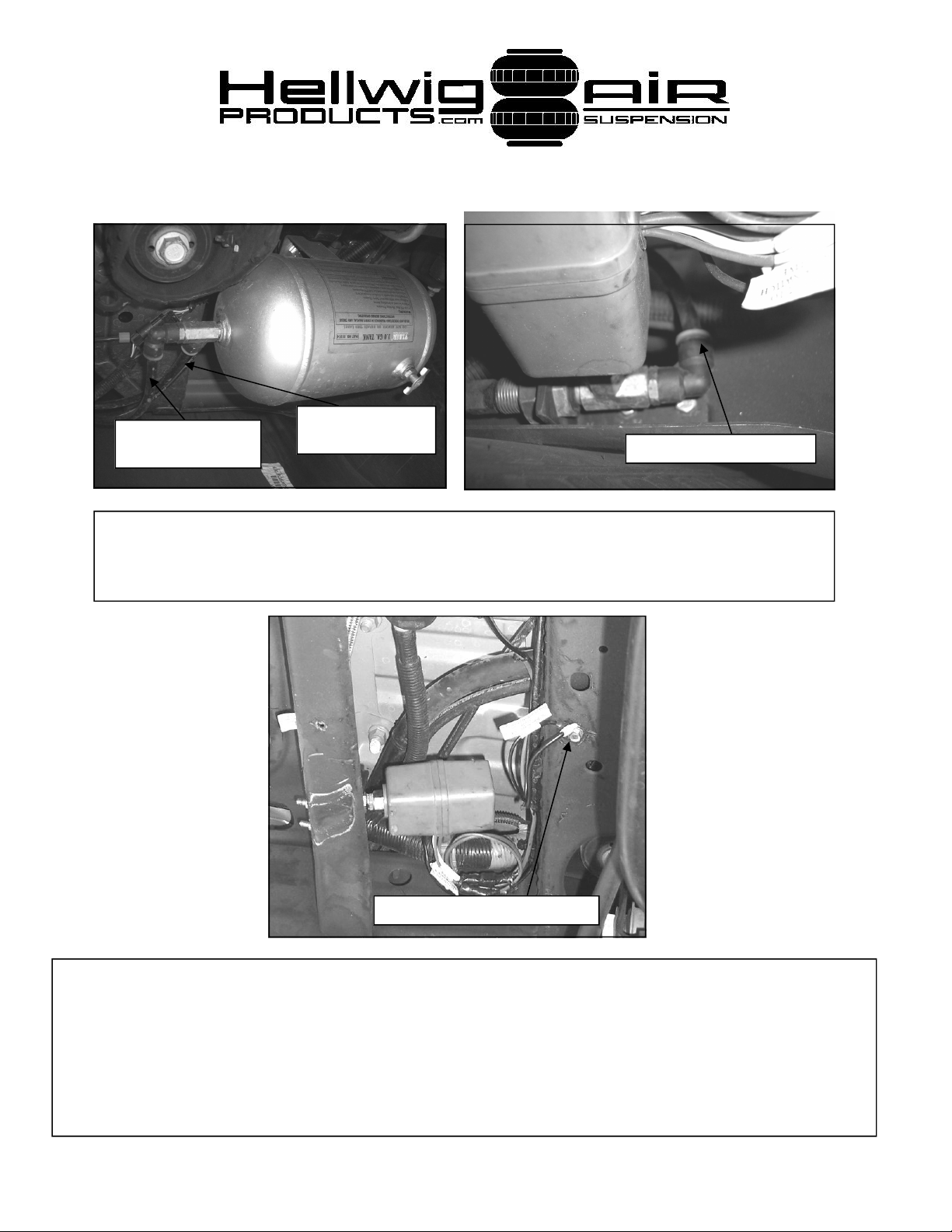

24. Connect fitting on relay bulkhead to 3/8” fitting on tank using 3/8” nylon tub­ing as shown. Make sure hose will not be damaged by rubbing on any frame
mounted components.

Ground relay and pump to frame

25. Route 12 ga and 16 ga electrical wires from compressor to engine compartment along
driver’s side frame rail. Make sure to fasten wires securely to existing wire harness. Follow

plumbing and wiring diagram for connection of leveling valve, compressor, and relay. Take care
when routing air and electrical lines that they will not be crimped or chafed during installation or
use. Deviation from the electrical diagram and failure to use an inline fuse holder (supplied) will
void warranty. DO NOT install fuse in inline fuse holder until all connections and circuits are veri­fied to be completed correctly.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

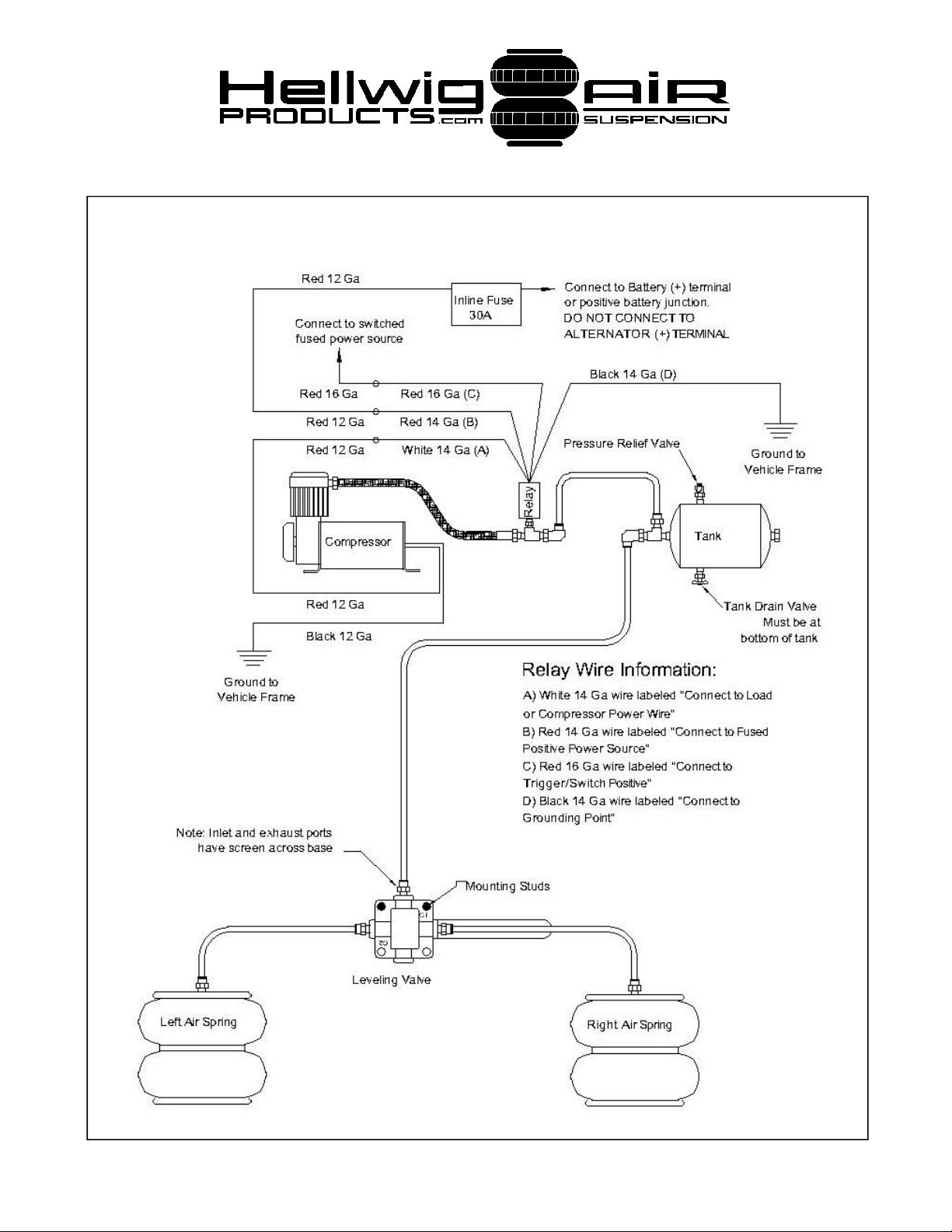

Plumbing and Wiring Diagram

6097 ( R-6097) 10/03/2007

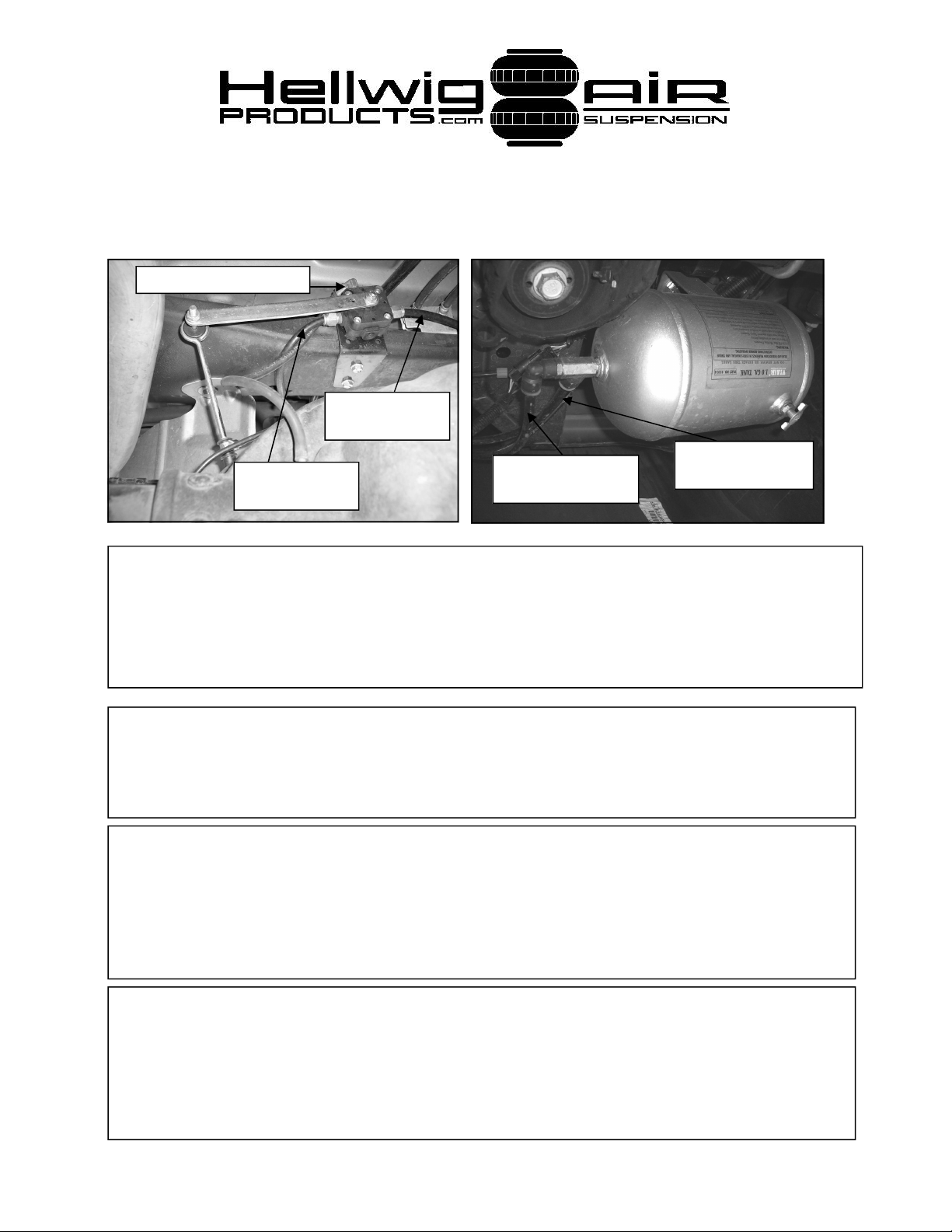

Connect to air tank. .

559-734-7451 800-367-5480 FAX [phone]

Connect to Driver
side air spring.

Connect to leveling
valve.

Connect to Pass
side air spring.

Connect to elbow on
relay bulkhead.

26. Connect air springs to leveling valve as shown. Loop passenger side hose over
crossmember as shown to avoid contact with exhaust pipe. Tie strap hoses as re­quired to avoid contact with exhaust and chafing on frame. (picture shown is for
hose routing information only as vehicle shown has 6” lift installed.)

27. After all connections have been verified, install fuse in inline fuse holder, apply park
brake and start engine with shifter in park or neutral. Due to the amperage draw of the
compressor, failure to turn engine on during initial startup may drain the battery enough to
require a jump start.

28. Test system by adding air to air springs. Disconnect linkage from arm and rotate arm
up to fill air springs. Check all connections with soapy water for leaks. After the integ­rity of the system is verified, reconnect linkage to valve. A MINIMUM OF 5-10 PSI
MUST BE MAINTAINED IN AIR SPRINGS AFTER INSTALLATION FOR WAR­RANTY TO BE VALID. FAILURE TO KEEP MINIMUM PRESSURE IN AIR
SPRINGS WILL VOID WARRANTY.

29. Recheck all components and test drive vehicle. Re-check all components for mount­ing and proper torque. Check clearance to all vehicle components including suspension
components, exhaust pipe, brake lines, fuel lines, hoses, etc. Re-check installation on a
regular basis afterward. The air tank MUST be drained at least every couple of weeks to
prevent condenation buildup, FAILURE TO REGULARLY DRAIN AIR TANK WILL
VOID WARRANTY.

6097 ( R-6097) 10/03/2007

559-734-7451 800-367-5480 FAX [phone]

For Best Performance

This suspension system is designed to work with the factory supplied shocks and
suspension components, however, for increased performance, Hellwig Products rec­ommends the following suspension upgrades:

Hellwig p/n 7685 1-1/2” front sway bar
Hellwig p/n 7686 1-1/4” rear sway bar

*confirm part number to application as part number may change

6097 ( R-6097) 10/03/2007
