Page 1
CAUTION: Electrically Operated Product – Please use care
when plugging into AC outlet.
CD Boombox with AM/FM Stereo Radio
USER MANUAL
KT2026MBY
Page 2
1
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Caution Marking located at bottom enclosure of the apparatus
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wider or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Prot ect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. O nly use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Ref er all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
Page 3
2
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. T his apparatus shall not be exposed to dripping or splashing water and that no object filled
with liquids such as vases shall be placed on the apparatus.
16. Main plug is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus completely, the main plug should be
disconnected from the main socket outlet completely.
17. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
18. The marking information is located at the bottom of the apparatus.
19. The Caution Marking is located at the bottom of the apparatus.
20. Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
This symbol indicates that this product
incorporates double insulation between hazardous
mains voltage and user accessible parts
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF AC PLUG TO WIDE SLOT.
FULLY INSERT.
SAVE THESE INSTRUCTIONS
CAUTION
Follow the advice below for safe operations.
ON PROTECTION AGAINST LASER ENERGY EXPOSURE
• As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to
disassemble the casing.
• Stop operation immediately if any liquid or solid object should fall into the cabinet.
Page 4
3
• Do not touch the lens or poke at it. If you do, you may damage the lens and the player may
not operate properly.
• Do not put anything in the safety slot. If you do, the laser diode will be “ON” when the CD
door is still open.
• If the unit is not to be used for a long period of time, make sure that all power sources are
disconnected from the unit. Remove all batteries from the battery compartment, and unplug
the AC cord from the wall outlet. Make it a practice to remove the AC cord by grasping the
main body and not by pulling the cord.
• This unit employs a laser. The use of controls or adjustment or performance of procedures
other than those specified here may result in exposure to hazardous radiation.
ON PLACEMENT
• Do not use the unit in places which are extremely hot
cold, dusty or humid.
,
• Place the unit on a flat and even surface.
• Do not restrict the air-flow of the unit by placing it in a place with poor ventilation, by
covering it with a cloth or by placing it on a carpet.
ON CONDENSATION
• When left in a heated room where it is warm and damp, water droplets or condensation
may form inside the unit.
• When there is condensation inside the unit, the unit may not function normally.
• Let it stand for 1 to 2 hours before turning the power on, or gradually heat the room up and
dry the unit before use.
Should any trouble occur, remove the power source and refer servicing to qualified personnel.
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Page 5
4
CAUTION: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
PROTECT YOUR FURNITURE!!
This system is equipped with non-skid rubber ‘feet’ to prevent the product from moving when
you operate the controls. These ‘feet’ are made from non-migrating rubber material specially
formulated to avoid leaving any m arks or stains on your furniture. However certain types of oil
based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber ‘feet’ to
soften, and leave marks or a rubber residue on the furniture.
To prevent any damage to your furniture we strongly recommend that you purchase small selfadhesive felt pads, available at hardware stores and home improvement centers everywhere,
and apply these pads to the bottom of the rubber ‘feet’ before you place the product on fine
wooden furniture.
Page 6
5

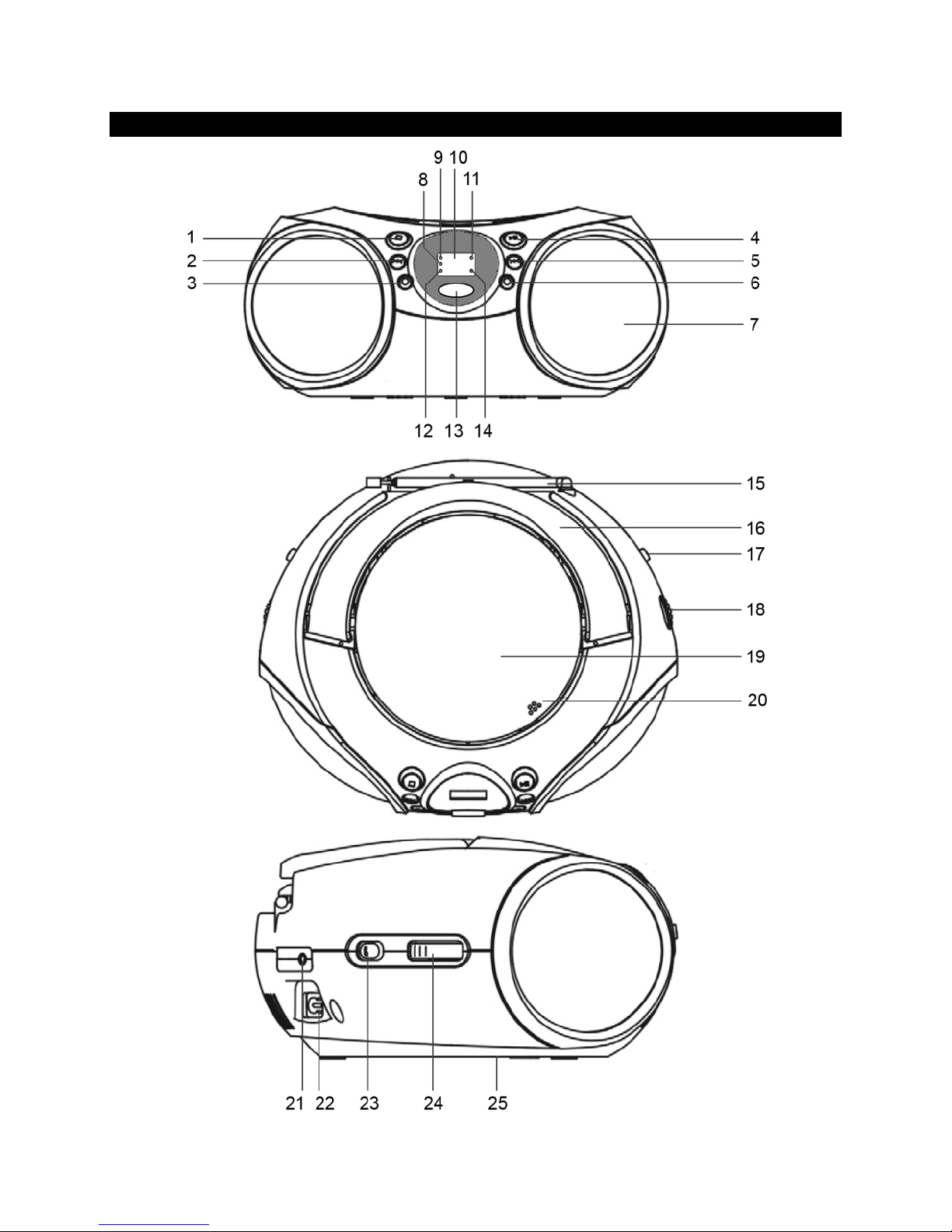

LOCATION OF CONTROLS
Page 7
6
1. Stop Button
14. PLAY/PAUSE Indicator
2. Back/Search Backward Button
15. Telescopic Antenna
3. Program Button
16. Foldable Handle
4. Play/Pause Button
17. Band Selector (AM/FM Stereo)
5. Next/Search Forward Button
18. Tuning Control
6. Random Button
19. CD Compartment Cover
7. Speakers
20. CD Door Open/Close
8. REPEAT Indicator
21. AUX IN Jack
9. POWER Indicator
22. AC Power Socket
10. LED Display
23. Function Selector
(CD/AUX/OFF/RADIO)
11. FM Stereo Indicator
24. Volume Control
12. PROGRAM (PROG) Indicator
25. Battery Compartment Cover
13. Repeat Button
POWER SOURCES
This unit operates on AC 120V~ 60Hz or 6 pieces of DC1.5V “C” (UM-2) batteries. Do not
attempt to operate the radio on any other power source. You could cause damage to the unit
and void your warranty.
Please be sure the power outlet you plug this unit into is working and receives constant power.
A. BATTERY OPERATION
1. Remove the BATTERY COMPARTMENT COVER.
2. Following the polarit y diagram as shown inside the battery compartm ent insert 6 x ‘ C' (UM-2)
batteries (not included) then replace the BATTERY COMPARTMENT COVER.
IMPORTANT: Be sure that the batteries are installed correctly. Wrong polarity may
damage the unit.
3. Use only the size and type of batteries specified.
4. For better performance and longer operating time, we recommend alkaline-type batteries.
5. Do not mix old and new batteries.
6. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
7. If the unit is not to be used for an extended period of time, remove the batteries. Old or
leaking batteries can cause damage to the unit and may void the warranty.
8. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions).
9. Do not dispose of batteries in fire, batteries may leak or explode.
BATTERY REPLACEMENT
When the output sound of this unit becomes distorted or the CD player operation appears
unstable, the batteries are weak. You need to replace all the exhausted batteries at the same
time as soon as possible to avoid battery leakage.
B. AC OPE RATION
When the plug of the provided AC POWER CORD is plugged into to a wall outlet with AC 120V~
60Hz power supply, the unit will disconnect the batteries automatically, and operate from AC
power instead.
Page 8
7
IMPORTANT:
This unit has a polarized AC plug with one wide blade and one
narrow blade. This plug will only fit into a matching polarized
AC outlet. This is a safety feature to reduce t he possibility of
electric shock. If this plug will not fit in your AC outlet, you
probably have an outdated non-polarized outlet. You should
have your outdated outlet changed by a qualified, licensed
electrician. Do not file the wide blade on the plug, or use an
adapter to make the plug fit onto your outlet. This def eats the
safety feature and could expose you to electric shock.
RADIO OPERATION
1. Slide the FUNCTION SELECTOR to “RADIO”. The POWER INDICATOR will light.
2. Rotate the TUNING CONTROL to your desired radio station according to the DIAL SCALE.
3. Rotate the VOLUME CONTROL to adjust to the desired output level.
4. To turn off the radio, slide the FUNCTION SWITCH to “OFF”.
TIPS FOR BEST RECEPTION
AM – The AM antenna is located inside the cabinet of the unit. If AM reception is weak, change
the position of unit until the internal antenna picks up the strongest signal.
FM – If a stereo broadcast program is being received, the FM STEREO INDCATOR will light.
During FM reception, always keep the TELESCOPIC ANTENNA fully extended for best
performance. However, if FM reception is weak, try repositioning the unit near an open
window until you get the best reception.
CD OPERATION
THIS UNI T NOT ONL Y PLAYS COMMERCIAL COMPACT DISCS BUT ALSO SELF-COMPILED
CD-RW DISCS.
• Because of non-standardized format definition/production of CD-R/RW, playback quality &
performance is not guaranteed.
• Manufacturer is not responsible for the playability of CD-R/RW due to recording conditions
such as PC performance, writing software, media properties etc.
• Do not attach a label or seal to either side of the CD-R/RW disc. It may cause a
malfunction.
PLAY MODE
1. Slide the FUNCTION SELECTOR to th e “CD/AUX” position. The POW ER INDICATOR will
light.
2. Open the CD COMPARTMENT COVER, the LED DI SPLAY will show “00”. Load a CD with
the label side facing upward and then close it.
3. A few seconds later the total number of tracks on the CD will appear on the LED display.
4. Press the PLAY/PAUSE BUTTON to start playing the CD from the first track. The
PLAY/PAUSE INDICATOR will light steadily.
5. Adjust the volume control to the desired volume level.
6. While playing, press the PLAY/PAUSE BUTTON once to pause, the PLAY/PAUSE
INDICATOR will flash. Press PLAY/PAUSE BUTTON again to resume playing.
Page 9
8
7. Press STOP BUTTON to stop playing.
8. To turn off the CD player, slide the FUNCTION SELECTOR to “OFF”. The LED DISPLAY
and POWER INDICATOR will go off.
Note: Never open the CD DOOR when a CD is playing to avoid possible exposure to laser
radiation.
REPEAT MODE
Repeat 1
When the REPEAT BUTTON is pressed once, the REPEAT INDICATOR will light and blink
continuously. The current track will be repeated until it is interrupted.
Repeat All
When the REPEAT BUTTON is pressed twice, the REPEAT INDICATOR will light stea dily. The
whole disc will be played continuously.
To Cancel the Repeat Function: Press the REPEAT BUTTON until the repeat indicator goes
off.
SKIP AND SEARCH MODE
1. During Play or Pause mode, tap the NEXT or BACK BUTTON to go to the next track or go
back to the beginning of the current track.
2. During Play mode or Pause mode, press and hold the NEXT/ or BACK/ BUTTON to
search within the current track with audible high speed playback.
PROGRAM PLAY MODE
This function allows music tracks to be played in a programmed sequence.
Note: Program can only be set in STOP mode.
1. Press the PROGRAM BUTTON once. Both Program Number “01” and the PROGRAM
(PROG) INDICATOR will flash.
2. Press the NEXT or BACK BUTTON to select the track to be programmed.
3. Press the PROGRAM BUTTON again to store the selection. The Program Number will
advance to “02” and flash to prompt for the next input.
4. You may repeat steps #2 to #3
to program up to 20 tracks. As soon as you have entered the
20th track, the LED DISPLAY will automat ically show the programmed track s one by one in
their correct sequence starting f rom the fir st. At the end of program review, Program Number
“01” and the PROGRAM INDICATOR will both flash.
5. Press the PLAY BUTTON to complete and start program play. Otherwise, press the STOP
BUTTON to complete and exit program mode.
6. To review/edit the programmed tracks during play, press the STOP BUTTON and then the
PROGRAM BUTTON, the LED DISPLAY will show Program Number “01” and the
PROGRAM INDICATOR will both flash. If you do not want to change any track in the
program, press PLAY BUTTON or wait about 30 seconds to exit edit mode automatically.
7. To edit a programmed track, first press the PROGRAM BUTTON until you reach the
program number whose track you want to change then press the NEXT or BACK BUTTON
to select a new track and press PROGRAM BUTTON again to confirm.
8. To cancel program play, press the STOP BUTTON twice while revie wing programmed tracks
or open the CD DOOR in STOP mode.
9. To turn off the CD player, slide the FUNCTION SELECTOR to “OFF”. The LED DISPLAY and
POWER INDICATOR will go off.
Page 10
9
AUX IN OPERATION
- Station not tuned properly for AM or
AM: The bar antenna is not positioned
correctly
- Retune the AM or FM broadcast
best reception is obtained.
This CD boombox provides an auxiliary input jack for connecting external audio devices like
MP3 players and digital audio devices, and to listen to them through the speakers of this unit.
Once the AUX IN jack is plugged in, this unit will switch from CD mode to the AUX mode
automatically.
1. Use an audio cable (not included) with one 3.5 mm stereo plug on each end of the cable.
2. Plug one end of the cable into the AUX IN JACK and the other end into the Line-out Jack or
Headphone Jack of your external audio device.
3. Turn on both the unit and your external audio device.
4. Set FUNCTION SELECTOR of CD boombox to “CD/AUX”.
5. The volume level can now be controlled through the CD boombox. Operate all other
functions on the auxiliary device as usual.
Note:
• If you connect this unit to the Line-Out Jack of your external device, you only need to adjust
the volume control of the unit. If you connect to the Headphone Jack of your external device,
you may need to adjust both the volume controls of your external device and the unit to
obtain the desirable volume setting.
• Remember to turn off the unit when you have finished listening. Don't forget to switch off the
power of your external audio device as well.
• Remember to disconnect the connection cable from the unit after use in order to be able to
listen to CD music again.
CARE AND MAINTENANC E
1. Children should be supervised when using this appliance.
2. Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used.
3. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.
4. Keep your unit away from heating appliances and sources of electrical noise such as
fluorescent lamps or motors.
5. If dr op-outs or interruptions occur in the music during CD play, or if
the CD fails to play at all, its bottom surface may require cleaning.
Before playing, wipe the disc from t he center outwards with a good
soft cleaning cloth.
TROUBLESHOOTING GUIDE
If you experience difficulties in the use of this music system please check the following or call 1800-777- 5331 for Customer Service
.
Symptom Possible Cause Solution
Noise or sound
distorted on AM or FM
broadcast
FM.
- FM: FM telescopic antenna is not
sufficiently extended.
-
station.
- FM: Fully extend the FM telescopic
antenna.
- AM: Reposition the unit until the
Page 11
10
AM or FM no sound
- Unit not in “RADIO” function mode.
- Slide Function Switch to “RADIO”
- Increase Volume.
- Unit not in CD function mode.
- Exhausted battery
- Select CD function mode.
- Disc is dirty or scratched.
- Wipe CD with clean cloth or use
another disc.
- Dirty or defective disc
or vibration
- Clean or replace the defective disc.
shock or vibration.
- Volume control is set to maximum.
- Adjust Volume Control to a lower
new ones.
- Volume set at minimum
position.
CD player will not play
CD skips while playing
Intermittent sound from
CD player
Sound appears
distorted at high
volume setting
- CD is not loaded properly.
- If the CD is self-compiled, the media
used may not be compatible with
the player.
- Dirty pick up lens
- Player is subject to excessive shock
- Batteries become low
- Load CD with label side up.
- Use better quality blank media and
retest.
- Replace all old batteries.
- Use a CD lens cleaning disc to
clean the lens.
- Relocate the player away from
comfortable level.
- Replace all the old batteries with
90 DAY LIMITED WARRANTY AND SERVICE
VALID IN THE U.S.A. ONLY
SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective
materials or factor y workm anship f or a peri od of 90 da ys from the dat e of orig inal cus tom er purc hase and
provided the product is utilized within the U.S.A. This warranty is not assignable or transferable. Our
obligation under this warra nty is the re pa ir or rep lacem ent of the def ective un it or any part thereof, except
batteries, when it is returned to the SP ECTRA Service Depar tment, accom panied b y proof of the da te of
original consumer purchase, such as a duplicate copy of a sales receipt.
You must pay all shipp ing charges required to ship the product to SPECTRA for warr anty service. If the
product is repaired or rep laced und er warrant y, the retur n charges will be at SPE CTRA’s ex pense. T here
are no other express warranties other than those stated herein.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the SPECTRA product only while:
a. It remains in the possession of the original purchaser and proof of purchase is demonstrated.
b. It has not been subjected to accident, misuse, abuse, improper service, usage outside the
descriptions and warnings covered within the user manual or non-SPECTRA approved
modifications.
c. Claims are made within the warranty period.
2. This warranty does not cover damage or equipment failure caused by electrical wiring not in
compliance with electrical codes or SPECTRA user manual specifications, or failure to provide
reasonable care and necessary maintenance as outlined in the user manual.
3. Warranty of all SPECTRA pr oducts applies to res idential use onl y and is void when pro ducts are used
in a nonresidential environment or installed outside the United States.
This warranty gives you specif ic legal rights , and you may also ha ve other rights which vary from state to
state. TO OBTAIN SER VICE please remove all batt eries (if any) and pac k the unit carefully and send it
freight prepaid to SPECT RA at the address shown below. IF THE UNIT IS RETURNED WITHIN THE
WARRANTY PERIOD s hown above, please include a proof of purc hase (dated cas h register rece ipt) so
that we may establish your eligibility for warrant y serv ice and r ep air of the uni t with out c os t. Also i nc lu de a
note with a descr iption expl aining how the unit is def ective. A cus tomer service representati ve may need
Page 12
11
to contact you regarding th e status of your repair, s o please include your name, address, phone n umber
and email address to expedite the process.
IF THE UNIT IS OUT SIDE THE WARRANTY PERIOD, pleas e include a check for $20.00 to cover the
cost of repair, handling and return postage. All out of warranty returns must be sent prepaid.
It is recommended that you contact SPECTRA first at 1-800-777-5331 or by email
[email protected] for updated information on the unit requiring service. In some cases the
at
model you have m ay be discontinued, and SPECTR A reserves the right to offer alt ernative options for
repair or replacement.
SPECTRA MERCHANDISING INTERNATIONAL, INC.
4230 North Normandy Avenue,
Chicago, IL 60634, USA.
1-800-777-5331
To register your product, visit the link below to enter your information.
http://www.spectraintl.com/wform.htm
Licensed by:
Marino Andriani, LLC
Distributed by:
Spectra Merchandising International, Inc.
4230 North Normandy Avenue
Chicago, IL 60634, USA
www.spectraintl.com
0713 Printed in China
Loading...
