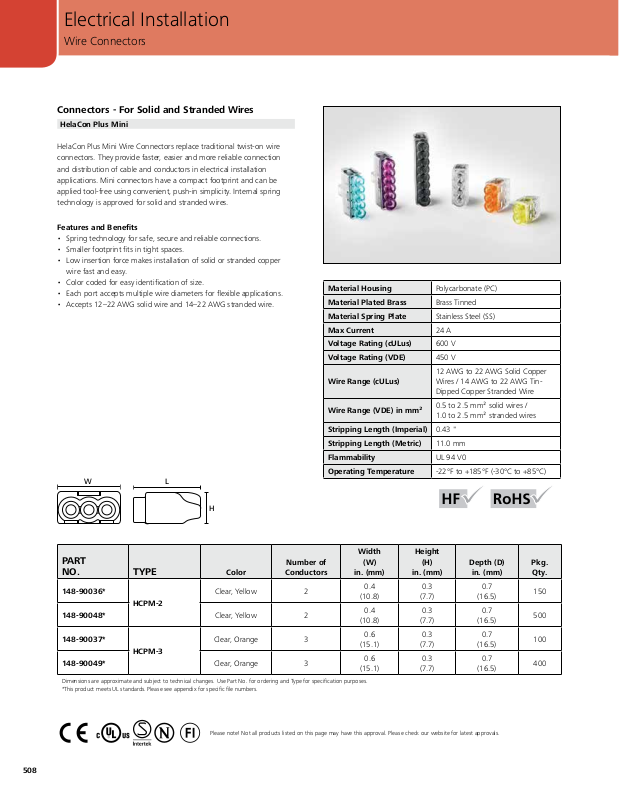

Electrical Installation
L
H
W
Wire Connectors
Connectors - For Solid and Stranded Wires
HelaCon Plus Mini
HelaCon Plus Mini Wire Connectors replace traditional twist-on wire
connectors. They provide faster, easier and more reliable connection
and distribution of cable and conductors in electrical installation
applications. Mini connectors have a compact footprint and can be
applied tool-free using convenient, push-in simplicity. Internal spring
technology is approved for solid and stranded wires.
Features and Benefits
• Spring technology for safe, secure and reliable connections.
• Smaller footprint fits in tight spaces.
• Low insertion force makes installation of solid or stranded copper
wire fast and easy.
• Color coded for easy identification of size.
• Each port accepts multiple wire diameters for flexible applications.
• Accepts 12–22 AWG solid wire and 14–22 AWG stranded wire.
Material Housing Polycarbonate (PC)
Material Plated Brass Brass Tinned
Material Spring Plate Stainless Steel (SS)
Max Current 24 A
Voltage Rating (cULus) 600 V
Voltage Rating (VDE) 450 V
12 AWG to 22 AWG Solid Copper
Wire Range (cULus)
Wire Range (VDE) in mm²
Stripping Length (Imperial) 0.43 "
Stripping Length (Metric) 11.0 mm
Flammability UL 94 V0
Operating Temperature -22°F to +185°F (-30°C to +85°C)
Wires / 14 AWG to 22 AWG TinDipped Copper Stranded Wire
0.5 to 2.5 mm² solid wires /
1.0 to 2.5 mm² stranded wires
508
PART
NO. TYPE Color
148-90036*
HCPM-2
148-90048* Clear, Yellow 2
148-90037*
HCPM-3
148-90049* Clear, Orange 3
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
*This product meets UL standards. Please see appendix for specific file numbers.
Clear, Yellow 2
Clear, Orange 3
Please note! Not all products listed on this page may have this approval. Please check our website for latest approvals.
Number of
Conductors
Width
(W)
in. (mm)
0.4
(10.8)
0.4
(10.8)
0.6
(15.1)
0.6
(15.1)
Height
(H)
in. (mm)
0.3
(7.7)
0.3
(7.7)
0.3
(7.7)
0.3
(7.7)
Depth (D)
in. (mm)
0.7
(16.5)
0.7
(16.5)
0.7
(16.5)
0.7
(16.5)
Pkg.
Qty.
150
500
100
400
