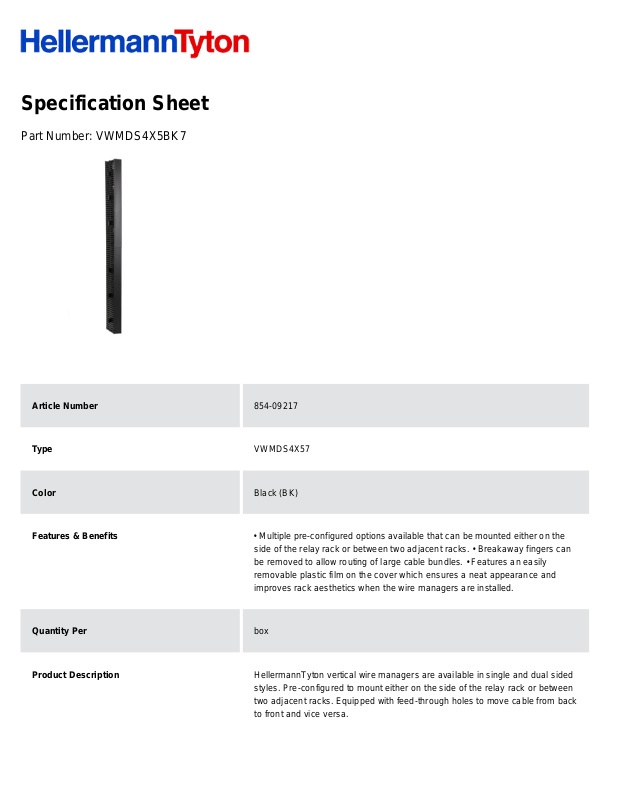

Specification Sheet
Part Number:
VWMDS4X5BK7
Article Number
854-09217
Type
VWMDS4X57
Color
Black (BK)
Features & Benefits
• Multiple pre-configured options available that can be mounted either on the
side of the relay rack or between two adjacent racks. • Breakaway fingers can
be removed to allow routing of large cable bundles. • Features an easily
removable plastic film on the cover which ensures a neat appearance and
improves rack aesthetics when the wire managers are installed.
Quantity Per
box
Product Description
HellermannTyton vertical wire managers are available in single and dual sided
styles. Pre-configured to mount either on the side of the relay rack or between
two adjacent racks. Equipped with feed-through holes to move cable from back
to front and vice versa.
Short Description
Vertical Wire Manager Dual-Sided, Side Mount, 4.0" x 5.0" x 83.0" Front,
Black, 1/box
Global Part Name
VWMDS4X57
Technical Description
Vertical Wire Manager Dual-Sided, Side Mount, 4.0" x 5.0", Front, 83.0" Height,
Black
Length L (Imperial)
83.0
Length L (Metric)
2108.2
Variant
Vertical
Width W (Imperial)
4.0
Width W (Metric)
101.6
Height H (Imperial)
83.0
Height H (Metric)
2108.20
Depth D (imperial)
5.0
Depth D (metric)
127.0
UL Listed (US and Canada)
Yes
Package Quantity(Imperial)
1
