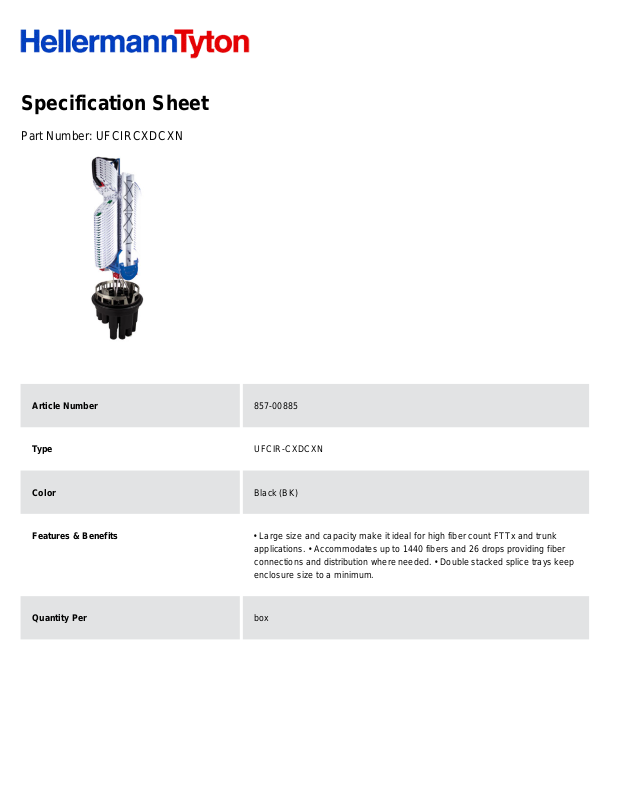

Specification Sheet
Part Number:
UFCIRCXDCXN
Article Number
857-00885
Type
UFCIR-CXDCXN
Color
Black (BK)
Features & Benefits
• Large size and capacity make it ideal for high fiber count FTTx and trunk
applications. • Accommodates up to 1440 fibers and 26 drops providing fiber
connections and distribution where needed. • Double stacked splice trays keep
enclosure size to a minimum.
Quantity Per
box
Product Description
The UFC is the largest fiber-optic splice closure in the range. With 24 round
ports and 2 oval ports, it can accommodate substantial amounts of fiber often
found in FTTx and trunk applications. The Integrated Routing (IR) UFC closure
has a modular fiber management system available in a range of lengths to suit
the number of fibers and splices required. The IR system ensures positive fiber
management; a 30 mm bend radius can be maintained from cable entry all the
way up onto the splice trays. The UFC IR solution’s larger size makes it
possible to double stack the splice trays as well as double the fiber capacity.
The area between the two splice tray stacks offers room for fiber loop storage.
The closure has a splice capacity of up to 1440 fibers. Trays are supplied in
packs of 12 (SC-B) or six (SE), available in multiple colors for color coding
within the enclosure, can be easily installed onto the IR backplane as needed
and can be configured to accommodate heat shrink fusion splice sleeves, and
the SE trays support a selection of fiber-optic splitters. Its cover is
environmentally sealed with a high-quality clamp and O-ring. Cable ports can
be sealed using either Cablelok mechanical seals or heat-shrink sleeves.
Closure can be fitted with a flash test valve and/or grounding feed through.
Short Description
IR UFC Cover-C with 120 SC-B Trays - Double Stack (1440 fibers), ABS/PA,
Black, 1/pkg
Global Part Name
UFCIR-CXDCXN
Technical Description
The UFC Integrated Routing (IR) C Length Double Stacked closure is available
with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant
Polypropylene) base. The base configuration of 28 round ports and 2 oval
ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok
mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting
system is manufactured from Grade 304 stainless steel and the backplanes
are aluminium extrusions which can accommodate up to 60 IR SE trays or 120
IR SC/SC-B trays or a combination of SE, SC and SC-B trays. The position of
the mounting system allows easy access for the routing of the fibre on to the
trays and provides storage space between the two backplanes for the storage
of fibre loops. The trays and fibre optic routing module are white which makes
it easy to see the colour of the fibre elements as they are routed through the
positive fibre management system. Fibre slot retaining blocks guide fibre
elements in to the IR system, the foam pad on the retainer is partially cut
through to accommodate a range of fibre counts. All IR system cover plates
are coloured blue identifying them as removable parts allowing access to the
fibre and the fibre slot retaining block and tray retaining clips are coloured red
to aid in identification if they are dropped.
Port Count
16 10 2 1
Variant
Outdoor Enclosure
