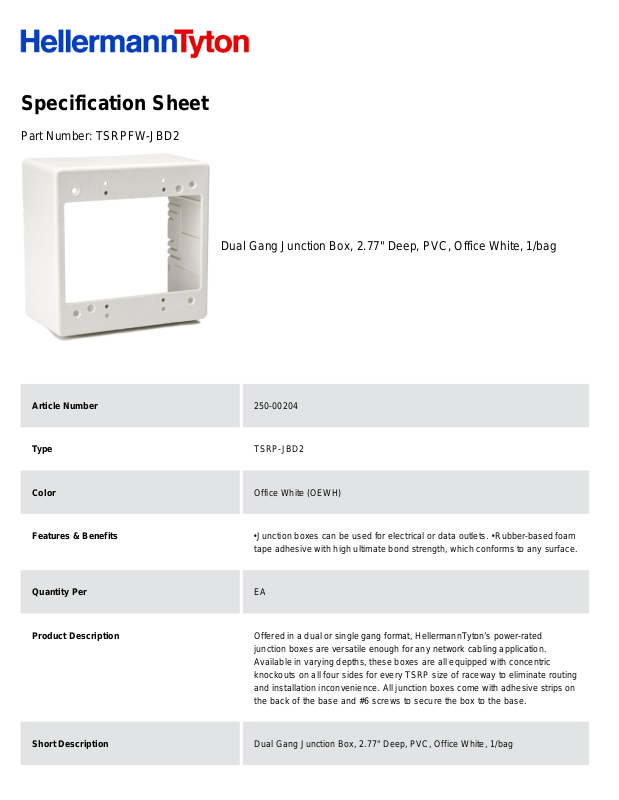

Specification Sheet
Part Number:
TSRPFW-JBD2
Dual Gang Junction Box, 2.77" Deep, PVC, Office White, 1/bag
Article Number
250-00204
Type
TSRP-JBD2
Color
Office White (OEWH)
Features & Benefits
•
Junction boxes can be used for electrical or data outlets. •
Rubber-based foam
tape adhesive with high ultimate bond strength, which conforms to any surface.
Quantity Per
EA
Product Description
Offered in a dual or single gang format, HellermannTyton’s power-rated
junction boxes are versatile enough for any network cabling application.
Available in varying depths, these boxes are all equipped with concentric
knockouts on all four sides for every TSRP size of raceway to eliminate routing
and installation inconvenience. All junction boxes come with adhesive strips on
the back of the base and #6 screws to secure the box to the base.
Short Description
Dual Gang Junction Box, 2.77" Deep, PVC, Office White, 1/bag
Global Part Name
TSRP-JBD2-PVC-WH
Length L (Imperial)
4.94
Length L (Metric)
125.48
Width W (Imperial)
5.02
Width W (Metric)
127.51
Height H (Imperial)
2.77
Height H (Metric)
70.36
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
UL 94 V0
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
