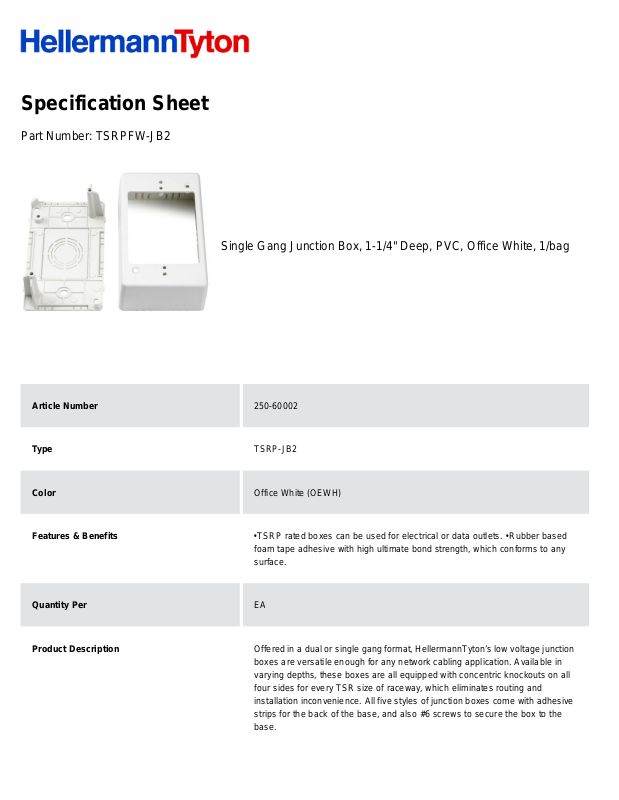

Specification Sheet
Part Number:
TSRPFW-JB2
Single Gang Junction Box, 1-1/4" Deep, PVC, Office White, 1/bag
Article Number
250-60002
Type
TSRP-JB2
Color
Office White (OEWH)
Features & Benefits
•
TSRP rated boxes can be used for electrical or data outlets. •
Rubber based
foam tape adhesive with high ultimate bond strength, which conforms to any
surface.
Quantity Per
EA
Product Description
Offered in a dual or single gang format, HellermannTyton’s low voltage junction
boxes are versatile enough for any network cabling application. Available in
varying depths, these boxes are all equipped with concentric knockouts on all
four sides for every TSR size of raceway, which eliminates routing and
installation inconvenience. All five styles of junction boxes come with adhesive
strips for the back of the base, and also #6 screws to secure the box to the
base.
Short Description
Single Gang Junction Box, 1-1/4" Deep, PVC, Office White, 1/bag
Global Part Name
TSRP-JB2-PVC-WH
Length L (Imperial)
4.75
Length L (Metric)
120.65
Width W (Imperial)
3.0
Width W (Metric)
76.2
Height H (Imperial)
2.0
Height H (Metric)
50.80
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
UL 94 V0
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
3925900000
