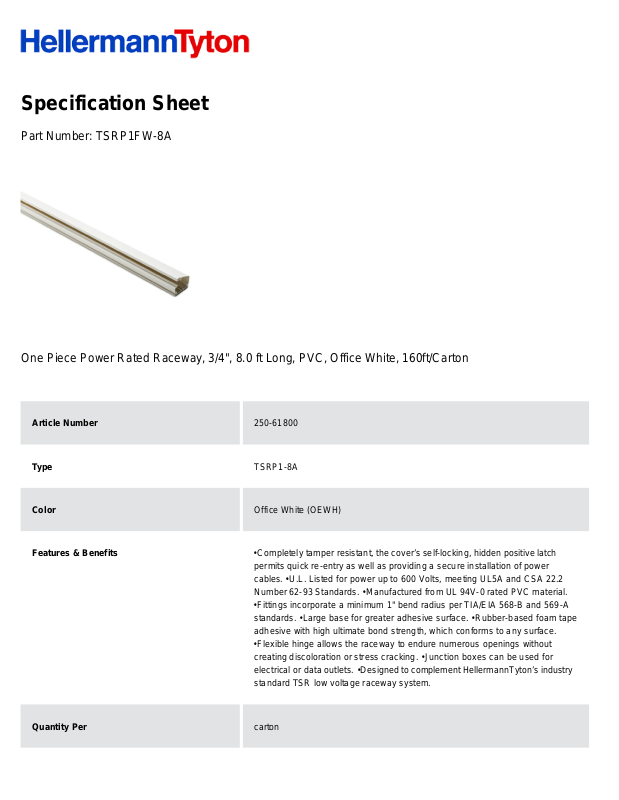

Specification Sheet
Part Number:
TSRP1FW-8A
One Piece Power Rated Raceway, 3/4", 8.0 ft Long, PVC, Office White, 160ft/Carton
Article Number
250-61800
Type
TSRP1-8A
Color
Office White (OEWH)
Features & Benefits
•
Completely tamper resistant, the cover’s self-locking, hidden positive latch
permits quick re-entry as well as providing a secure installation of power
cables. •
U.L. Listed for power up to 600 Volts, meeting UL5A and CSA 22.2
Number 62-93 Standards. •
Manufactured from UL 94V-0 rated PVC material.
•
Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A
standards. •
Large base for greater adhesive surface. •
Rubber-based foam tape
adhesive with high ultimate bond strength, which conforms to any surface.
•
Flexible hinge allows the raceway to endure numerous openings without
creating discoloration or stress cracking. •
Junction boxes can be used for
electrical or data outlets. •
Designed to complement HellermannTyton’s industry
standard TSR low voltage raceway system.
Quantity Per
carton
Product Description
HellermannTyton’s TSRP power surface raceway is a one piece, non-metallic,
adhesive backed latching raceway designed to aesthetically organize and route
either power or communications cables. Completely tamper resistant, the
cover's self-locking, hidden positive latch permits quick reentry as well as
providing a secure installation of power cables.
Short Description
One Piece Power Rated Raceway, 3/4", 8.0 ft Long, PVC, Office White,
160ft/Carton
Global Part Name
TSRP1-8A-PVC-WH
Length L (Imperial)
8.0
Length L (Metric)
2.44
Width W (Imperial)
0.75
Width W (Metric)
19.05
Height H (Imperial)
.50
Height H (Metric)
12.70
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
UL 94 V0
Halogen free
No
