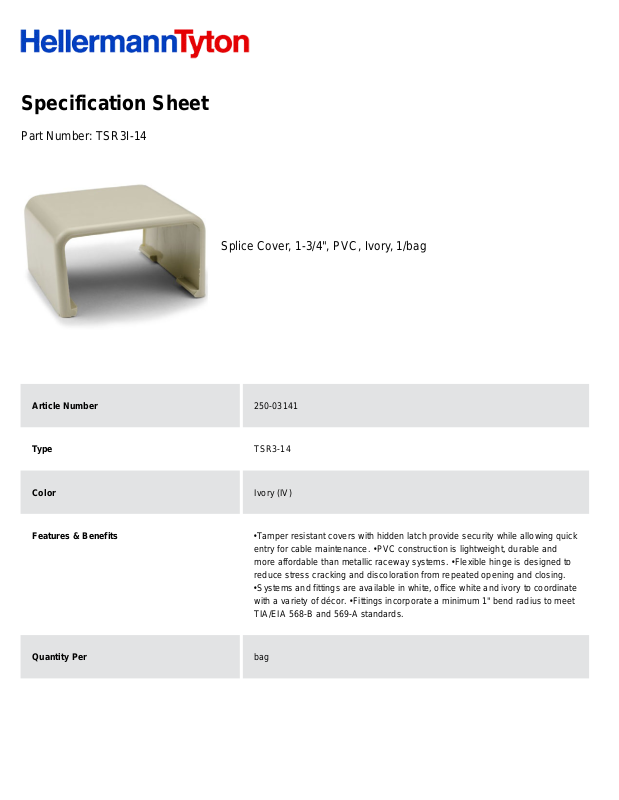

Specification Sheet
Part Number:
TSR3I-14
Splice Cover, 1-3/4", PVC, Ivory, 1/bag
Article Number
250-03141
Type
TSR3-14
Color
Ivory (IV)
Features & Benefits
•
Tamper resistant covers with hidden latch provide security while allowing quick
entry for cable maintenance. •
PVC construction is lightweight, durable and
more affordable than metallic raceway systems. •
Flexible hinge is designed to
reduce stress cracking and discoloration from repeated opening and closing.
•
Systems and fittings are available in white, office white and ivory to coordinate
with a variety of décor. •
Fittings incorporate a minimum 1" bend radius to meet
TIA/EIA 568-B and 569-A standards.
Quantity Per
bag
Product Description
HellermannTyton surface raceway systems are the ideal solution for routing
communication and power cables. No need to break into existing walls -
raceway systems are designed to route cable along wall surfaces. Made of a
PVC material, components are durable and affordable; and the one-piece
construction and adhesive tape backing make positioning and mounting easy.
HellermannTyton offers a low voltage TSR system and a power rated TSRP
system that are available in three different diameters to accommodate different
cable and wire bundle and conduit sizes. Both systems include a complete line
of fittings and junction boxes that allow for clean and professional installations.
TSR surface raceway systems can be used to route a variety of
communication cable, including high speed UTP and fiber optic cable.
Short Description
Splice Cover, 1-3/4", PVC, Ivory, 1/bag
Global Part Name
TSR3-14-PVC-BGE
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
UL 94 V0
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
3925900000
