Page 1

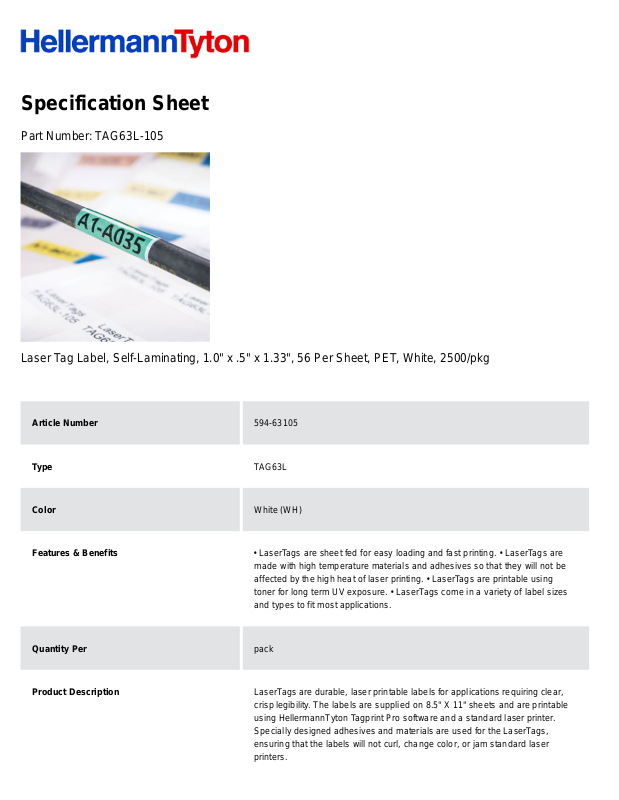

Specification Sheet
Part Number:
TAG63L-105
Laser Tag Label, Self-Laminating, 1.0" x .5" x 1.33", 56 Per Sheet, PET, White, 2500/pkg
Article Number
594-63105
Type
TAG63L
Color
White (WH)
Features & Benefits
• LaserTags are sheet fed for easy loading and fast printing. • LaserTags are
made with high temperature materials and adhesives so that they will not be
affected by the high heat of laser printing. • LaserTags are printable using
toner for long term UV exposure. • LaserTags come in a variety of label sizes
and types to fit most applications.
Quantity Per
pack
Product Description
LaserTags are durable, laser printable labels for applications requiring clear,
crisp legibility. The labels are supplied on 8.5" X 11" sheets and are printable
using HellermannTyton Tagprint Pro software and a standard laser printer.
Specially designed adhesives and materials are used for the LaserTags,
ensuring that the labels will not curl, change color, or jam standard laser
printers.
Page 2
Short Description
Laser Tag Label, Self-Laminating, 1.0" x .5" x 1.33", 56 Per Sheet, PET, White,
2500/pkg
Global Part Name
TAG63L-105-WH
Width W (Imperial)
1.0
Width W (Metric)
25.4
Bundle Diameter Min (Imperial)
0.15
Bundle Diameter Min (Metric)
3.80
Bundle Diameter Max (Imperial)
0.29
Bundle Diameter Max (Metric)
7.60
Thickness T (Metric)
35.0
Width of Liner (Metric)
215.00
Width of Liner (imperial)
8.5
Outside Diameter Max(Imperial)
0.299
Outside Diameter Min (metric)
3.8
Outside Diameter Min(Imperial)
0.15
Outside Diameter Max (metric)
7.60
Page 3
Material
Type 105, Polyester (PET), white (WH)
Material Shortcut
105
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +300°F (-40°C to +149°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
2500
Package Quantity (Metric)
2500
Customs Number
3919905060
Labels per Column
7
Labels per Row
8
Weight (Metric)
0.521
Weight (Imperial)
1.14
