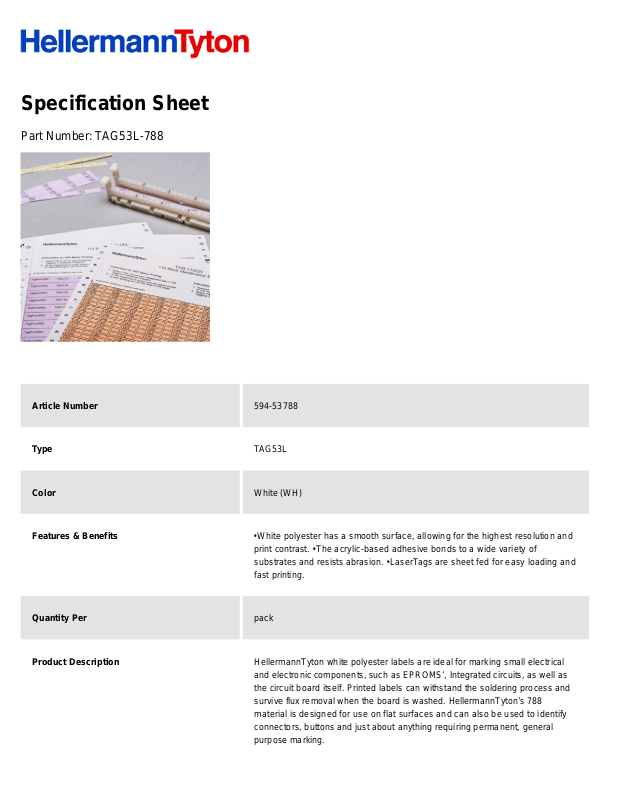

Specification Sheet
Part Number:
TAG53L-788
Article Number
594-53788
Type
TAG53L
Color
White (WH)
Features & Benefits
•
White polyester has a smooth surface, allowing for the highest resolution and
print contrast. •
The acrylic-based adhesive bonds to a wide variety of
substrates and resists abrasion. •
LaserTags are sheet fed for easy loading and
fast printing.
Quantity Per
pack
Product Description
HellermannTyton white polyester labels are ideal for marking small electrical
and electronic components, such as EPROMS’, Integrated circuits, as well as
the circuit board itself. Printed labels can withstand the soldering process and
survive flux removal when the board is washed. HellermannTyton’s 788
material is designed for use on flat surfaces and can also be used to identify
connectors, buttons and just about anything requiring permanent, general
purpose marking.
Short Description
Laser Tag Label, 8.5" x 11", 1 Per Sheet, PET, White, 250/pkg
Global Part Name
TAG53L-788-WH
Width W (Imperial)
8.5
Width W (Metric)
215.9
Bundle Diameter Min (Imperial)
0.24
Bundle Diameter Min (Metric)
6.10
Thickness T (Metric)
64.0
Height H (Imperial)
10.81
Height H (Metric)
274.60
Material
Type 788, Polyester (PET)
Material Shortcut
788
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +199°F (-40°C to +93°C)
Operating Temperature (Metric)
-40°F to +199°F (-40°C to +93°C)
