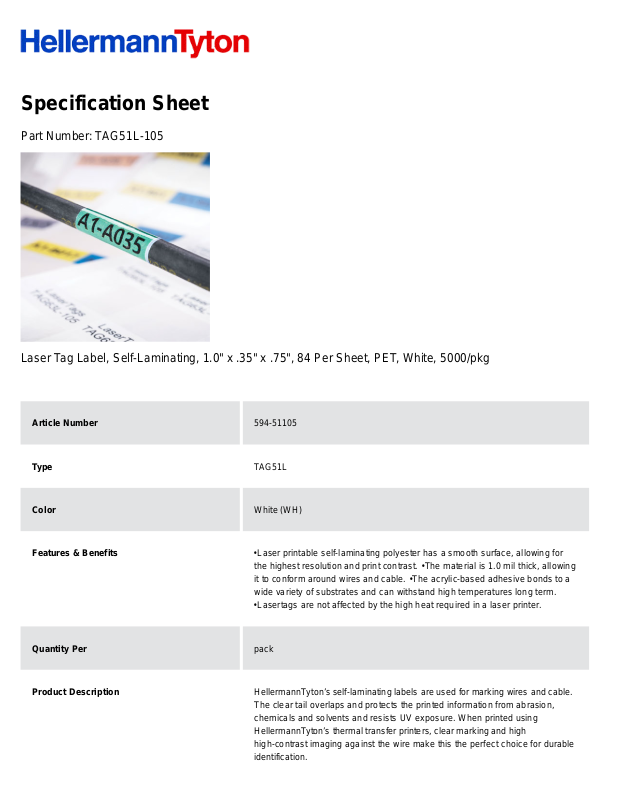

Specification Sheet
Part Number:
TAG51L-105
Laser Tag Label, Self-Laminating, 1.0" x .35" x .75", 84 Per Sheet, PET, White, 5000/pkg
Article Number
594-51105
Type
TAG51L
Color
White (WH)
Features & Benefits
•
Laser printable self-laminating polyester has a smooth surface, allowing for
the highest resolution and print contrast. •
The material is 1.0 mil thick, allowing
it to conform around wires and cable. •
The acrylic-based adhesive bonds to a
wide variety of substrates and can withstand high temperatures long term.
•
Lasertags are not affected by the high heat required in a laser printer.
Quantity Per
pack
Product Description
HellermannTyton’s self-laminating labels are used for marking wires and cable.
The clear tail overlaps and protects the printed information from abrasion,
chemicals and solvents and resists UV exposure. When printed using
HellermannTyton’s thermal transfer printers, clear marking and high
high-contrast imaging against the wire make this the perfect choice for durable
identification.
Short Description
Laser Tag Label, Self-Laminating, 1.0" x .35" x .75", 84 Per Sheet, PET, White,
5000/pkg
Global Part Name
TAG51L-105-WH
Width W (Imperial)
1.0
Width W (Metric)
25.4
Bundle Diameter Min (Imperial)
0.15
Bundle Diameter Min (Metric)
3.80
Bundle Diameter Max (Imperial)
.29
Bundle Diameter Max (Metric)
7.60
Thickness T (Metric)
35.0
Width of Liner (Metric)
215.00
Width of Liner (imperial)
8.5
Outside Diameter Max(Imperial)
0.129
Outside Diameter Min (metric)
1.6
Outside Diameter Min(Imperial)
0.059
Outside Diameter Max (metric)
3.30
