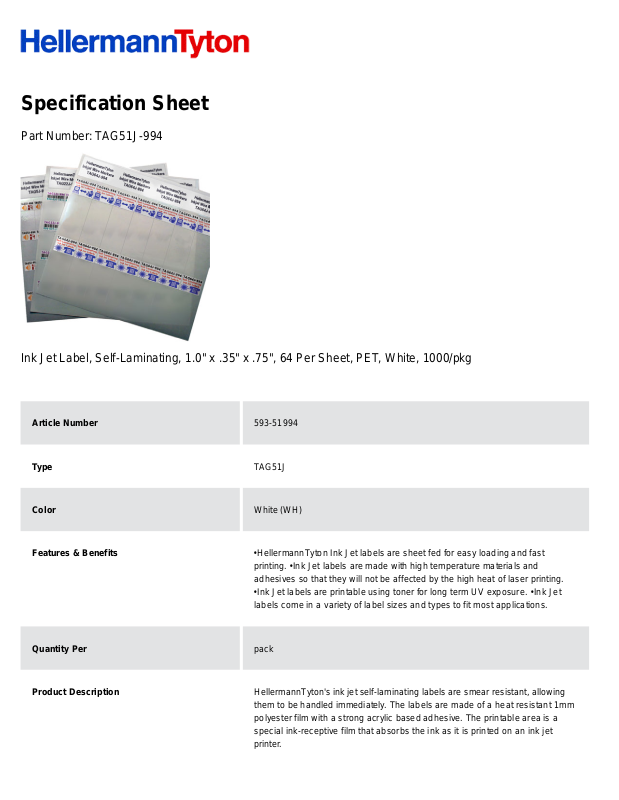

Specification Sheet
Part Number:
TAG51J-994
Ink Jet Label, Self-Laminating, 1.0" x .35" x .75", 64 Per Sheet, PET, White, 1000/pkg
Article Number
593-51994
Type
TAG51J
Color
White (WH)
Features & Benefits
•
HellermannTyton Ink Jet labels are sheet fed for easy loading and fast
printing. •
Ink Jet labels are made with high temperature materials and
adhesives so that they will not be affected by the high heat of laser printing.
•
Ink Jet labels are printable using toner for long term UV exposure. •
Ink Jet
labels come in a variety of label sizes and types to fit most applications.
Quantity Per
pack
Product Description
HellermannTyton's ink jet self-laminating labels are smear resistant, allowing
them to be handled immediately. The labels are made of a heat resistant 1mm
polyester film with a strong acrylic based adhesive. The printable area is a
special ink-receptive film that absorbs the ink as it is printed on an ink jet
printer.
Page 2
Short Description
Ink Jet Label, Self-Laminating, 1.0" x .35" x .75", 64 Per Sheet, PET, White,
1000/pkg
Global Part Name
TAG51J-994-WH
Width W (Imperial)
1.0
Width W (Metric)
25.4
Bundle Diameter Min (Imperial)
0.063
Bundle Diameter Min (Metric)
1.60
Bundle Diameter Max (Imperial)
0.087
Bundle Diameter Max (Metric)
2.20
Thickness T (Metric)
35.0
Width of Liner (Metric)
215.00
Width of Liner (imperial)
8.5
Outside Diameter Max(Imperial)
0.087
Outside Diameter Min (metric)
1.6
Outside Diameter Min(Imperial)
0.059
Outside Diameter Max (metric)
3.30
Page 3
Material
Type 994, Polyetylene Terephthalate (PET)
Material Shortcut
994
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +302°F (-40°C to +150°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3919905060
Labels per Column
8
Labels per Row
8
Weight (Metric)
0.521
Weight (Imperial)
1.14
