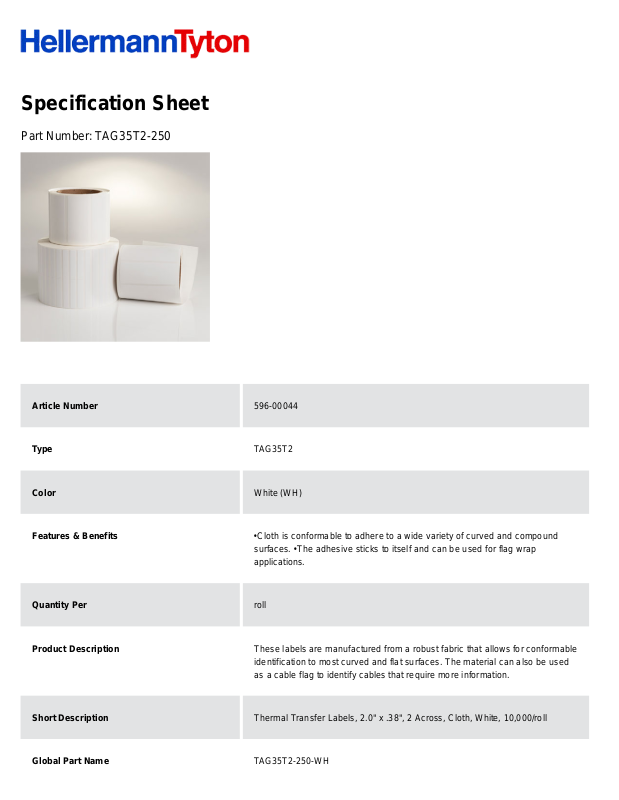

Specification Sheet
Part Number:
TAG35T2-250
Article Number
596-00044
Type
TAG35T2
Color
White (WH)
Features & Benefits
•
Cloth is conformable to adhere to a wide variety of curved and compound
surfaces. •
The adhesive sticks to itself and can be used for flag wrap
applications.
Quantity Per
roll
Product Description
These labels are manufactured from a robust fabric that allows for conformable
identification to most curved and flat surfaces. The material can also be used
as a cable flag to identify cables that require more information.
Short Description
Thermal Transfer Labels, 2.0" x .38", 2 Across, Cloth, White, 10,000/roll
Global Part Name
TAG35T2-250-WH
Width W (Imperial)
2.0
Width W (Metric)
50.8
Thickness T (Metric)
64.0
Height H (Imperial)
0.375
Height H (Metric)
9.53
Width of Liner (Metric)
104.14
Width of Liner (imperial)
4.10
Material
Type 250, Nylon Cloth, white (WH)
Material Shortcut
250
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +248°F (-40°C to +120°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
10000
Package Quantity (Metric)
10000
Customs Number
3919102055
Labels per Column
1
Labels per Row
2
Weight (Metric)
0.68
Weight (Imperial)
1.48
