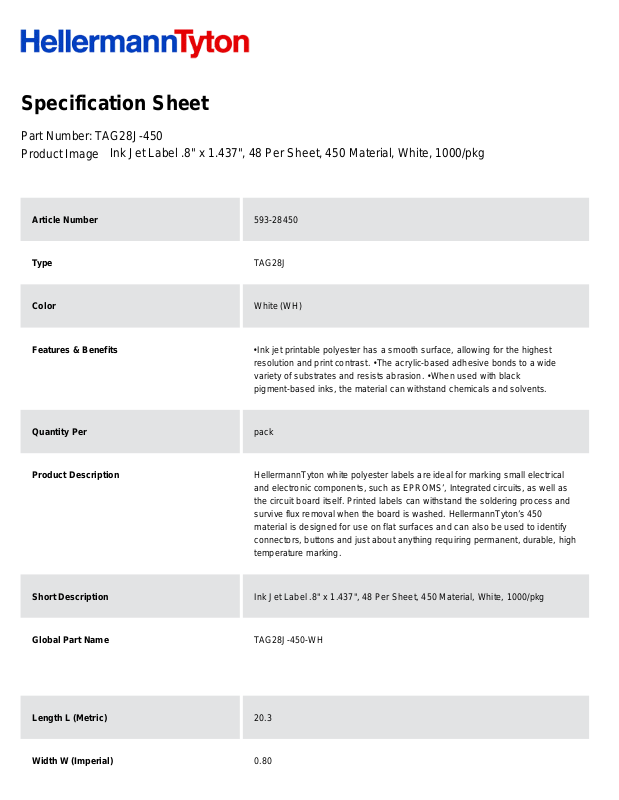

Specification Sheet
Part Number:
TAG28J-450
Product Image
Ink Jet Label .8" x 1.437", 48 Per Sheet, 450 Material, White, 1000/pkg
Article Number
593-28450
Type
TAG28J
Color
White (WH)
Features & Benefits
•
Ink jet printable polyester has a smooth surface, allowing for the highest
resolution and print contrast. •
The acrylic-based adhesive bonds to a wide
variety of substrates and resists abrasion. •
When used with black
pigment-based inks, the material can withstand chemicals and solvents.
Quantity Per
pack
Product Description
HellermannTyton white polyester labels are ideal for marking small electrical
and electronic components, such as EPROMS’, Integrated circuits, as well as
the circuit board itself. Printed labels can withstand the soldering process and
survive flux removal when the board is washed. HellermannTyton’s 450
material is designed for use on flat surfaces and can also be used to identify
connectors, buttons and just about anything requiring permanent, durable, high
temperature marking.
Short Description
Ink Jet Label .8" x 1.437", 48 Per Sheet, 450 Material, White, 1000/pkg
Global Part Name
TAG28J-450-WH
Length L (Metric)
20.3
Width W (Imperial)
0.80
Width W (Metric)
20.3
Thickness T (Metric)
64.0
Height H (Imperial)
1.43
Height H (Metric)
36.49
Material
Type 450, Polyetylene Terephthalate (PET)
Material Shortcut
450
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +302°F (-40°C to +150°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Labels per Column
6
