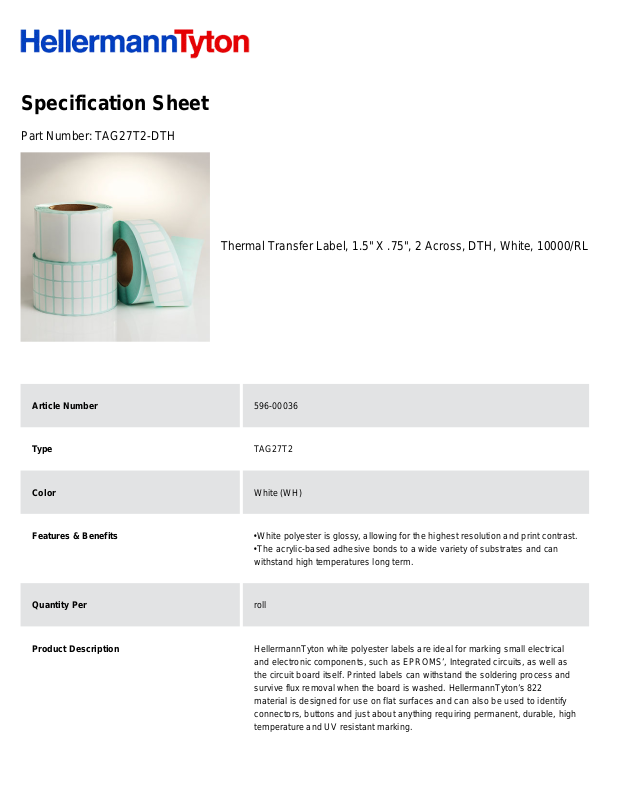

Specification Sheet
Part Number:
TAG27T2-DTH
Thermal Transfer Label, 1.5" X .75", 2 Across, DTH, White, 10000/RL
Article Number
596-00036
Type
TAG27T2
Color
White (WH)
Features & Benefits
•
White polyester is glossy, allowing for the highest resolution and print contrast.
•
The acrylic-based adhesive bonds to a wide variety of substrates and can
withstand high temperatures long term.
Quantity Per
roll
Product Description
HellermannTyton white polyester labels are ideal for marking small electrical
and electronic components, such as EPROMS’, Integrated circuits, as well as
the circuit board itself. Printed labels can withstand the soldering process and
survive flux removal when the board is washed. HellermannTyton’s 822
material is designed for use on flat surfaces and can also be used to identify
connectors, buttons and just about anything requiring permanent, durable, high
temperature and UV resistant marking.
Short Description
Thermal Transfer Label, 1.5" X .75", 2 Across, DTH, White, 10000/RL
Global Part Name
TAG27T2-PO-WH
Width W (Imperial)
1.5
Width W (Metric)
38.11
Thickness T (Metric)
64.0
Height H (Imperial)
0.75
Height H (Metric)
19.05
Width of Liner (Metric)
55.83
Width of Liner (imperial)
2.20
Material
Polyolefin (PO)
Material Shortcut
PO
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +140°F (-40°C to +60°C)
Operating Temperature (Metric)
-40°F to +140°F (-40°C to +60°C)
