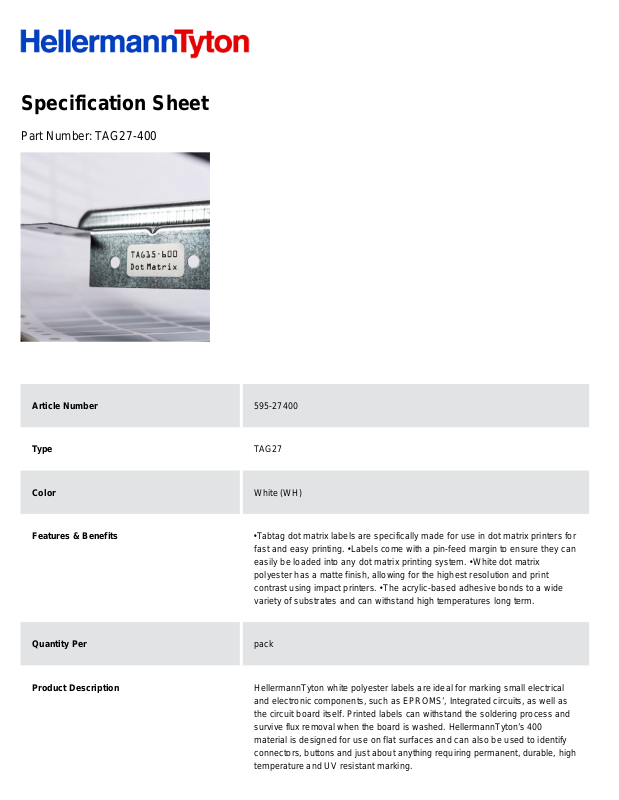

Specification Sheet
Part Number:
TAG27-400
Article Number
595-27400
Type
TAG27
Color
White (WH)
Features & Benefits
•
Tabtag dot matrix labels are specifically made for use in dot matrix printers for
fast and easy printing. •
Labels come with a pin-feed margin to ensure they can
easily be loaded into any dot matrix printing system. •
White dot matrix
polyester has a matte finish, allowing for the highest resolution and print
contrast using impact printers. •
The acrylic-based adhesive bonds to a wide
variety of substrates and can withstand high temperatures long term.
Quantity Per
pack
Product Description
HellermannTyton white polyester labels are ideal for marking small electrical
and electronic components, such as EPROMS’, Integrated circuits, as well as
the circuit board itself. Printed labels can withstand the soldering process and
survive flux removal when the board is washed. HellermannTyton’s 400
material is designed for use on flat surfaces and can also be used to identify
connectors, buttons and just about anything requiring permanent, durable, high
temperature and UV resistant marking.
Short Description
Dot Matrix Label, 0.75" x 1.5", 4 Across, Polyester, Silver, 5000/pkg
Global Part Name
TAG27-400-WH
Width W (Imperial)
0.75
Width W (Metric)
19.05
Bundle Diameter Min (Imperial)
.24
Bundle Diameter Min (Metric)
6.10
Thickness T (Metric)
25.0
Height H (Imperial)
1.5
Height H (Metric)
38.1
Width of Liner (Metric)
193.70
Width of Liner (imperial)
7.625
Material
Type 400, Polyester, white (WH)
Material Shortcut
400
Adhesive
Acrylic
Halogen free
No
