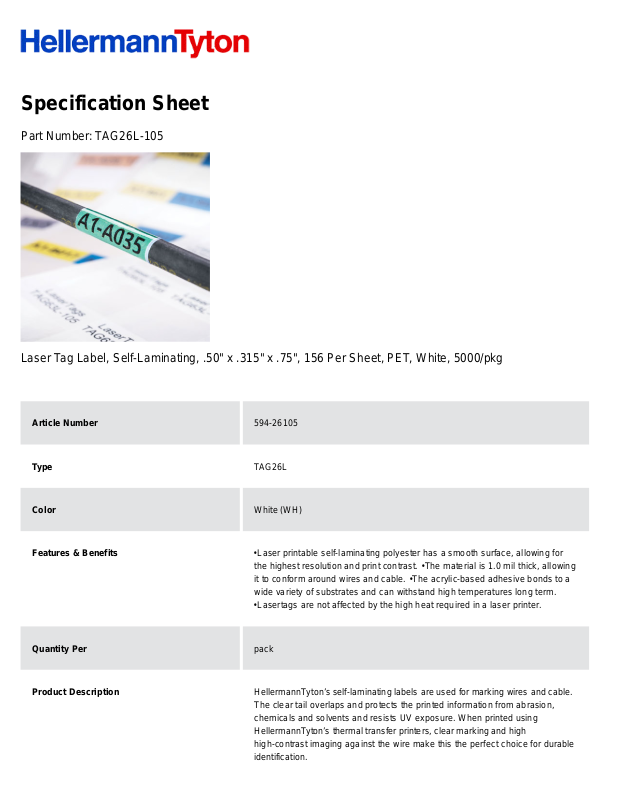

HellermannTyton TAG26L-105 Specification Sheet

Specification Sheet
Part Number:
TAG26L-105
Laser Tag Label, Self-Laminating, .50" x .315" x .75", 156 Per Sheet, PET, White, 5000/pkg
594-26105
Type
TAG26L
Color
White (WH)
Features & Benefits
Laser printable self-laminating polyester has a smooth surface, allowing for
the highest resolution and print contrast. •
The material is 1.0 mil thick, allowing
it to conform around wires and cable. •
The acrylic-based adhesive bonds to a
wide variety of substrates and can withstand high temperatures long term.
Lasertags are not affected by the high heat required in a laser printer.
Quantity Per
pack
Product Description
HellermannTyton’s self-laminating labels are used for marking wires and cable.
The clear tail overlaps and protects the printed information from abrasion,
chemicals and solvents and resists UV exposure. When printed using
HellermannTyton’s thermal transfer printers, clear marking and high
high-contrast imaging against the wire make this the perfect choice for durable
identification.
Short Description
Laser Tag Label, Self-Laminating, .50" x .315" x .75", 156 Per Sheet, PET,
White, 5000/pkg
Global Part Name
TAG26L-105-WH
Width W (Imperial)
0.5
Width W (Metric)
12.7
Bundle Diameter Min (Imperial)
0.39
Bundle Diameter Min (Metric)
1.10
Bundle Diameter Max (Imperial)
.79
Bundle Diameter Max (Metric)
20.20
Thickness T (Metric)
35.0
Width of Liner (Metric)
215.00
Width of Liner (imperial)
8.5
Outside Diameter Max(Imperial)
0.118
Outside Diameter Min (metric)
1.5
Outside Diameter Min(Imperial)
0.059
Outside Diameter Max (metric)
3.00
Material
Type 105, Polyester (PET), white (WH)
Material Shortcut
105
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +300°F (-40°C to +149°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
5000
Package Quantity (Metric)
5000
Customs Number
3919905060
Labels per Column
16
Labels per Row
16
Weight (Metric)
0.521
Weight (Imperial)
1.14
