Part
Revision level
Drawing
Revision Record
Changed
Date
Approved
Date
17.3
21.2
t
t
±1
±1
02
1111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111•
FOR THREADED
M5 or M6 WELD STUD
5
±0.2
See ECN 012578
167
±5
1.36
±0.2
AAC
02/06/14
KAC
02/06/14
SEE CHART
Material
Dimension tolerances
unless otherwise specified
.XXXX =
.XXX =
.XX =
.X =
=
Dimension Units
PERFORMANCE
SPECIFICATION
.013
.13
.3
.8
0.5
millimeters
SW2011
ALL PROPRIETARY RIGHTS IN THE
SUBJECT MATTER SHOWN ON THIS
DRAWING ARE EXCLUSIVE
PROPERTY OF HELLERMANNTYTON
Drawn
Approved
AAC
KAC
10/04/2010
02/06/14
HellermannTyton
Cable Management Products
TYPE
T50SOSSB5-HIGH-E-C-CC
Scale
Title
T50SOSSB5-HIGH-E-C-CC
R
0

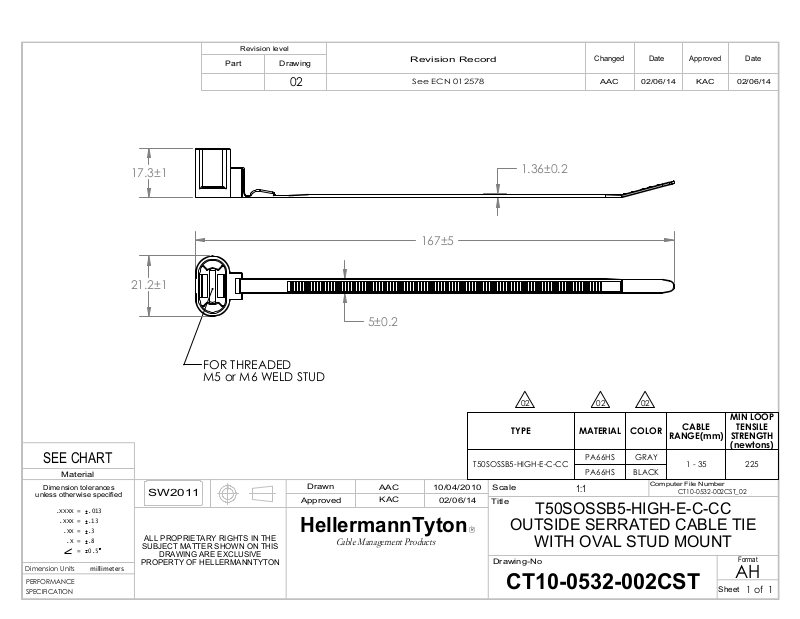

OUTSIDE SERRATED CABLE TIE
WITH OVAL STUD MOUNT
Drawing-No
CT10-0532-002CST
0202 02
MATERIAL
PA66HS
PA66HS
1:1
COLOR
GRAY
BLACK
Computer File Number
CABLE
RANGE(mm)
1 - 35
CT10-0532-002CST_02
Sheet
MIN LOOP
TENSILE
STRENGTH
(newtons)
225
Format
AH
1 of 1
