CATIA V5
Revision Level
Drawing Part
03.1 Design Release
4.70
State
±0.20
-
Revision Record Changed Date Approved Date
SEE ECN#
014539
CTF 07/25/2018 TAT 07/25/2018
±5.0

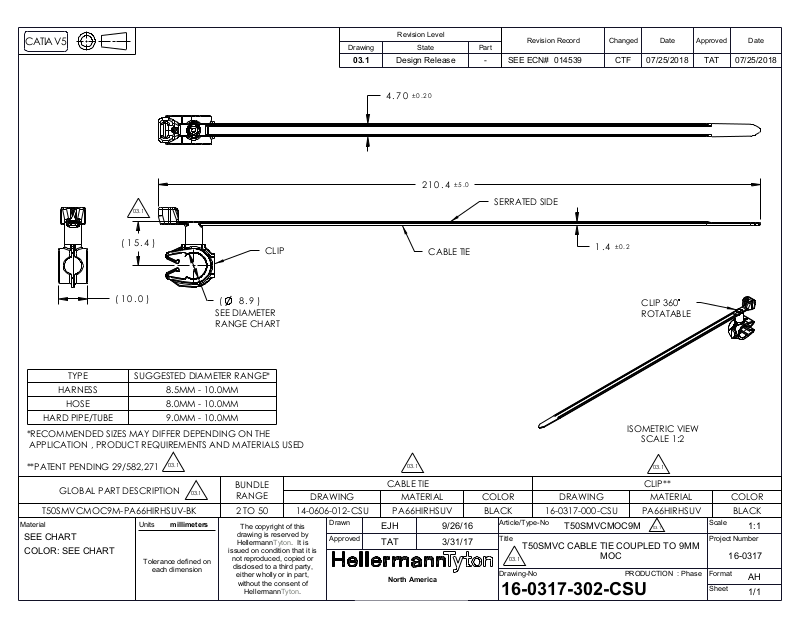

CABLE TIE
SERRATED SIDE
1.4
±0.2
CLIP 360
ROTATABLE
1..
..1
03.1
15.4( )
10.0( )
210.4
CLIP
8.9( )
SEE DIAMETER
RANGE CHART
TYPE SUGGESTED DIAMETER RANGE*
HARNESS 8.5MM - 10.0MM
HOSE 8.0MM - 10.0MM
HARD PIPE/TUBE 9.0MM - 10.0MM
*RECOMMENDED SIZES MAY DIFFER DEPENDING ON THE
APPLICATION , PRODUCT REQUIREMENTS AND MATERIALS USED
**PATENT PENDING 29/582,271
GLOBAL PART DESCRIPTION
03.1
03.1
BUNDLE
RANGE
03.1
CABLE TIE CLIP**
DRAWING MATERIAL COLOR DRAWING MATERIAL COLOR
ISOMETRIC VIEW
SCALE 1:2
03.1
T50SMVCMOC9M-PA66HIRHSUV-BK 2 TO 50 14-0606-012-CSU PA66HIRHSUV BLACK 16-0317-000-CSU PA66HIRHSUV BLACK
Material Units millimeters
SEE CHART
COLOR:
SEE CHART
Tolerance defined on
each dimension
The copyright of this
drawing is reserved by
HellermannTyton. It is
issued on condition that it is
not reproduced, copied or
disclosed to a third party,
either wholly or in part,
without the consent of
HellermannTyton.
Drawn
Approved Title
EJH 9/26/16
TAT 3/31/17
Hellermanniijf[too
North America
Article/Type-No Scale
T50SMVCMOC9M
03.1
Project Number
T50SMVC CABLE TIE COUPLED TO 9MM
03.1
_6
_________
Drawing-No
16-0317-302-CSU
MOC
PRODUCTION
: Phase
Format
Sheet
1:1
16-0317
AH
1
/
-----1
1
