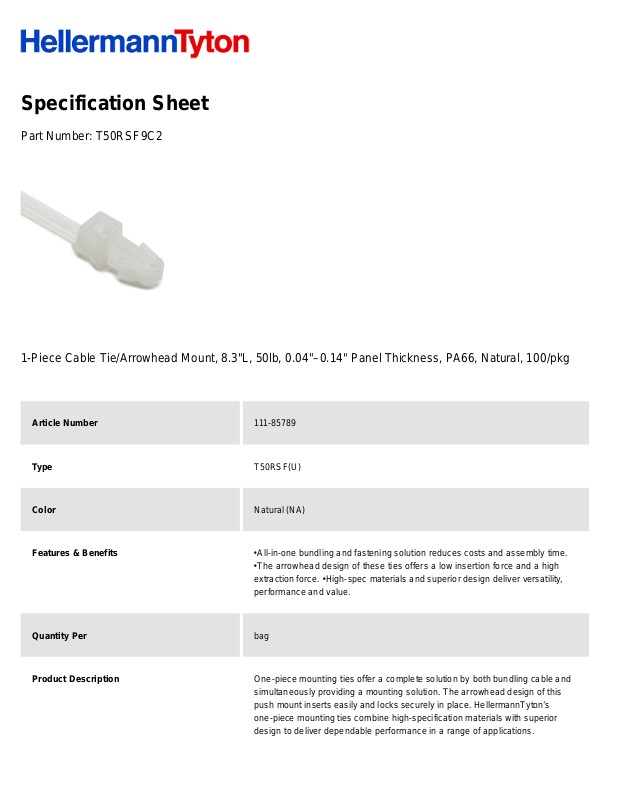

Page 1
Specification Sheet
Part Number:
T50RSF9C2
1-Piece Cable Tie/Arrowhead Mount, 8.3"L, 50lb, 0.04"–0.14" Panel Thickness, PA66, Natural, 100/pkg
Article Number
111-85789
Type
T50RSF(U)
Color
Natural (NA)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
The arrowhead design of these ties offers a low insertion force and a high
extraction force. •
High-spec materials and superior design deliver versatility,
performance and value.
Quantity Per
bag
Product Description
One-piece mounting ties offer a complete solution by both bundling cable and
simultaneously providing a mounting solution. The arrowhead design of this
push mount inserts easily and locks securely in place. HellermannTyton’s
one-piece mounting ties combine high-specification materials with superior
design to deliver dependable performance in a range of applications.
Page 2
Short Description
1-Piece Cable Tie/Arrowhead Mount, 8.3"L, 50lb, 0.04"–0.14" Panel Thickness,
PA66, Natural, 100/pkg
Global Part Name
T50RSF(U)-PA66-NA
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.3
Length L (Metric)
210.82
Fixation Method
Arrowhead
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.19
Width W (Metric)
4.7
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.7
Page 3
Bundle Diameter Max (Metric)
44.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.2
Height H (Imperial)
.30
Height H (Metric)
7.50
Panel Thickness Min(Imperial)
0.039
Panel Thickness Max(Imperial)
0.14
Panel Thickness Min (Metric)
1.0
Panel Thickness Max (Metric)
3.56
Mounting Hole Diameter D (Imperial)
0.25 - 0.28
Mounting Hole Diameter D (Metric)
6.4 - 7.1 mm
Mounting Hole Diameter D Min (Imperial)
0.25
Mounting Hole Diameter D Max (Imperial)
0.28
Mounting Hole Diameter D Max (Metric)
7.1
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Page 4
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
1.5
