Page 1
CATIA V5
Revision Level
Drawing Part
01.1
State
A
Revision Record Changed Date Approved Date
SEE ECN# CJR SJA
013217
08/05/15 08/05/15Design Release
12.85( )
13.25( )
12.50( )
7.37( )
REFERENCE:
PERFORMANCE REQUIREMENTS AT DRY AS MOLDED:
1. FIR TREE PUSH IN FORCE: 45 NEWTONS (10 LBS) MAX
IN EACH APPLICABLE OVAL HOLE SIZE AND A PLATE
THICKNESS OF 1.8mm.
2. FIR TREE PULL OUT FORCE: 110 NEWTONS (25 LBS) MIN
IN EACH APPLICABLE OVAL HOLE SIZE AND A PLATE
THICKNESS OF 1.8mm.
3. SHEET METAL THICKNESS RANGE: 0.60mm - 6.75mm
4. APPLICABLE OVAL HOLE SIZES:
A. 6.2 X 12.2mm
B. 6.5 X 12.5mm
C. 6.5 X 13.0mm
D. 7.0 X 12.0mm
5. CABLE TIE TENSILE STRENGTH: 220 NEWTONS (50 LBS)
6. BUNDLE RANGE: 2.0mm TO 50mm
Material Units millimeters
PA66HIRHS
COLOR: BLACK
Tolerance defined on
each dimension
The copyright of this
drawing is reserved by
HellermannTyton. It is
issued on condition that it is
not reproduced, copied or
disclosed to a third party,
either wholly or in part,
without the consent of
HellermannTyton.
231.3
5.1( )
±6.0
1.5( )
SERRATED SIDE
Drawn
Approved Title
CJR 04/23/14
SJA 04/23/14
Hellermanniijf[too
North America
Article/Type-No Scale
Drawing-No
13-0226-021-CSU
17.63
23.63
±1.00
±1.00
T50ROSFTOVAL12.5SO

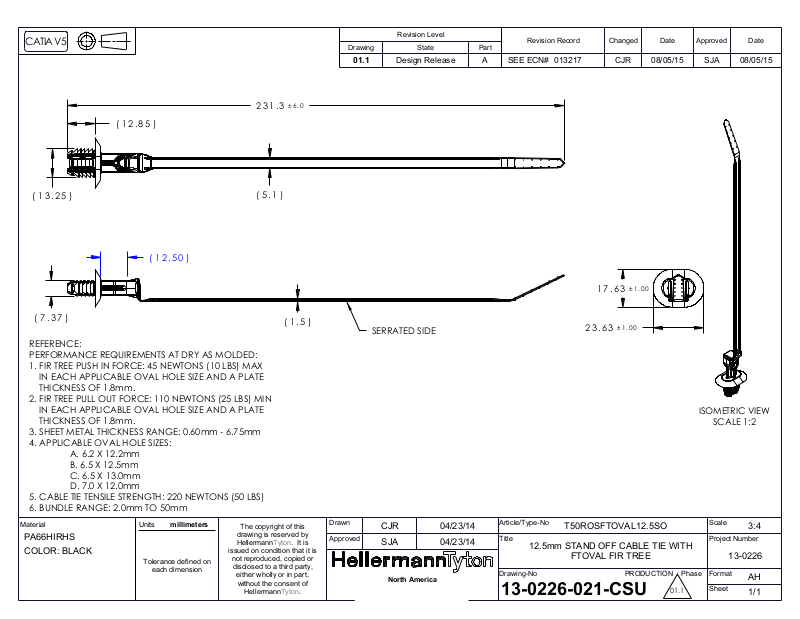

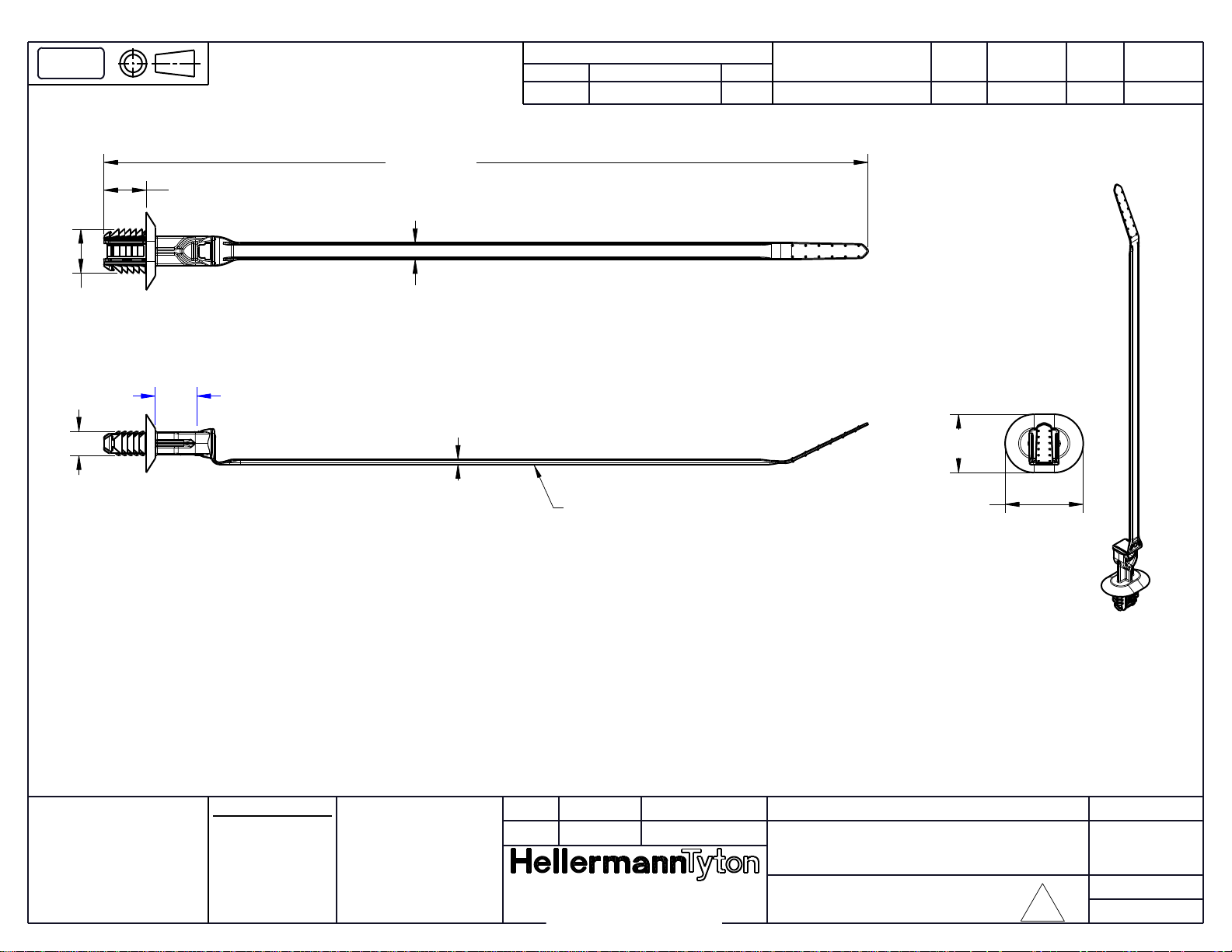

12.5mm STAND OFF CABLE TIE WITH
FTOVAL FIR TREE
PRODUCTION
: Phase
01.1
ISOMETRIC VIEW
SCALE 1:2
3:4
Project Number
13-0226
Format
Sheet
AH
1/1
