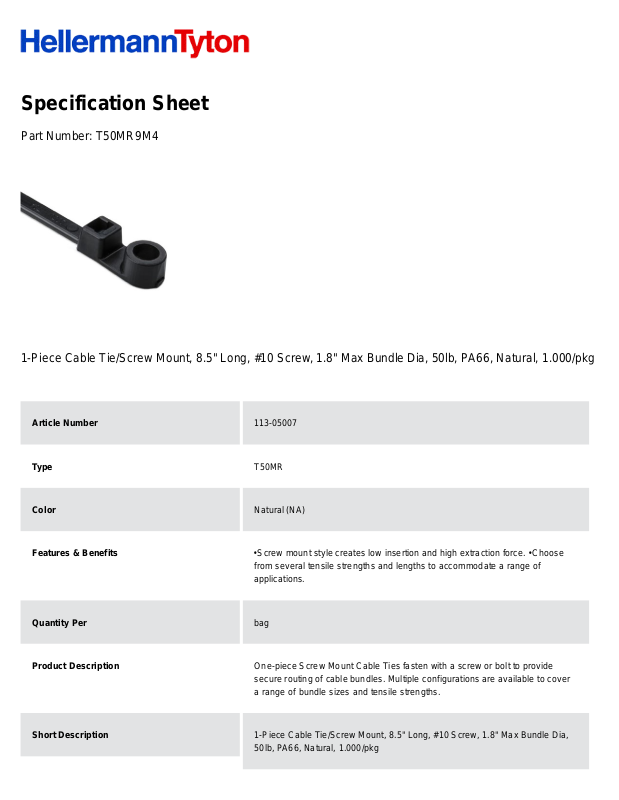

Specification Sheet
Part Number:
T50MR9M4
1-Piece Cable Tie/Screw Mount, 8.5" Long, #10 Screw, 1.8" Max Bundle Dia, 50lb, PA66, Natural, 1.000/pkg
Article Number
113-05007
Type
T50MR
Color
Natural (NA)
Features & Benefits
•
Screw mount style creates low insertion and high extraction force. •
Choose
from several tensile strengths and lengths to accommodate a range of
applications.
Quantity Per
bag
Product Description
One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide
secure routing of cable bundles. Multiple configurations are available to cover
a range of bundle sizes and tensile strengths.
Short Description
1-Piece Cable Tie/Screw Mount, 8.5" Long, #10 Screw, 1.8" Max Bundle Dia,
50lb, PA66, Natural, 1.000/pkg
Global Part Name
T50MR-PA66-NA
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.5
Length L (Metric)
215.9
Fixation Method
Fixing hole
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.7
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.8
Bundle Diameter Max (Metric)
45.0
Thickness T (Imperial)
0.05
