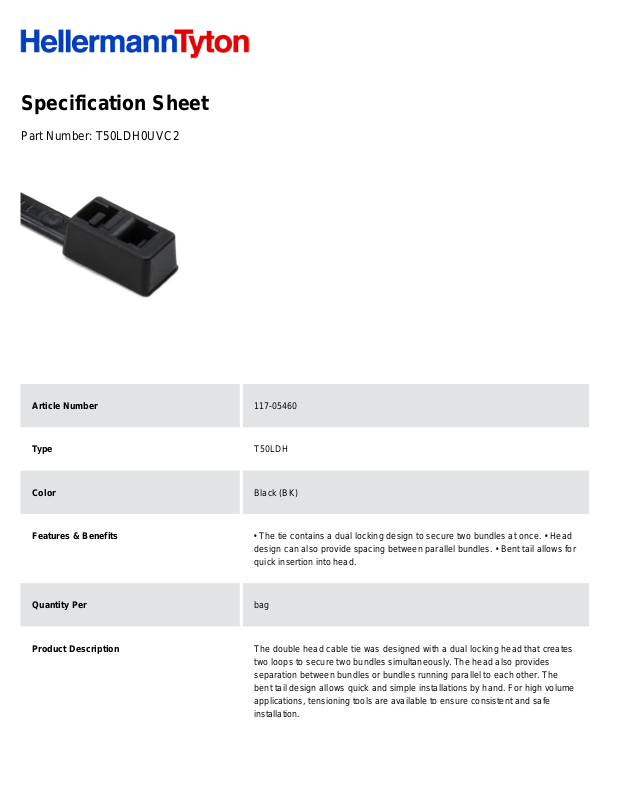

Specification Sheet
Part Number:
T50LDH0UVC2
Article Number
117-05460
Type
T50LDH
Color
Black (BK)
Features & Benefits
• The tie contains a dual locking design to secure two bundles at once. • Head
design can also provide spacing between parallel bundles. • Bent tail allows for
quick insertion into head.
Quantity Per
bag
Product Description
The double head cable tie was designed with a dual locking head that creates
two loops to secure two bundles simultaneously. The head also provides
separation between bundles or bundles running parallel to each other. The
bent tail design allows quick and simple installations by hand. For high volume
applications, tensioning tools are available to ensure consistent and safe
installation.
Short Description
Double-Head Cable Tie, 15.6" Long, 50lb Tensile Strength, PA66UV, Black,
100/pkg
Global Part Name
T50LDH-PA66UV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
15.6
Length L (Metric)
395.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.19
Width W (Metric)
4.7
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
100.0
Bundle Diameter 1st Loop Max (Imperial)
4.0
Bundle Diameter 1st Loop Max (Metric)
101.6
Bundle Diameter 2nd Loop Max (Imperial)
2.0
Bundle Diameter 2nd Loop Max (Metric)
50.8
Thickness T (Imperial)
0.055
Thickness T (Metric)
1.4
Cable Tie Head Length (Imperial)
0.53
Cable Tie Head Width (Imperial)
0.32
Material
Polyamide 6.6 UV-resistant (PA66UV)
Material Shortcut
PA66UV
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
2.8
