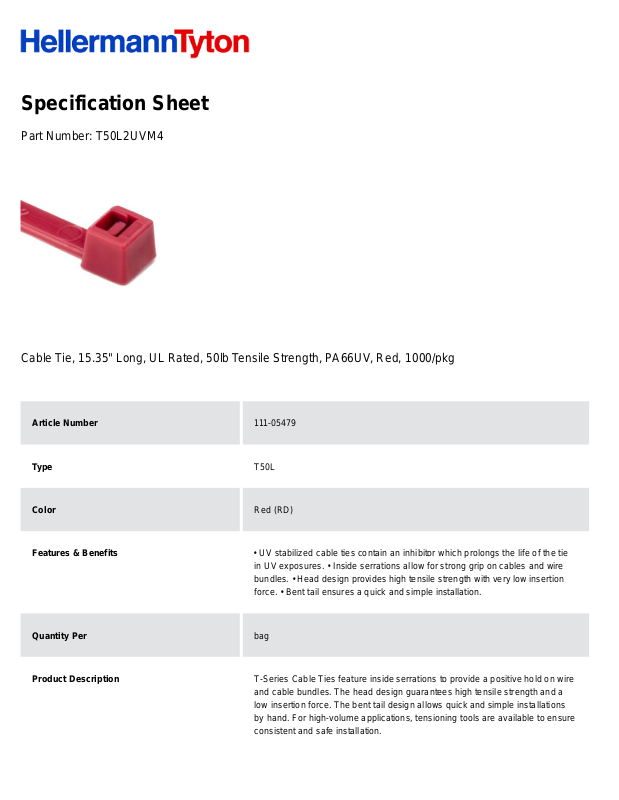

Specification Sheet
Part Number:
T50L2UVM4
Cable Tie, 15.35" Long, UL Rated, 50lb Tensile Strength, PA66UV, Red, 1000/pkg
Article Number
111-05479
Type
T50L
Color
Red (RD)
Features & Benefits
• UV stabilized cable ties contain an inhibitor which prolongs the life of the tie
in UV exposures. • Inside serrations allow for strong grip on cables and wire
bundles. • Head design provides high tensile strength with very low insertion
force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
T-Series Cable Ties feature inside serrations to provide a positive hold on wire
and cable bundles. The head design guarantees high tensile strength and a
low insertion force. The bent tail design allows quick and simple installations
by hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Short Description
Cable Tie, 15.35" Long, UL Rated, 50lb Tensile Strength, PA66UV, Red,
1000/pkg
Global Part Name
T50L-PA66UV-RD
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
15.35
Length L (Metric)
389.89
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.19
Width W (Metric)
4.8
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
4.3
Bundle Diameter Max (Metric)
109.2
Thickness T (Metric)
1.4
Material
Polyamide 6.6 UV-resistant (PA66UV)
Material Shortcut
PA66UV
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
Weight (Metric)
0.0024
Weight (Imperial)
0.0054
