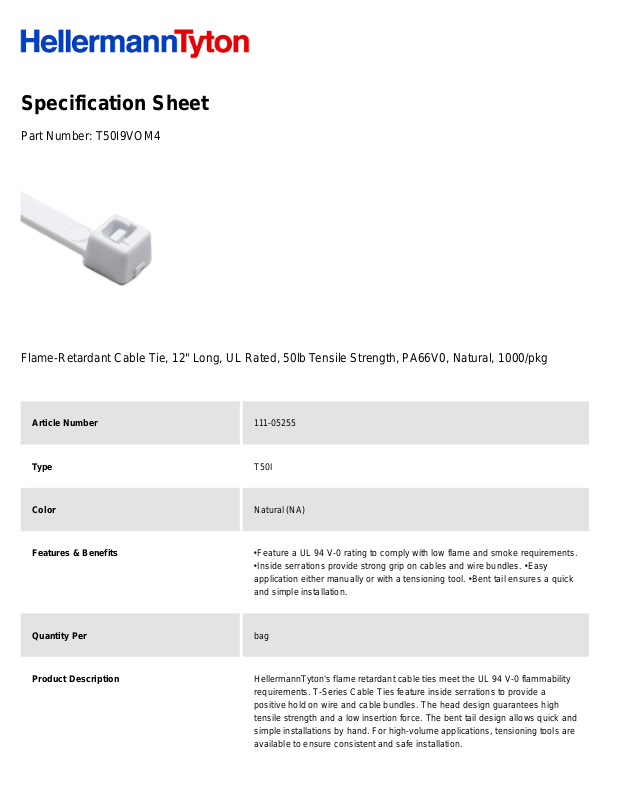

Specification Sheet
Part Number:
T50I9VOM4
Flame-Retardant Cable Tie, 12" Long, UL Rated, 50lb Tensile Strength, PA66V0, Natural, 1000/pkg
Article Number
111-05255
Type
T50I
Color
Natural (NA)
Features & Benefits
•
Feature a UL 94 V-0 rating to comply with low flame and smoke requirements.
•
Inside serrations provide strong grip on cables and wire bundles. •
Easy
application either manually or with a tensioning tool. •
Bent tail ensures a quick
and simple installation.
Quantity Per
bag
Product Description
HellermannTyton's flame retardant cable ties meet the UL 94 V-0 flammability
requirements. T-Series Cable Ties feature inside serrations to provide a
positive hold on wire and cable bundles. The head design guarantees high
tensile strength and a low insertion force. The bent tail design allows quick and
simple installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Flame-Retardant Cable Tie, 12" Long, UL Rated, 50lb Tensile Strength,
PA66V0, Natural, 1000/pkg
Global Part Name
T50I-PA66V0-NA
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
12.0
Length L (Metric)
305.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.12
Bundle Diameter Min (Metric)
3.0
Bundle Diameter Max (Imperial)
3.2
Bundle Diameter Max (Metric)
81.3
Thickness T (Metric)
1.2
Material
Polyamide 6.6 V0 (PA66V0)
Material Shortcut
PA66V0
Flammability
UL 94 V0
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
