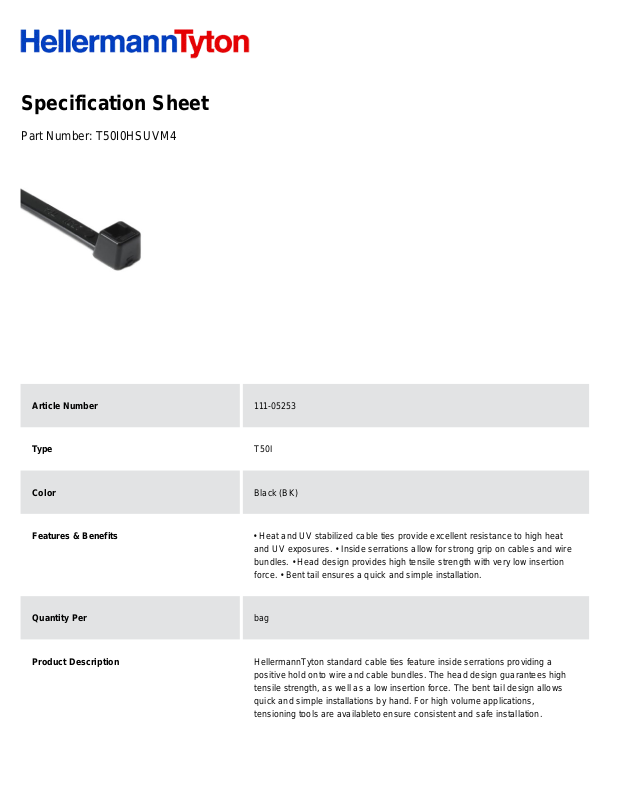

Specification Sheet
Part Number:
T50I0HSUVM4
Article Number
111-05253
Type
T50I
Color
Black (BK)
Features & Benefits
• Heat and UV stabilized cable ties provide excellent resistance to high heat
and UV exposures. • Inside serrations allow for strong grip on cables and wire
bundles. • Head design provides high tensile strength with very low insertion
force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
HellermannTyton standard cable ties feature inside serrations providing a
positive hold onto wire and cable bundles. The head design guarantees high
tensile strength, as well as a low insertion force. The bent tail design allows
quick and simple installations by hand. For high volume applications,
tensioning tools are availableto ensure consistent and safe installation.
Short Description
High-Temp Cable Tie, 12" Long, UL Rated, 50lb Tensile Strength, PA66HSUV,
Black, 1000/pkg
Global Part Name
T50I-PA66HSUV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
12.0
Length L (Metric)
305.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
3.2
Bundle Diameter Max (Metric)
81.3
Thickness T (Metric)
1.2
Material
Polyamide 6.6 heat and UV stabilized (PA66HSUV)
Material Shortcut
PA66HSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
